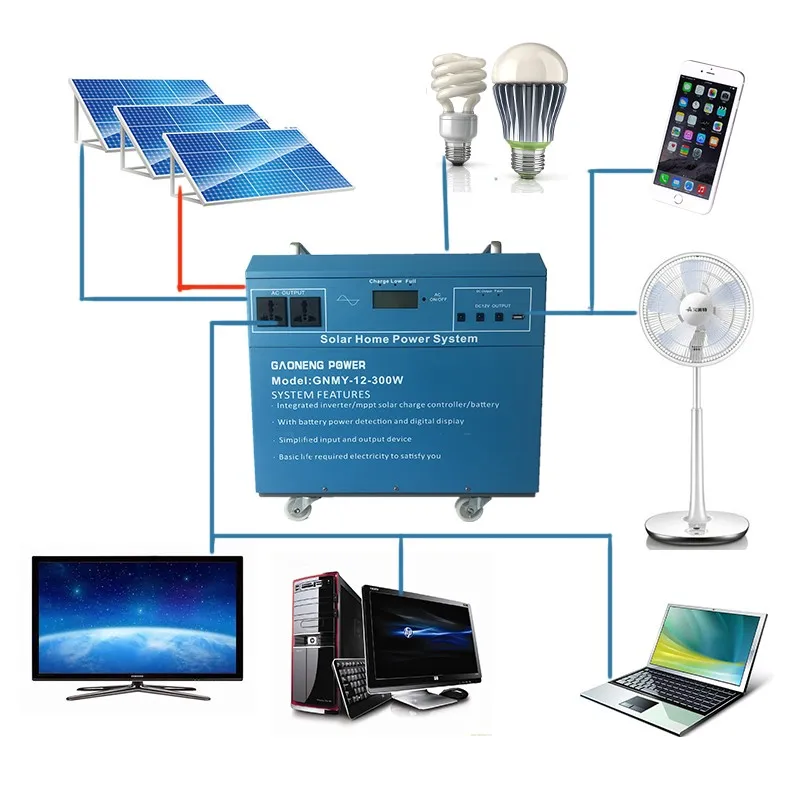

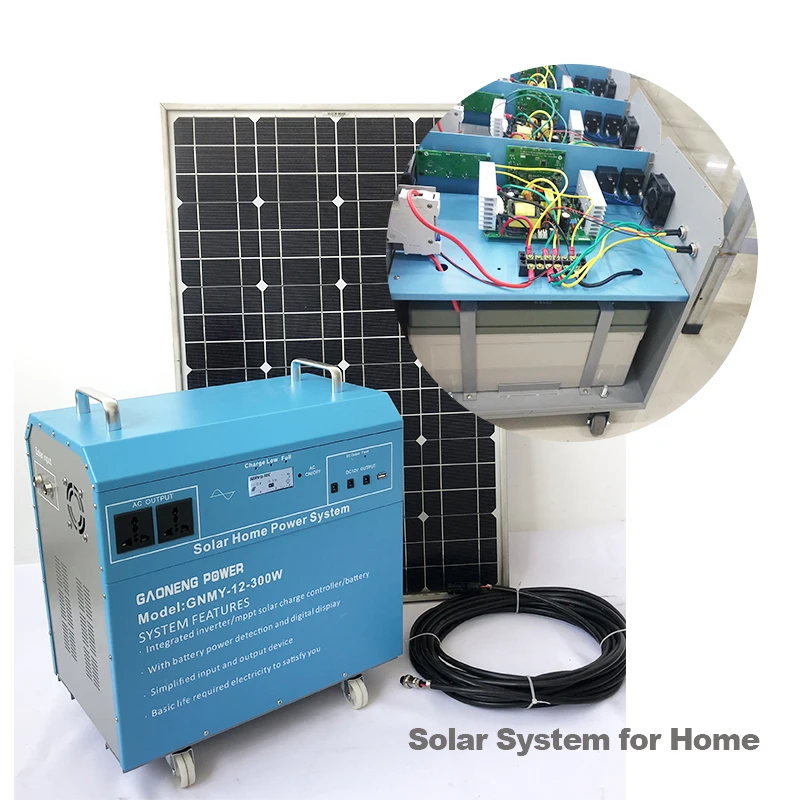

12V dc 240V AC solar system for home fan tv lights with battery

LCD display:

Input- Solar panel voltage, current

Battery-Battery voltage, charge current, battery capacity

Output: Load voltage, current, frequency;

Faults: over load, short circuit

LED display:

Charge status: charging-full charged, working, low voltage

over charge, over discharge

over load, short circuit

solar panel reversed connection

battery reversed connection

All electrical protection, no fuse damage

Automatically switch to city grid power supply:

when there is no solar power input, the system will use city grid power when battery voltage is low;

AC charge:

When battery voltage is low, and no solar input, the system will automatically switch to city grid to charge battery.

5W-10W solar kit (PWM)

5W/10W solar panel with charge cables

4.4ah 3.7v Lithium battery;

5ah 3.7V Lithium battery;

AC charge adapter

3 DC outputs: 3.7V/2A

1 USB charge port: 3.7v/1A

Aviation solar input sockets;

Size: 250*220*100mm

310*310*100mm

Weight: 1.4kg-2kg

Protection function:

Portable solar kits:

12AH-24Ah

40AH-50AH

MPPT /PWM solar controller 12V-10A/15A

LCD display

3 DC outputs: 12V/10A

2 USB charge ports: 5V/3A

Aviation solar input sockets;

Size: 250*206*200mm

Weight: 3.5kg (without battery)

Suggest Panels: 50W-100W

Suggest Battery: 40Ah-50ah gel battery;

Lithium battery: 20AH-60AH.

Protection function:

Inverter with controller 100w-1Kw

MPPT solar controller 12V-15A/30A

Pure sine wave inverter: 300W

1 AC outputs: 220V/230V/50hz/60Hz

Aviation solar input sockets;

Size: 296*144*75mm

Weight: 2kg (without battery)

 LCD display: Solar panel voltage & current, battery capacity/ voltage/current, load current/voltage

LED display: Charge status, battery status, faults.

Protection function:

Over voltage; low voltage, over charge, over discharge, over load, short circuit, battery reversed connection; solar panel reversed protection

 Suggest Panels: 300W(Max)

Suggest Battery: 100ah- 150ah 12V gel battery
