AP YV1301 3 static electrostatic field eliminator discharge charge tester

Share on (60820740608):


Price:$413.00 - $463.00

Quantity:


Product Overview

Description

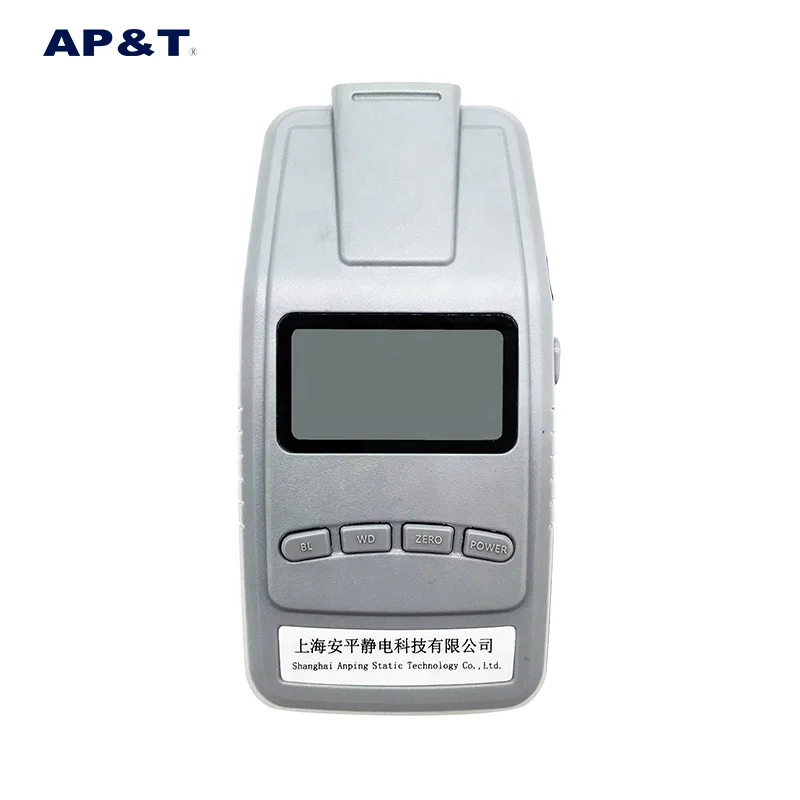

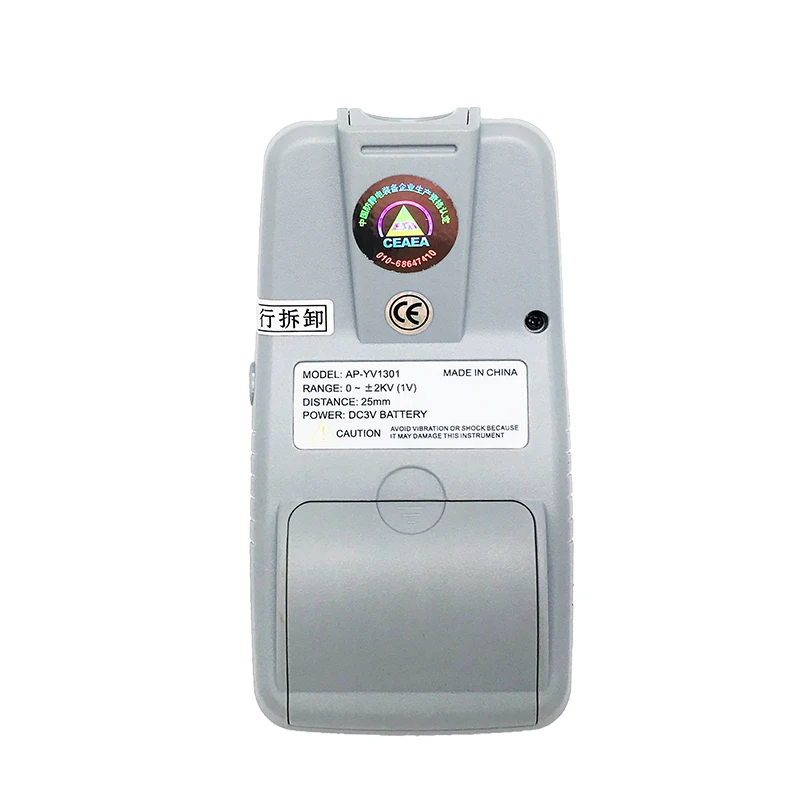

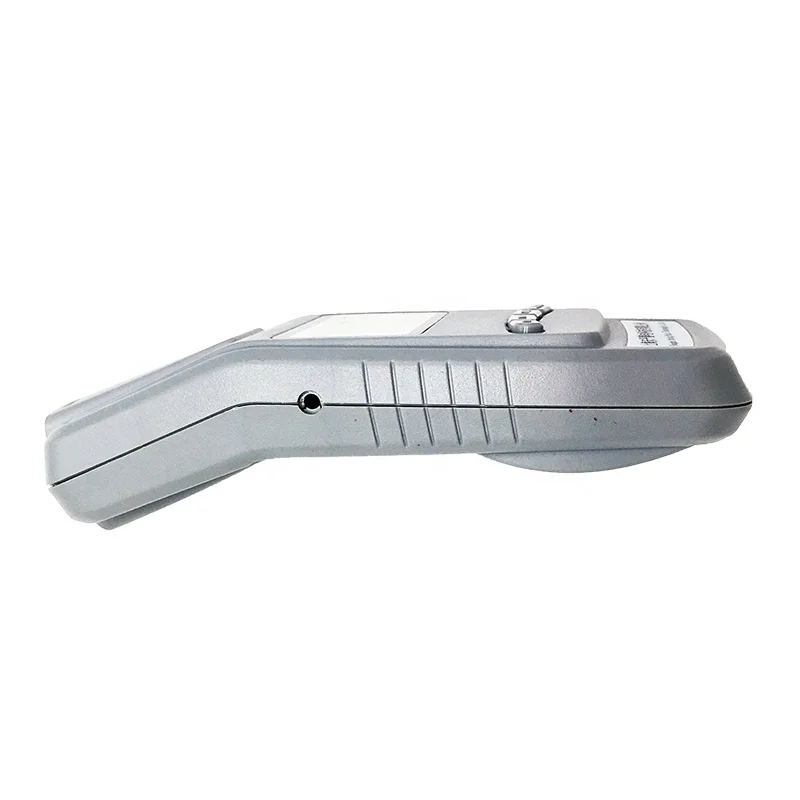

AP-YV1301-3 static electrostatic field eliminator discharge charge tester





Product Description

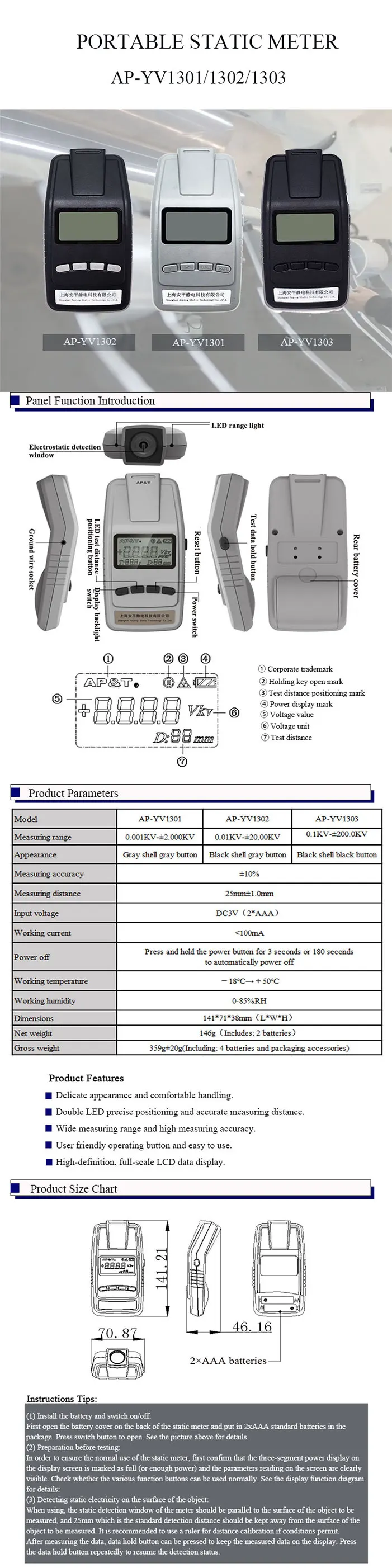

AP-YV1301-1302-1303


Product Overview


AP-YV1301/1302/1303 static meter is a measuring instrument developed by Shanghai Anping Static Technology Co., Ltd to detect the electrostatic voltage on the surface of electrostatic objects. It uses non-contact measurement technology to induce the electrostatic field of the surface of the object. With high accuracy of measurement, it can be widely used in many industries where static voltage need to be measured.





Product features


1. Delicate appearance and comfortable handling.


2. Double LED precise positioning and accurate measuring distance.


3. Wide measuring range and high measuring accuracy.


4. User friendly operating button and easy to use.


5. High-definition, full-scale LCD data display.





Specification:

































































Model



AP-YV1301



AP-YV1302



AP-YV1303



Measuring range



0.001KV-±2.000KV



0.01KV-±20.00KV



0.1KV-±200.0KV



Appearance



Gray shell gray button



Black shell gray button



Black shell black button



Measuring accuracy



±10%



Measuring distance



25mm±1.0mm



Input voltage



DC3V(2*AAA)



Working current



<100mA



Power off



Press and hold the power button for 3 seconds or 180 seconds to automatically power off



Working temperature



-18℃→+50℃



Working humidity



0-85%RH



Dimensions



141*71*38mm(L*W*H)



Net weight



146g(Includes: 2 batteries)



Gross weight



359g±20g(Including: 4 batteries and packaging accessories)




Maintenance:


1. Please store the equipment in a dark place when not in use in order to ensure the performance of the product.


2. Please replace battery when display is low in order to ensure the accuracy of the test data.


3. The equipment is a precision detector and should not be strongly shaken during use.





After-sale service


1. The electrostatic voltage test form undergoes rigorous testing and aging treatment before leaving the factory. The performance fully meets the standards written in the user manual.


2. Warranty: Within one year from the date of purchase, the company may replace any parts that have been inspected by the company. However, this warranty does not apply to the following:


(1) The device was used incorrectly;


(2) Inadvertent or accidental damage during use;


(3) Self-modification, disassembly, or repair by other service departments not authorized by Shanghai Anping.


3. AP&T does not assume any obligations related to this and the related responsibilities of product users, except for repair or replacement of parts within this regulation.


Packaging accessories


1. Warranty card × 1


2. Manual × 1


3. Certificate of conformity × 1





Industry Application
