GCD5-100 five torch straight gas cutting machine
US $150.00-$200.00

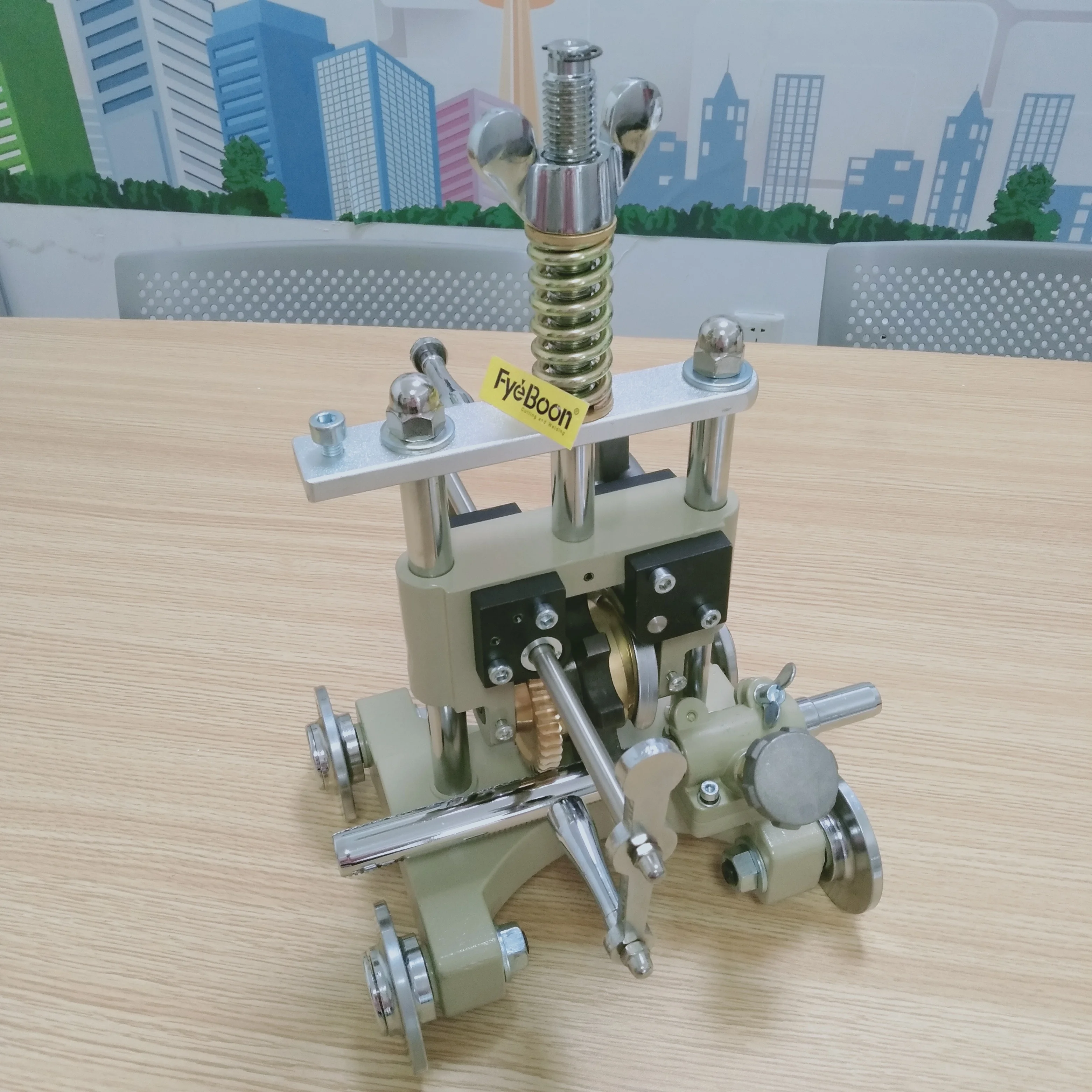

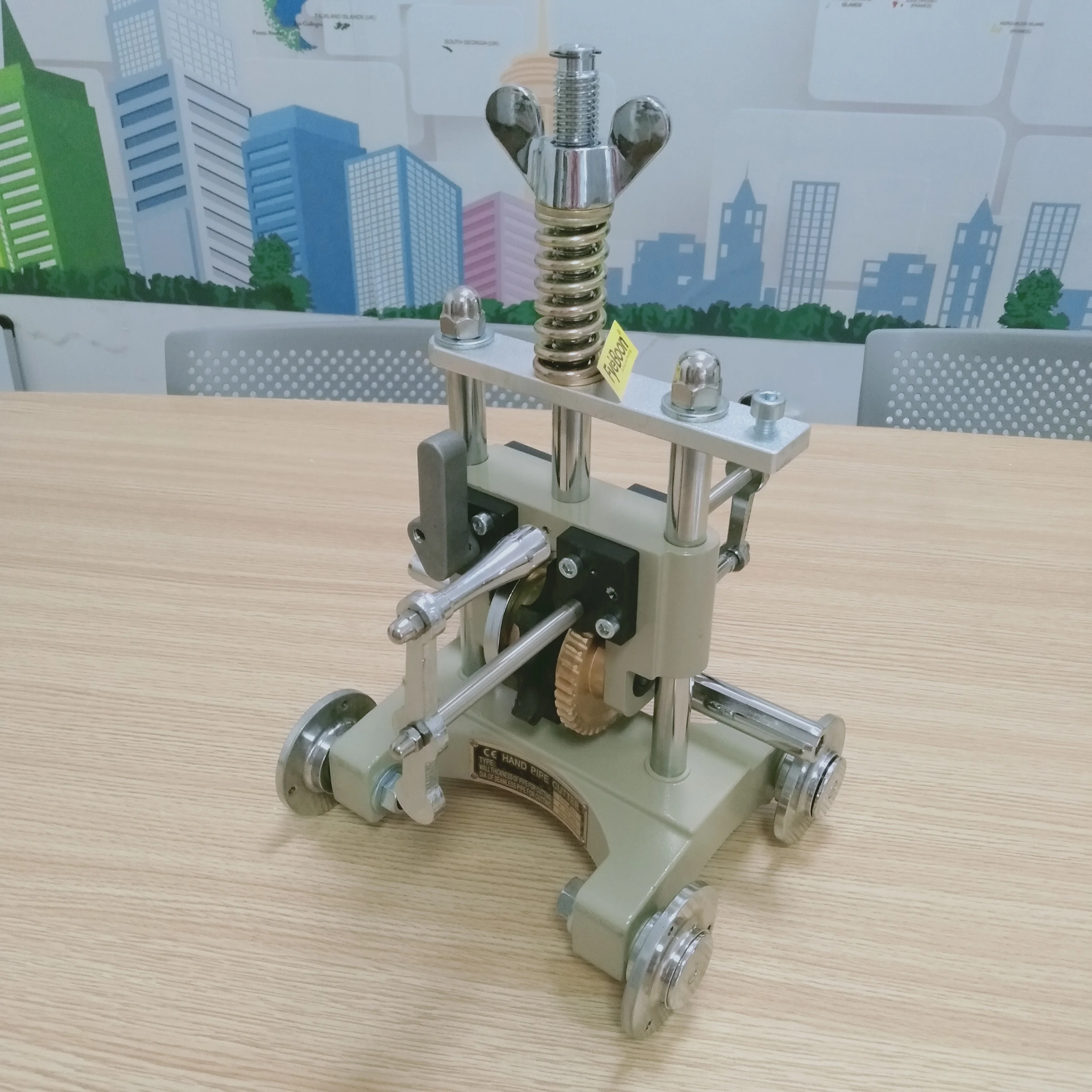

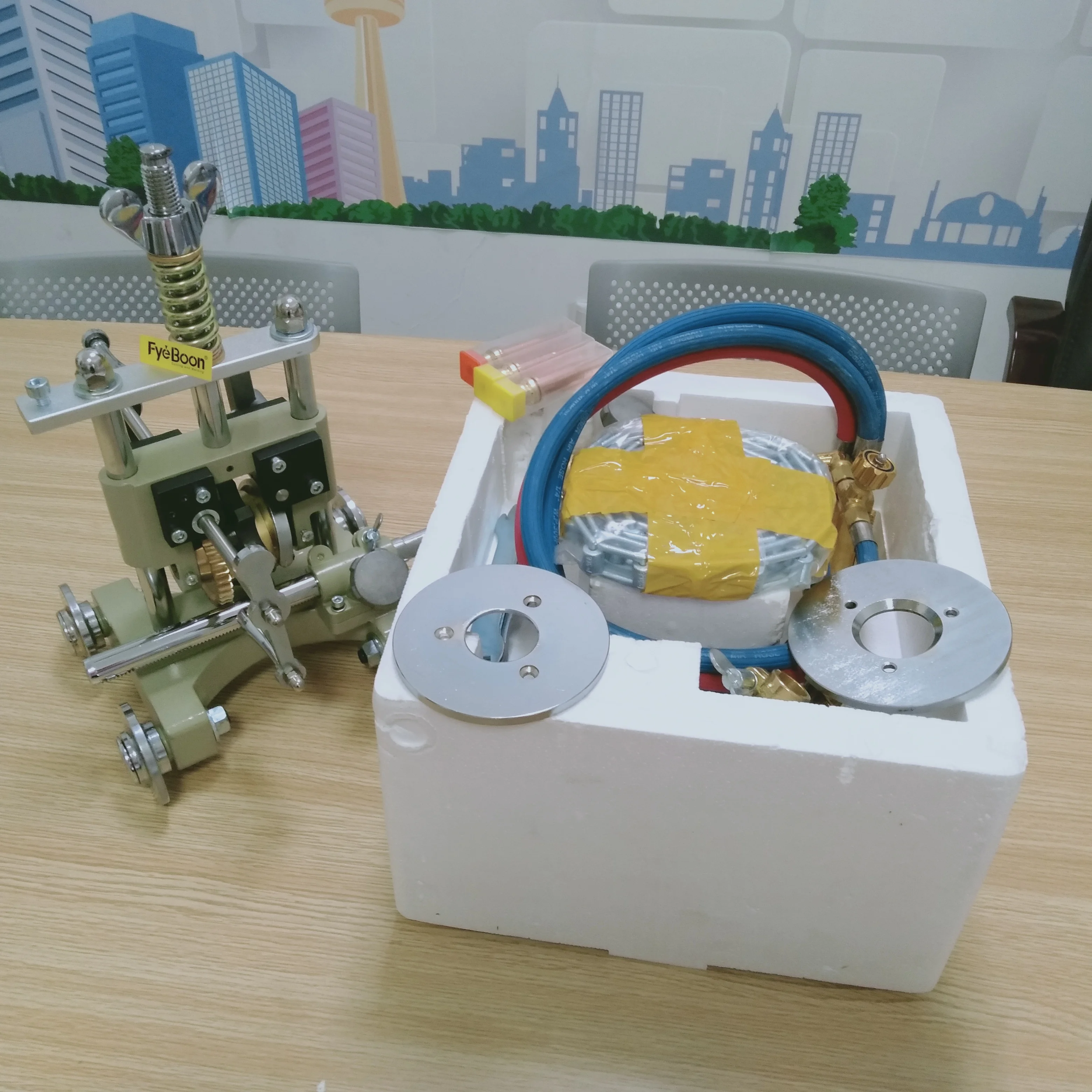

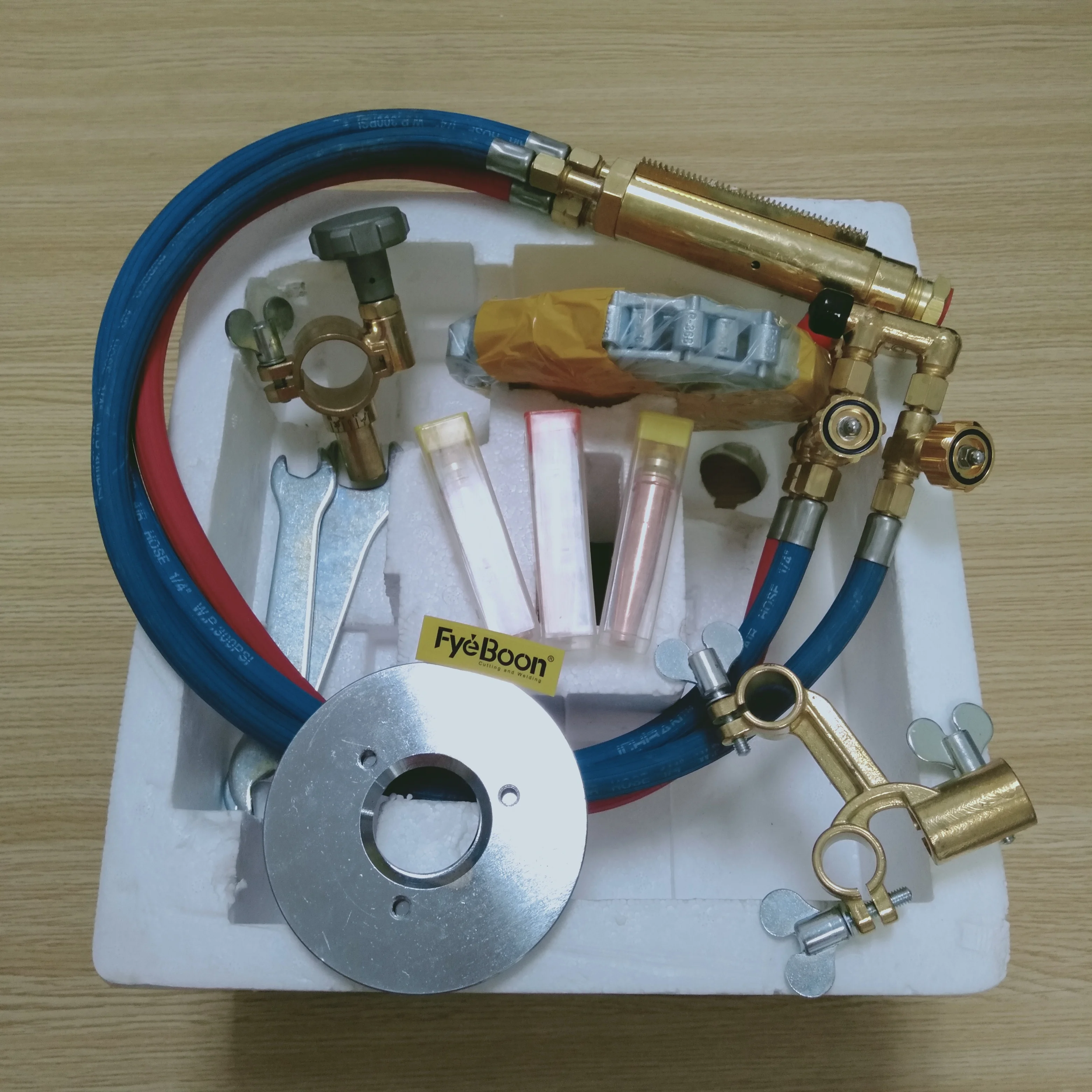

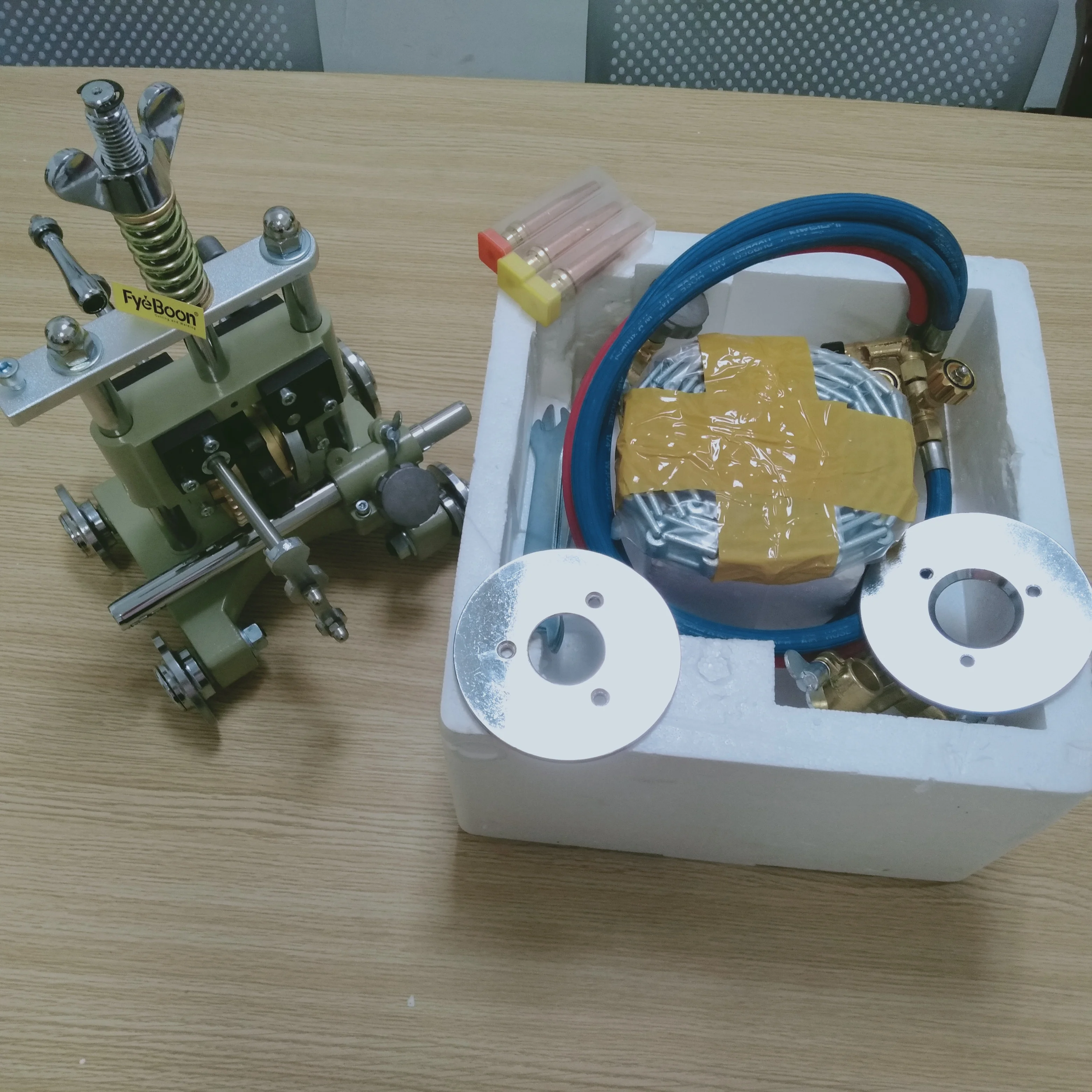

Удобный цепной труборез с конической резкой
- Category: Gas Cutting Machine >>>
- Supplier: Dalian Fyeboon Technology Co. Ltd.
Share on (60821500546):
Product Overview
Description
Product Info
No | Description | No | Description |
1 | Chain: To enwind pipe to lock machine. It makes the machine run by chain | 7 | Declutching Lever of Clutch: If the clutch is cut off, you can move machine on the pipe quickly |
2 | Cross Moving Hand Wheel: To make torch move left and right | 8 | Hoses: Connect them to gas distributor. There are three hoses: preheating oxygen hose, fuel gas hose and cutting oxygen hose |
3 | Hand Knob: The machine walks forward if you revolve it clockwise, and walk backward if you revolve it anti-clockwise | 9 | Up-down Adjusting Hand Wheel of Torch |
4 | Fuel Gas Inlet Connector | 10 | Tip |
5 | Oxygen Inlet Connector | 11 | Road Wheel |
6 | Big Wing Screw: Adjust the tightness of machine |
Main Feature | ||
1 | Main body made of aluminum alloy, light and portable. | |
2 | Chain belt is used for lock of pipe and cutter, flexible and convenient in operation | |
3 | Chain belt can be adjusted according to diameter of pipe | |
4 | Bevel angle: I.Y.V (45°) | |
5 | Operate it to cut big steel pipes (the diameter is above 108mm) by hand | |
CG2-11G | ||
Flame Torch No. | One | |
Diameter of Circle Cutting | 108-600mm (Standard Chain) | |
Power Source | 220V 50HZ | |
Cutting Speed | Hand control | |
Cutting Thickness | 5-50mm (Standard Torch) | |
Groove Angle | 0°-45° (I/V) | |
Reset Accuracy | ￠>108mm (The no-seam pipe) | |
Cutting Accuracy | 1mm (The circumference of pipe is ≤100mm) | |
Recommend Products
Contact
Exhibition & Feedback
Packing & Delivery
Payment & Service
File Service
Instruction Manual
Installation Video
Video Teaching
Video Teaching
Visual Service
Remotely diagnose problems
Reducing downtime and cost to send a field technician
Reducing downtime and cost to send a field technician
Training
Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
Our Company
FAQ
Q1. How can I choose a suitable Portable Gas Cutter?
Just tell us what kind of rail ttype do you need, straight line or circular rail?
Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.
Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.
