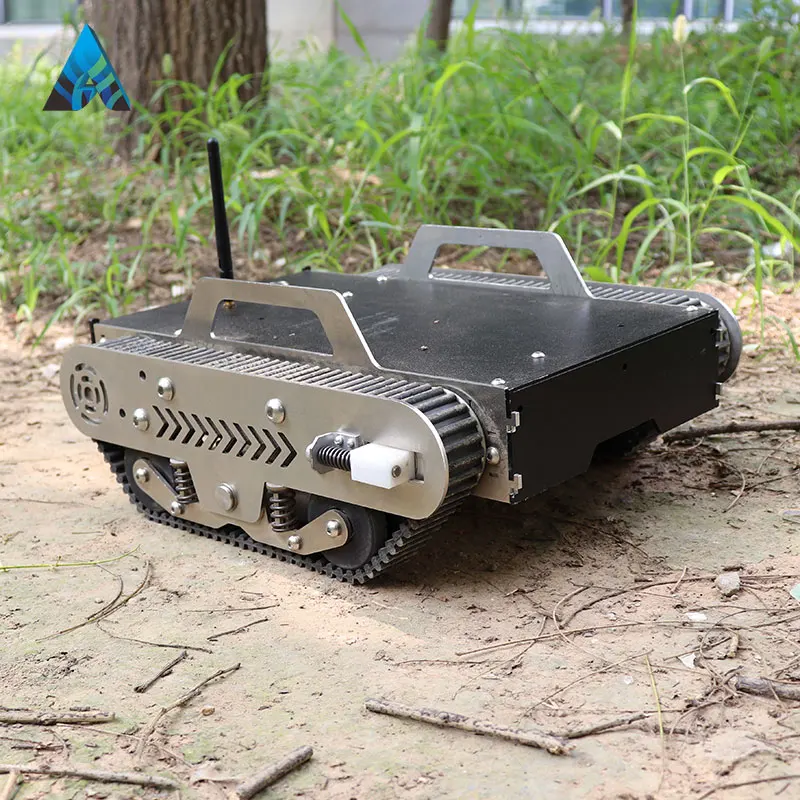

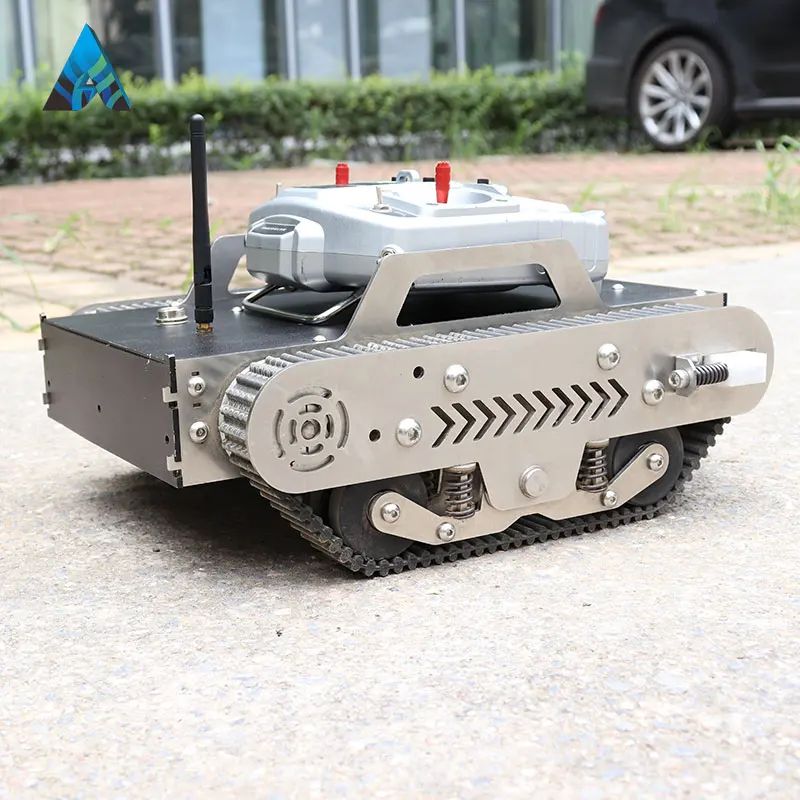

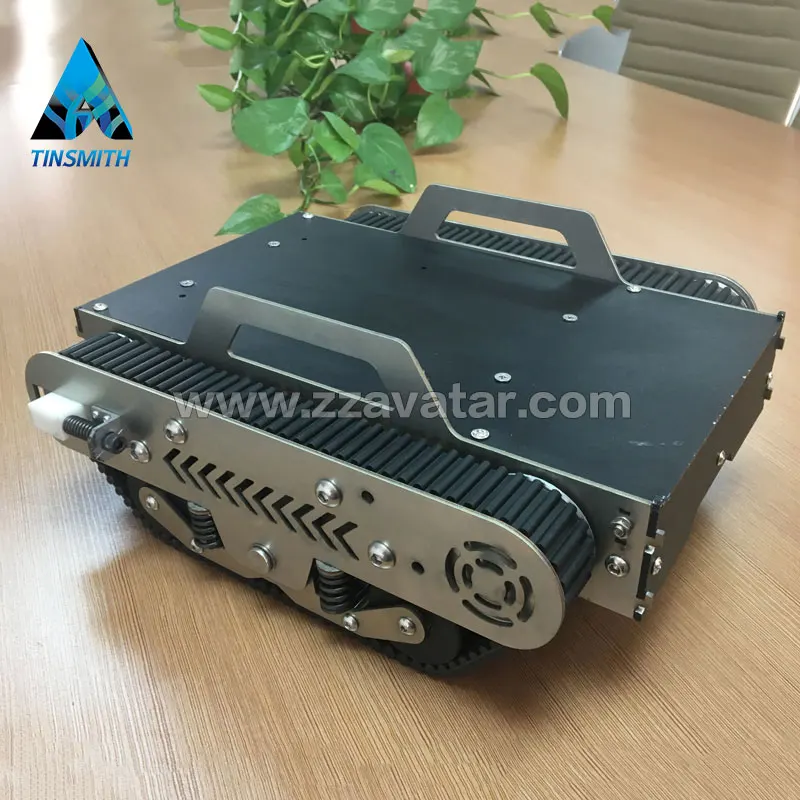

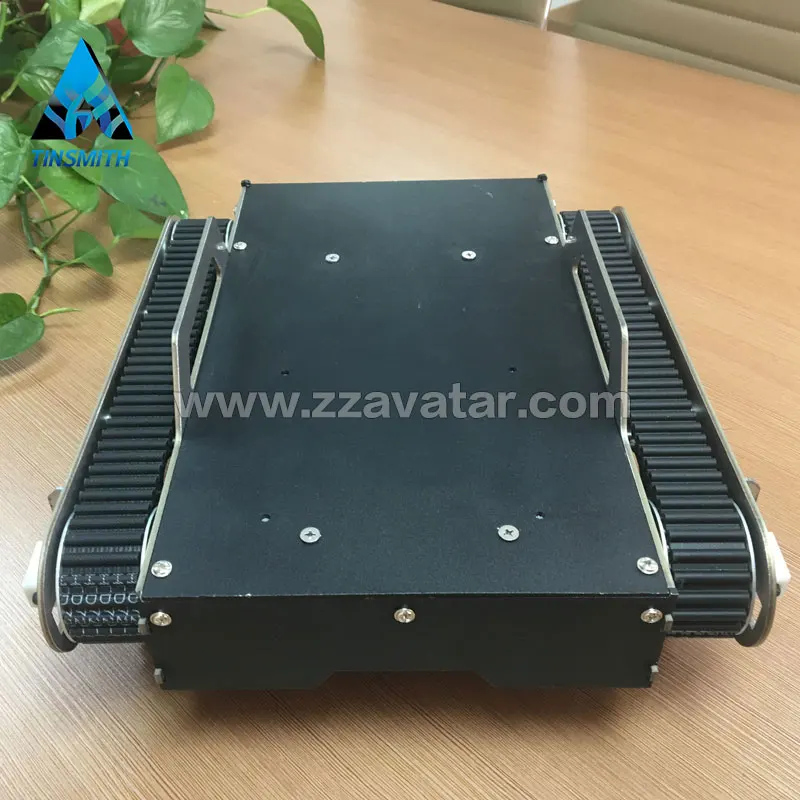

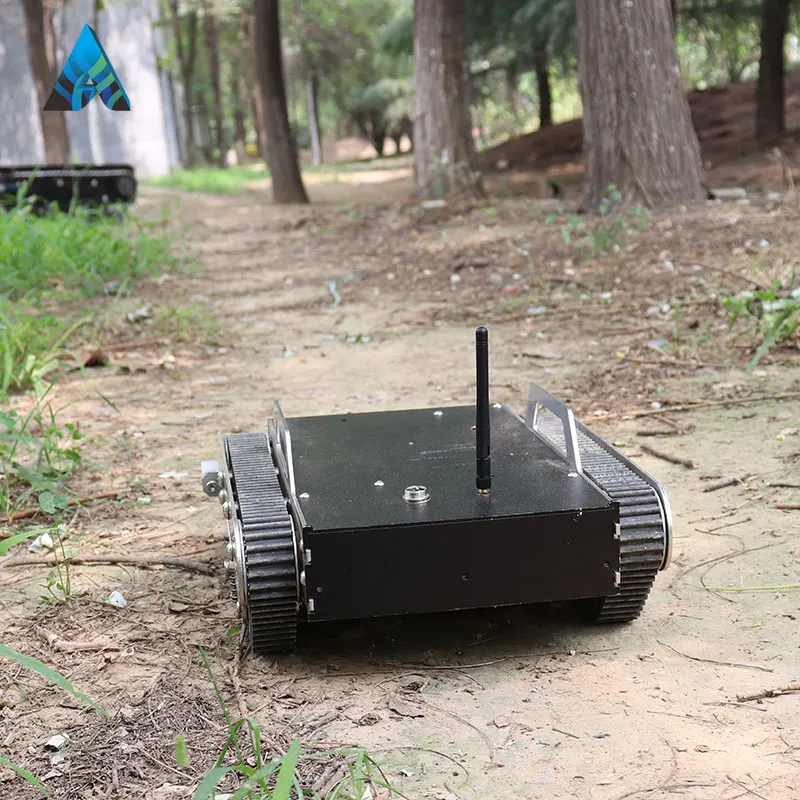

Robotic chassis remote control small vehicle rubber track
- Category: >>>
- Supplier: Zhengzhou Ledy Optical-Electrical Technology Co. Ltd.
Share on (60821859622):
Product Overview
Description
Specification

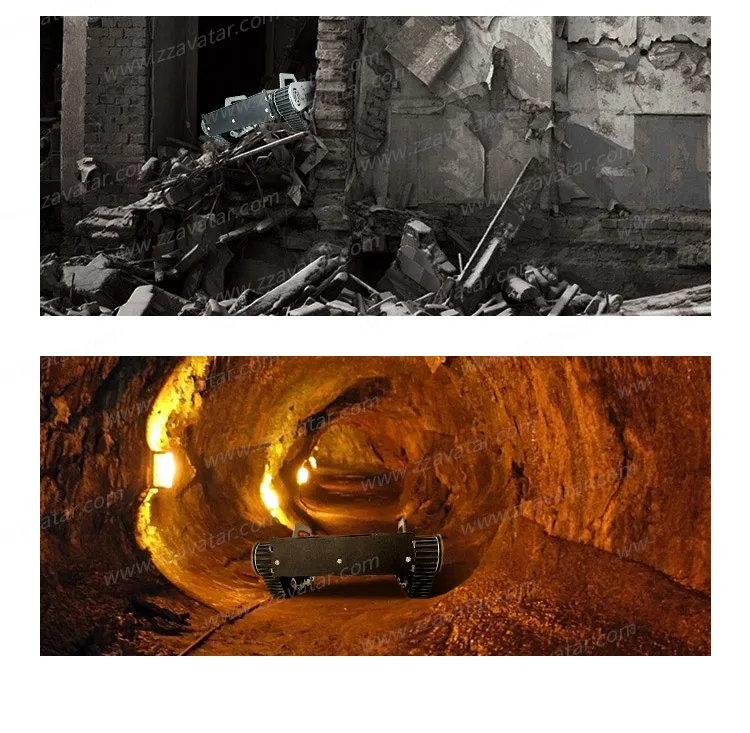

Application of TinS-3 mini tracked chassis
Application:
TinS-3 is widely used for secondary development of robotic products. You can build on your own robot kit with it. With small size,
it is especially working well in small space, with adding-on inspection camera, telescopic rod, cleaning brush, etc.
Advantages:
1.Small size, light weight, easy to work in narrow places.
2.Rubber Track: with good ground adhesion.
3.Patent Suspension System: 1) up and down fluctuation suspension system. 2) center of gravity shock absorption suspension. Our
unique design.
4.Guiding Wheel: self-tension, automatic adjust, ensuring timely tension and running.
5.Separate Self-control Circuit and Extending Circuit: 1) mechanical extending with detachable front/rear/and upper cover plate,
greatly reducing customizing risk. 2) 1-2 way 10 core aviation plug extension, Electrical extending with 5V3A, 12V3A circuit for
5/6/13 extending circuit.
6. Power part: Brushless motor with closed-loop control and precision reducer control, with differential control, braking
function, and motor protection system. Accurately control corner, speed, and travel. The motion trajectory can rotate in place or
spiral as desired.
7. Control mode: Wireless mode supports 10 PWM servo control signals (car control occupies 2 channels).
TinS-3 is widely used for secondary development of robotic products. You can build on your own robot kit with it. With small size,
it is especially working well in small space, with adding-on inspection camera, telescopic rod, cleaning brush, etc.
Advantages:
1.Small size, light weight, easy to work in narrow places.
2.Rubber Track: with good ground adhesion.
3.Patent Suspension System: 1) up and down fluctuation suspension system. 2) center of gravity shock absorption suspension. Our
unique design.
4.Guiding Wheel: self-tension, automatic adjust, ensuring timely tension and running.
5.Separate Self-control Circuit and Extending Circuit: 1) mechanical extending with detachable front/rear/and upper cover plate,
greatly reducing customizing risk. 2) 1-2 way 10 core aviation plug extension, Electrical extending with 5V3A, 12V3A circuit for
5/6/13 extending circuit.
6. Power part: Brushless motor with closed-loop control and precision reducer control, with differential control, braking
function, and motor protection system. Accurately control corner, speed, and travel. The motion trajectory can rotate in place or
spiral as desired.
7. Control mode: Wireless mode supports 10 PWM servo control signals (car control occupies 2 channels).
Item | Parameter | Item | Parameter |
Dimension | 335*325*155mm | Shock damping | Left and right independent *2 shock absorption |
Rated motor speed | 4000r/min | Operating Voltage | 12V |
Surface treatment | Oxidation, 201 stainless steel | Maximum obstacle | 170mm |
Track width | 30mm | Driving wheel diameter | 55mm |
Maximum Climbing | 30° | Self weight (not include battery) | 8kg |
Motor parameters | Power: 53W * 2, reduction ratio: 1:5.2, speed: 9KM/H, load capacity: 6kg | Motor parameters | Power: 53W * 2, reduction ratio: 1:14, speed: 3KM/H, load capacity: 20kg |
Battery | 12v 8AH Lithium iron phosphate battery, discharge current 8A | Battery compartment size | L125*W110*H45mm |
Working time | 3-4H | Battery size | 135*72*35mm |

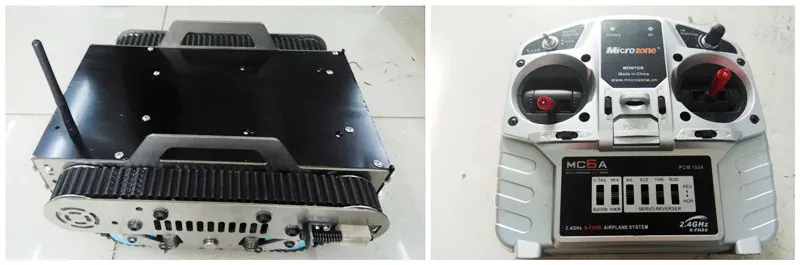

Remote control type:

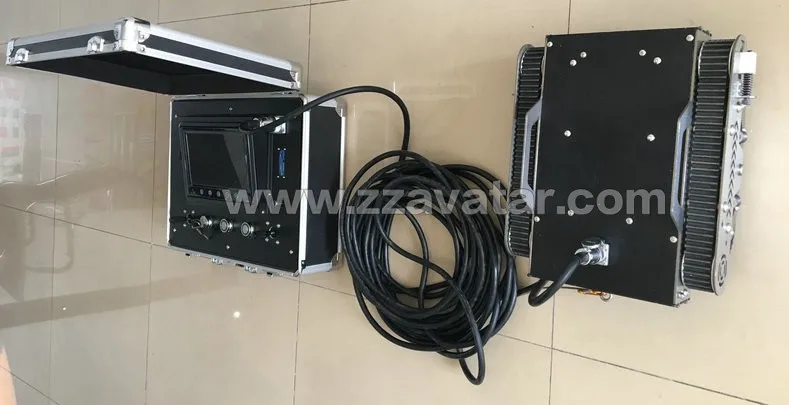

Cable control type:
Features
Main Features of AVT-300 rubber crawler track system
1. Fully digital control. It adopts stepper motor, which can control the turning, speed and stroke precisely, ensuring accurate working.
2. Automatic tensioning of guiding wheels. No need to adjust manually, which can ensure good tension and working of track.
3. Shock absorbing structure with two degrees of freedom. High quality load bearing wheels and excellent torsional spring form two degrees of freedom(concave convex shock absorption and center of gravity shock absorption). This design will make it more stable and stop structure from plastic deformation caused by fluctuation and drop acceleration, ensuring durable working.
4. Many mechanical expansion slot. There are mechanical expansion slots in the front, back and upper sides. You can equip other devices for different demands from clients.
5. Modular design for electronic part. The power control system is independent modular with standard circuit interface, good for secondary development and equip other electronic equipment.
6. Multiple power mode, you can equip battery, gasoline generator, etc.
7. Multiple control model, you can use ADSL cable control or remote control as options.
About US
Our Service
1.Professional technical support pre-sale, sale and after-sale.
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
