JIHPUMP 110v 220v 5 rpm Small Mini Micro Peristaltic Pump Gas Chemical Additives Medical Water Liquid Dosing Hose Pumps Parts
- Category: Pumps >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (60822605954):
Product Overview
Description
About Us
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
China leading manufacturer and provider of peristaltic pumps.
Has been meeting OEM customers peristaltic pumps needs.
Offer peristaltic pumps and customizable pumps solutions.
Offer free technical and application support.
Over 15 years of application experience, sold more than 1 million sets peristaltic pumps.
How to select peristaltic pumps:
1. Flow rate elements:pressure, viscosity, temperature, suction and head height
2. Choose pump model according to flow: selection tables of complete pump丨OEM pump
Note : The form needs to be viewed on MAC / PC

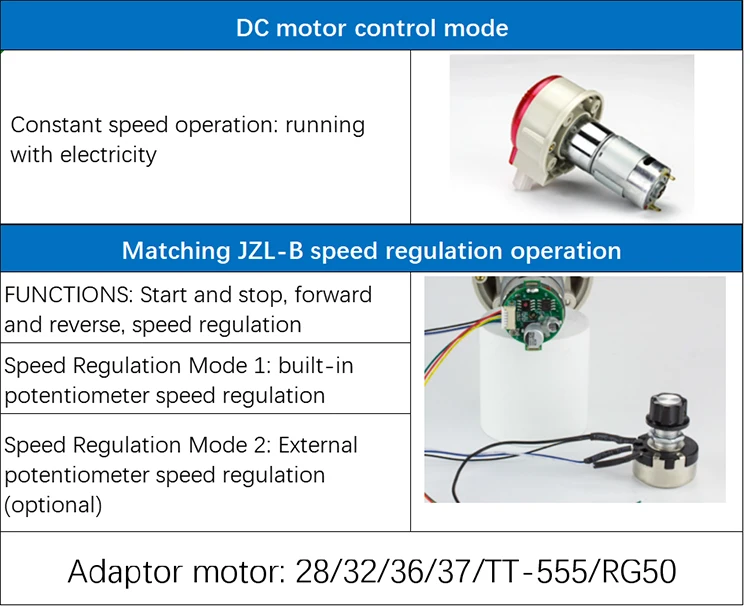

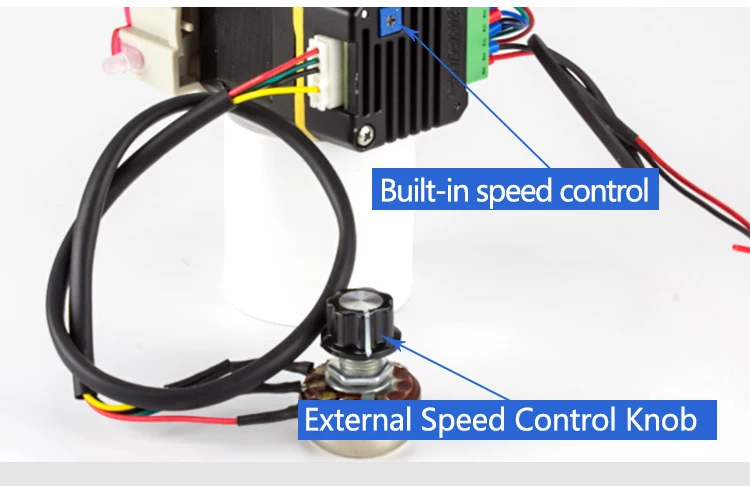

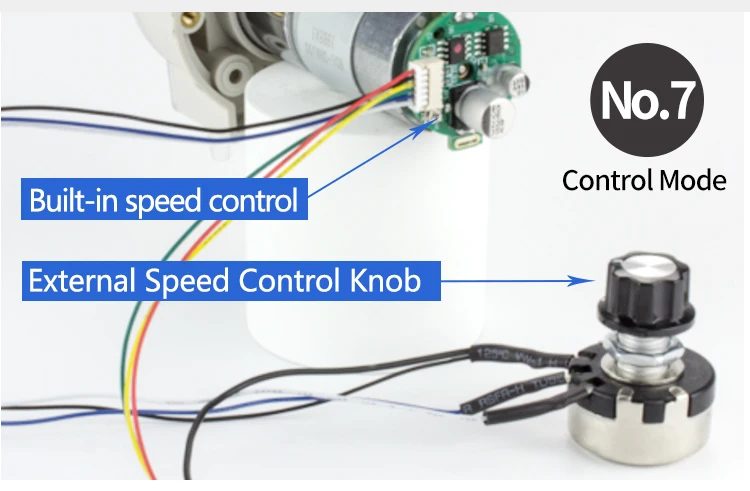

3. Pump configuration: working and control modes to be considered
4. Select pump tube: chemical compatibility guide
Note : The form needs to be viewed on MAC / PC
3. Pump configuration: working and control modes to be considered
4. Select pump tube: chemical compatibility guide
JIHPUMP has dedicated application engineers available to help customers make the right pump choice.

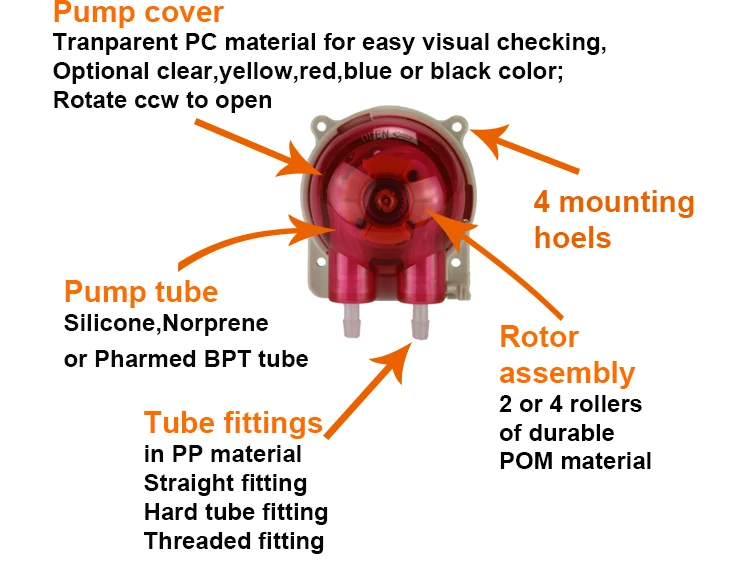

Products Description
1. A simple and smooth mini peristaltic pump;

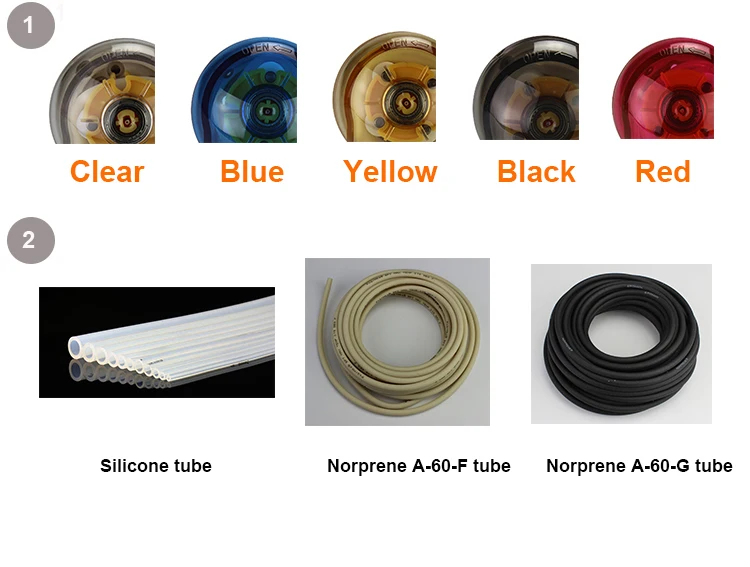

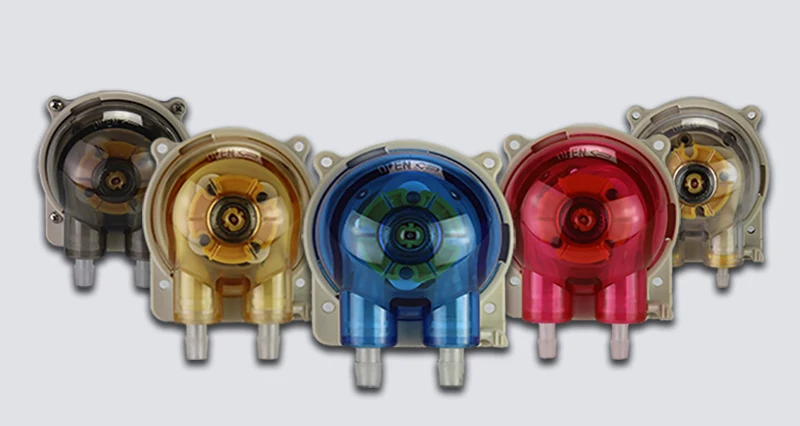

2. Fashionable and colorful (clear, blue, yellow, brown or red) for easy visual check;
3. Locking cover mechanism to ensure long-term stable operation;
4. The pump body has a wide range of cladding structure to ensure higher reliability of product operation;
5. Compatible with 16#, 25#, 17# tubes;
6. Adapted to DC motor, DC planetary motor, stepper motor, brushless DC motor or synchronous motors;

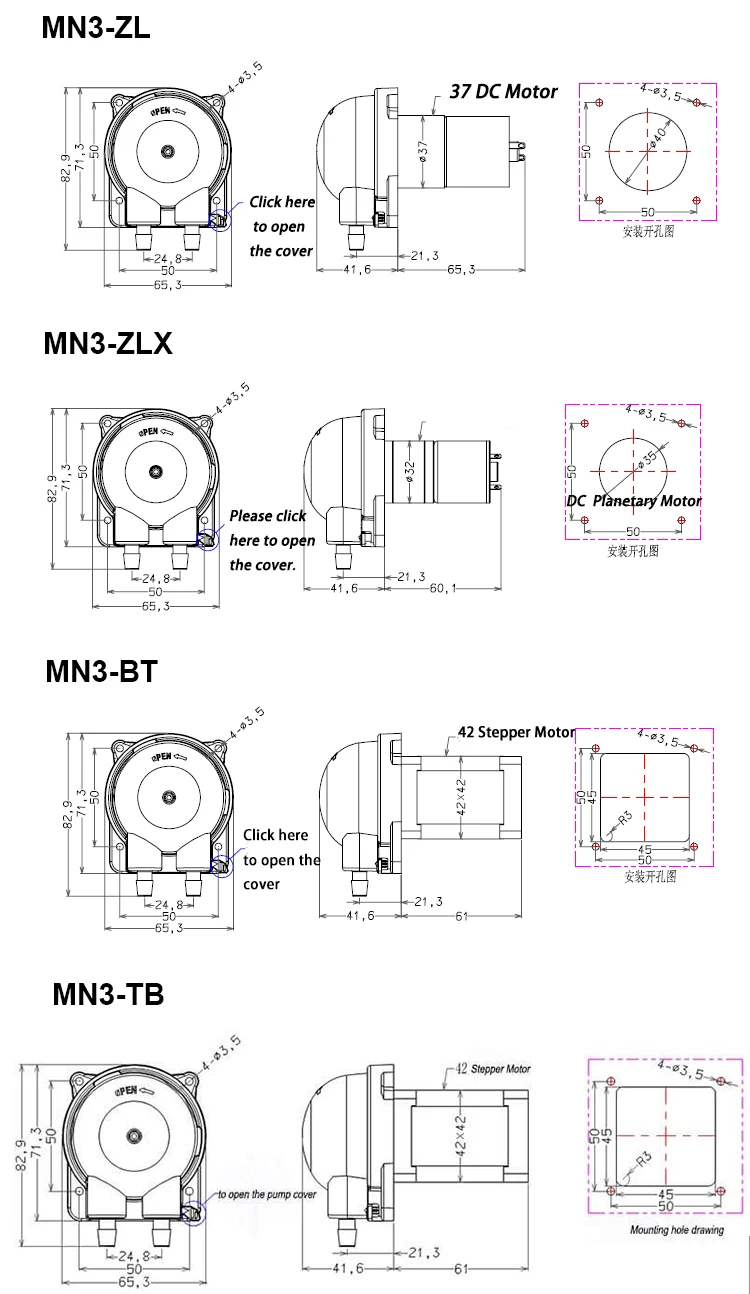

7. Come with 4 holes panel, to be fixed easily;

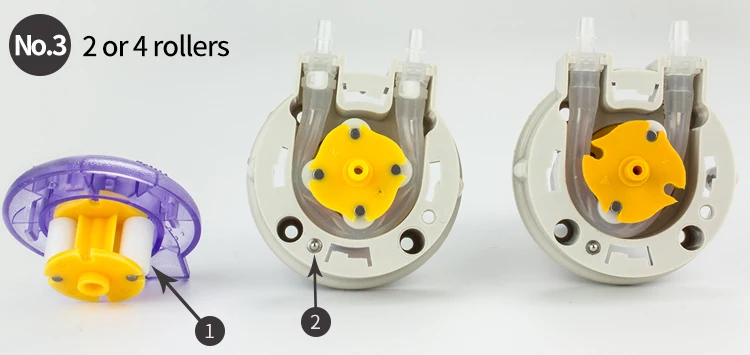

8. Optional 2 or 4 rollers. Longer tube life and larger flow rate in 2 rollers, smaller delivery pulse in 4 rollers.
2. Fashionable and colorful (clear, blue, yellow, brown or red) for easy visual check;
3. Locking cover mechanism to ensure long-term stable operation;
4. The pump body has a wide range of cladding structure to ensure higher reliability of product operation;
5. Compatible with 16#, 25#, 17# tubes;
6. Adapted to DC motor, DC planetary motor, stepper motor, brushless DC motor or synchronous motors;
7. Come with 4 holes panel, to be fixed easily;
8. Optional 2 or 4 rollers. Longer tube life and larger flow rate in 2 rollers, smaller delivery pulse in 4 rollers.
Title | JIHPUMP 110v 220v 5 rpm Small Mini Micro Peristaltic Pump Gas Chemical Additives Medical Water Liquid Dosing Hose Pumps Parts | ||||||

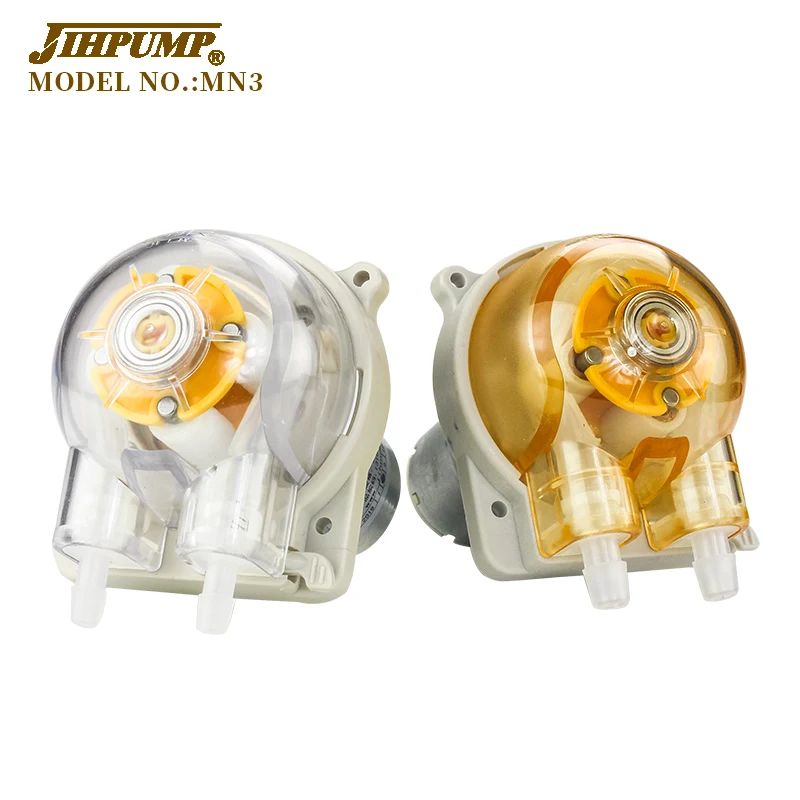

Pump model | MN3 | ||||||
Flow capacity | Max 640 ml/min | ||||||
Voltage | DC 12V or 24V | ||||||
Function | Transfering, dosing, dispensing,Printing equipment, | ||||||
Wide applicable devices | Detergent delivery, Analytical instrument, Food machinery, Kitchen equipment, Laundry equipment | ||||||
Application industries | washing machines,dishwashers, analytical test instrument media pumping, ink delivery, beverage delivery | ||||||

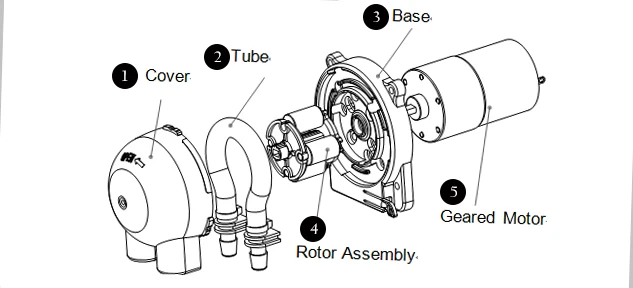

Configuration selection
1 The roller is made of imported wear-resisting and self-lubricating rod and processed by CNC lathe. The dimension precision and performance are higher than that of in jection-molded Roller.
2 The special ball lock between the pump cover and the base strengthens the fixing effect of the clasp, is easy to install and disassemble, and the clasp is more reliable.
2 The special ball lock between the pump cover and the base strengthens the fixing effect of the clasp, is easy to install and disassemble, and the clasp is more reliable.

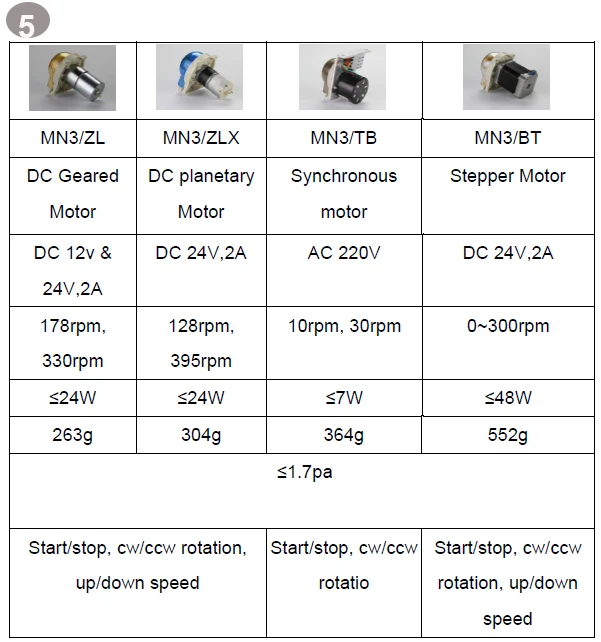

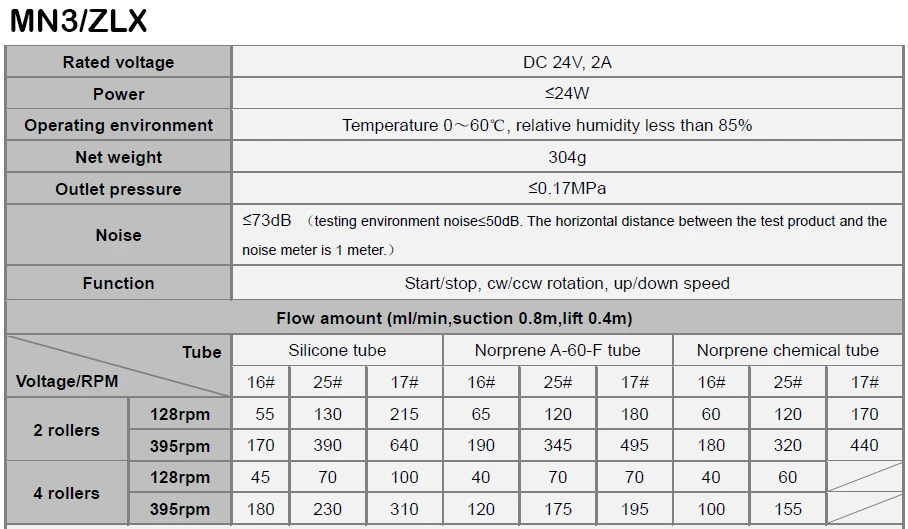

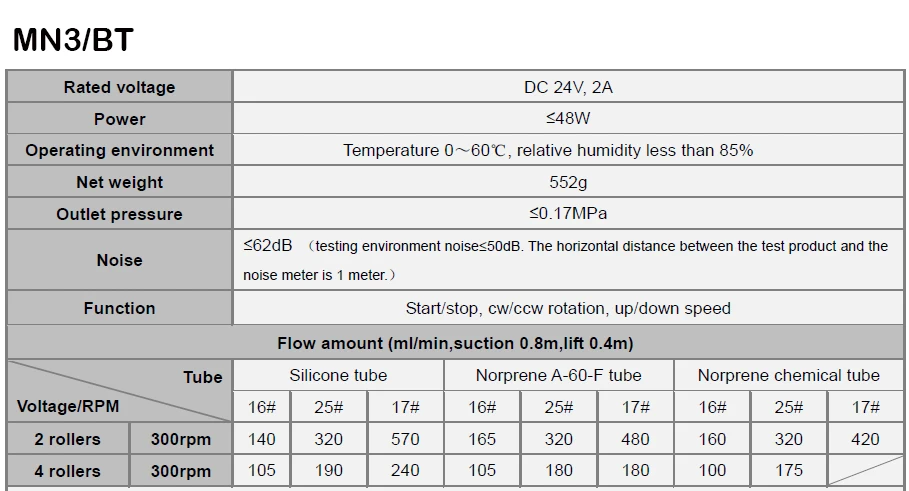

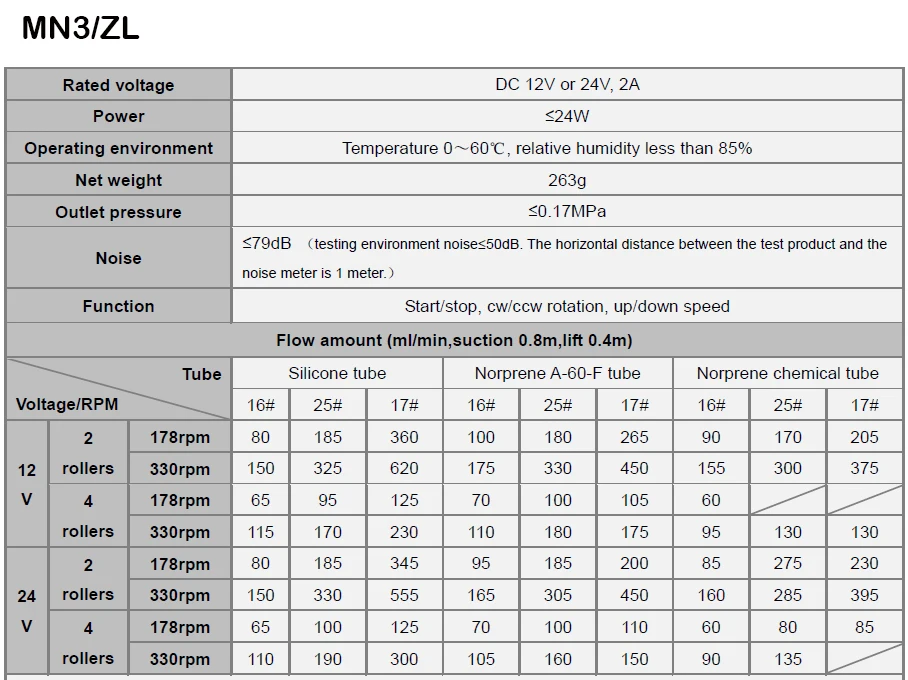

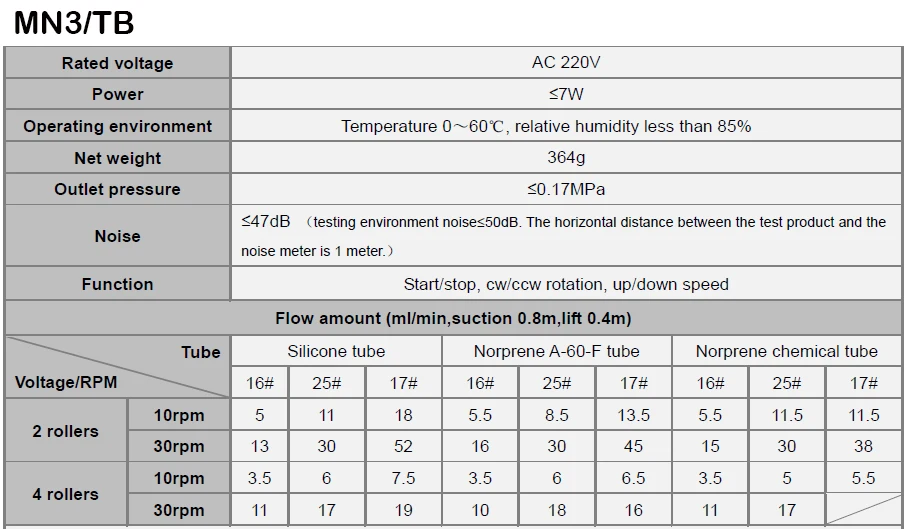

Product Paramenters
JIHPUMP 110v 220v 5 rpm Small Mini Micro Peristaltic Pump Gas Chemical Additives Medical Water Liquid Dosing Hose Pumps Parts
Application Industry
Rich experience Mature scheme Application worry free
JIHPUMP is a professional manufacturer and supplier of peristaltic pumps, has more than 15 years of experience in peristaltic pump applications. We are committed to providing customers with standard and customized peristaltic pump solutions. More than 1 million sets peristaltic pumps have been shipped throughout the world. Printing, washing and industrial machinery and other fields have been successfully applied.

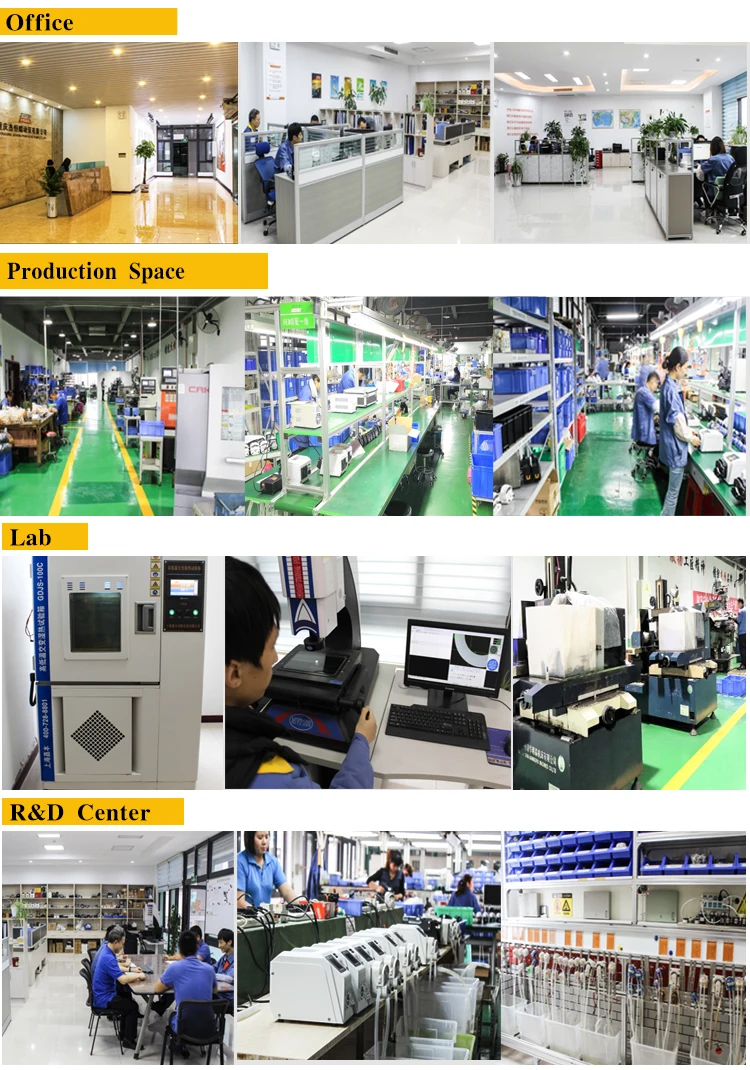

Why Choose Us
JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective, high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents, laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.
