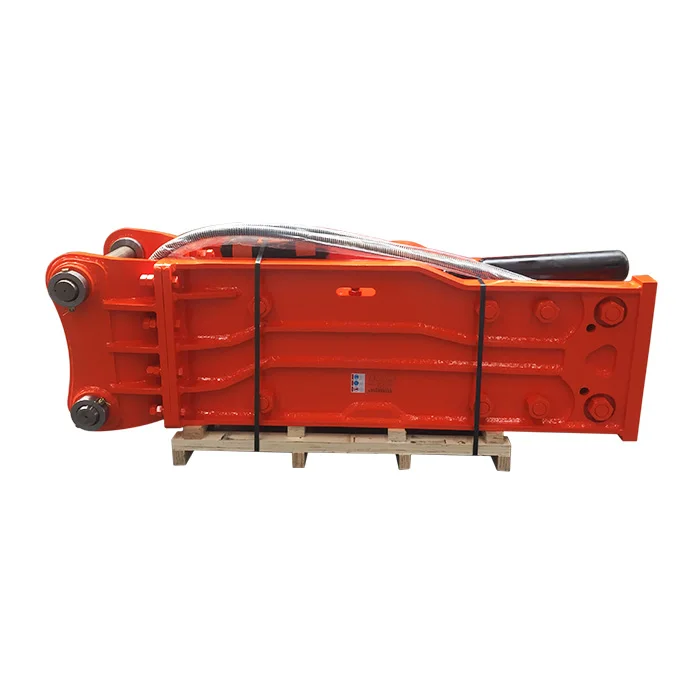

Concrete Rock Stone Hammer Hydraulic Breaker for 0.7 86 Ton Excavator Skid Steer Backhoe Loader
- Category: >>>
- Supplier: Changzhou Raymond International Trading Co. Ltd.
Share on (60822612131):
Product Overview
Description
Products Description
RAY HYDRAULIC BREAKER

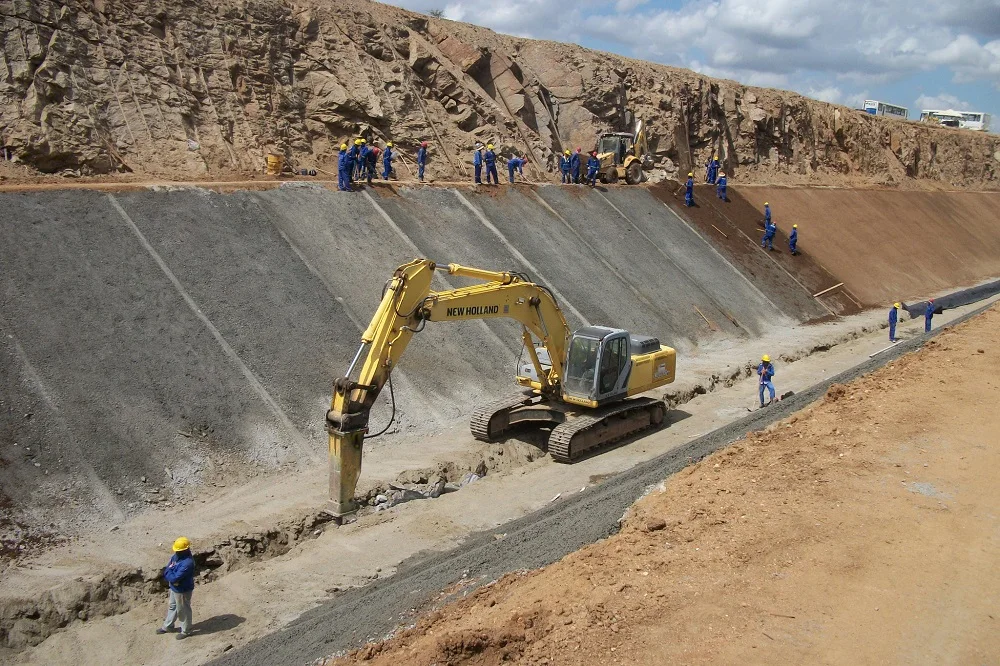

RAYATTACHEMHTS Hydraulic breaker referred to as "broken hammer" or "breaker". Hydraulic breaker’s power sourc is excavators, loaders or pumping stations’ pressure. It can break stones and rocks more effectively in the engineering construction. Selection of hydraulic breaker principle is according to the operation environment and excavator type.

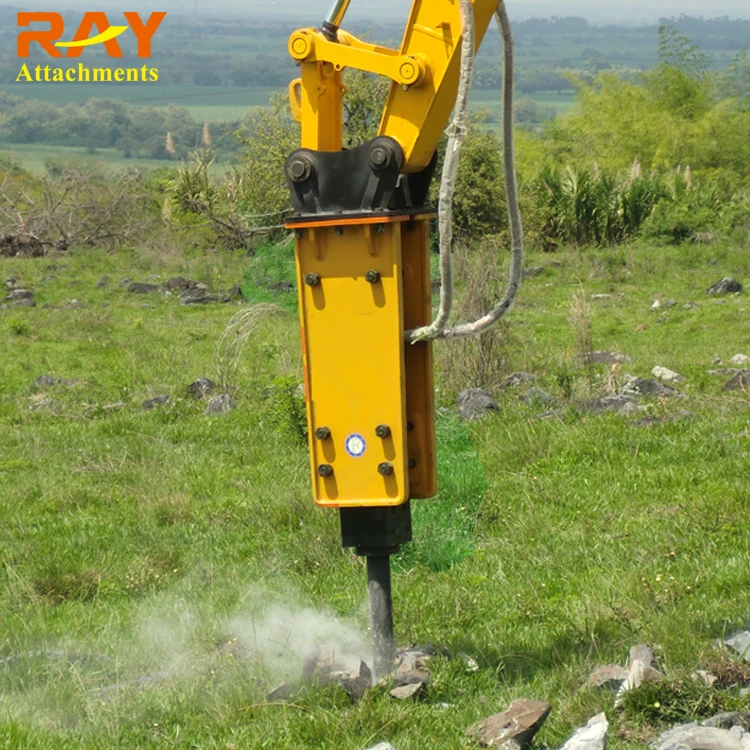

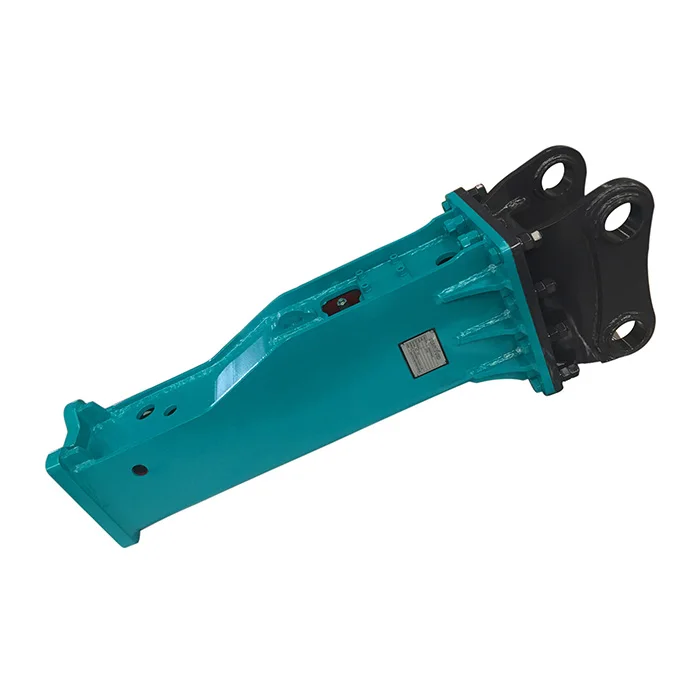

Top Type
1.Easy to locate and control
2.More conducive to excavator
3.Weight lighter, lower risk of broken drill rod
2.More conducive to excavator
3.Weight lighter, lower risk of broken drill rod

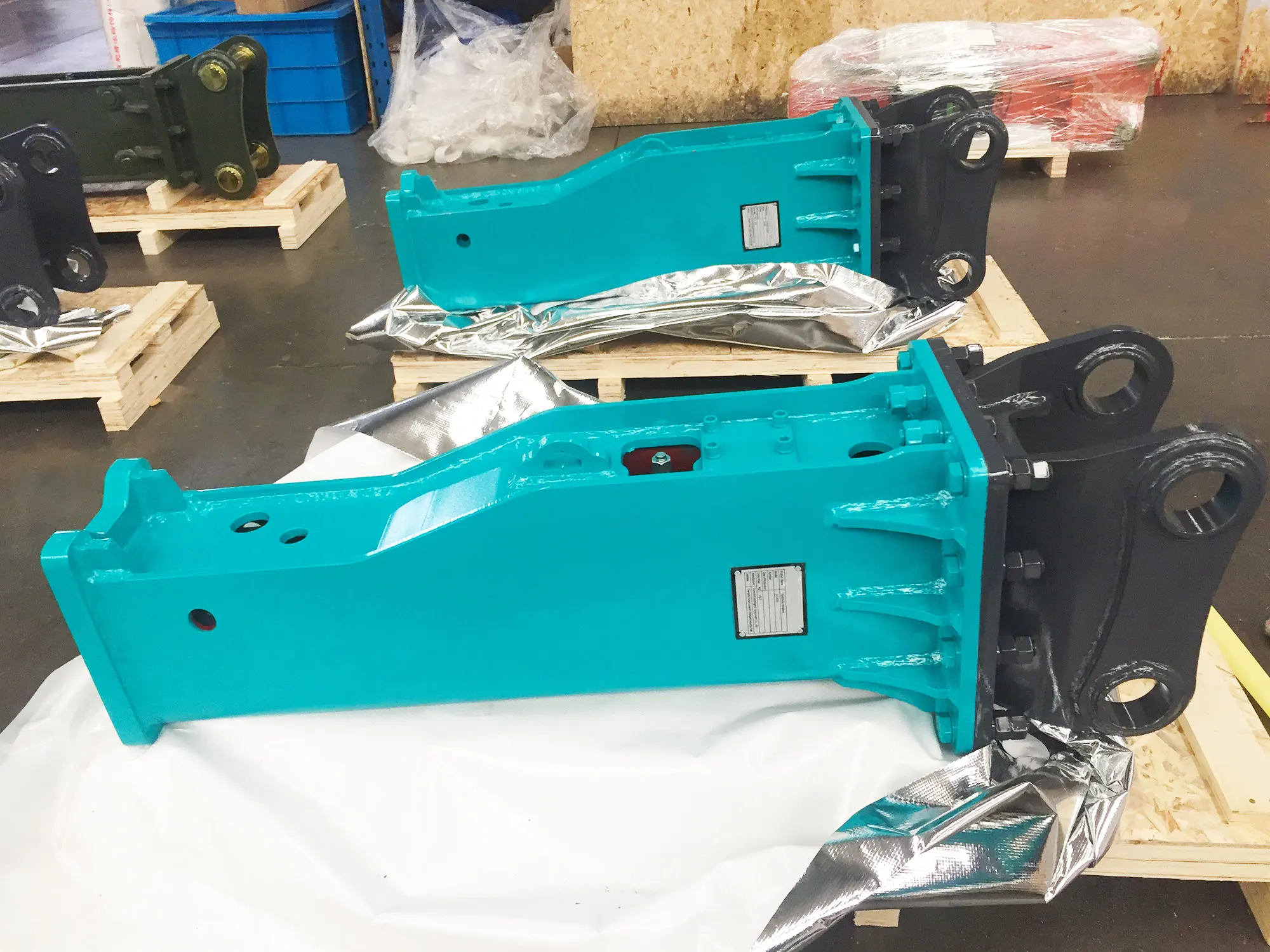

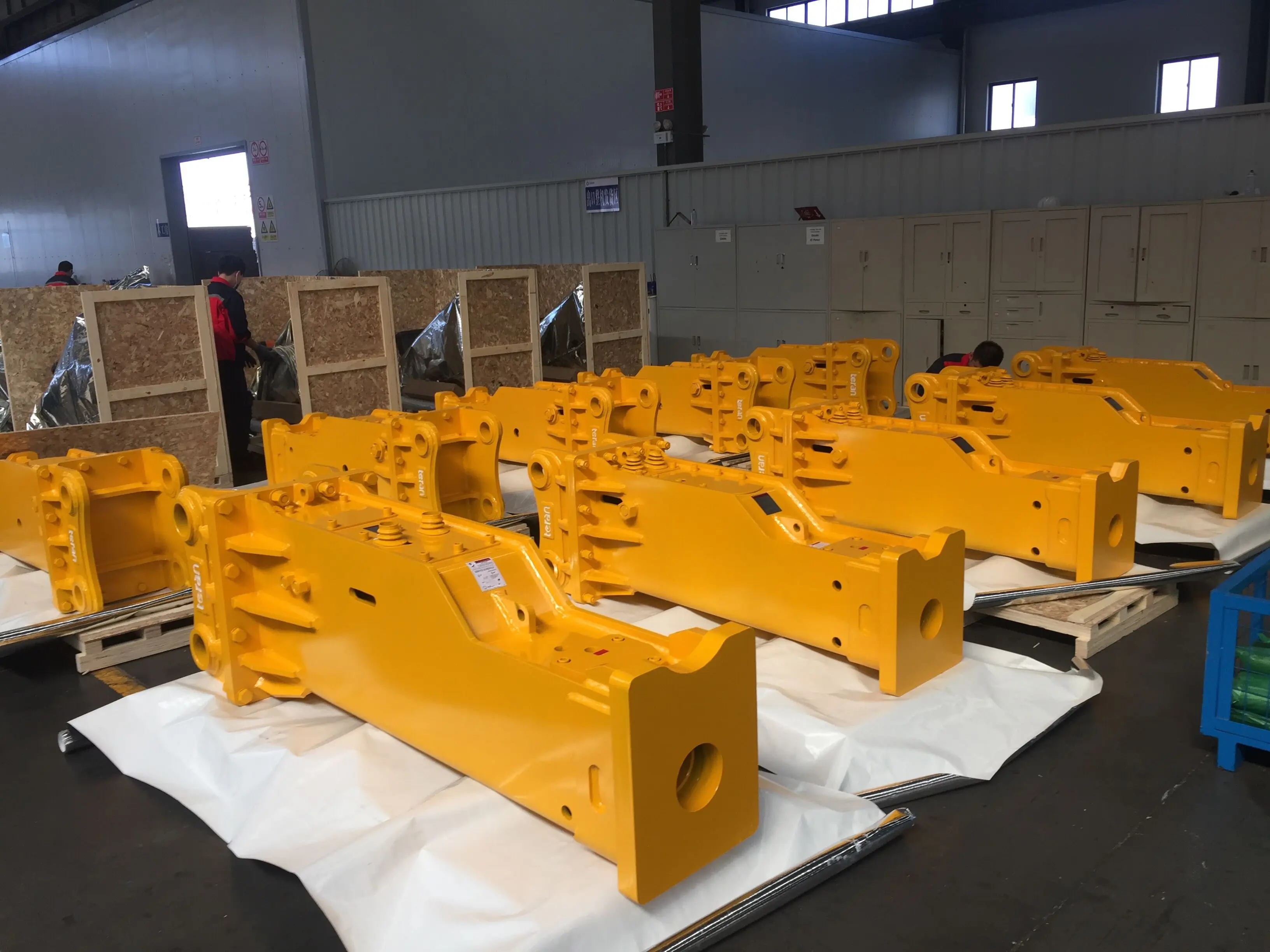

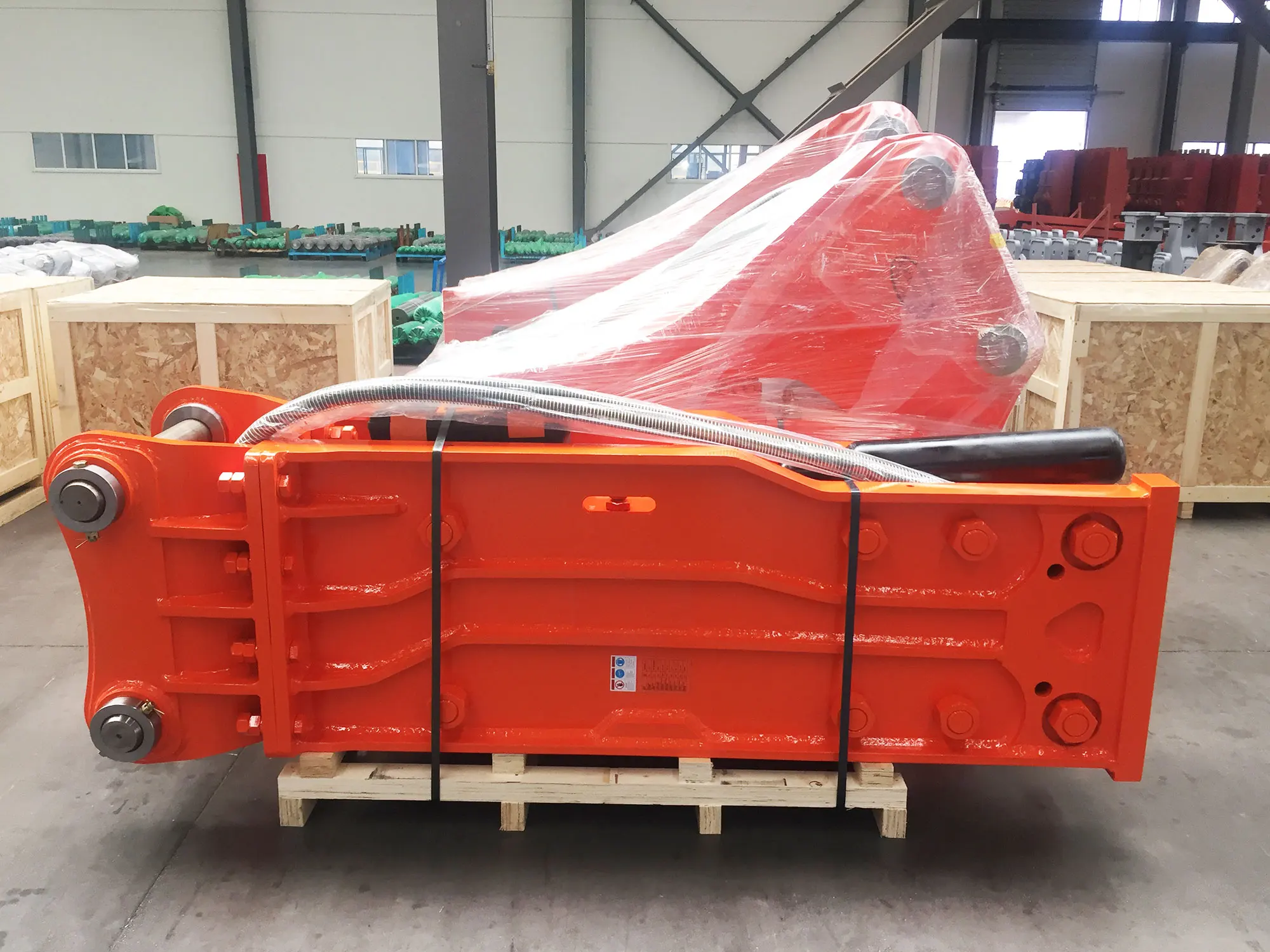

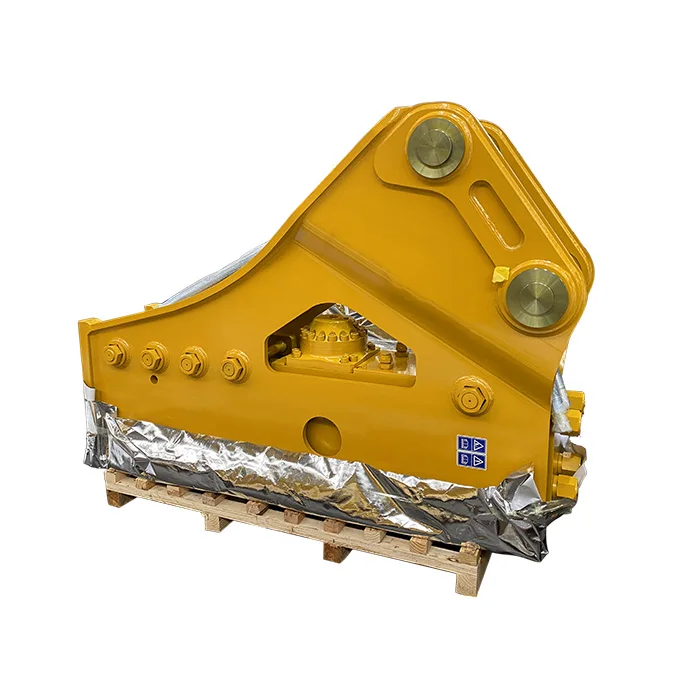

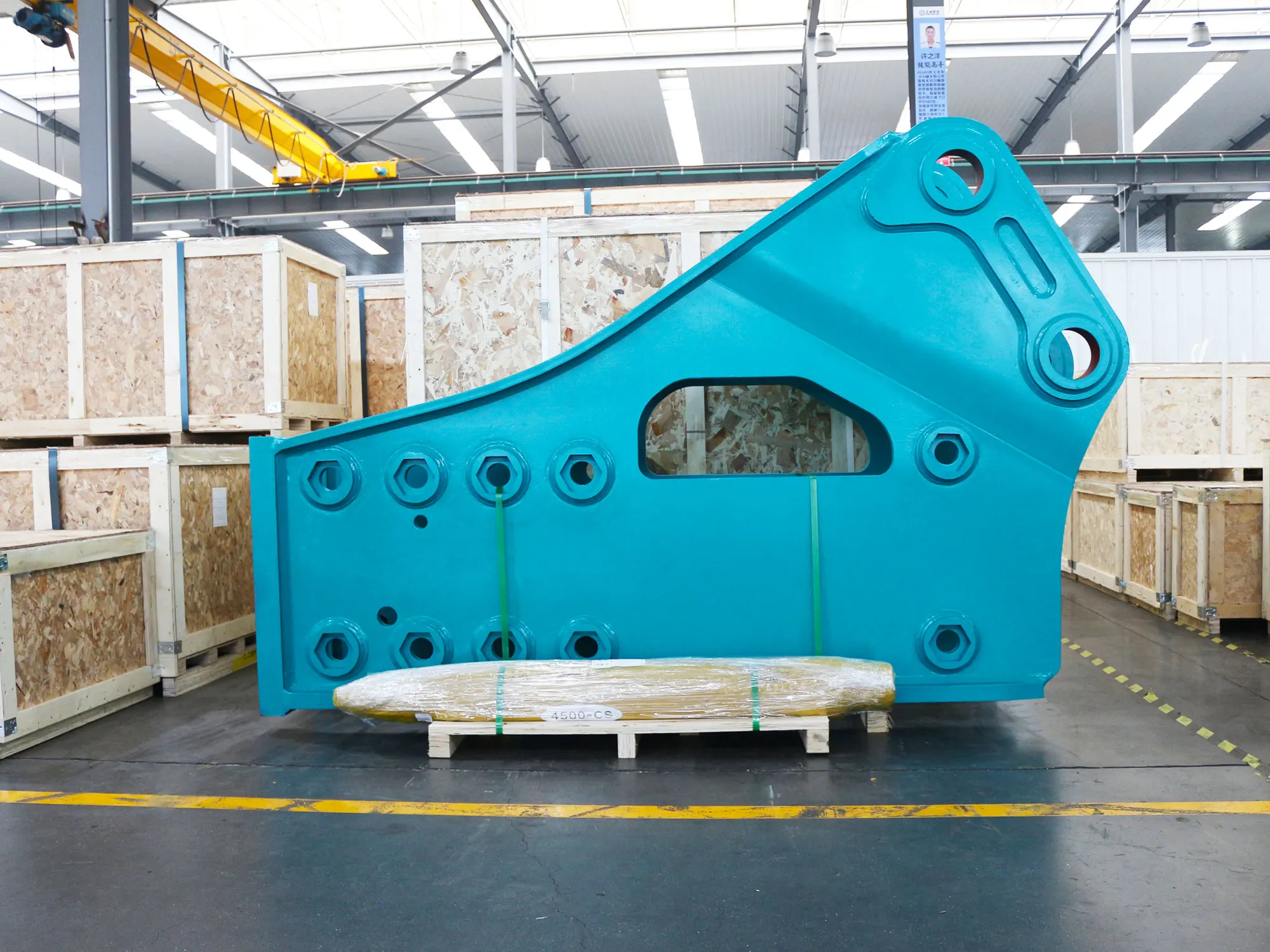

Box Type
1.Reduce noise
2.Protect the environment
2.Protect the environment

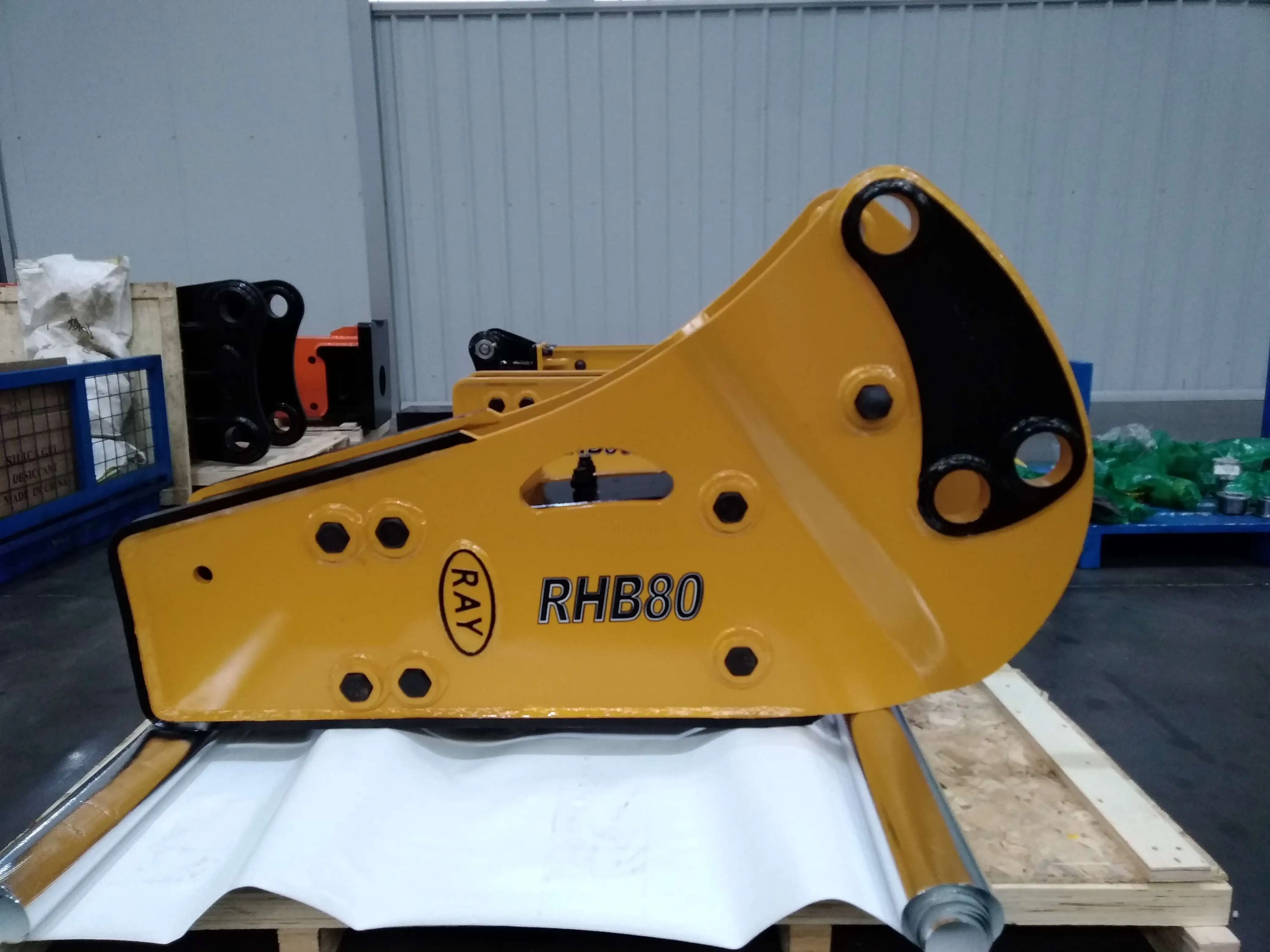

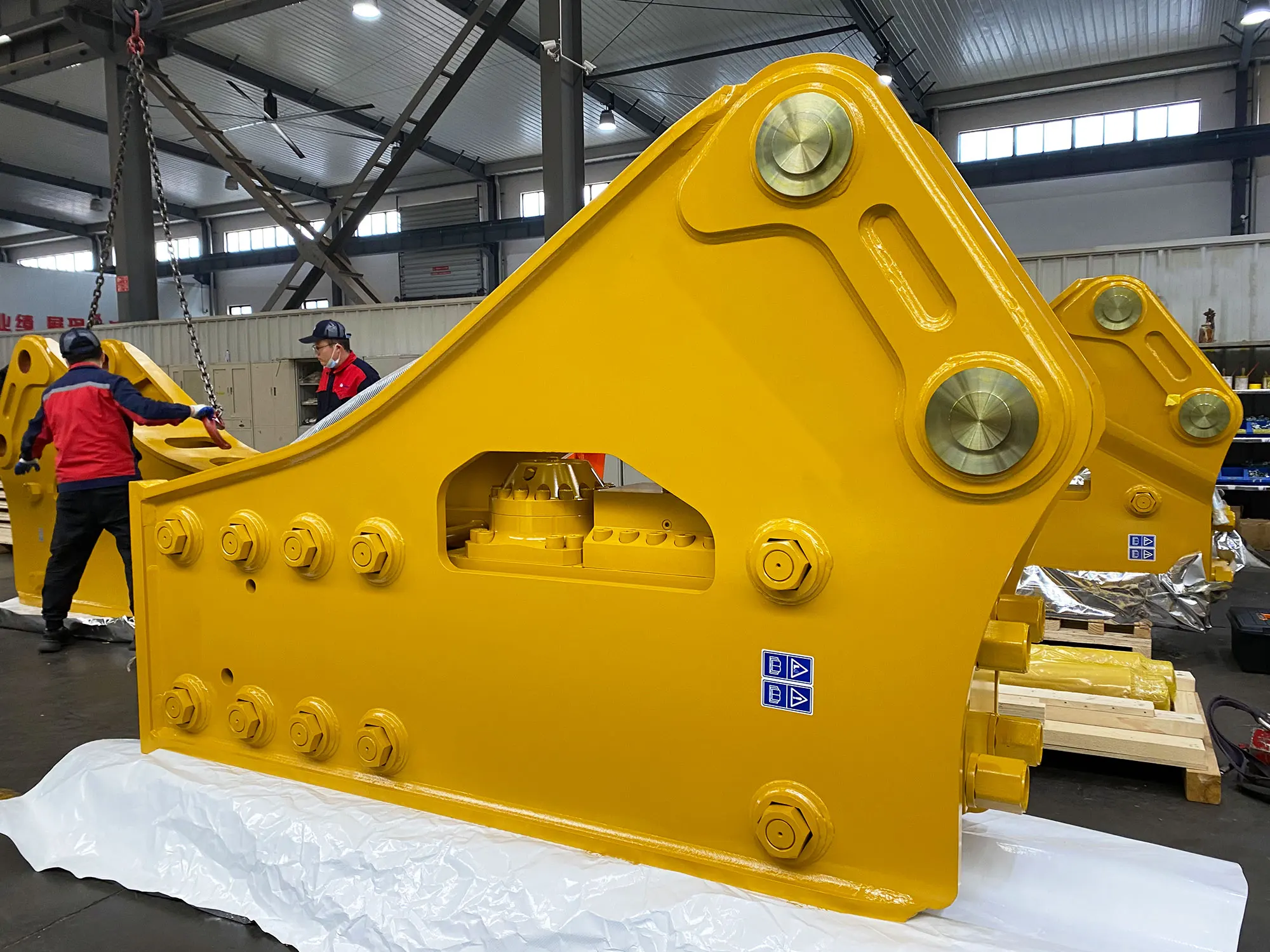

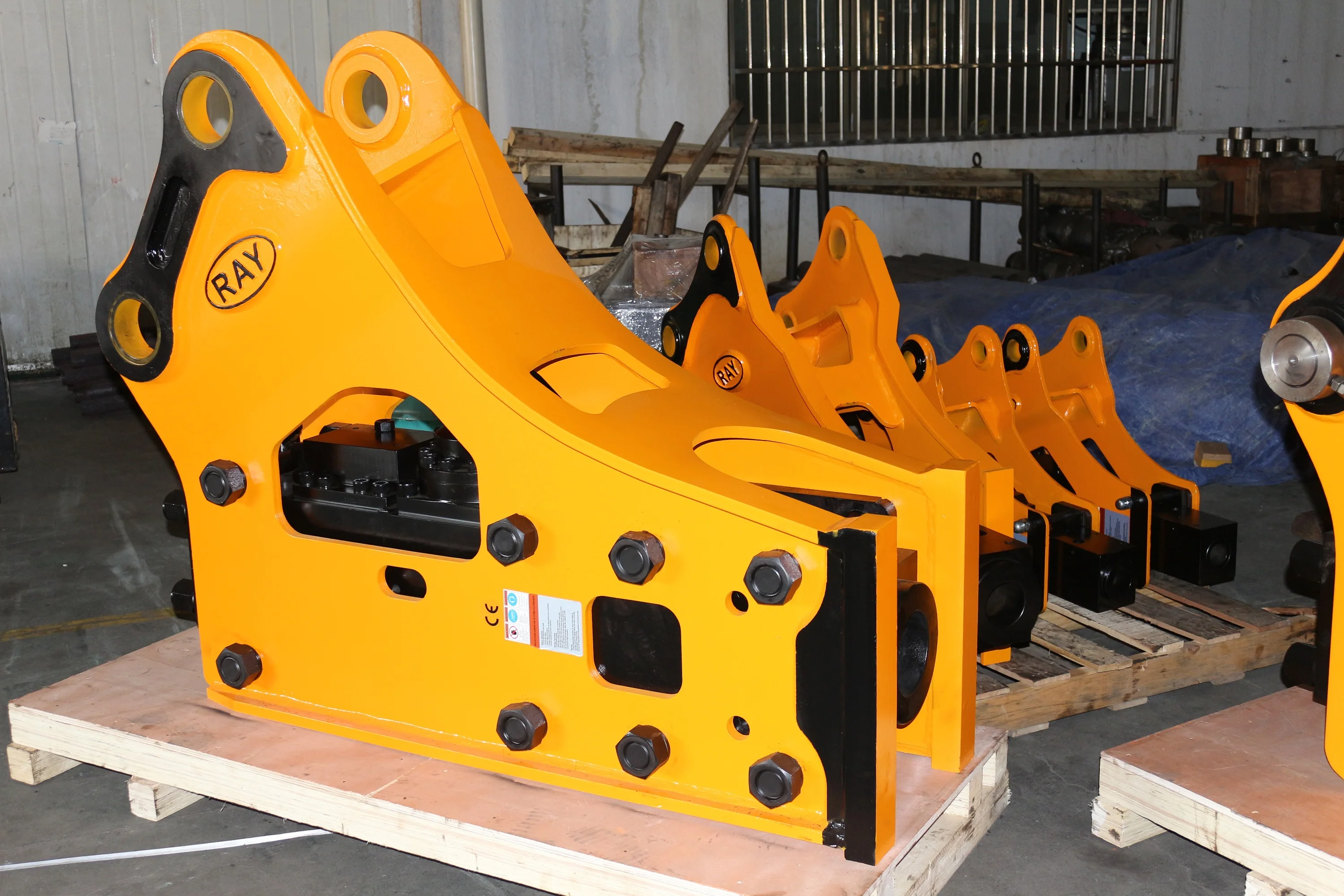

Side Typ
1.Overall length shorter
2.Hook back things conveniently
3.Maintenance-free
2.Hook back things conveniently
3.Maintenance-free
Specification
Model | Carrier Weight | Chisel Diameter | Operating Weight | Oil Flow | Operating Pressure | Impact Rate |
Ton | mm | Kg(Top Type) | L/min | Bar | Bpm | |
RHB40 | 0.7-1.3 | 40 | 73 | 15-30 | 90-120 | 800-1400 |
RHB45 | 1.2-3.0 | 45 | 100 | 20-40 | 90-120 | 700-1200 |
RHB53 | 2.5-4.5 | 53 | 150 | 20-50 | 90-120 | 600-1100 |
RHB68 | 4.0-7.0 | 68 | 298 | 40-70 | 110-140 | 500-900 |
RHB75 | 6.0-9.0 | 75 | 386 | 50-90 | 120-150 | 400-800 |
RHB80 | 6.0-9.0 | 80 | 410 | 50-100 | 120-160 | 400-800 |
RHB85 | 7.0-14 | 85 | 515 | 60-100 | 130-160 | 400-800 |
RHB100 | 10-16 | 100 | 890 | 80-110 | 150-170 | 350-700 |
RHB125 | 15-21 | 125 | 1250 | 90-120 | 150-170 | 400-530 |
RHB135 | 18-26 | 135 | 1847 | 130-150 | 160-180 | 400-800 |
RHB140 | 18-26 | 140 | 1997 | 120-180 | 160-180 | 350-500 |
RHB150 | 27-35 | 150 | 2420 | 150-190 | 160-180 | 350-700 |
RHB155 | 28-36 | 155 | 2700 | 180-240 | 170-200 | 300-450 |
RHB165 | 35-45 | 165 | 3013 | 210-280 | 180-210 | 250-380 |
RHB175 | 38-50 | 175 | 4100 | 210-290 | 180-210 | 200-350 |
RHB185 | 45-65 | 185 | 4351 | 220-270 | 180-210 | 250-320 |
1.Long warranty period -- 12 months warranty
2.Special material:durable and longer service life.-- 40CrNiMo, 42CrMo, 20CrMo, 20CrNiMoA etc
3.High precision accessories and reduce wear and tear
4.heat treatment and subzero treatment to reduce the deformation and not easy scratched
2.Special material:durable and longer service life.-- 40CrNiMo, 42CrMo, 20CrMo, 20CrNiMoA etc
3.High precision accessories and reduce wear and tear
4.heat treatment and subzero treatment to reduce the deformation and not easy scratched

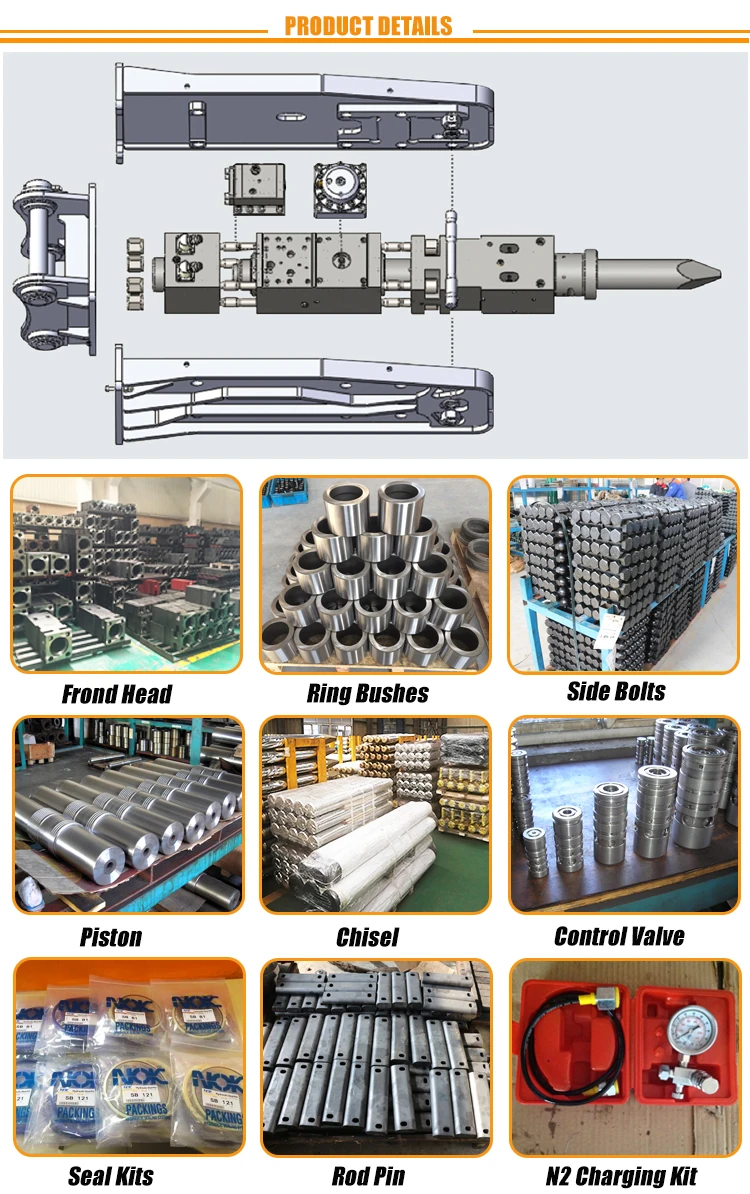

Main Parts
Front Head
Ring Bushes
Control Valve
Chisel
Side Bolts
Piston
N2 Charging Kit
Rod Pin
Seal Kits
Through bolt: The front head, the cylinder and the back head of the main body are tightly fixed with four through bolts.
Valve: The cylindrical compensates for pressure in the hydraulic circuit piston reciprocation.
Piston: Kinetic energy of the piston is converted into hammering energy after hitting the chisel. The raw
material:20CrNiMoA(best),35CrNiMoA, 40CrNiMoA,and other suppliers use the only GCr15 to decrease the cost.
Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance
Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt,
Flat, Conical Point. The material is 42Crmo.
Ring Bush & Front Cover: Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacturer; forging again and again to make forming, to make internal organization more tight, and increase products’ wear-resistance.
Seal Kit: We can supply both Parker and NOK seal kit which are most famous brand in the bussines line.
Valve: The cylindrical compensates for pressure in the hydraulic circuit piston reciprocation.
Piston: Kinetic energy of the piston is converted into hammering energy after hitting the chisel. The raw
material:20CrNiMoA(best),35CrNiMoA, 40CrNiMoA,and other suppliers use the only GCr15 to decrease the cost.
Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance
Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt,
Flat, Conical Point. The material is 42Crmo.
Ring Bush & Front Cover: Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacturer; forging again and again to make forming, to make internal organization more tight, and increase products’ wear-resistance.
Seal Kit: We can supply both Parker and NOK seal kit which are most famous brand in the bussines line.

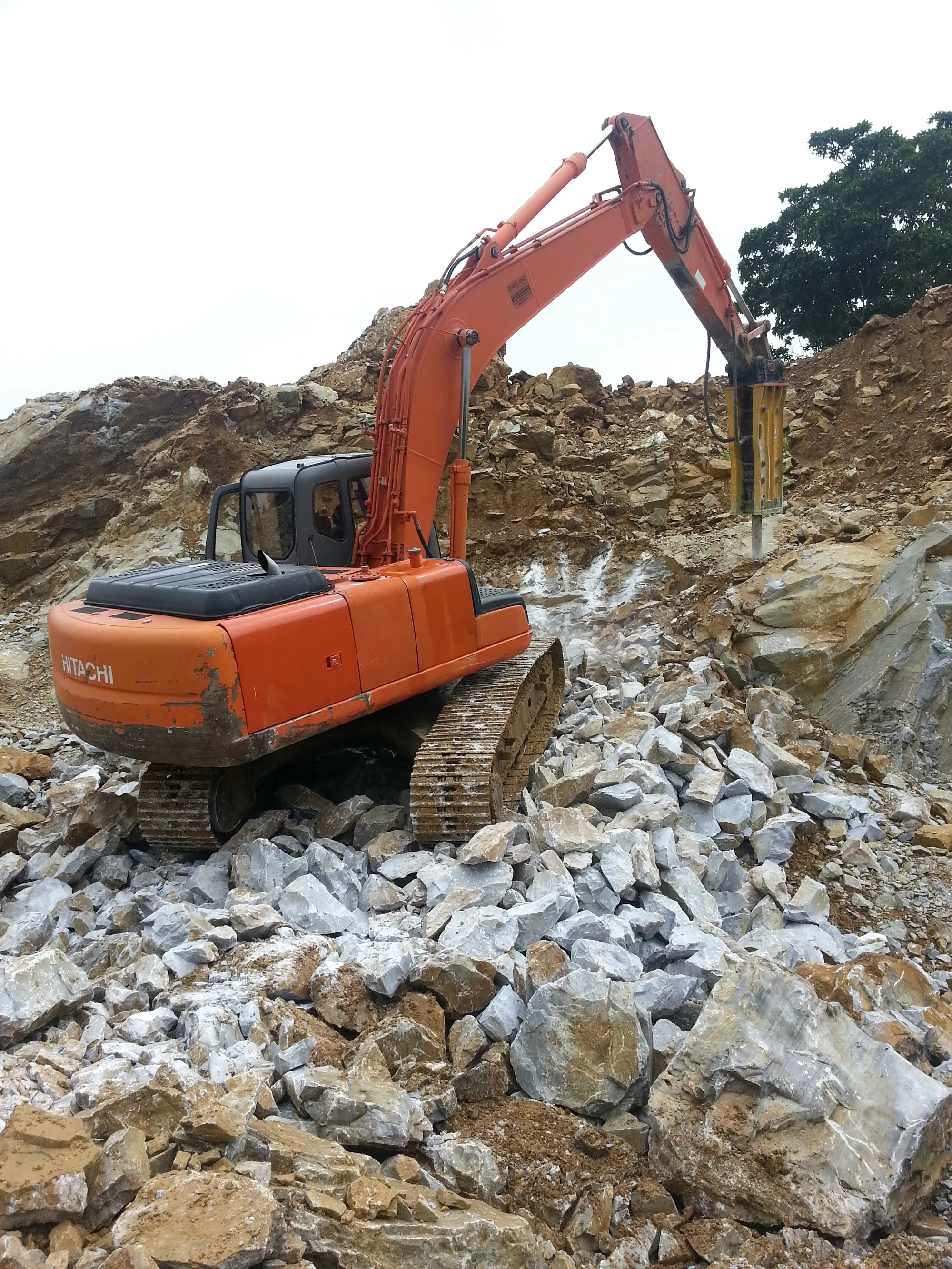

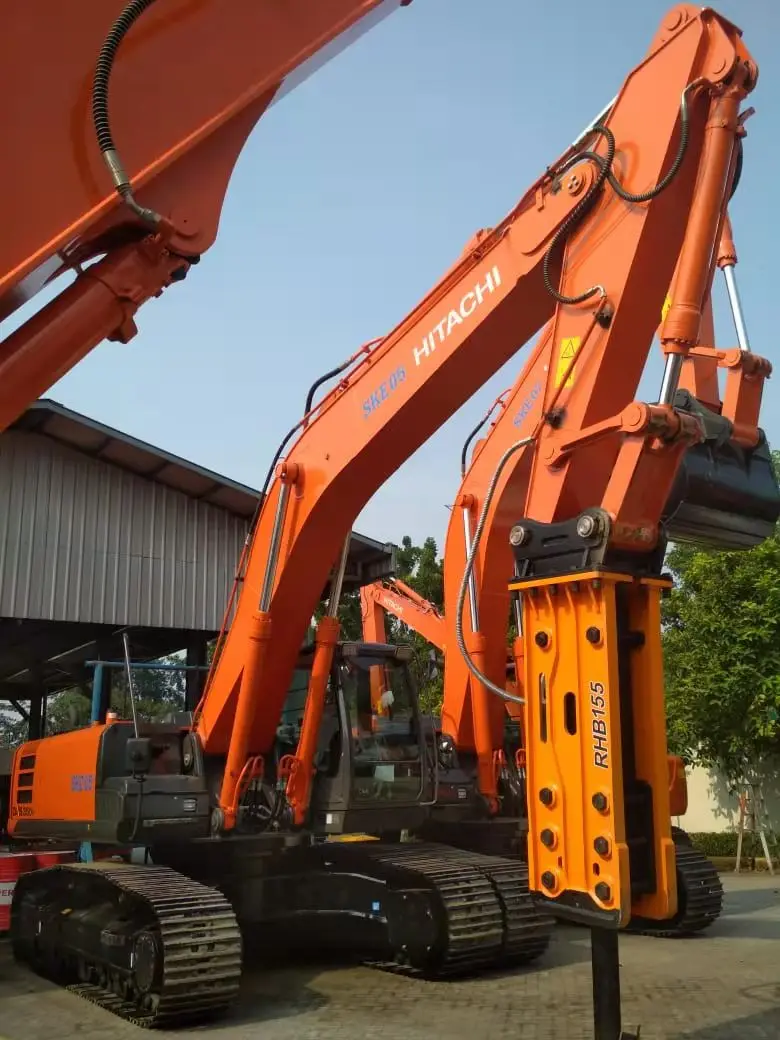

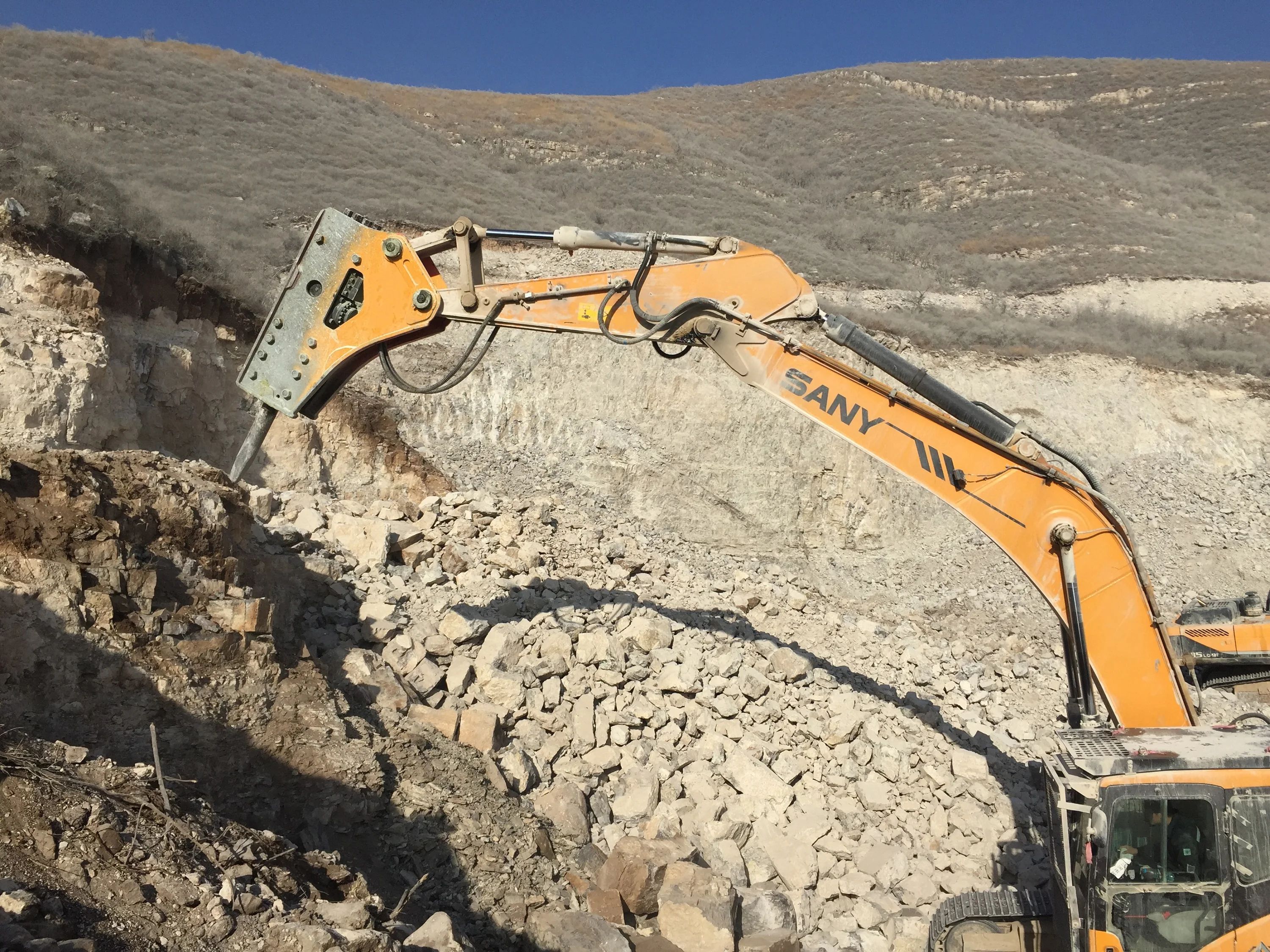

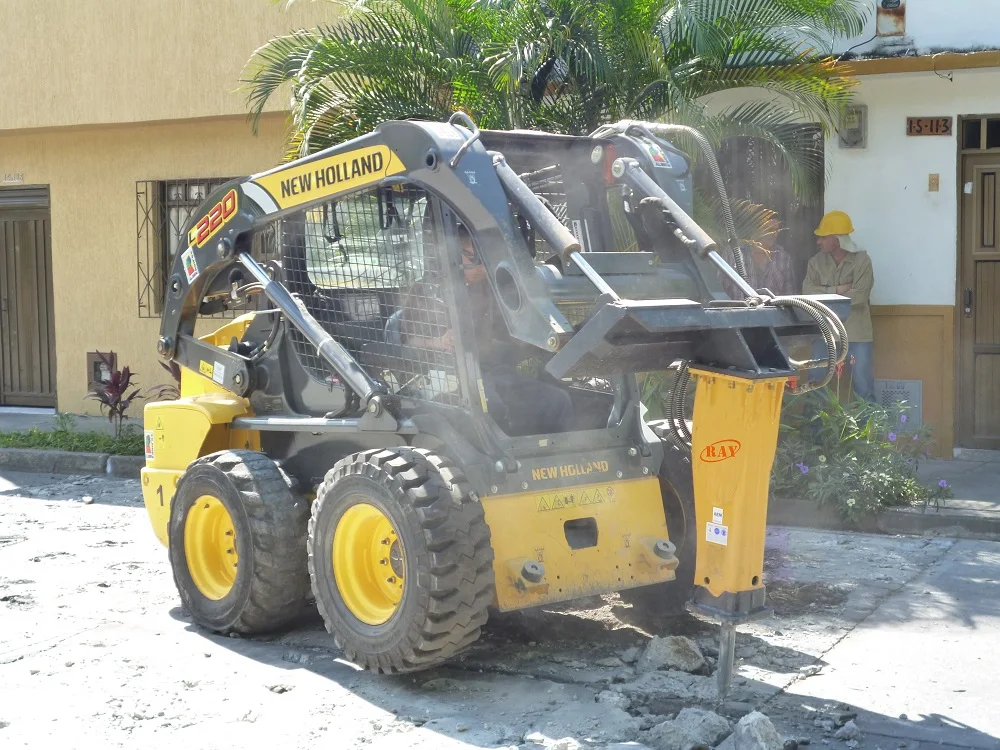

Customer Photos

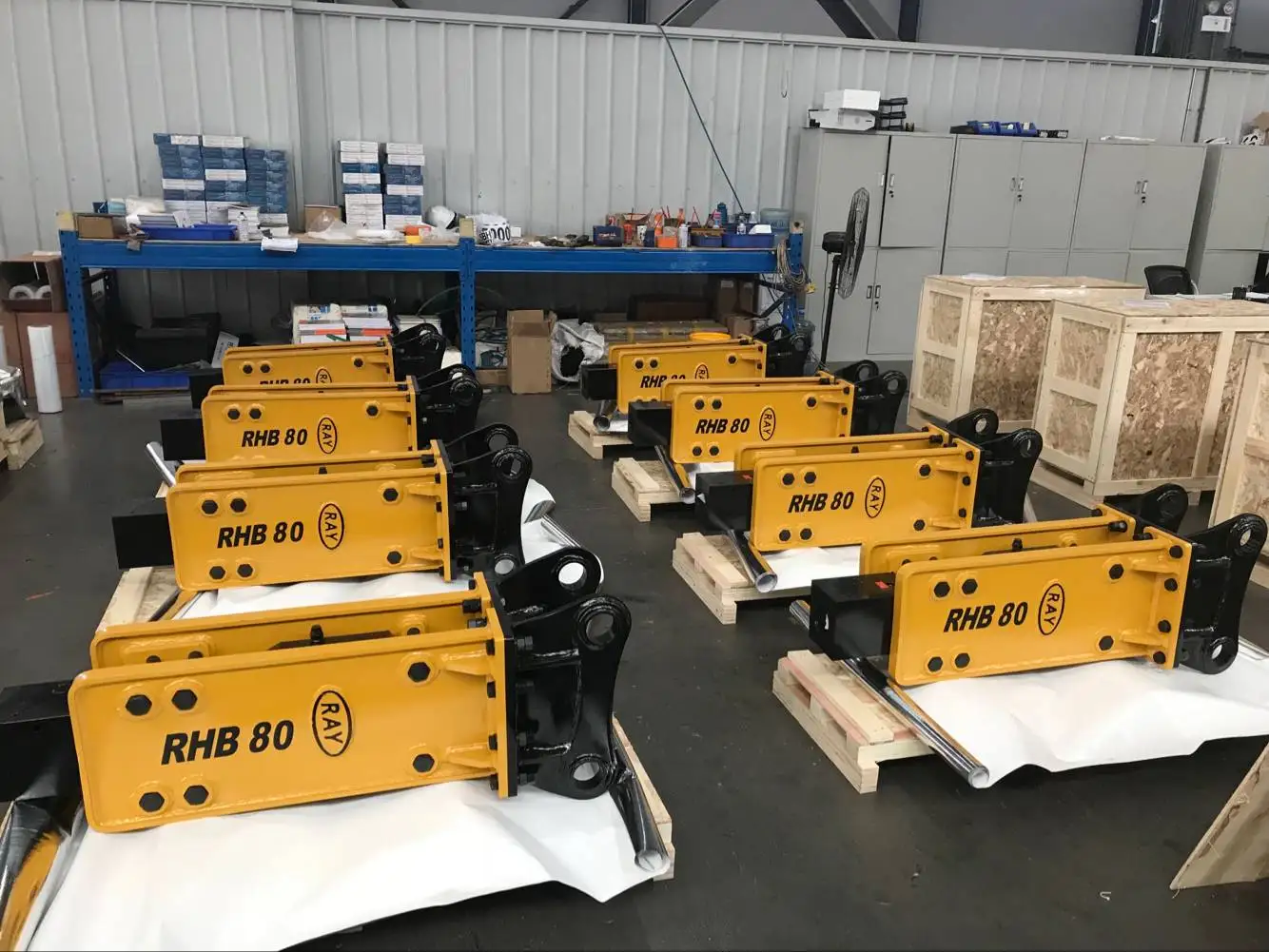

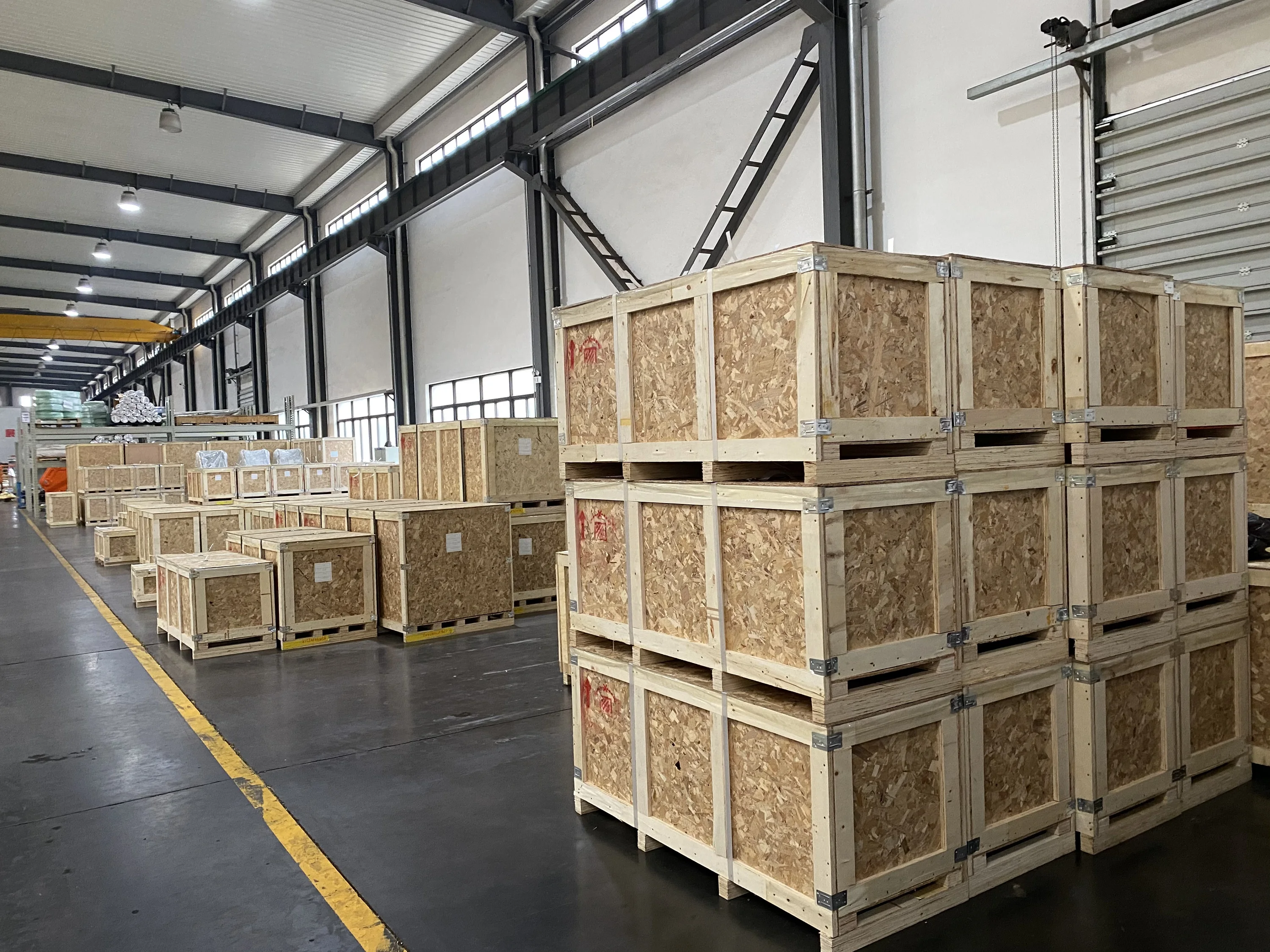

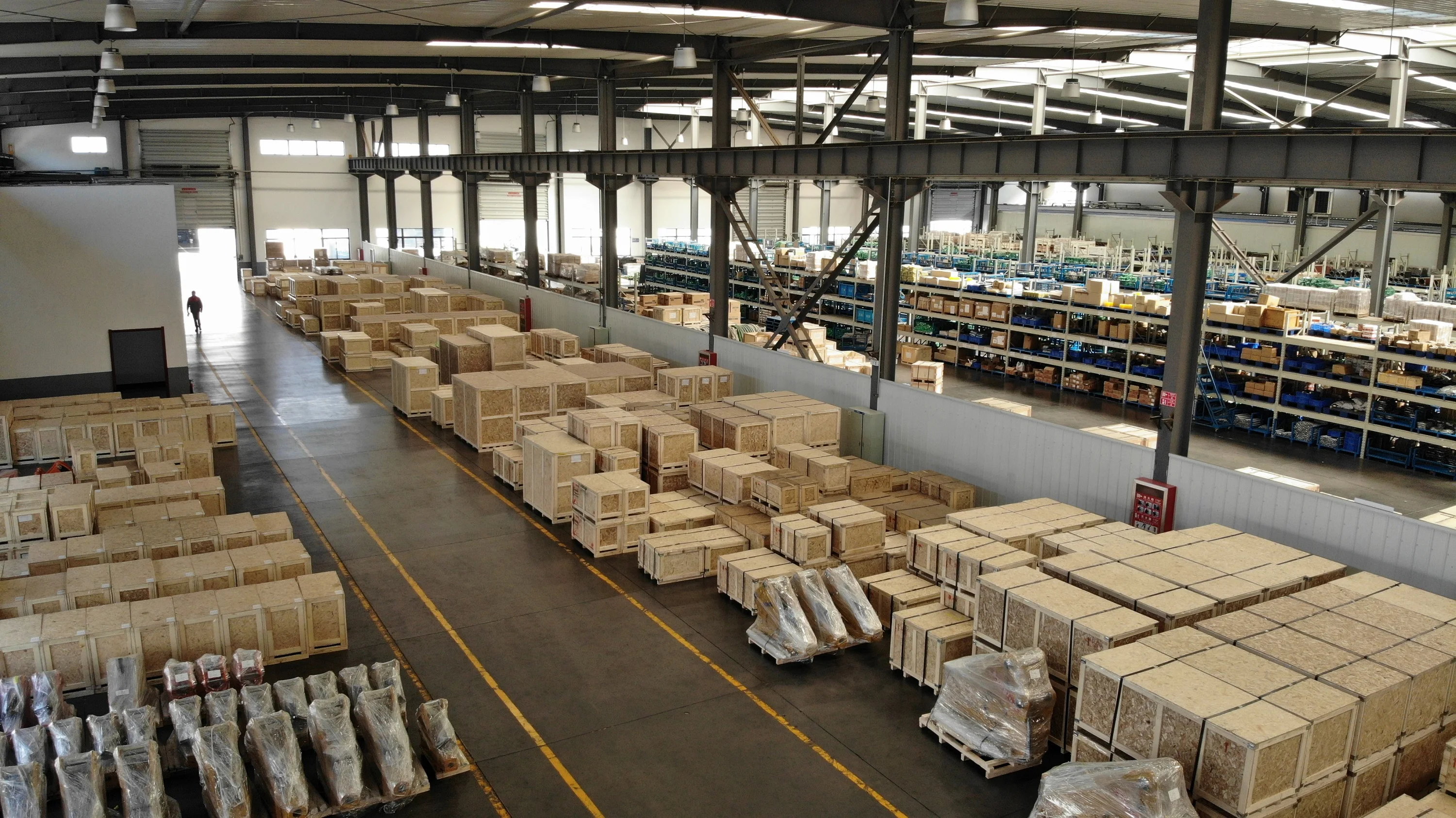

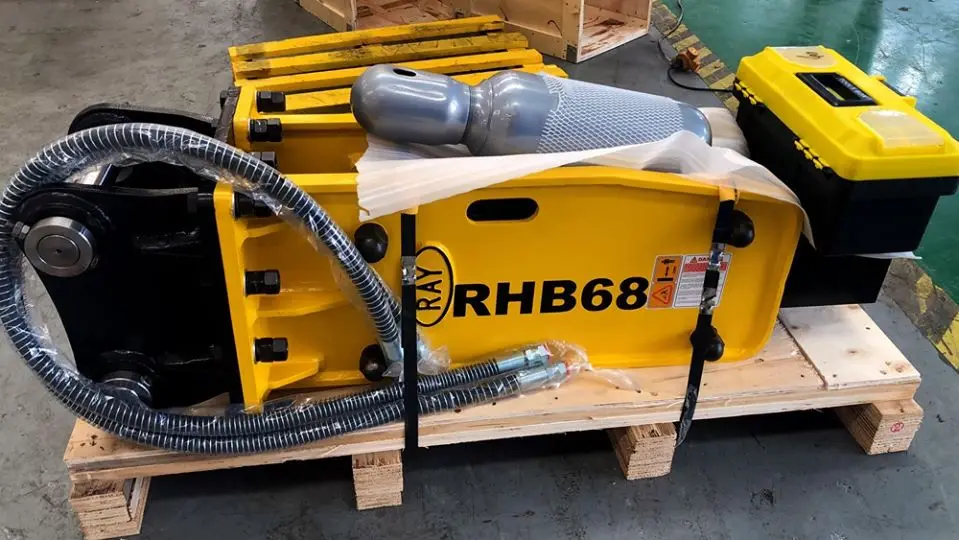

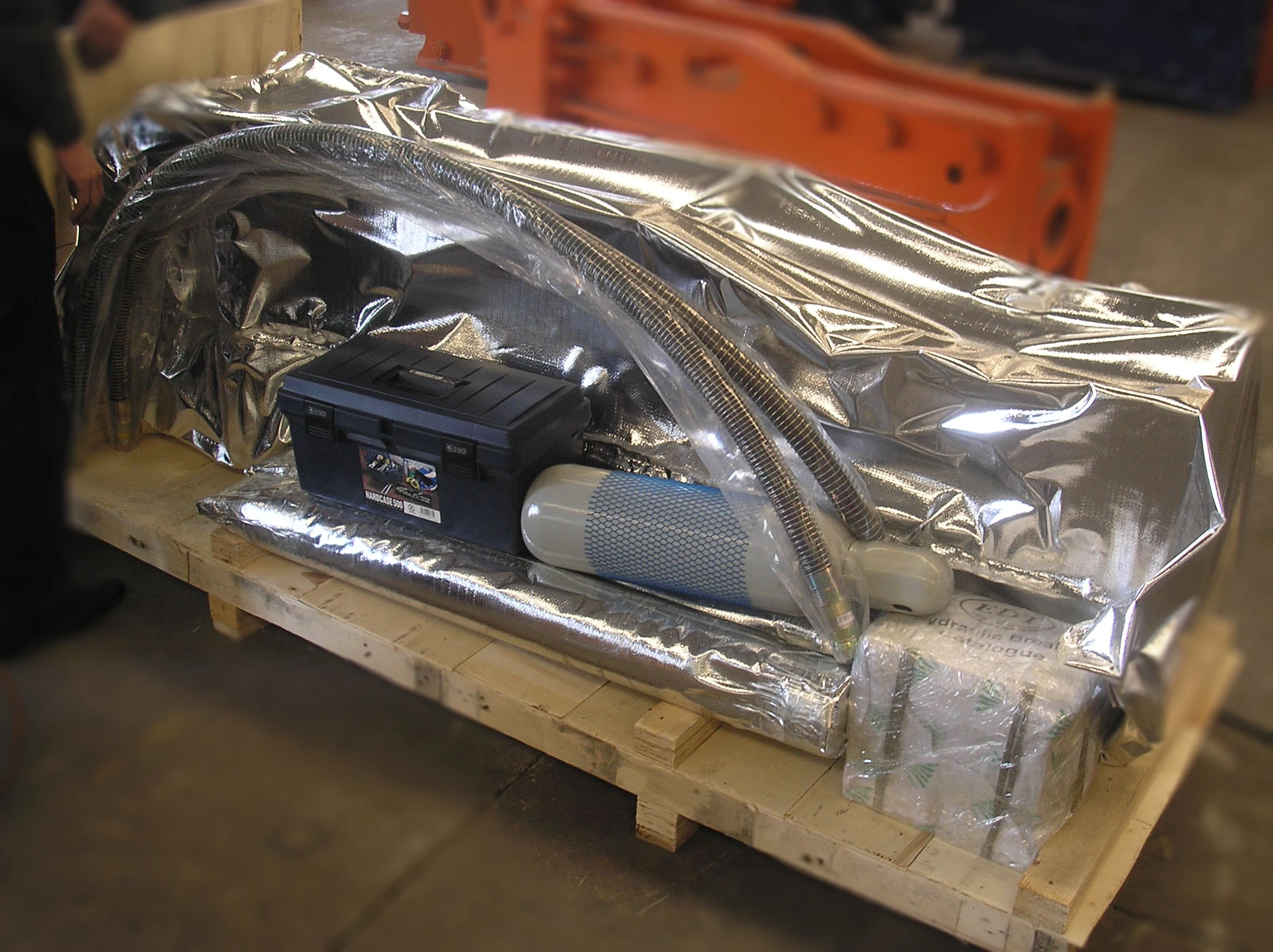

Product packaging

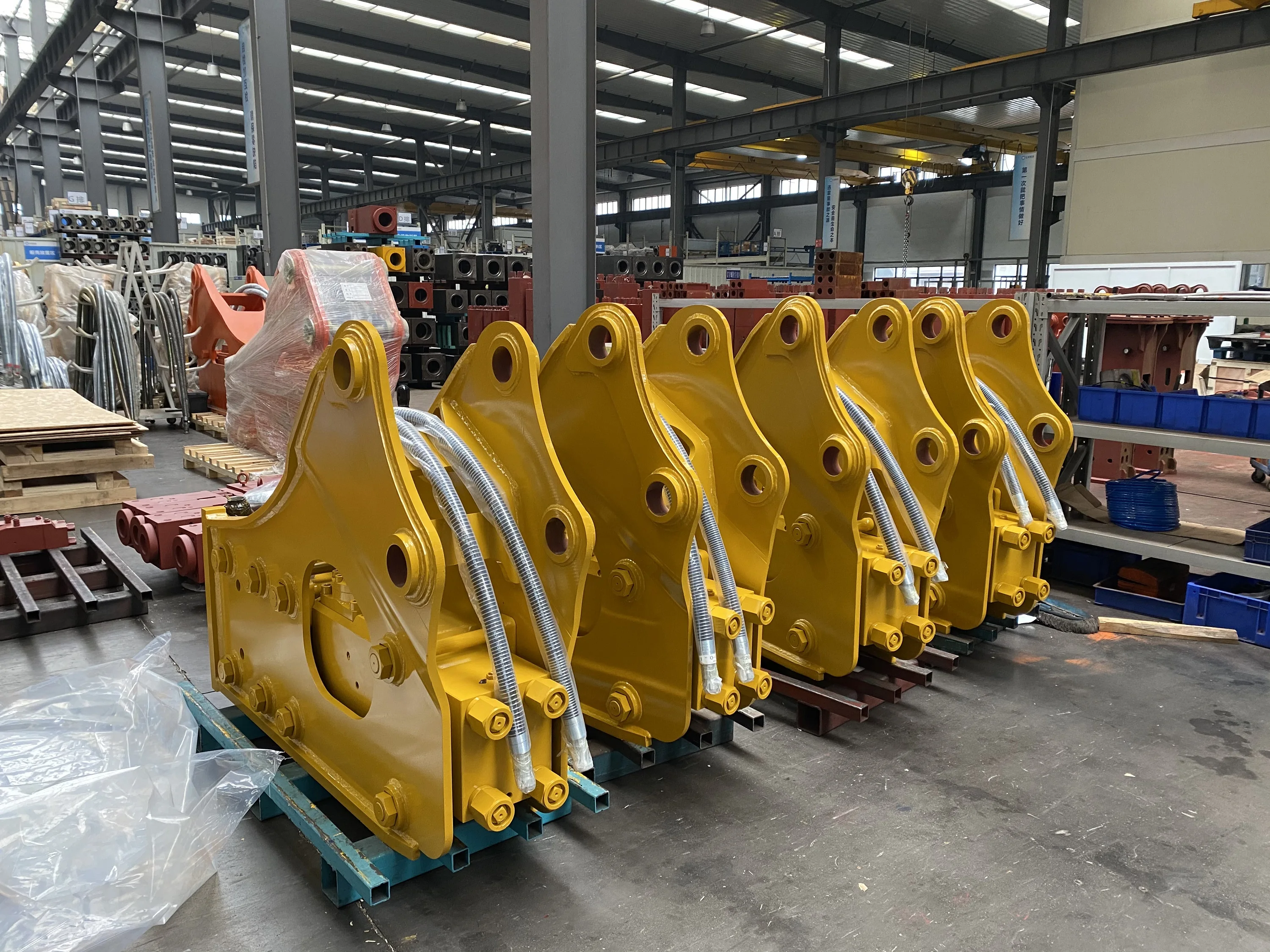

Company Profile

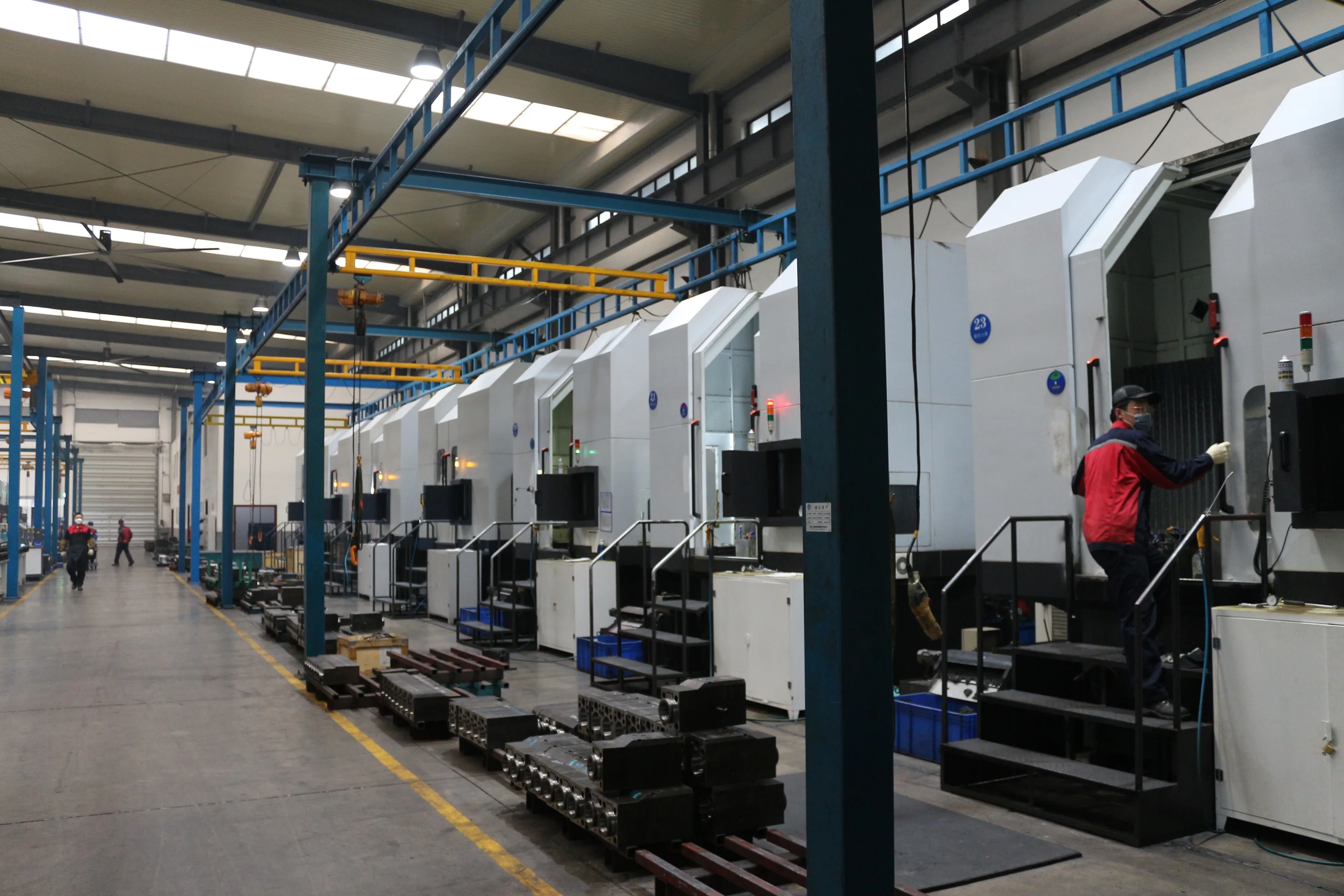

RAYMOND is a factory with authorized Imp. & Exp. right which including two companies, Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd, located in Changzhou City, Jiangsu Province, China, Factory building areas cover around 20,000 square meters. Raymond Precision Machinery Co.,Ltd was established in 2002, committed to focus on the development, production and sales of construction machinery and their spare parts.
Exhibition
FAQ
1. Are you manufacturer?
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.
2. Do you have warranty?
Yes. RAY hydraulic breaker has 12 months warranty.
Warranty starts from the time you receive the machines, not include production and shipping time.
Exceed warranty, all parts are offered at cost prices.
3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.
2. Do you have warranty?
Yes. RAY hydraulic breaker has 12 months warranty.
Warranty starts from the time you receive the machines, not include production and shipping time.
Exceed warranty, all parts are offered at cost prices.
3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
