SSG3032X-IQE,9kHz~3.2GHz External IQ Modulation RF Signal Generator



Product Overview


SSG3000X series of signal generators have a frequency range of 9 kHz to 2.1 GHz/3.2 GHz. They provide normal analog modulation such as AM, FM, and PM. They also provide pulse modulation and pulse train generator.
In addition, when used with baseband generator such as SDG6000X, They can generate IQ modulated signals. With their high accuracy and pure outputs, the SSG3000X series are the right choice for R&D, education, and manufacturing.





Ordering Information















































Product Description SSG3000X Signal Generator Order Number
Product CodeSignal Generator 9kHz~3.2GHzSSG3032X ; SSG3032X-IQE
Signal Generator 9kHz~2.1GHzSSG3021X ; SSG3021X-IQE
Standard Configurationsquick start, an USB cable, calibration certificate, power cord
Optionpulse train generator SSG3000X-PT
rack mount kit SSG-RMK
USB-GPIB adapter USB-GPIB
Upgrade 2.1 GHz to 3.2 GHz SSG3000X-21BW32
Upgrade 2.1 GHz to 3.2 GHz (with external IQ) SSG3000X-IQE-21BW32




Function & Benefits


  • 5 inch TFT capacitive touch screen, mouse and keyboard supported

  • Frequency up to 3.2 GHz

  • 0.01 Hz frequency setting resolution

  • Level output from -110 dBm to +13 dBm

  • Maximum level up to +20 dBm (typ.)

  • Phase Noise: -110 dBc/ Hz @ 1GHz , 20kHz offset (typ.)

  • Level accuracy ≤0.7 dB (typ.)

  • External IQ modulation with SDG6000X as the baseband IQ signal

  • USB-power meter measurement

  • Web browser remote control on PC and mobile terminals

  • Standard interface: USB Host, USB Device (USB TMC),LAN (VXI-11, Socket, Telnet)

  • Optional interface: GPIB




Specifications































































































































































































































































































































































ModelSSG3032XSSG3021XSSG3032X-IQESSG3021X-IQE
Frequency RangeCW MODE 9kHz~3.2GHzCW MODE 9kHz~2.1GHz

CW MODE:


9kHz~3.2GHz
IQ MODE:


10MHz~3.2GHz



CW MODE:


9kHz~2.1GHz
IQ MODE:


10MHz~2.1GHz


Frequency Resolution0.01Hz
Setting Time<5 ms (typ.), ALC ON;  <10 ms (typ.), ALC OFF (S&H)
Resolution of Phase Offset Setting0.1°
Frequency Reference
Reference Frequency 10.000000 MHz
Initial Calibration Accuracy<0.2 ppm
Temperature Stability <1 ppm/year, 0°C ~50°C
Frequency Aging Rate <0.5 ppm/first year, 3.0 ppm/20 years
Frequency Sweep
Sweep Typefrequency step (linear or logarithmic step) arbitrary list
Sweep Range full frequency range
Sweep Sheep triangle, saw-tooth
Sweep Mode single, continuous
Step Spacing linear, logarithmic
Dwell Time Range 10 ms~100 s
Dwell Time Setting Resolution 0.1 ms
Trigger Source auto, keyboard, external connector, bus
Trig Slop positive, negative when trigger source is external
Level Characteristics
Level Setting
Level Setting Range9 kHz≤f<100 kHz -110dBm~+9dBm
100 kHz≤f<1 MHz -110dBm~+15dBm
1 MHz≤f≤3.2 GHz -110dBm~+20dBm
Level of Performance Range9 kHz≤f<100 kHz -110dBm~+7dBm
100 kHz≤f<1 MHz -110dBm~+10dBm
1 MHz≤f≤3.2 GHz -110dBm~+13dBm
Resolution of Setting 0.01dB
Level Error (ALC on, temperature is 20°C ~30°C)
Range+13dBm~-50dBm-50dBm~-90dBm-90dBm~-110dBm
9 kHz≤f<100 kHz≤0.9 dB
≤0.7 dB (typ.)		≤1.1 dB
≤0.7 dB (typ.)		≤1.1 dB
≤0.7 dB (typ.)
100 kHz≤f≤3.2 GHz≤0.7 dB
≤0.5 dB (typ.)		≤0.7 dB
≤0.5 dB (typ.)		≤1.1 dB
≤0.7 dB (typ.)
Additional Level ErrorALC State Off (S&H)<0.2 dB
VSWR1 MHz≤f≤3.2 GHz≤1.8 (nom.)
Level Setting TimeALC state ON <5ms
ALC state S&H <10ms
Level Step Sweep
Sweep Typeamplitude step (linear or logarithmic step), arbitrary list; full specified level range
Sweep Shape triangle, saw-tooth
Sweep Range the device output range
Trigger Mode free run, single
Step Spacing linear
Dwell Time Setting Range 10ms~100s
Dwell Time Setting Resolution 0.1ms
Trigger Source auto, keyboard, external connector, bus
Trigger Slop positive, negative
Spectral Purity
HarmonicsCW mod, 1 MHz<f≤3.2 GHz, Level ≤ +13 dBm<-30dBc
Sub HarmonicsCW mod, 1 MHz<f≤3.2 GHz, offset >10 kHz
Level ≤ +13 dBm		<-45dBc
Non-harmonicsCW mod, offset>10 kHz, Level ≤ +13 dBm
1 MHz<f≤1.5 GHz		<-65dBc
CW mod, offset>10 kHz, Level ≤ +13 dBm
1.5 GHz≤f≤3.2 GHz		<-75dBc
SSB Phase NoiseCW mod, offset=20 KHz, 1 Hz measure bandwidth
f=100MHz <-118dBc/Hz (typ.)
f=1GHz <-110dBc/Hz (typ.)
f=3GHz <-105dBc/Hz (typ.)
Internal Modulation Generator (LF)
Waveformssine wave, square wave, saw-tooth, triangle, DC
Frequency Rangesine wave0.1Hz~1MHz
square wave, triangle, saw-tooth0.1Hz~20kHz
Resolution of Frequency
Setting		0.01Hz
Frequency Error similar with RF source
Frequency Response sine wave <0.3dB
LF Frequency Sweep
Operating Mode digital sweep in discrete steps
Step Spacing linear, logarithmic
Sweep Shape saw-tooth, triangle
Sweep Direction up, down
Sweep Range 0.01Hz~1MHz
Trigger Mode auto, keyboard, external connector, bus
Trigger Slope positive, negative
Dwell Time Setting Range 1ms~ 500s
Dwell Time Setting Resolution 0.1ms
General Specification
Display5 inch capacitive touch screen 800*480 TFT LCD
Storageinternal (Flash) 256 M Byte ,external (USB storage device)
InterfaceUSB Host, USB Device (USB TMC),LAN (VXI-11, Socket, Telnet)
Optional InterfaceGPIB
ConnectorsRF output,Modulation generator output(LF),TRIG IN / OUT,EXT MOD INPUT,PULSE IN / OUT,10MHz IN / OUT,SIGNAL VALID,I INPUT,Q INPUT
EMC EN 61326-1:2006
Electrical Safety EN 61010-1:2010
Dimensions(W*H*D)338mm*113mm*369 mm
Weight without packagecontain IQ modulator board 4.84 kg




Special Function

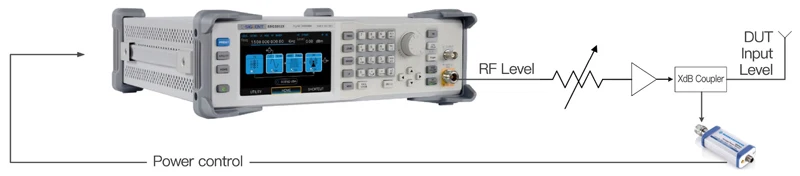

 Example for auto level control
