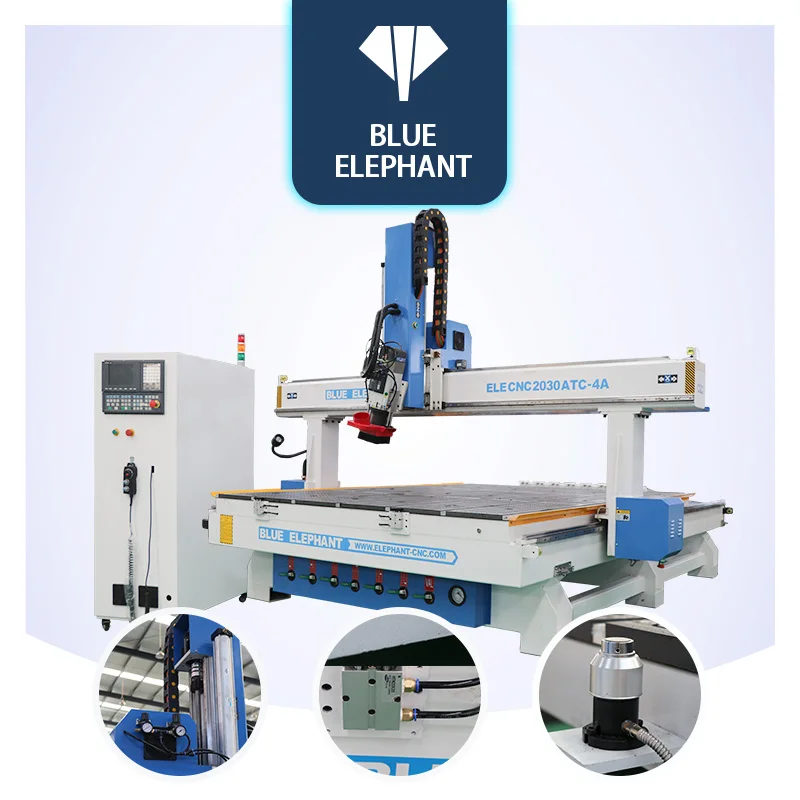

1325 2030 atc spindle cnc router 4 axis 2000x3000mm wood router 3d wood craving engraving woodworking machine for furniture mdf
1325 2030 atc spindle cnc router 4 axis 2000x3000mm wood router 3d wood craving engraving woodworking machine for furniture mdf
1325 2030 atc spindle cnc router 4 axis 2000x3000mm wood router 3d wood craving engraving woodworking machine for furniture mdf
1325 2030 atc spindle cnc router 4 axis 2000x3000mm wood router 3d wood craving engraving woodworking machine for furniture mdf
1325 2030 atc spindle cnc router 4 axis 2000x3000mm wood router 3d wood craving engraving woodworking machine for furniture mdf
1325 2030 atc spindle cnc router 4 axis 2000x3000mm wood router 3d wood craving engraving woodworking machine for furniture mdf
1325 2030 atc spindle cnc router 4 axis 2000x3000mm wood router 3d wood craving engraving woodworking machine for furniture mdf

1325 2030 atc spindle cnc router 4 axis 2000x3000mm wood router 3d wood craving engraving woodworking machine for furniture mdf

Share on (60822911935):


Price:$13,000.00 - $20,000.00

Quantity:


Product Overview

Description

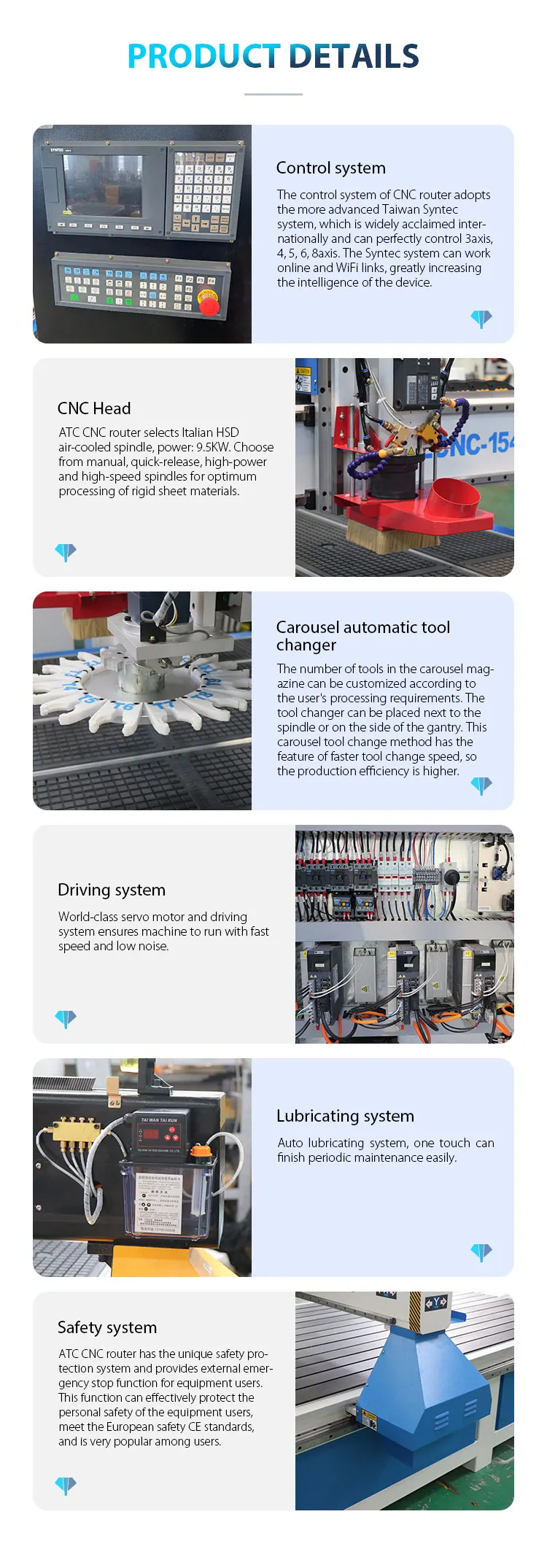

Product Description




1. Linear auto tool magazine holds 8 pieces of tools. Italy HSD air cooling spindle changes tools quickly and automatically. 2. ATC spindle swings 180 degrees, it can make a more complex 3D wood carving than basic 3 axis CNC router.
3. Thoughtful and safe design, such as dust collect function, Automatic lubrication system, T-slot & vacuum working Table, etc.
4. Router Cutting has a lower cutting speed but more complex cutting path than a traditional wood cutting machine.




Technical Parameters


Model

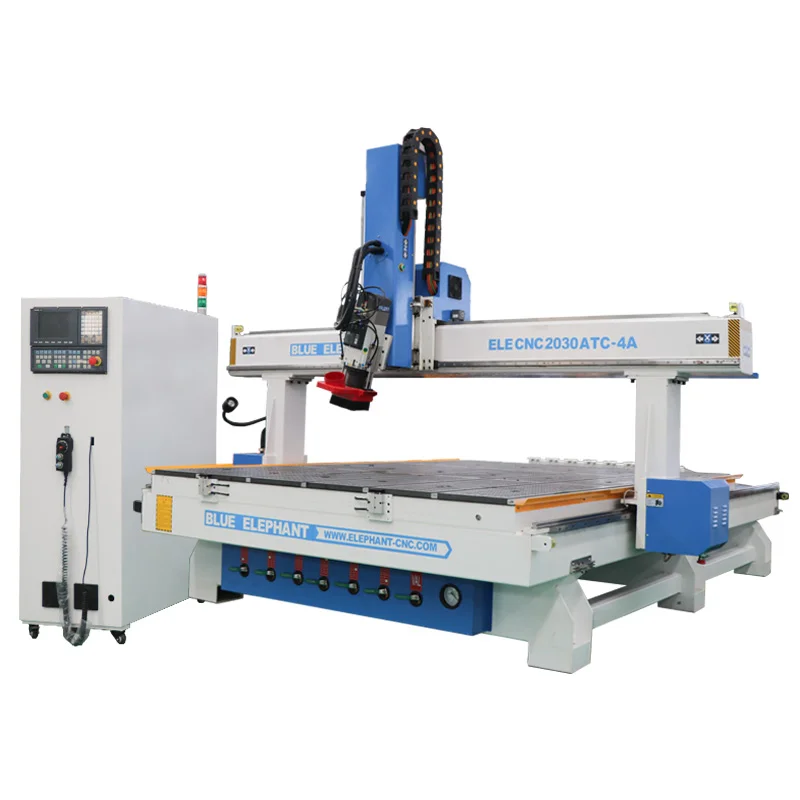

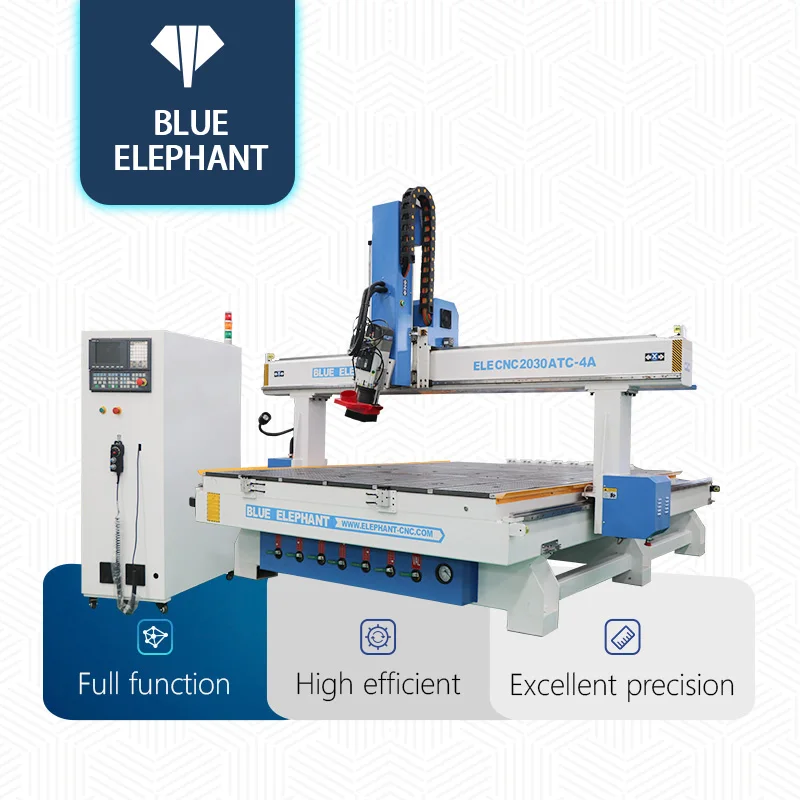

ELECNC2030ATC-4A
X,Y axis travel
2000*3000mm, option: 1300*2500mm; 1500*3000mm; 2000*4000mm, etc.
Z axis travel
400mm, option: 500mm, 600mm, etc.
Spindle type
9kw ATC air cooling spindle, ISO30, ER32
Inverter type
11kw
The 4th axis
Spindle swing from -90°to +90°
Tool magazine
Linear type auto tool changer Option: Carousel type auto tool changer
Tool holder with collet
ISO30,ER32 collet: φ4, φ6, 1/8, 1/2
Control system
Taiwan SYNTEC /LNC controller
Driving system
1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. Option:1kw Taiwan Syntec servo
Reducer
Japan SHIMPO reducer
Machine structure
Heavy duty body with quenching treatment
Work table
Aluminum T-slot & vacuum work table
Positioning cylinder
7 pieces (X3,Y4)
Linear guide
Taiwan Linear guide
Transmission
X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system
1.5L automatic lubrication system
Tool calibration
Automatic tool sensor calibration
Cables
Germany Igus cables with CE, cUL certificate
Compatible software
Powermill, UG, Alphacam, Fusion 360, etc.
Command language
G Code & M Code
Traveling speed
80m/min
Working speed
0-25m/min
Re-positioning accuracy
±0.03mm
System resolution
±0.0025mm
Working accuracy
±0.03mm
Working air pressure
≥0.8MPa
Working voltage
220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

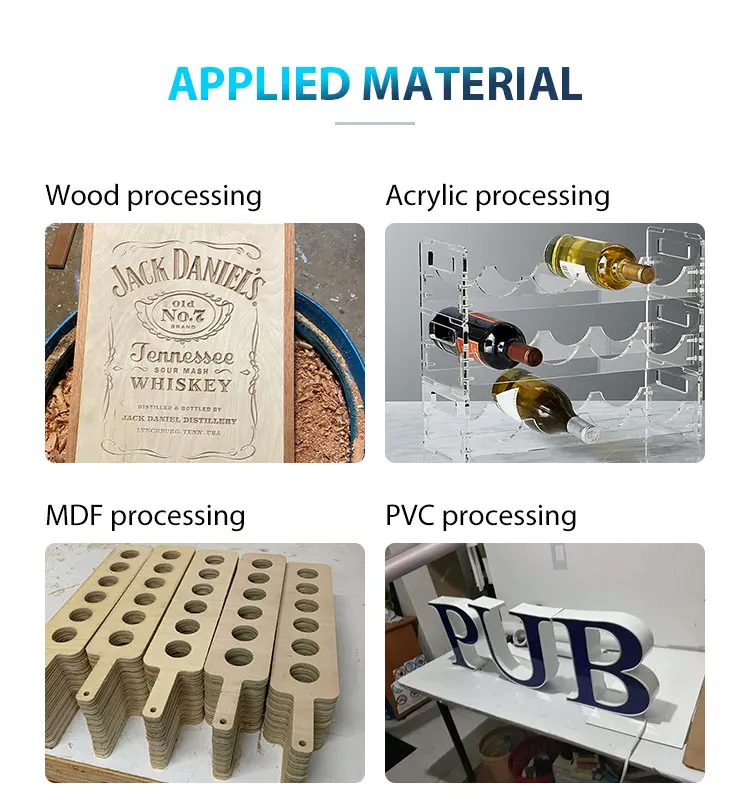

Sample & Application








Recommend Products

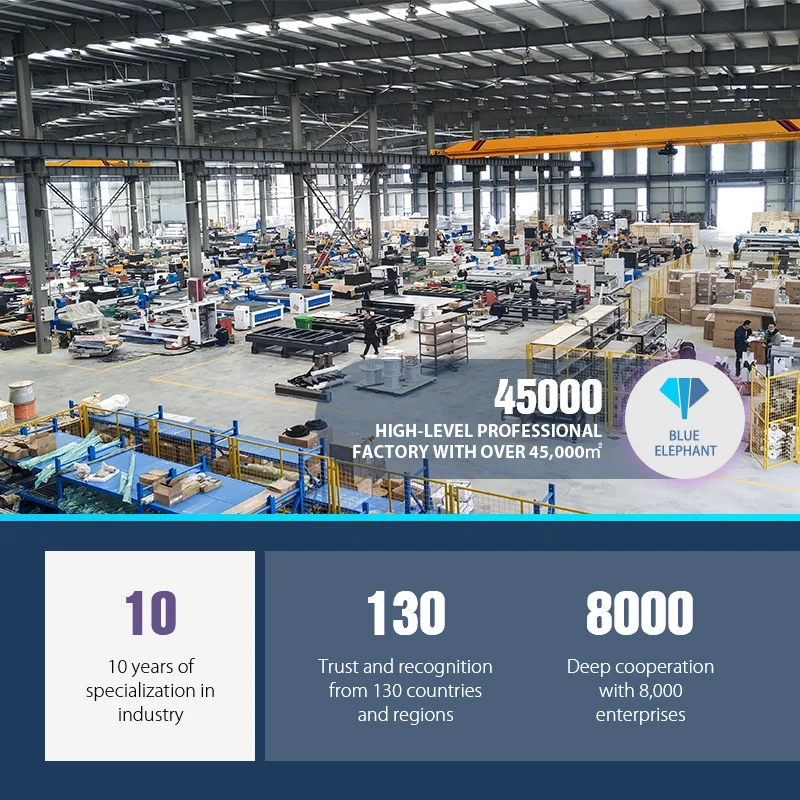

Company Information
