Automatic Chocolate Chips Depositor Depositing Chocolate Chip Making Machine
- Category: Chocolate making machine >>>
- Supplier: Zhengzhou Longer Machinery Co. Ltd.
Share on (60823073617):
Product Overview
Description

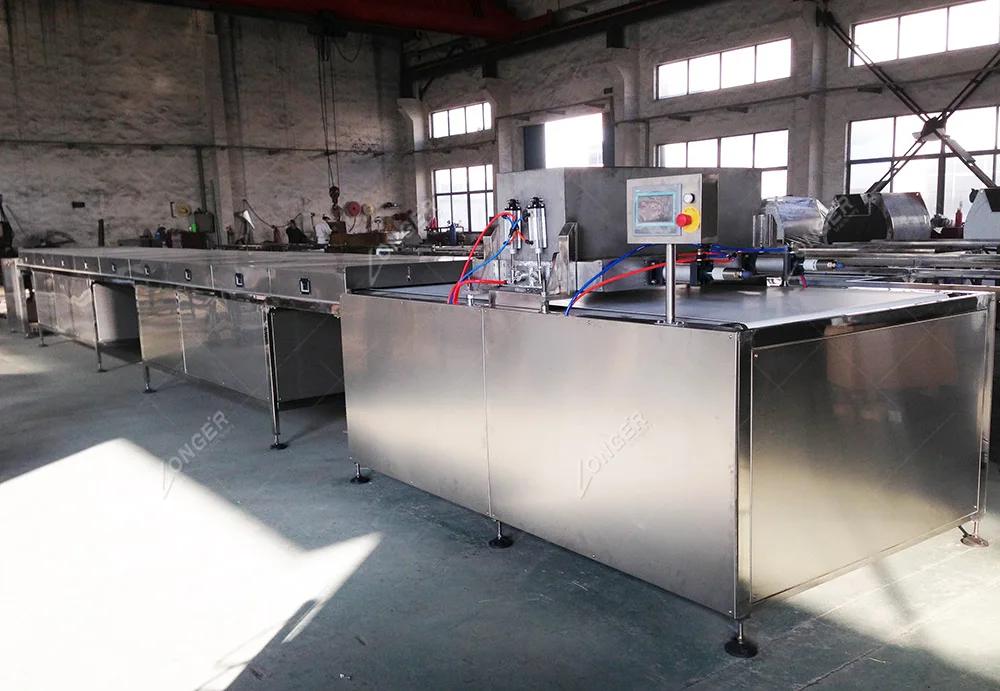

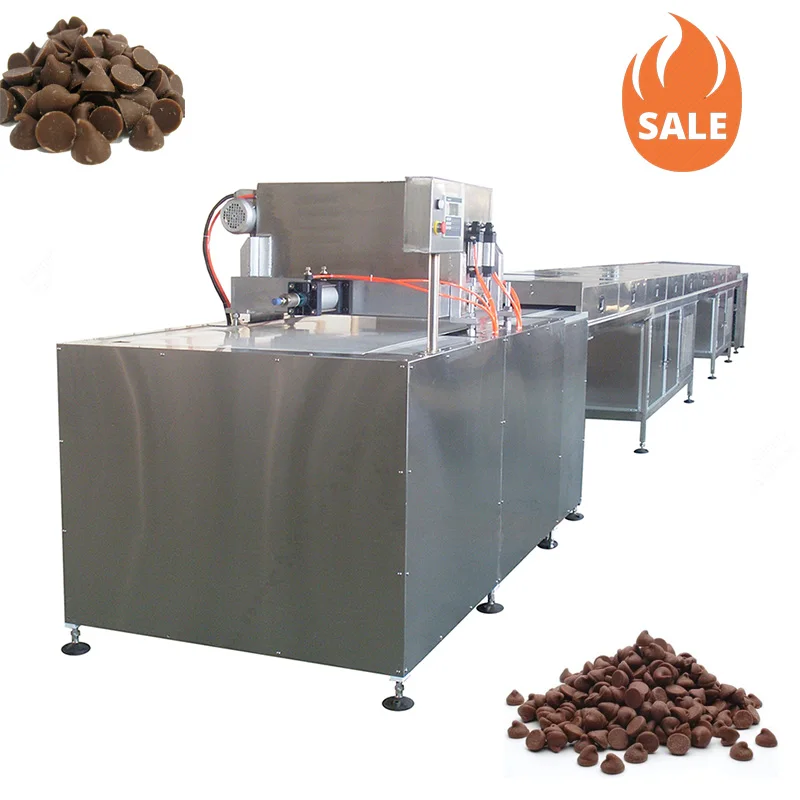

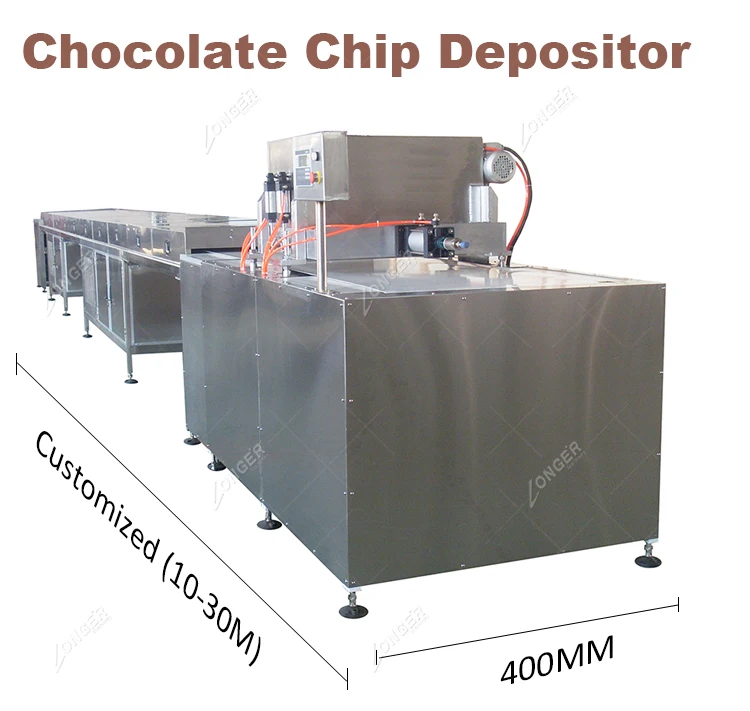

Chocolate Chip Making Machine is for the production of chocolate chips in small drop-shape or button shape. It can be used to deposit chocolate pastes through depositing head on the PU conveyor belt and convey the products into the cooling tunnel for cooling down and automatic shedding. Chocolate Chip Making Machine has advantages of accurate amount set, easy operation and large production capacity.

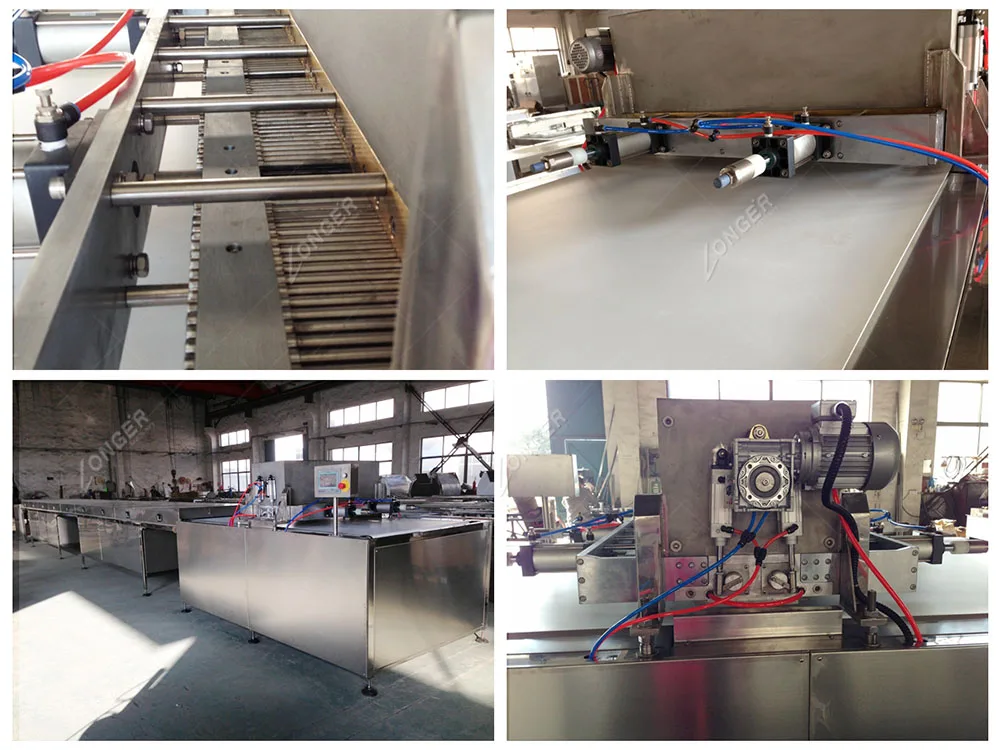

Detailed Images
The moisture content and viscosity required
The moisture content of the material has a great influence on the viscosity, the water content of raw material and the increase of water absorption in the process of material should be strictly controlled before casting and forming. The water content of the chocolate material used in the pouring is the lowest, no more than 1%.
The chocolate material must have a suitable viscosity, it must maintain the certain range viscosity during the casting, to guarantee product quality. The general pouring mold temperature is kept in 27~29℃, the viscosity should not exceed 20pa.s.
Size Information
Material of Chocolate Chip Making Machine
The mold material is stainless steel or polycarbonate plastic, the polycarbonate plasticity has a very good strength and roughness, and the specific heat capacity and thermal conductivity of polycarbonate are similar to that of chocolate, and have better demoulding performance. In addition to the use of this type of mold plate, more use of porcelain plate, because it has excellent roughness and good demoulding characteristics.
Model | 400 | 600 | 800 |
Conveyor Belt Width(mm) | 0-20 | 0-20 | 0-20 |
Depositing Speed(times/min) | 0.1-3 | 0.1-3 | 0.1-3 |
Single Grain Weight(g) | 0-10 | 0-10 | 0-10 |
Cooling Tunnel Temperature℃ | 10-30 | 10-30 | 10-30 |
Machine Length(m) | 26 | 27.9 |
