Eccentric Overburden Drilling Odex 5" dth drilling hammer system / water well drill bit for water well / Casing DTH Bit

Share on (60824163898):


Price:RUB 76,987.81

Quantity:


Product Overview

Description

Product Description

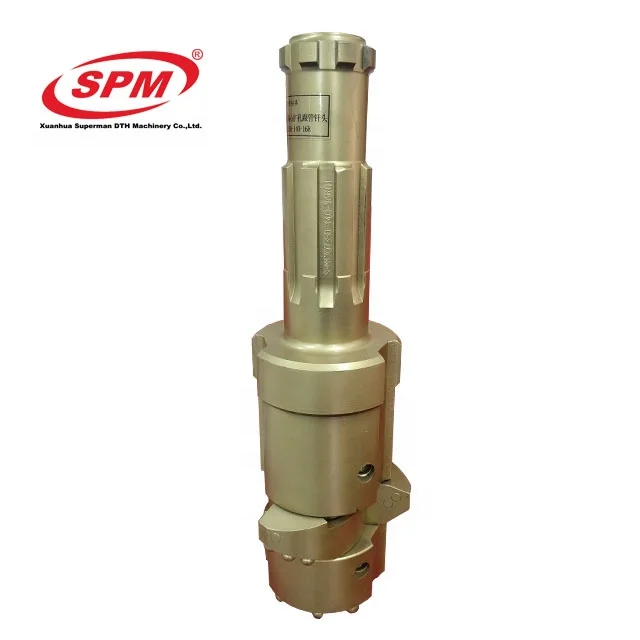

Eccentric Overburden Drilling Odex 5" dth drilling hammer system / water well drill bit for water well / Casing DTH Bit

Overburden Casing Drilling System DTH Bit 5" is very popular in international water well and ore drilling field.
It is widely used in international water well and ore drilling field.
Overburden Casing Drilling System DTH Bit 5" drill holes from 168mm to 194mm.

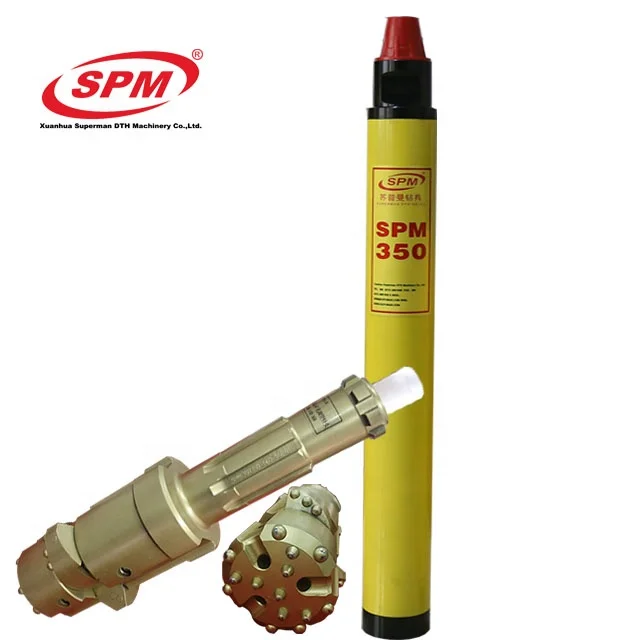

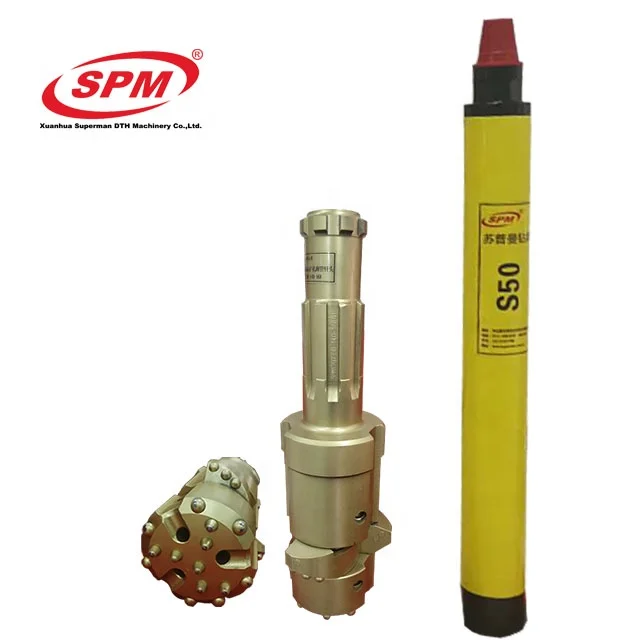

Matched dth hammer:SPM350,SPM355,SPM355K,SPMS50.
We also supply other 3",4",5",6",10",12" High Pressure DTH Air Drill Hammers and various matched drill bits,
We offer SPM high air pressure DTH hammer size from 3" to 12"(Φ71mm-Φ275mm), SPM DTH hammers perform good in drilling well of diameter from 85mm to 600mm, especially excellent in deep hole well drilling works.
Different designing makes SPM DTH drill hammers are suitable for various well drilling conditions.
Rock High Air Pressure Dth Pneumatic Hammer bit

Overburden Casing Drilling System DTH Bit 5"
SPM/N
Casing OD(mm)
Casing Min ID(mm)
Reaming Dia.
Casing Shoe Min ID(mm)
Pilot Bit Max OD(mm)
Matched DTH Hammer
SPM350-140-168
168
152
180
142
140
SPM350/455K/S50
SPM350-145-178
178
157
190
146
145
SPM350/455K/S50
SPM350-150-183
183
162
198
152
152
SPM350/455K/S50
SPM350-155-194
194
173
210
155
155
SPM350/455K/S50

Working Steps:

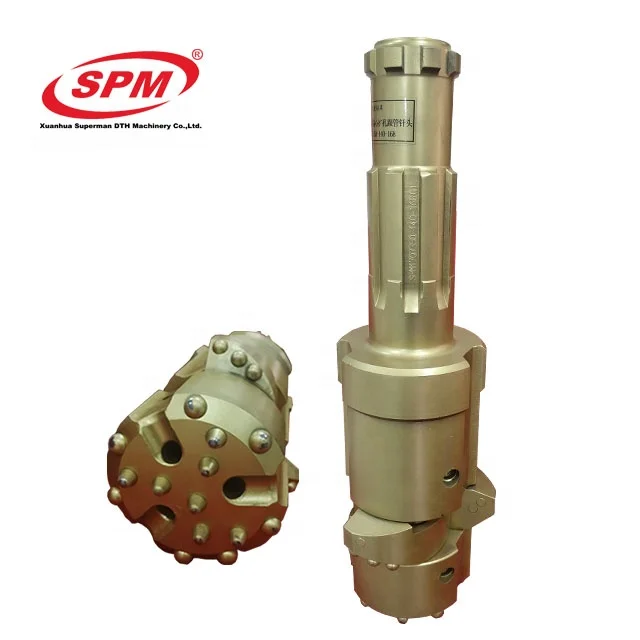

1. The overburden drilling system is consist of DTH hammer, eccentric designed reaming and pilot bit, guide device and casing. The eccentric bit reaming rotates outward to drill a larger hole so as to enable the steel casing enter the hole simultaneously. Rock dust is blown out of the hole through the casing pipe.


2. After drilling to the specific depth, the reamer will be retracted by slightly reversing the rotation direction or by pulling the tool, and it is the time that drilling tools can be pull out.

3. Pulling the casing up and meanwhile filling concrete or other things underthe hole.

4. Using ordinary drilling bit can continuously drill the hole, while DTH bit can drill to the required depth.

Certifications
Detailed Images

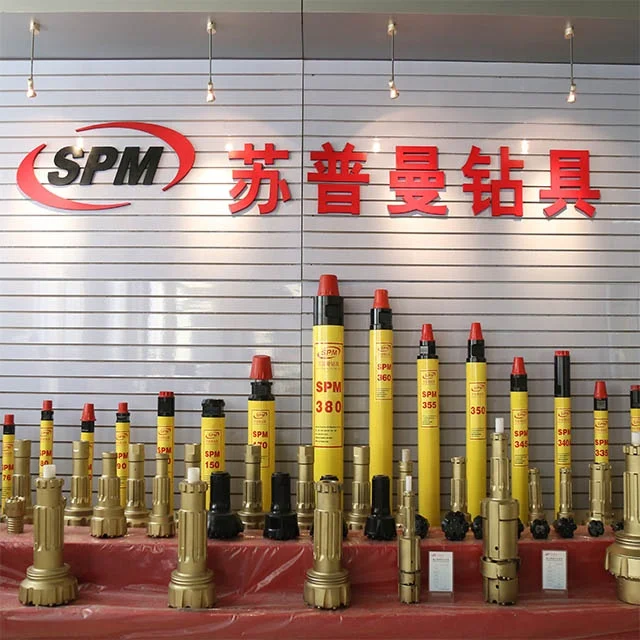

Xuanhua Superman DTH Machinery Co., Ltd is a national high-tech enterprise, located in Xuanhua, 150km northwest of Beijing, a renowned industrial zone that has a title of "NO. 1 Prefecture West of Beijing".


Covering a wide range of mining, excavating and constructing, the products of our company can be equipped in mines, petroleum, hydropower, transportation, forestry, geothermal drilling, well, photovoltaic and new energy industry, etc. Taking the world's leading position in down-the-hole drilling technology especially, the company has a business connection with dozens of countries.

Our Service

  We guarantee that we supply customers with leading drilling products by our superior service and effective scheme. Meanwhile, we have been pursuing the goal that we shall do utmost to improve the service life of product, reduce the maintenance cost, and provide a perfect solution. Sincerely welcome friends from home and abroad, we will provide you product with the highest quality, and show our greatest sincerity for establishing the business relationship!

Packing & Delivery
Packaging
Packing
Wooden case or cardboard box with foam
Weight
50KG



Packaging Details

1. Standard exporting package, wooden case or as your choice.

2. Shipping: By sea / By air / By express
