Feihu spinning machine yarn winding machine
- Category: Spinning Machines >>>
- Supplier: Zhuji Feihu Textile Machinery Co. Ltd.
Share on (60824237560):
Product Overview
Description
Product description

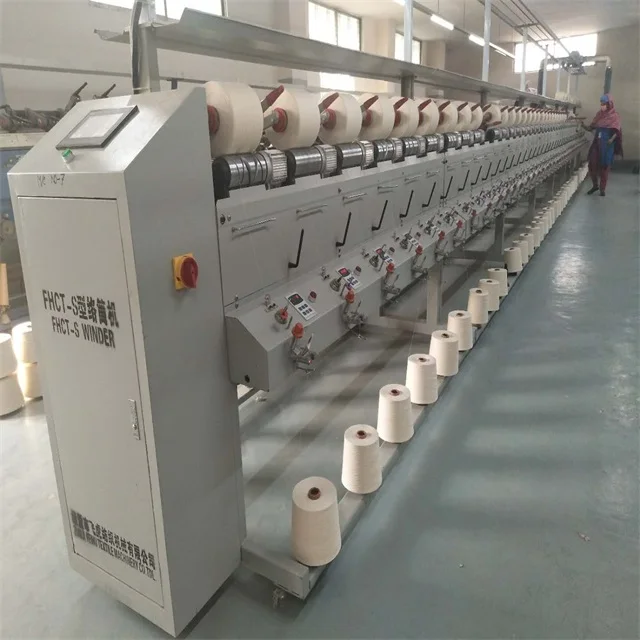

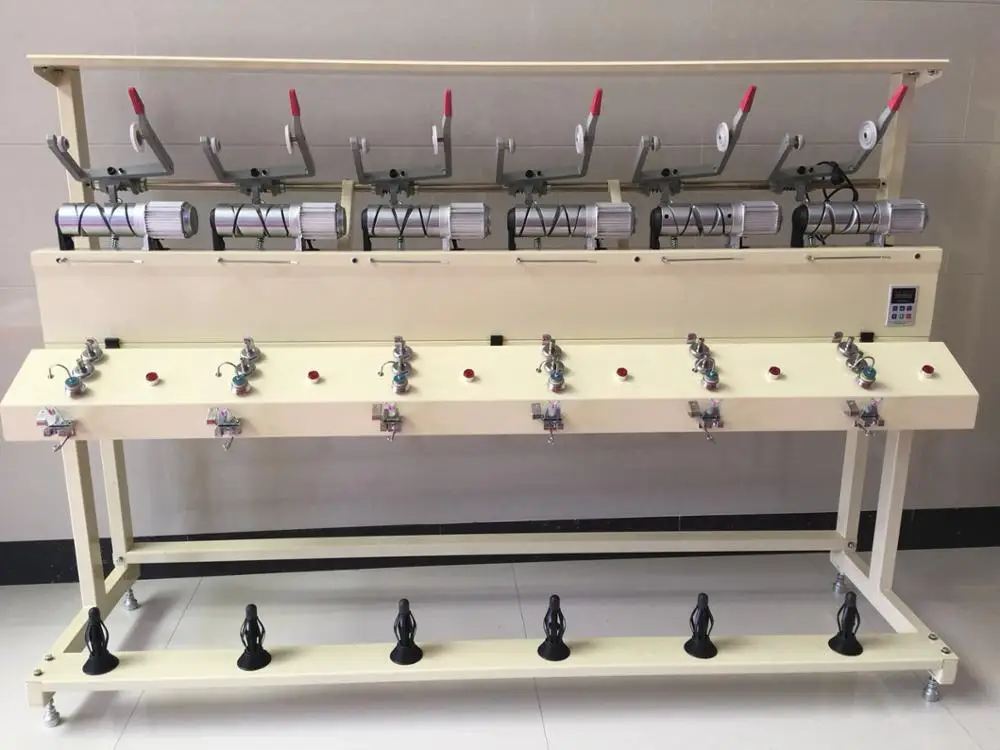

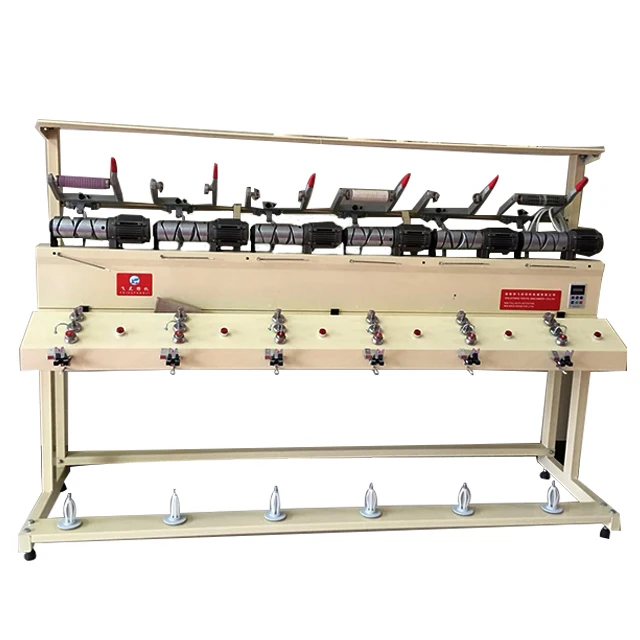

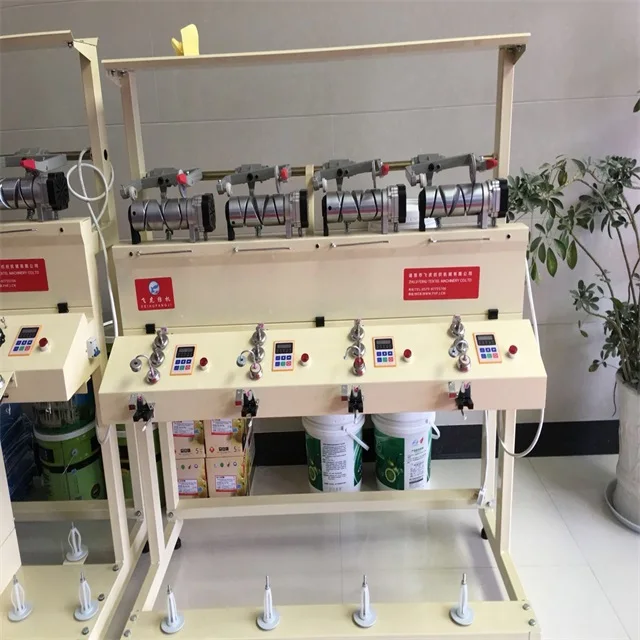

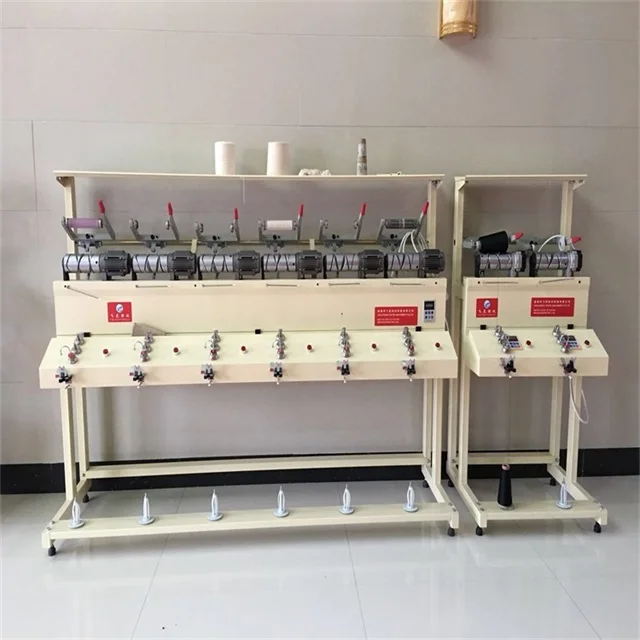

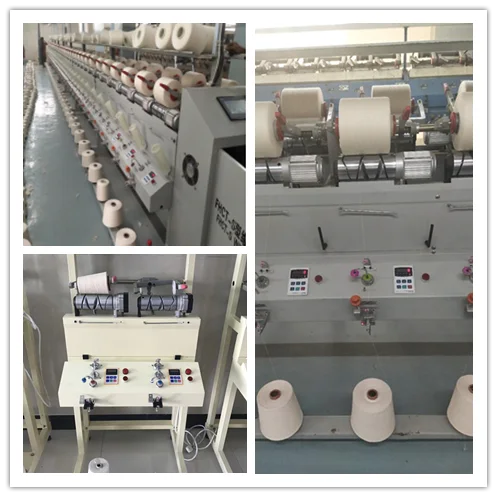

FEIHU CONE WINDING MACHINE

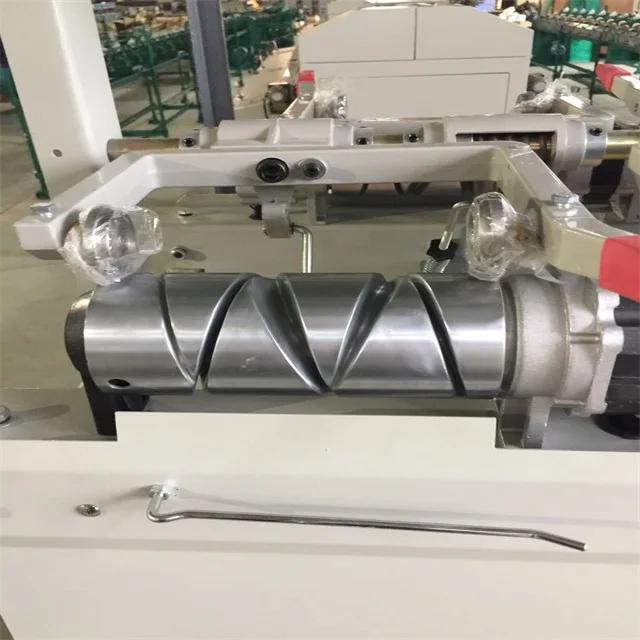

Grooved drum of super plastic alloy material, high strength, lightweight, groove design guide has an excellent performance broad applicability, the surface adopt the new technology of polishing,Ra< 0.8am roughness, hardness HV > 900,Computer dynamic balance correction to meet high speed and low noise.
Product name | Yarn Winding Machine
|
Number of spindles | max.9group for 1set, total 108 spindles. (Normal 7 group 84 spindles)Customer selection |
Groove drum | 0/D 82mm, spindle distance 2.5, symmetry0" |
Layout | Single side or double side |
Power Supply | 3phase5 wires,380V 50HZ (Optional) |
Spindle power | 90w/spindle+5W(wax)+cleaning |
Winding speed | 600-700m/min(Speed adjustable) |
Parameter design | Individual or touch screen interface control (Fixed - length, slow - start, adjustable speed, broken yarn auto stop) |
Tube type | 3° 30'; 4° 20'(462); 5° 57'(468) |
Max. speed | 2800R/min. |
Diameter | 250mm |
Dimensions | L 2230 x W 1100 x H 1600 mm ( 12 spindles) |
