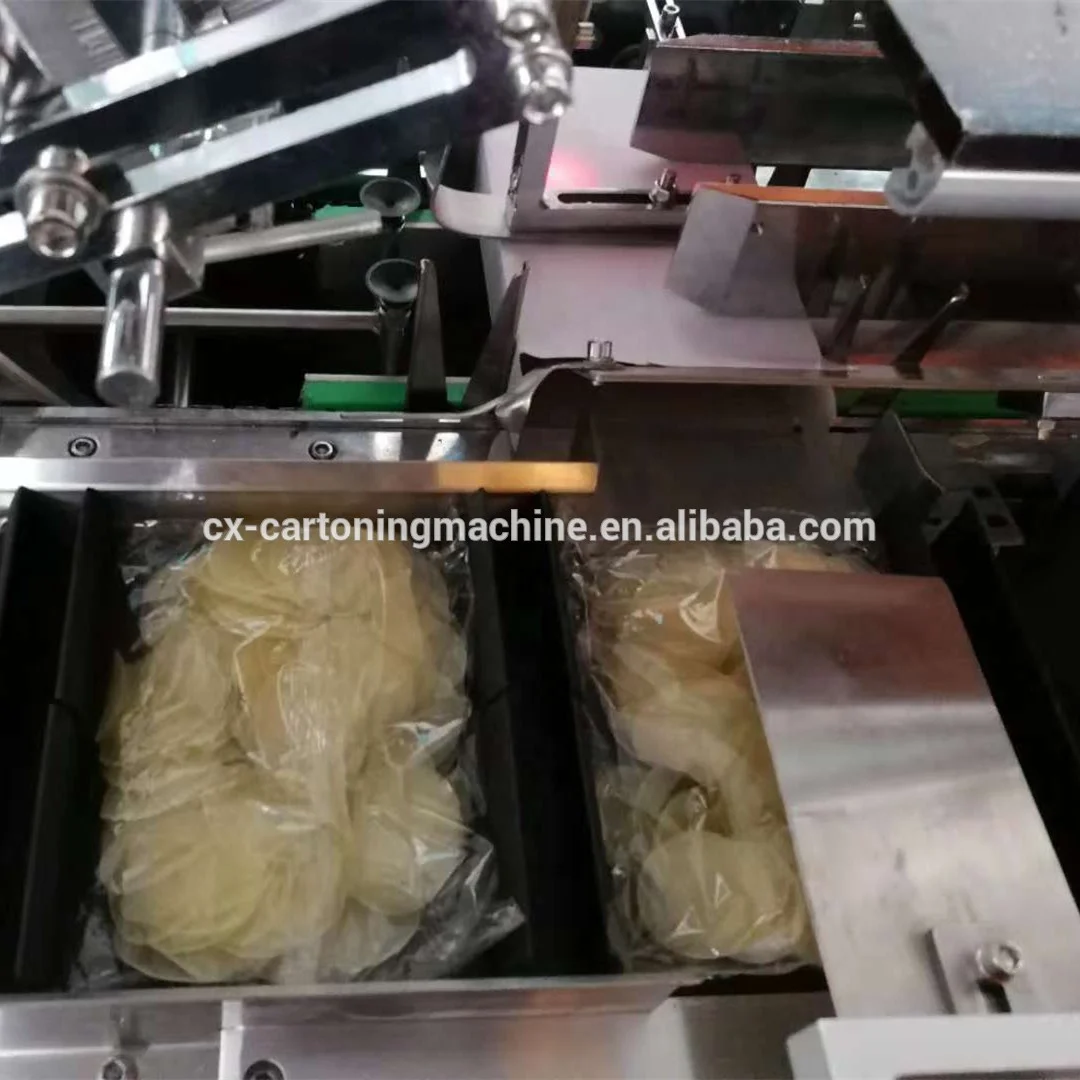

PHZ-100B is suitable for packing Prawn Crackers into carton box and seal the carton automatically. This system can open cartons, insert the products into cartons, emboss(optional), tuck-in and discharge cartons automatically.

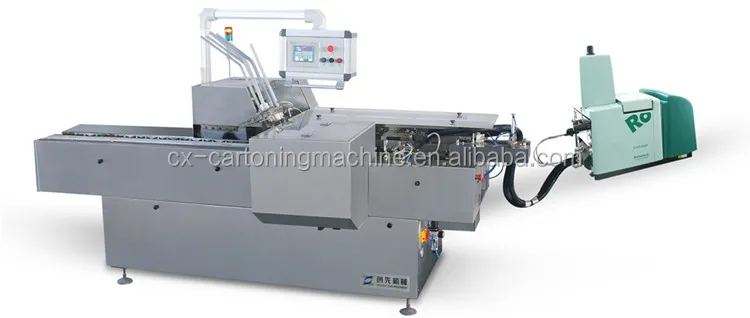

Automatic intermittent motion horizontal cartoning machine,very compact and reliable.It can connect with Blister Machine, Pillow Pack Machine,Overwrapper, etc., to form a Production Packaging Line.
Model
PHZ-100B
Encasing speed
30-120Boxes / min
Carton Size Range
(can be customized according to customer's request)
Length
70-220 mm
Width
14-90mm
Height
13-65 mm
Carton paper requirements
250-350g/m3
Motor Power
1.5KW
Power Type
220/380V 50Hz
Machine noise
≤80dB
Gas source
0.5-0.8 Mpa
Air consumption
120-160L/min
Dimensions
3300×1600×1560 mm
Total Weight
1500Kg
Production Flow

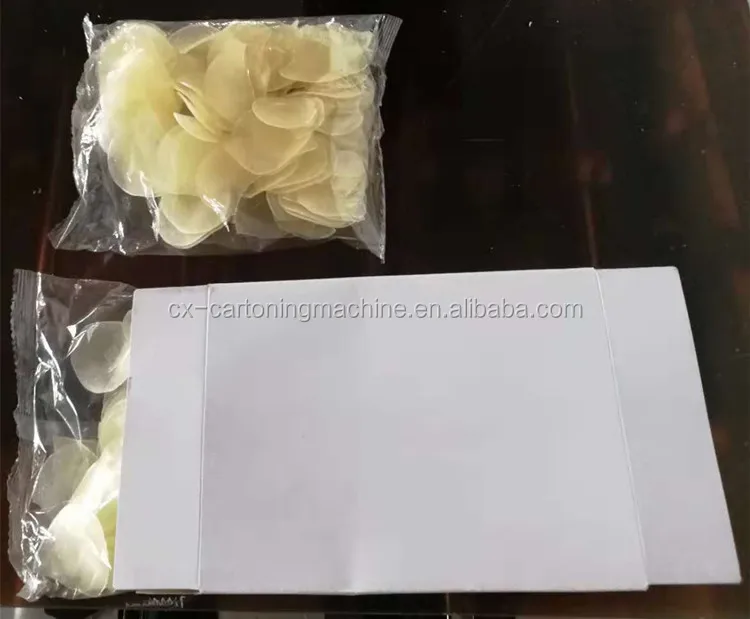

Product Uses
Packaging
Free fumigation Box
FAQ
Q1:Are you a manufacturer?
Yes,we are factory manufacturing cartoning machines and provide perfect OEM and prompt after-sale service.
Q2: How is after-services of your factory?
We have aftersale department and provide one year warranty service.
Q3:Where is your factory?
We are in Wenzhou,Zhejiang Province, near Shanghai City(2 hour by plane,4 hour by train).
Q4:How can I pay my order?
We accept T/T,WU,LC,etc. Mostly 30% in advanced,the rest need paid before shipping.
Q5:How can we ensure the safe production for product cartoning ?
The machine is equipped with a series of sensors and automatic overload protective devices to assure the machine runs safely and effectively.
