Thermostatic shaking incubator shaker for laboratory manufacturer

Product Overview

Description

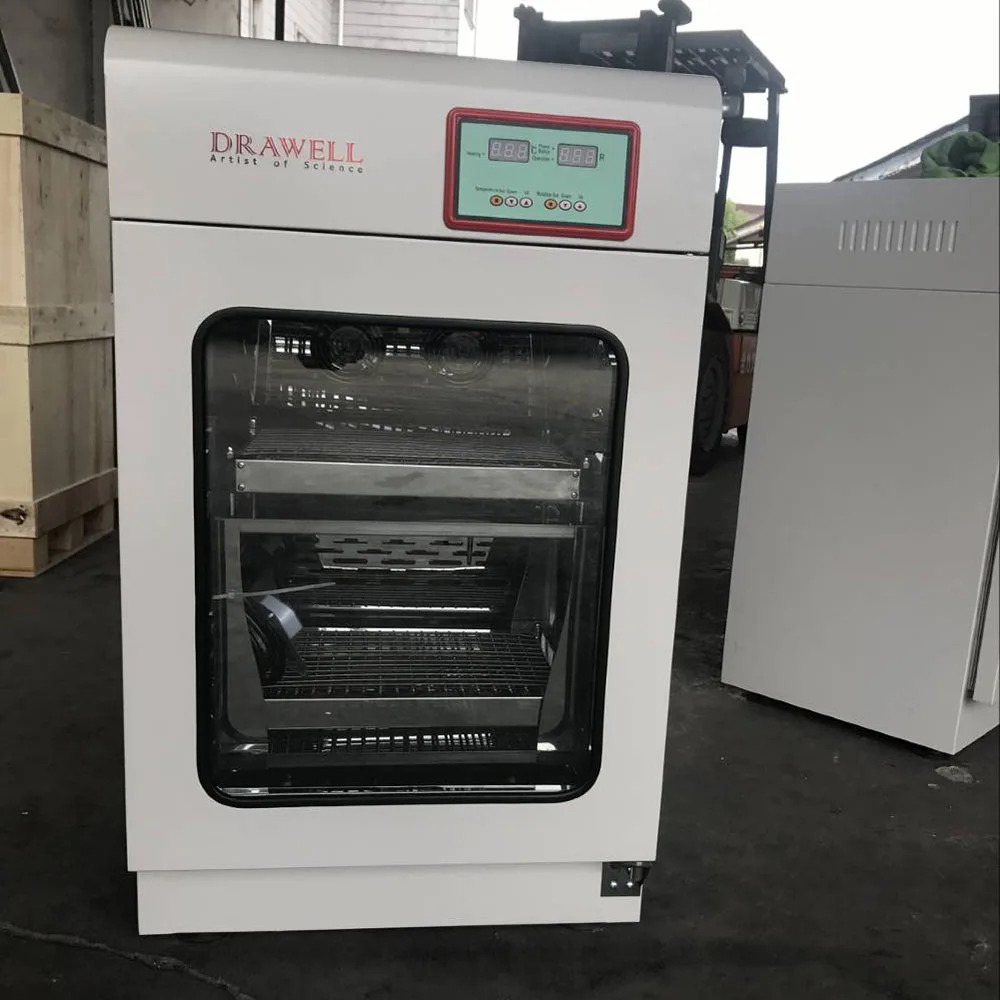

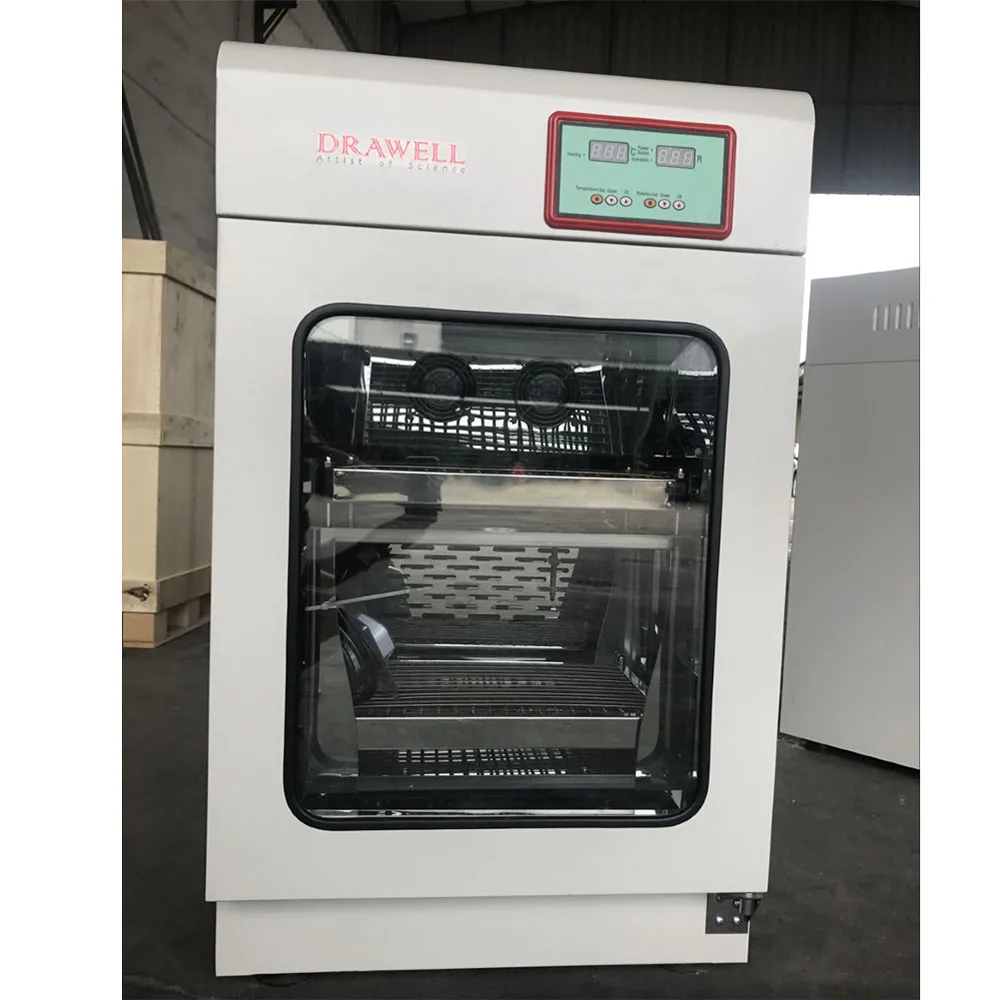

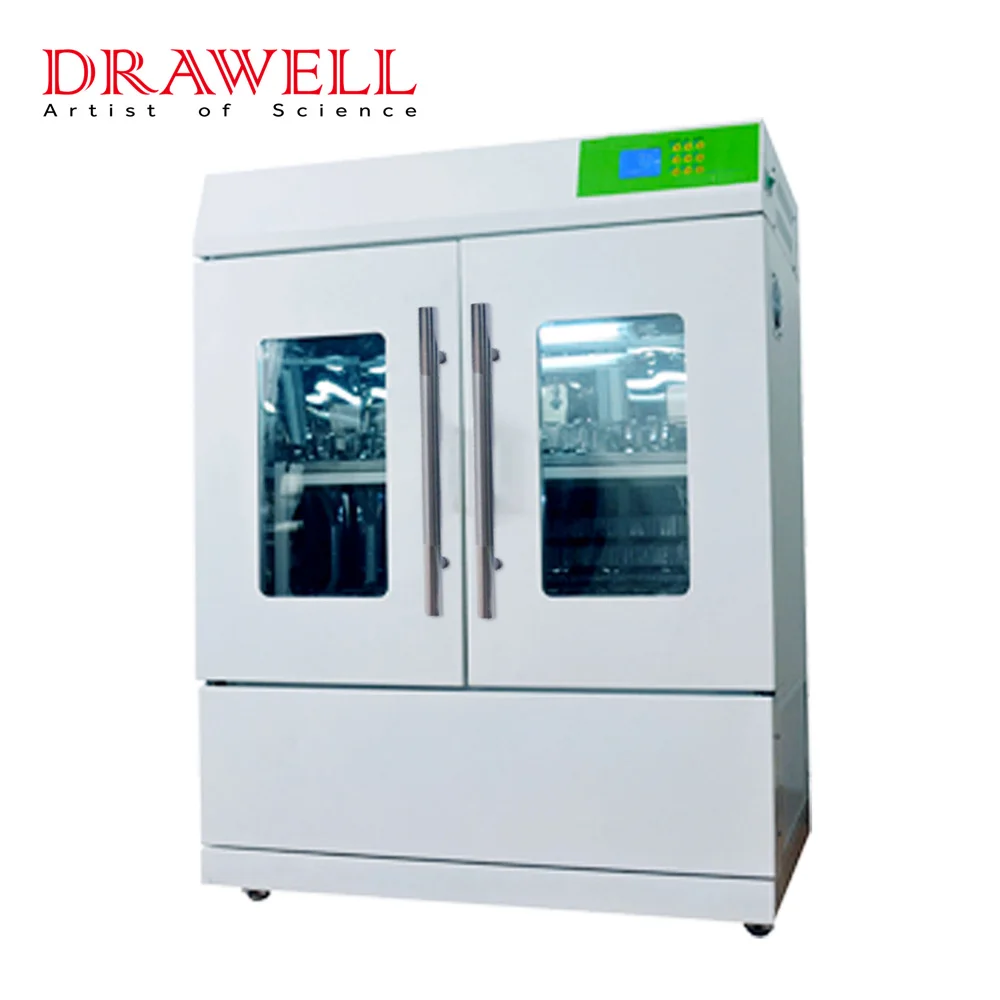

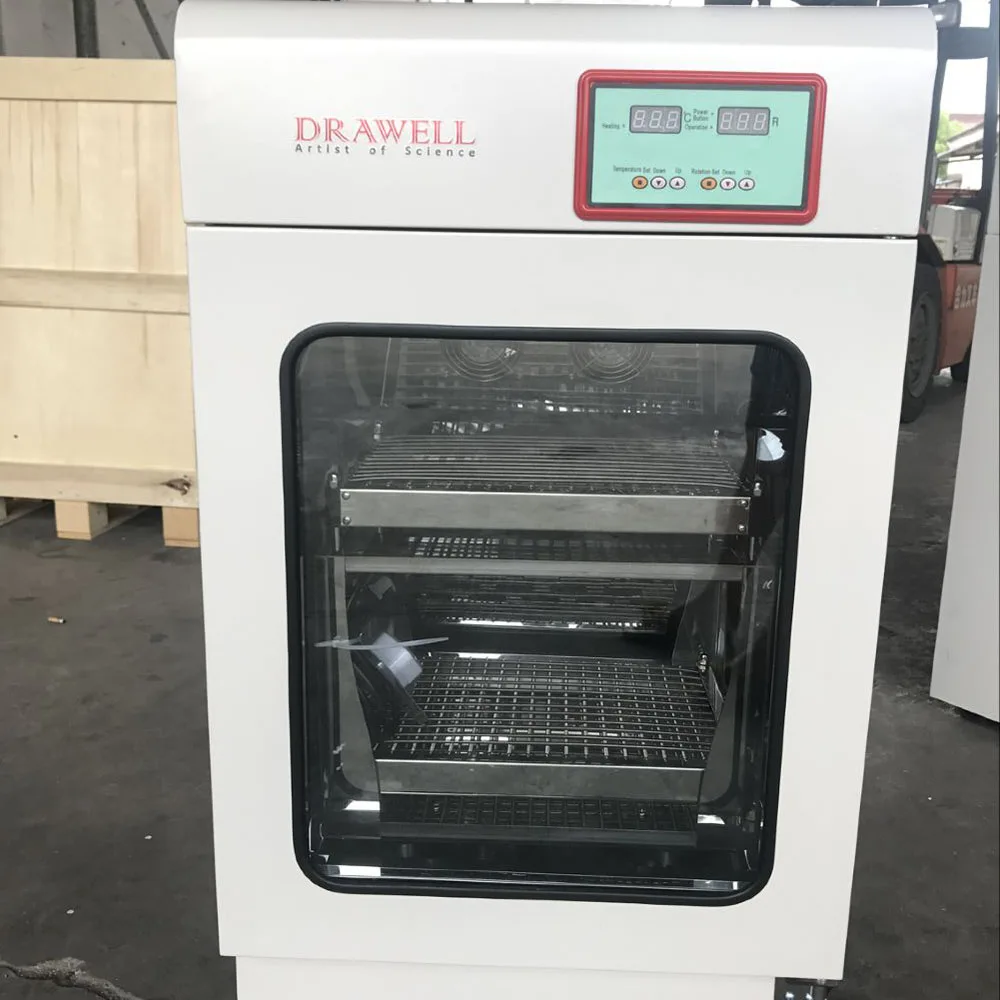

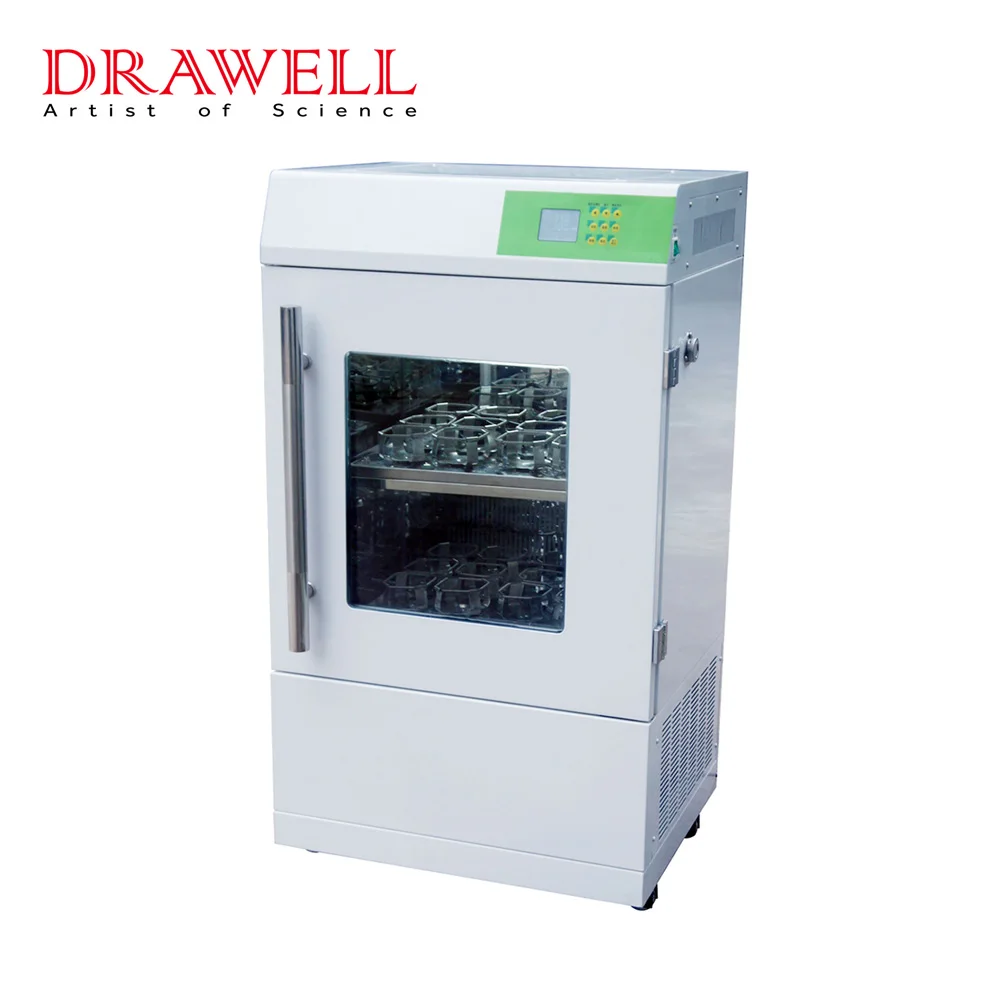

DW-SI Series Thermostatic Floor Type Shaking Incubator



Scope of application:

The product is suitable for use in medical and health care, pharmaceutical, biochemical, industrial production and agricultural science and scientific research departments for cell culture, fermentation, hybridization, enzyme and cell tissue research.



Structural characteristics:

1, integrating with constant temperature incubator and the oscillator, saving space covers an area of small, much less investment. Double design capacity more covers an area of less.

2, shell for high quality steel plate production, cavity mirror stainless steel components, never rust.

3, tilting humanized control panel, large-screen backlit LCD screen, good visual effect.

4, with operation parameters memory function, avoid cumbersome operation and password lock, prevent man-made wrong operation.

5, a call back function, is not affected by the power gap, equipment can be set automatically according to the original program.

6, the measured temperature deviates from the set temperature for more than 3 ℃ (can be set arbitrary), automatic stop heating and send out sound and light alarm.

7, DW-SI-2102-C, DW-SI-2102 type refrigeration systems with strong fast, make instant cooling requirements and have the function of automatic frost.

8, the most advanced big torque motor to ensure continuous work without maintenance.

9, big view window with built-in illumination lights, the whole working status clear.

10, the whole machine mute design, static plastic box, super toughened glass Windows, luxurious and beautiful shape.

11, equipped with leakage protector

Shaking table options

Universal spring clip

Clamp flaskStainless steel, can be fixed on the tray.

50 ml flask clip (selections of 32 yuan/only)

100 ml flask clip (selections of 32 yuan/only)

250 ml flask clip (selections of 38 yuan/only)

500 ml flask clip (selections 50 yuan/only)

1000 ml flask clip (selections of 85 yuan/only)

2000 ml flask clamp (150 yuan/only selections)









  Technical Parameters:

model	DW-SI-1102C (single)	DW-SI-2102C (single)		DW-SI-1102 (double)	DW-SI-2102 (double)	DW-SI-2112B (double)	DW-SI-1112B (double)
Rotation frequency(rpm)	40-300
Frequency accuracy(rpm)	±1
Shimmy amplitude(mm)	Φ26
The standard configuration	250ml×24			250ml×35 or 500ml×24		250ml×45 or 500×37
The maximum capacity	100ml×48 or 250ml×24 or 500×24			250ml×70 or 500ml×48 or 1000ml×24		250ml×90 or 500ml×74 or 1000ml×36 or 5000ml×8
The pallet size(mm)	500×350			740×460		970×760
Power(W)	550	380		750	550	1420	1150
Operating temperature (℃)	4~60	RT+5~60		4~60	RT+5~60	4~60	RT+5~60
Temperature control precision(℃)	±0.1
Temperature uniformity(℃)	±1
Timing range	1-9999min
Digital display mode	LCD
The power supply	AC220V~240V±10%  50~60HZ
The tray number	Two pieces
Volume(cm)(W)×(D)×(H)	66×44×65(170L)		84×52×64(280L)			109.5×62.5×85(582L)
Overall dimensions(cm)	70×56×126		95×70×126			120×82×160
The net weight(KG)	165	140	240		220	425	456
Price	26380	23080	35780		31080	60280	56280
