MC425 (Национальная ассоциация владельцев электротехнических 9/11/17 цифровой шаговый двигатель 2 фазы шагового двигателя ЧПУ Драйвер шагового двигателя

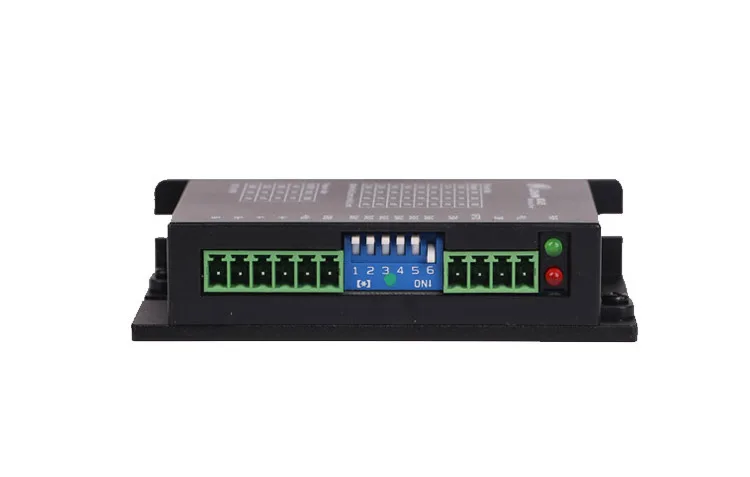

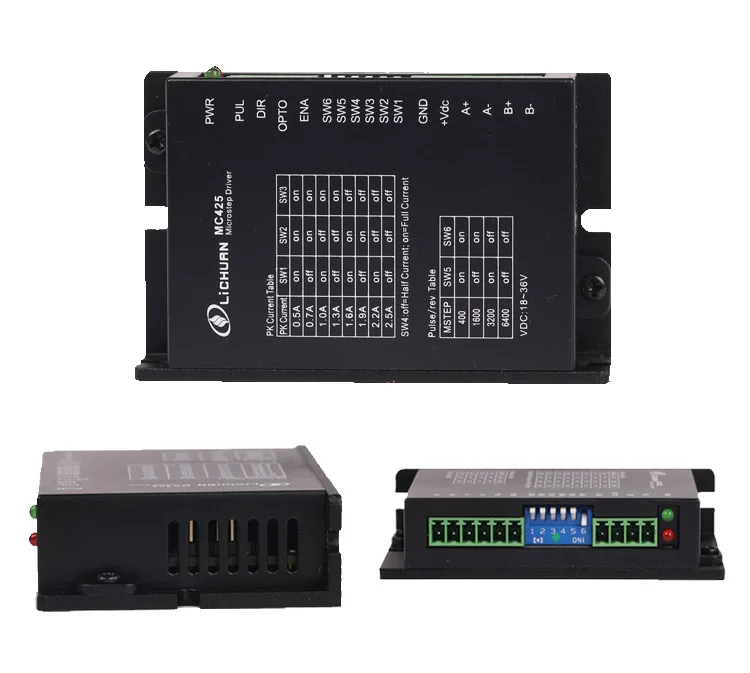

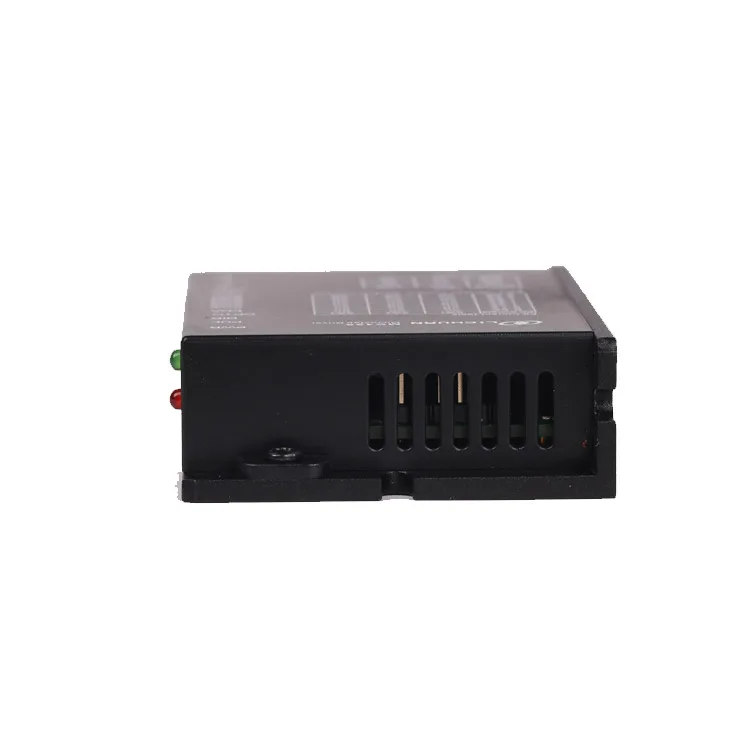

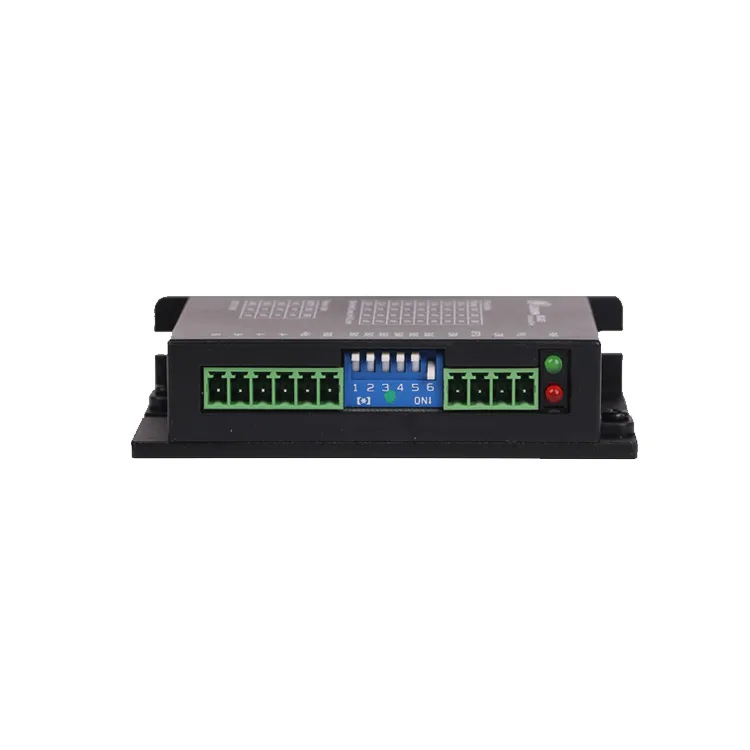

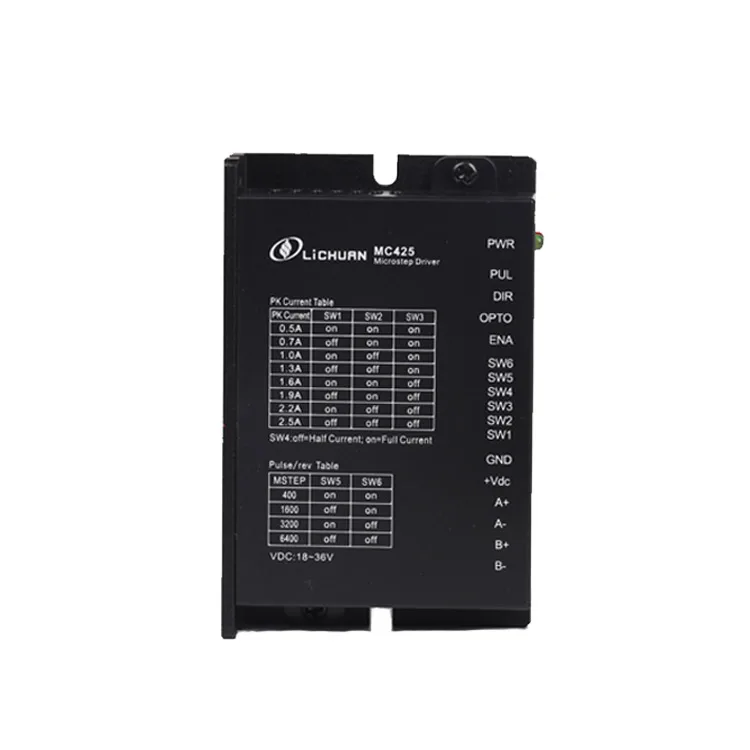

Product Name: MC425 Nema17 digital driver

MC425 driver use the 32-bit DSP technology, suitable for driving 35,39,42 series motor, with excellent low-speed. Can be set within any of the 64 within the rated current and any current value, to meet the requirements of most small devices. low-speed operation is very smooth, very little noise. Can drive 4-wire, 8-wire two-phase stepper motor; voltage input range: 18V ~ 36VDC, current maximum 2.5A, resolution 0.1A, subdivision range: 400 ~ 6400ppr; signal input: single-ended, pulse / Built-in fine subdivision; anti-interference ability; with over-voltage, over-current protection, small size.

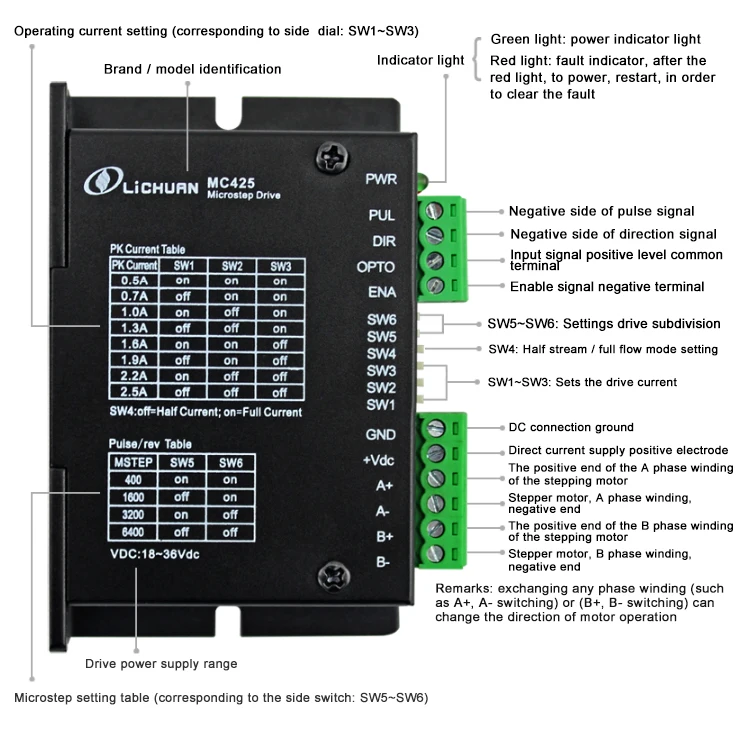

1.Control signal interface

2.Power interface

Suitable for all kinds of motion control equipment and instruments, such as: electronic processing and testing,semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machines, marking machines, cutting machines, clothing plotter, CNC machine tools, automation Assembly equipment. Low noise, high-speed performance and cost-effective competition, the field of choice.

1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver and planetary reducer for more then 10 years in China. Lichuan is our registered brand.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/EMS), by sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
7. How about warranty?
One year warranty, technical support available, we always try our best to help customers to solve problems in time.
8. What are payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), Western Union, ALIBABA assurance order accept
