Заводская прямая воздуходувка для пластикового экструдера

Product Overview

Description

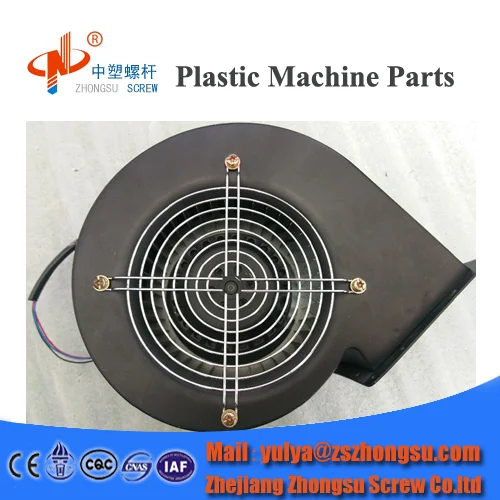

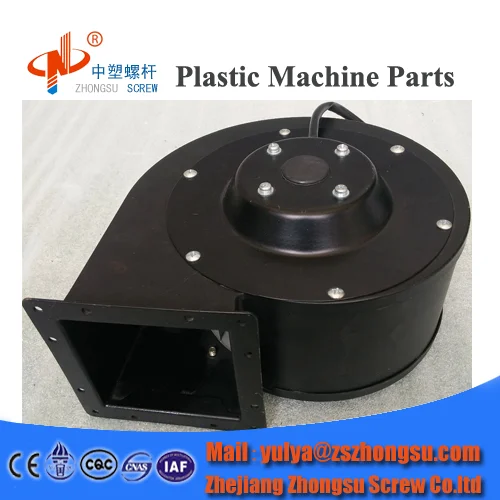

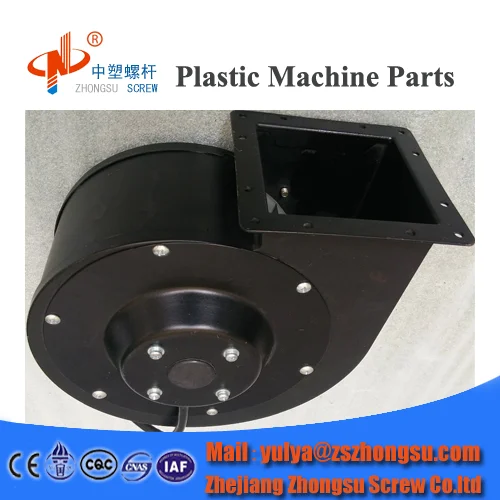

Factory direct Air Blower for plastic extruder

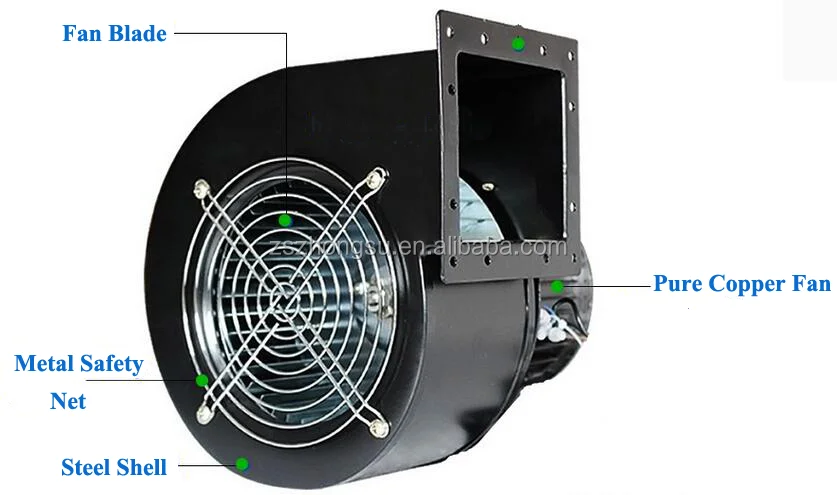

This series low-noise centrifugal fan which we absorbed advanced technologies at home and abroad. all the structural parts of this fan are using the mold production, and the impeller have been static and dynamic balance proofread.

The impeller and scroll are all powder sprayed, the surface is smooth, bright and corrosion-resistant. The motor cover is also special handled, which helps the cover free from oxidized.

our centrifugal fan are little vibration, low noise, large air volume, easy to install and debug.



w	TYPE	V		Hz	A	r/min	m3/min	Pa	DB(A)	Kg	mm
85	130FLJ2WYS5-2	380	3	50	0.20	2200	3.6	300	70	2.3	94X70
120	130FLJ2WYS5-3	380	3	50	0.30	2600	5.5	380	72	2.5	96X96
180	150FLJ2WYS5-3	380	3	50	0.55	2600	7.5	600	76	3.7	96X96
180	130FLJ0NYS5-2	380	3	50	0.5	2600	6.5	500	74	4.1	96X96
250	150FLJ2NYS5-2	380	3	50	0.6	2700	11	500	76	6.0	96X96
370	165FLJ2NYS5-2	380	3	50	0.8	2800	15	850	78	7.5	96X96
550	205FLJ2NYS5-2	380	3	50	1.0	2800	17	1050	80	8.0	100X100



1.Axial fan motor with feature of ,stable running,low noise,high effciency

2.Protector calss:IP44/ IP54

3.Insulation grade: B/F

4.Used in ambient temperature: -30 to 60 degree.c

5.life time: 30000 to 50000 hours

6.All Beron fans have passed CE and CCC

7.Size: 200mm to 900mm



Waiting for Your Inquiry



Dear Sir/Madam

    It is my honour to meet you here. Thanks for your wise choice.

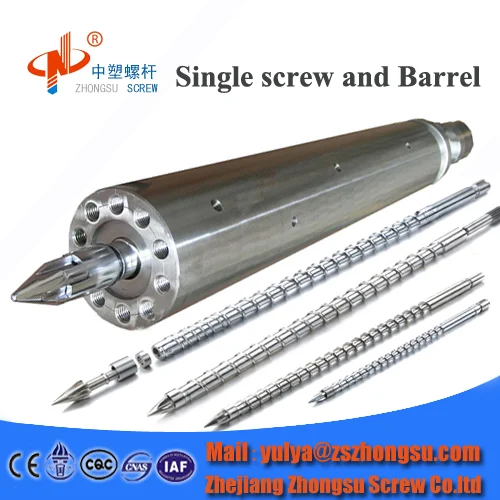

    We have been supplying all kinds of screw & barrel to global with good quality and reasonable price.All of our products will be strictly according to your needs.

    Sent me the diameter, L/D, out diameter of the barrel and the alloy description, I will offer you a satisfying price ASAP.

    Best regards,



ZHONGSU SCREW MANUFACTURING , specialized in making all kinds of screw barrel for plastic machine. As factury direct,all screw barrel with high competitive price.Watiing for you Book!
