Clean room GMP air shower
US $1580-$5300

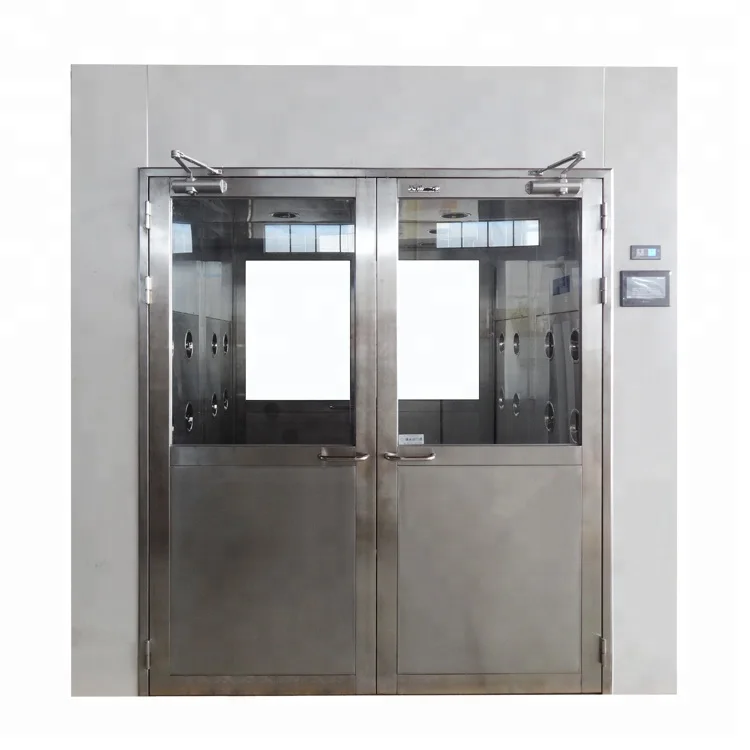

Manual door manually operation door cargo airshower clean room
- Category: Air Shower >>>
- Supplier: Wuxi Yijing Purification Equipment Co. Ltd.
Share on (60824890491):
Product Overview
Description
Cargo Air Shower Basics
Cargo air showers are frequently put to use in a variety of manufacturing environments. Cargo air showers offer a convenient and automated solution to cleaning the surfaces of work in progress or finished goods, as well as provide a buffer area between two areas of different cleanliness. Modern cargo air showers can be categorized into four main types:
(1) Manual Door Cargo Air Showers (YJ-CM Series) - Less common; mostly used for smaller items
(2) Automatic Sensor Door Cargo Air Showers (YJ-A Series) - Suitable for small trailers and/or channels that are double use for cargo and personnel
(3) Automatic Door Cargo Air Showers (YJ-CA Series) - Suitable for forklifts and other large vehicles, as well as channels with high amounts of traffic
(4) Assembly Line Cargo Air Showers (YJ-X Series) - Suitable for cleaning products moving along an assembly line
E-Clean Air Showers

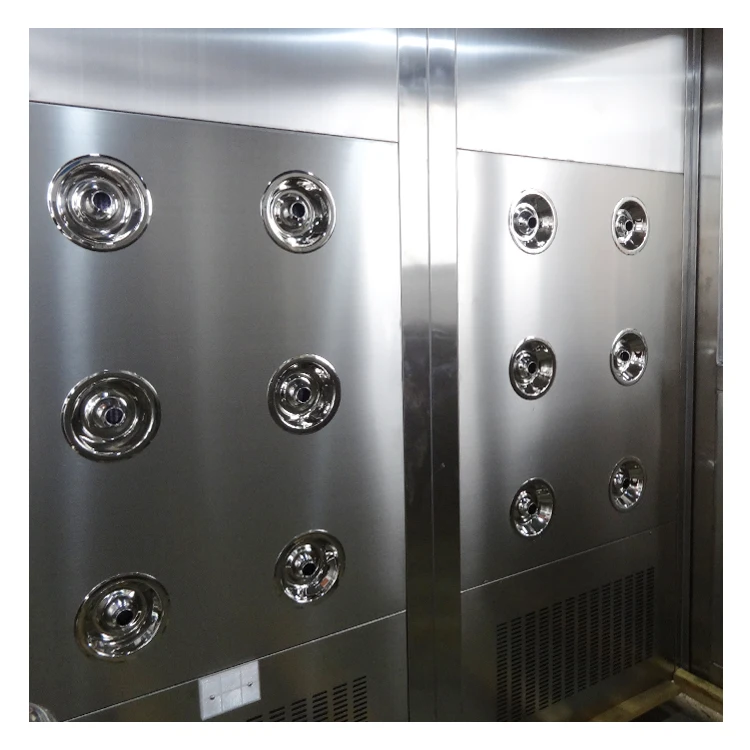

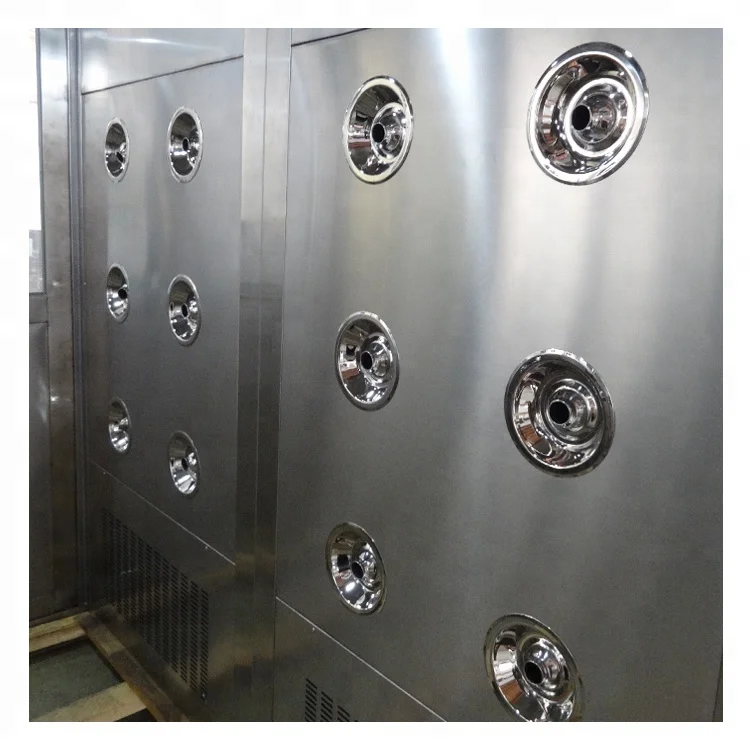

The E-Clean YJ-S-1500 Model Multi User Air Shower is available in three different materials: 100% Stainless Steel, Stainless Steel Interior, and Steel Plate. The YJ-S-1500 employs E-Clean's patented air shower technologies, and includes 18 360-degree jet nozzles (nine per side) that work at more than 25 m/s. Our smart, automatic YJ-S-1500 features a touchscreen LCD color display that allows the user to customize the air shower interval and many other settings, as well as control user access. We employ German technology for our interlocking door system, which ensures a clean seal that prevents contaminant seepage. All E-Clean Air Shower models can be customized and configured to meet your specifications.
YJ-CM Series Cargo Air Shower Spec Sheet | |||||
Model | YJ-CM-1 | YJ-CM-2 | YJ-CM-3 | YJ-CM-4 | YJ-CM-5 |
Material | Available in 100% SUS304 Stainless Steel and/or High-Quality Steel Plate | ||||
Shower Time | 0-99 seconds | ||||
Jet Nozzles | 12 | 24 | 36 | 48 | 60 |
Nozzle Diameter | 30 mm | ||||
Air Velocity | >25 m/s | ||||

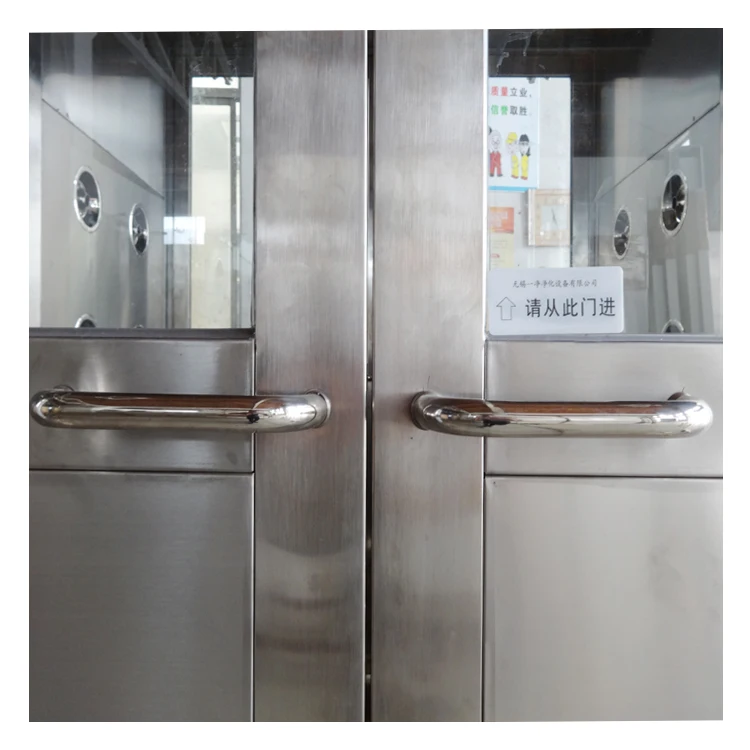

Door Closer | DORMA (German) Door Closer | ||||
Electronic Lock | LCJ Electronic Lock | ||||
Filter Efficacy | ≥99.995% of Particles ≥0.3μm | ||||
Control Panel | 7" LCD Touchscreen PLC Control Panel | ||||
Filter Size | 600 × 600 × 120 | 820 × 600 × 120 | 600 × 600 × 120 | 820 × 600 × 120 | 600 × 600 × 120 |
No. of Filters | 2 | 4 | 6 | 8 | 10 |
Outer Size | 2200 x 1000 x 2100 | 2200 x 2000 x 2100 | 2200 x 3000 x 2100 | 2200 x 4000 x 2100 | 2200 x 5000 x 2100 |
Inner Size | 1600 x 900 x 1960 | 1600 x 1900 x 1960 | 1600 x 2900 x 1960 | 1600 x 3900 x 1960 | 1600 x 4900 x 1960 |
Power Source | 380V/50Hz (Also Available in 220V and 110V) | ||||
Lighting | 2 Recessed LED | 4 Recessed LED | 6 Recessed LED | 8 Recessed LED | 10 Recessed LED |
Fan Power | 2 x 0.55 | 4 x 0.55 | 6 x 0.55 | 8 x 0.55 | 10 x 0.55 |
Weight(kg) | 550 | 1000 | 1450 | 1900 | 2350 |
E-Clean Air Shower Advantages
1) Customizable
Choose one or more of our 14 optional features to build the perfect air sh
ower for your needs.
ower for your needs.
2) Modern

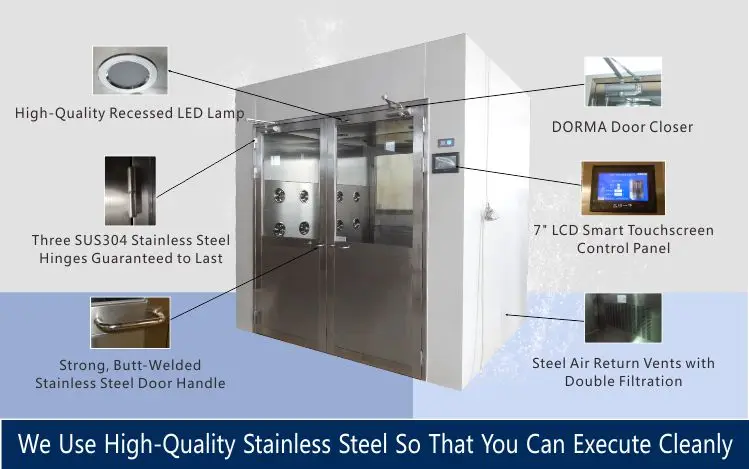

E-Clean air showers are manufactured to exacting standards using state of the art machinery, including laser cutting and CNC automatic sheet cutting equipment. We use only SUS304-grade stainless steel and high-quality cold-rolled steel plates for our interior and exterior surfaces.
3) Smart
Our air showers come equipped with a 7" LCD touchscreen display PLC system, an OTS error code display system, and available audio prompts and instructions. The system can be set to manual or automatic mode, and includes security features such as a screen lock, delayed light timer, password protection, and total system access control.
4) Dependable
All electrical air shower components, including door locks (LCJ), door seals (Dorma), and LED lights (Omron) employ patented, innovative technologies. All other proprietary technologies are covered in Chinese patent ZL 2010-2 0502252-1.
5) Flexible
We can customize and add features such as UV lights, door configuration, air shower dimensions, interior/exterior materials, ozone generators, infrared sensing technologies, fingerprint access, etc. according to your needs.

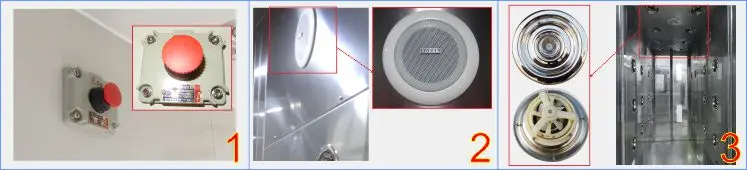

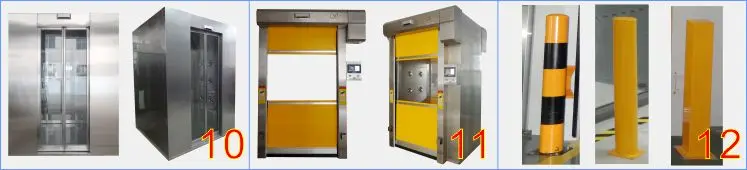

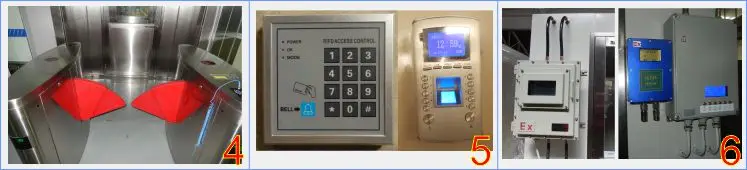

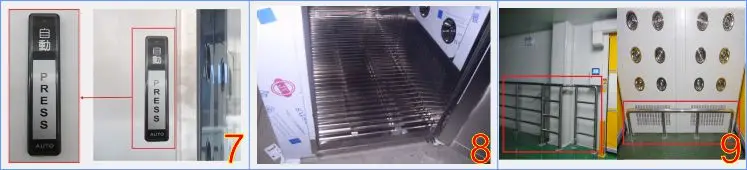

E-Clean YJ-S Series Air Shower Custom Features
Emergency Stop Button
Voice Instruction System
Roof-Mounted Jet Nozzles
Security Gate
Card or Fingerprint Security Access Systems
Anti-Explosion Device
Wireless Power Button
Grill Style Floor
Protective Fence
Automatic Door
High-Speed Rollup Door
Protective Barriers
L-Style Configuration
Easy Access Curtain Door

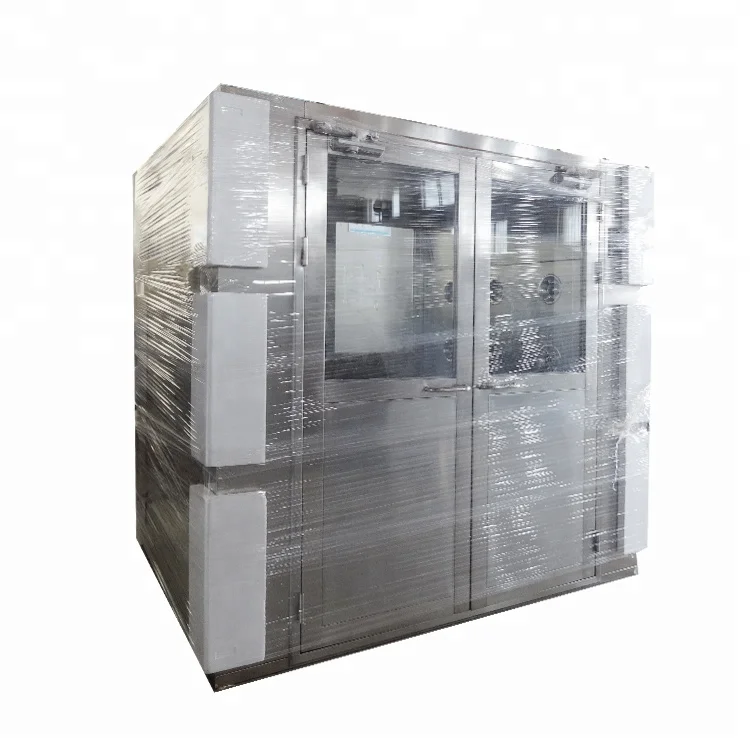

E-Clean Packing and Shipping
E-Clean Certificate
E-Clean with International Clients
About Us
E-Clean is already a well-known brand in the Chinese market. Our familiar blue and green logo commonly is a common sight in clean manufacturing facilities in the electronics, food & beverage, pharmaceutical, medical instrument, and other industries across China.
E-Clean has been recognized as a "Star Enterprise" by the Jiangsu Provincial Government and a "Well-Known Trademark" by the Wuxi Municipal Government, among many other awards and distinctions. E-Clean was also featured on a national Chinese CCTV documentary series that focused on innovations in manufacturing technology and product quality.
E-Clean currently serves international clients across the globe in more than 10 countries.
