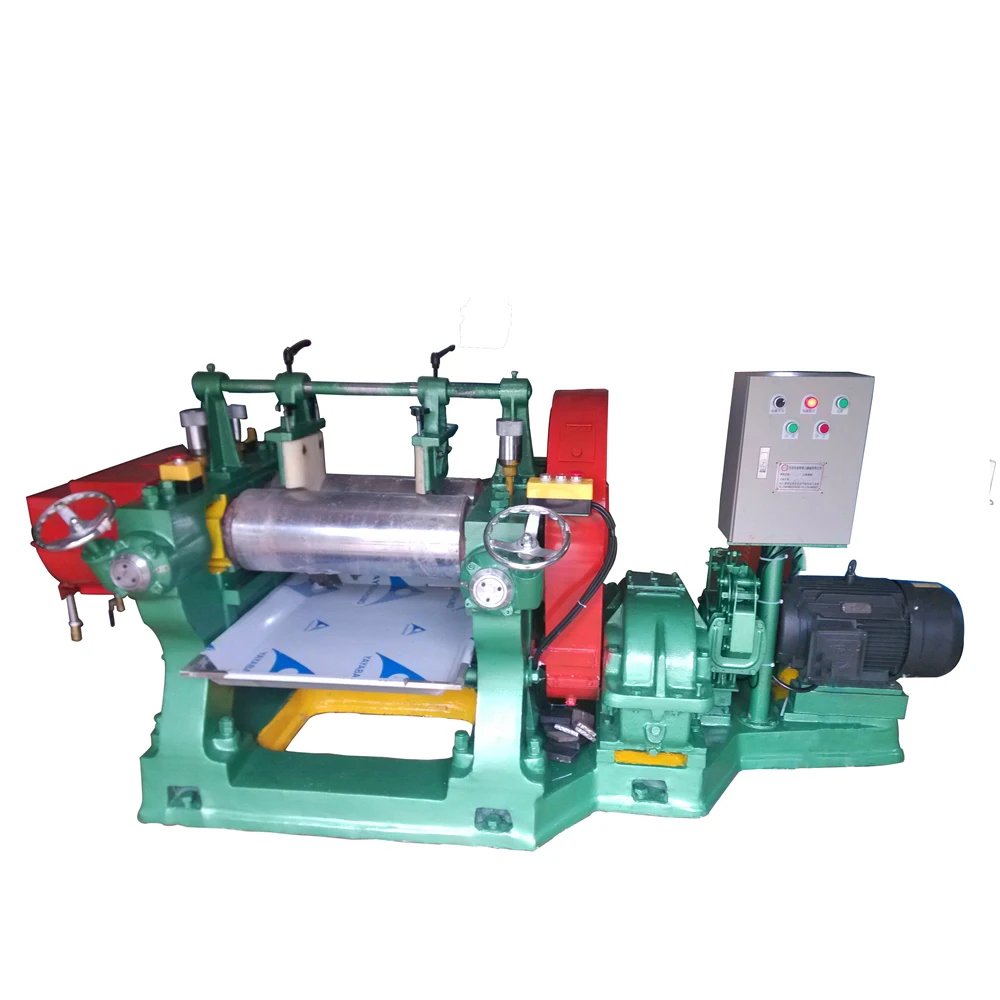

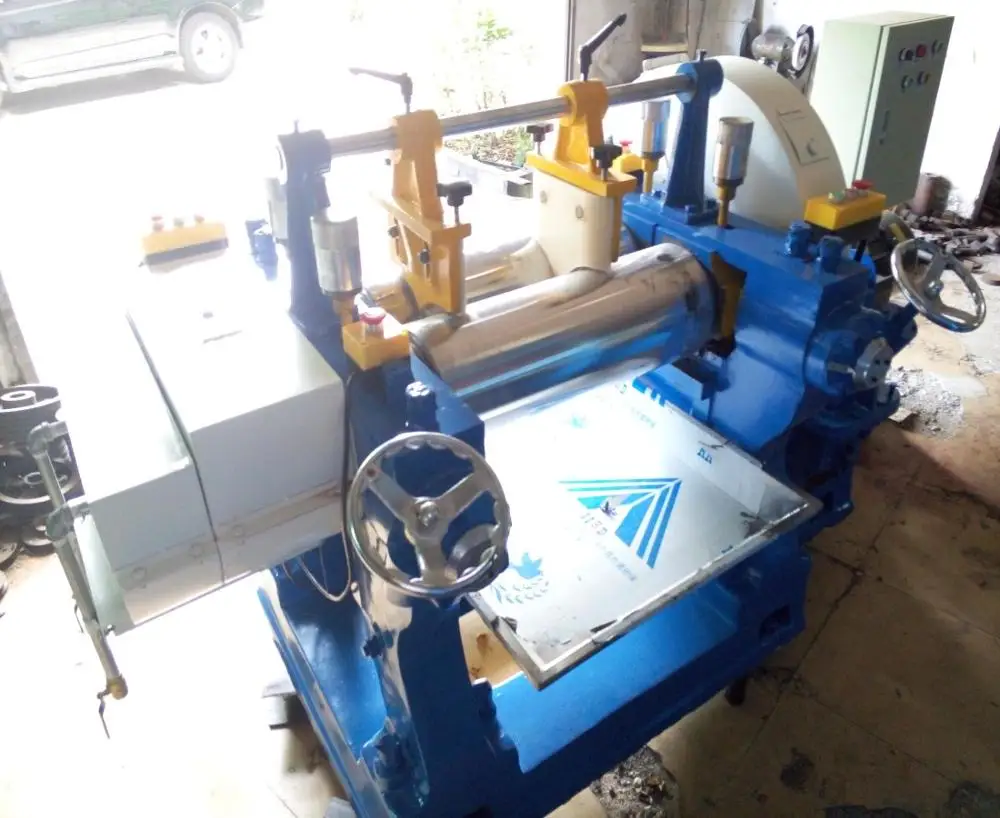

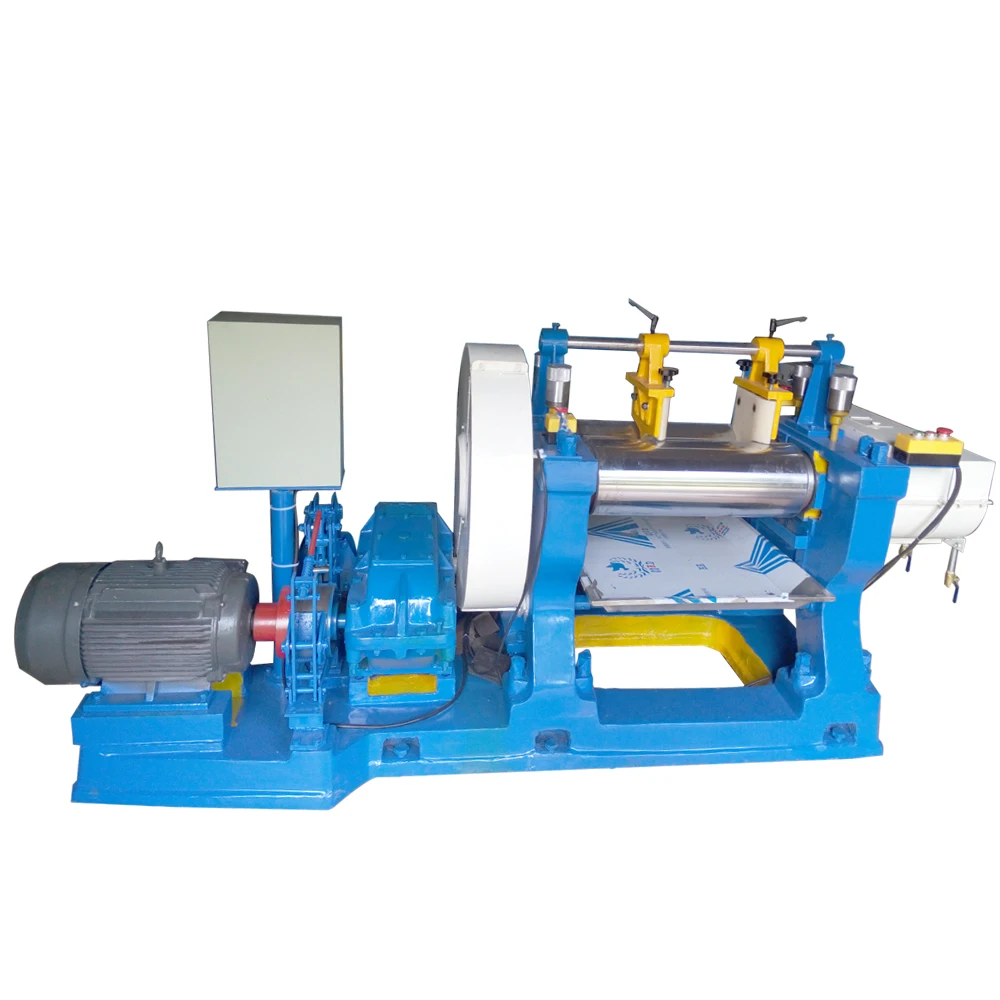

Two Roll Silicone Plastic Rubber Milling Open Mixing Mill

Product Overview

Description

Application:
This mixing mill machine is mainly used in Rubber & Plastic product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compounds mixing,rubber warm-up mixing and pressing sheet.



Features:

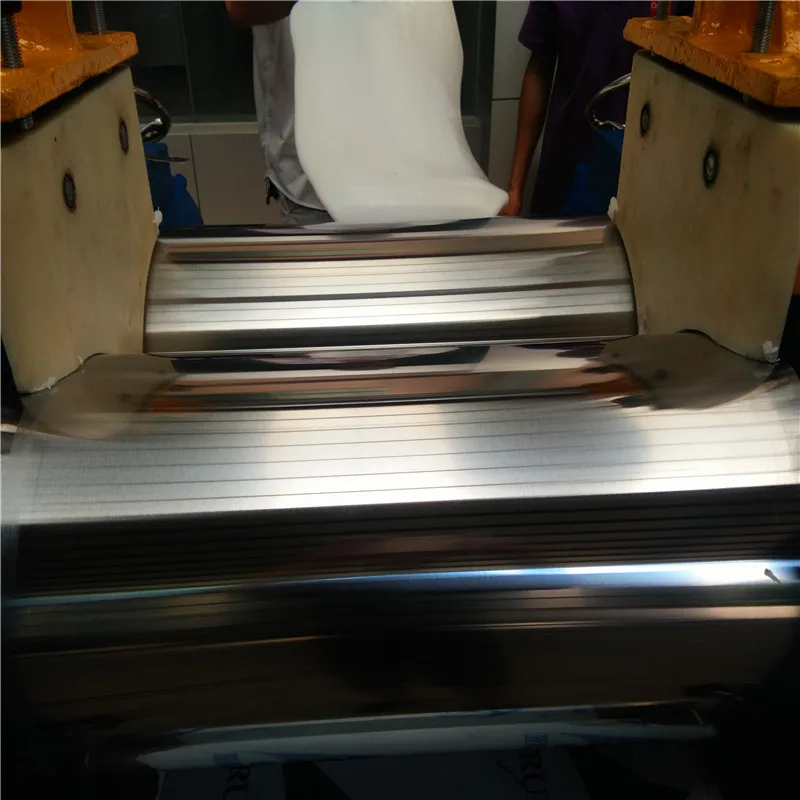

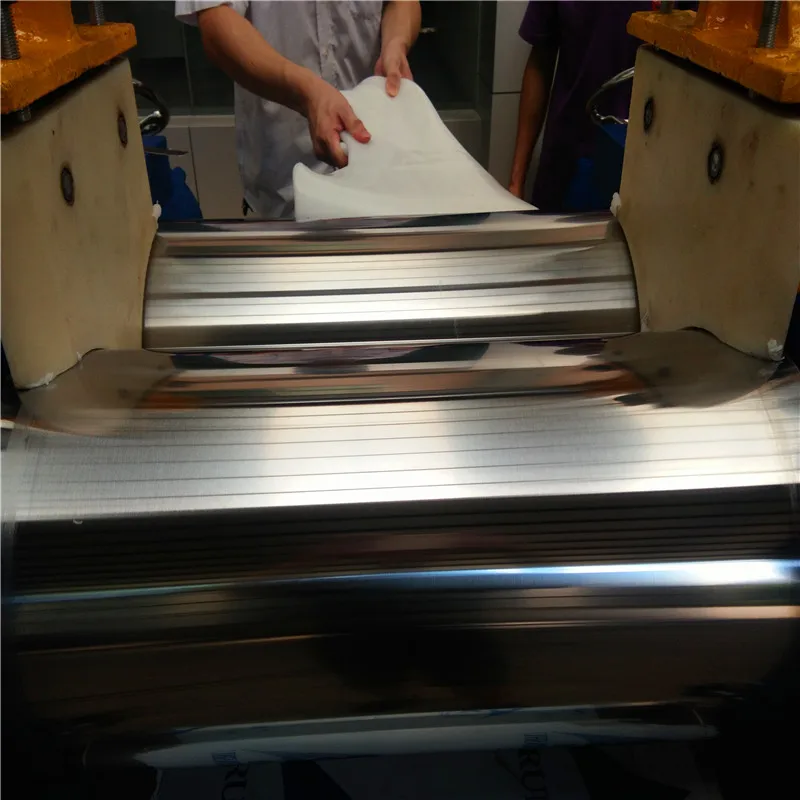

1. The open roll mixing mill is mainly used for rubber material mixing or rubber sheet.

2. It is adopted with bearing bushings, with grease lubricating or thin oil.

3. The material of rolls are chilled cast iron, which is of high hardness.

4. The safety system is adopting with emergency stop device, reversal rotating system, etc.

5. Besides the above, the machine is adopted with material tray for comfortable operation.

6. The open mixing mill can be adopted with blender for comfortable mixing.

7. The open mixing mill is adopted with hard gear speed reducer, ABB motor, etc.

8. Besides, the machine is matched with several rubber sheet cutters.

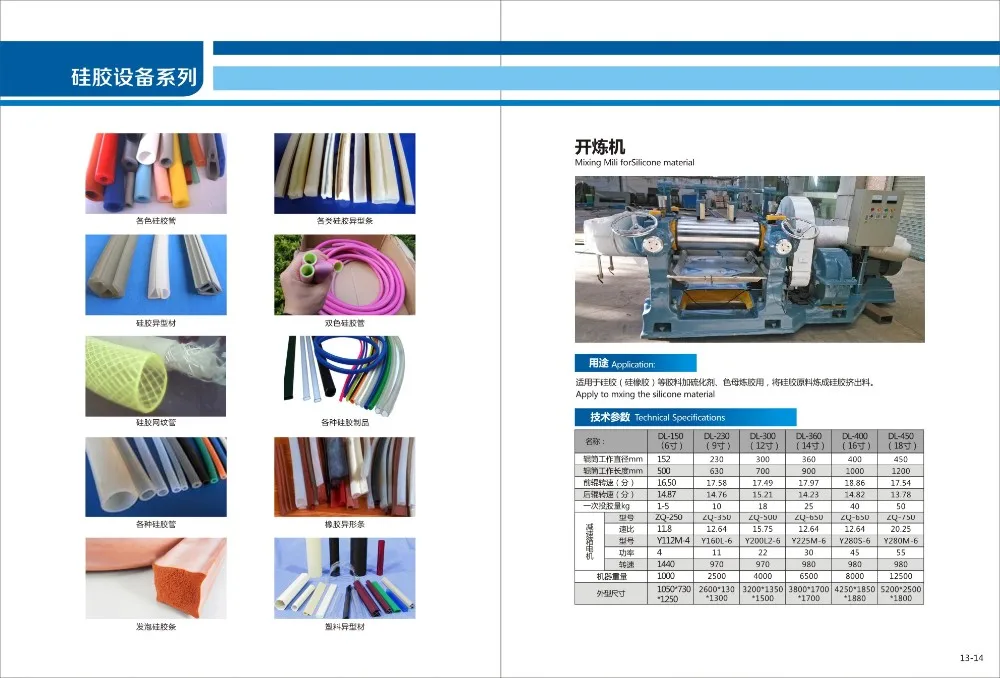

 Parameters:

model	DL-150	DL-230	DL-300	DL-360	DL-400	DL-450
Drum diameter	152	230	300	360	400	450
Drum length	500	630	700	900	1000	1200
Speed (front)	16.5	17.5	17.49	17.97	18.86	17.54
Speed(behind)	14.87	14.76	15.21	1423	14.82	13.78
one shot(kg)	1-5	10	18	25	40	50
machine weight	1000	2500	4000	6500	8000	12500
size	1050*730 *1250	2600*130 *1300	3200*1350 *1500	3800*1700 *1700	4250*1850 1880	5200*2500 *1800
