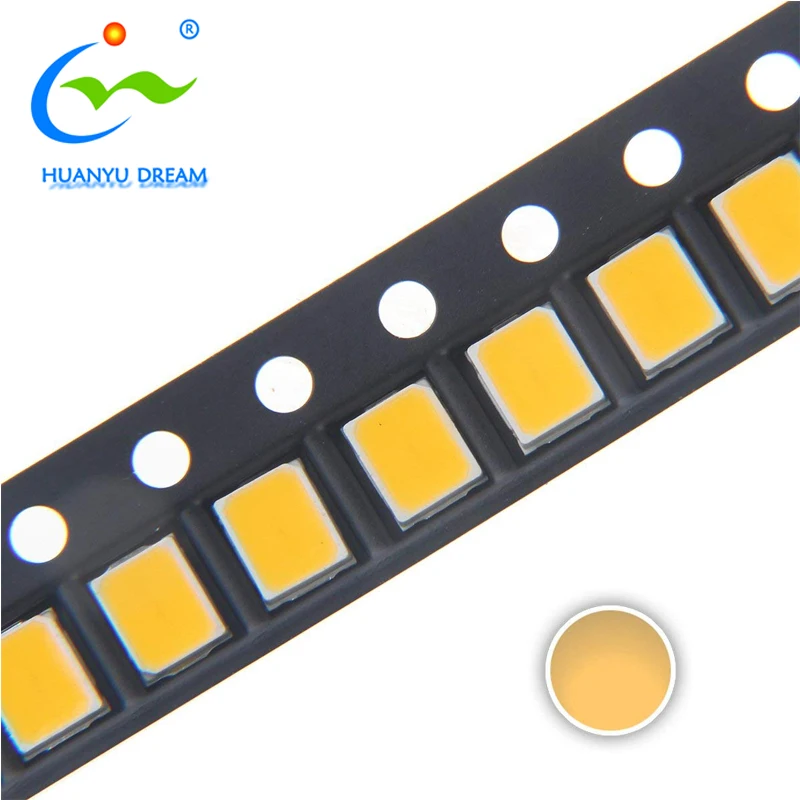

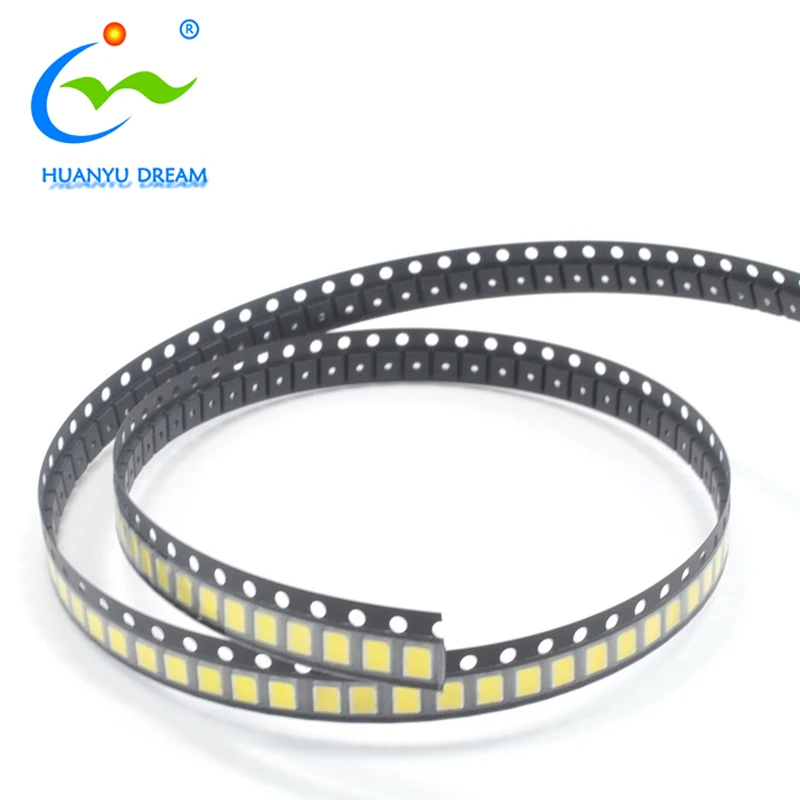

BIG DEAL Three Chips110 120LM CRI80 6000 6500K 9V 1W SMD 2835 LED
- Category: SMD LED >>>
- Supplier: Shenzhen Huanyu Dream Technology Co. Ltd.
Share on (60825630437):
Product Overview
Description

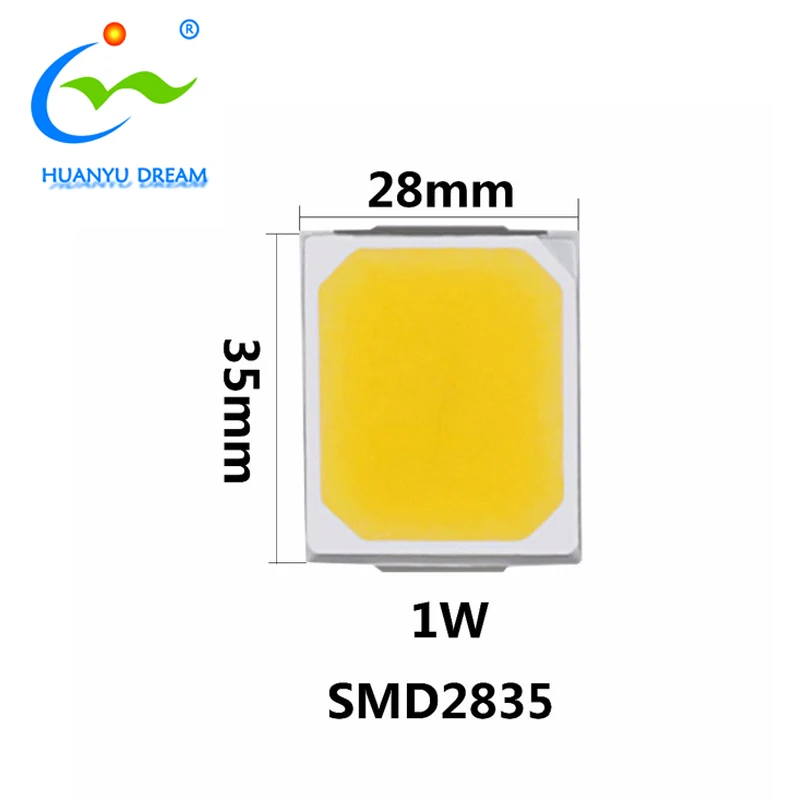

Dimension
| Model No. | HY-2835W60B110-9V3S | Power | 1W |
| Lumens | White:110-120LM CRI>80 | ||
| Color Temp | White:6000-6500K | ||
| Voltage | 2.9-3.4V | Current | 100mA |
| Chip Brand | Sanan | Chip Size | 10*30*3MIL |
| Lifespan | 50,000 hours | Warranty | 3 years |
FOR SUPTEMBER ONLY!!
2,000,000PCS STOCK
QUICK SHIPPING
SMALL ORDER ALLOWED
Brand Chip
Epistar Sanan Hualei Foriep etc brand LED Chip, high lumen, strong anti-static ability, strong anti-attenuation ability, good consistency and not dead light
Gold wire
99.99% Gold wire, Aolly wire can be supply depend on the customers' requirment.
We choose gold wire with high conductivity, good thermal conductivity, corrosion resistance, good toughness, good chemical stability, stable product performance and other advantages, high-end packaging technology selection.
Lead Frame
Red copper lead frame
Our company has the technical operation personnel and the first-class equipment in the industry, the elimination of the chip fake solid tin, the adhesion poor, the residual high production problems caused the lamp life short and low brightness and so on.
Splitting
Import machines from Japan, high speed splitting,about 60K/hrs.Intelligent full-point identification and positioning system can recognize stents and control the amount of glue, high speed.stability, maneuverability, and durability, which ensures precision and density.
Electrical / Optical characteristics
Absolute Maximum Ratings (TA=25ºC)
| Item | Symbol | Absolute Maximum Rating | Unit |
| Forward Current | IF | 100 | mA |
| Pulse Forward Current | IFP | 200 | mA |
| Reverse Voltage | VR | 9 | V |
| Power Dissipation | PD | 1200 | mW |
| Operating Temperature | Topr | -40ºC To +85ºC | °C |
| Storage Temperature | Tstg | -40ºC To +85ºC | °C |
| Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 300ºC | for 10sec. for 3sec. |
1/10 Duty Cycle, 0.1 msec Pulse Width.
Initial Electrical/Optical Characteristics (TA=25ºC)
| Symbol | Item | Units | Min. | Typ. | Max. | Test Conditions |
| VF | Forward Voltage | V | 2.9 | 3.0 | 3.2 | IF=100mA |
| IR | Reverse Current | uA | - | - | 1 | VR=5V |
| 2θ | Viewing Angle | º | - | 120º | - | IF=100mA |
| ø | Luminous flux | lm | 110 | 120 | IF=100mA | |
| TC | Color Temperature | k | 6000 | 6250 | 6500 | IF=100mA |
| RA | Color Rendering Index | Ra | 80 | 85 | IF=100mA |
Application
Detail Photos
Available color to choose
Huanyu Dream Technology is a professional manufacturer of SMD LED Chip, supply mainly products such as SMD5730, SMD 2835,SMD5050, SMD3528, SMD 3014,SMD4014, High power 1w 3w LED etc.
Our LOGO has been registered as a Trademake, please identified our Logo when you looking for the products,
and factory local in Shenzhen city Guangming district, welcome to visit us!
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days for order quantity more than
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways paymant
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
