Low flow rate PU foam polyurethane injection filling machine for insulation

Product Overview

Description



Low flow rate PU foam polyurethane injection filling machine for insulatione for sale

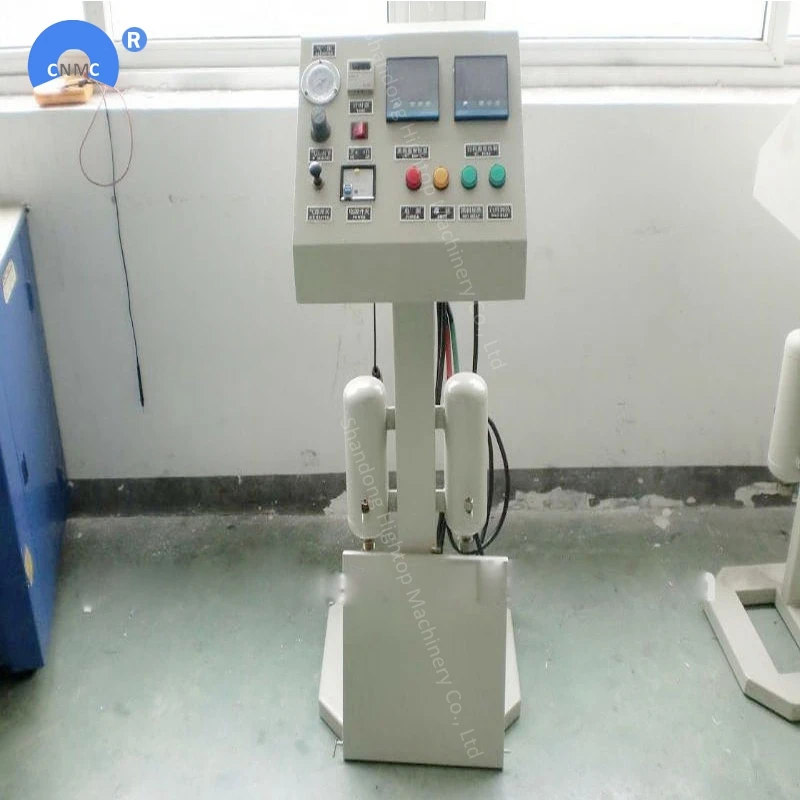

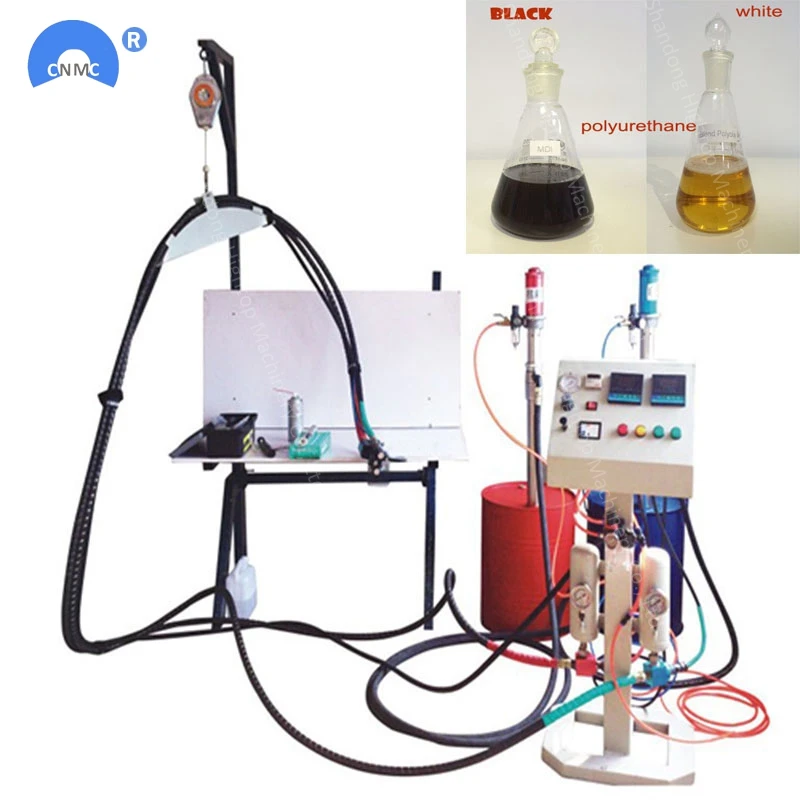

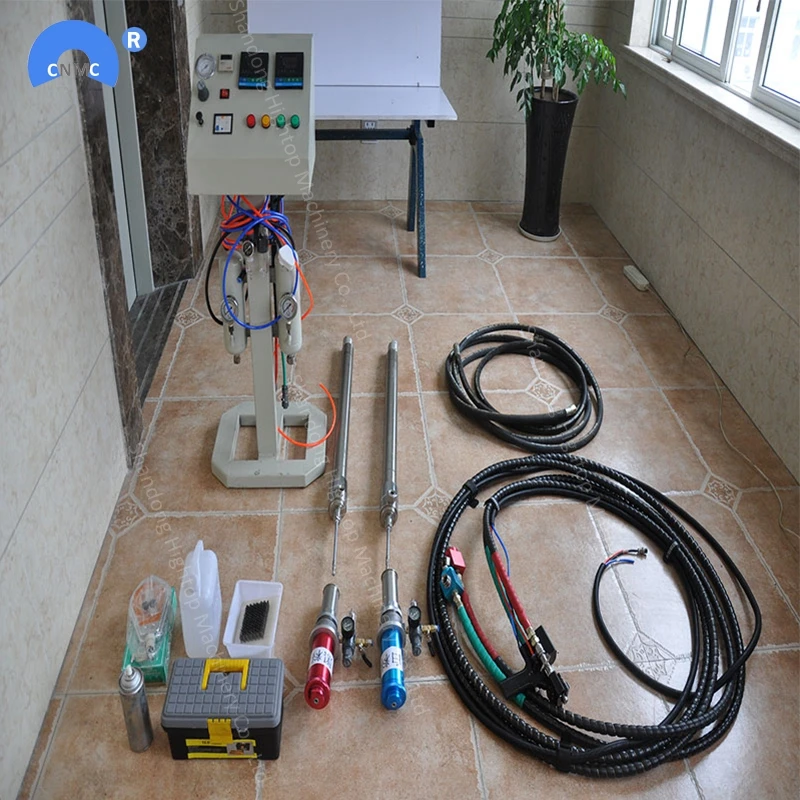

Introduction of Low flow rate PU foam polyurethane injection filling machine for insulation

CNMC-4 type PU on-site foaming system is a new mechanical and electrical integration foaming equipment controlled by computer. It consists of pneumatic system, liquid pressurization system, electric heating system and multi-function control system, it is applied for two components (1:1) polyurethane on-site foaming.

Apllication:

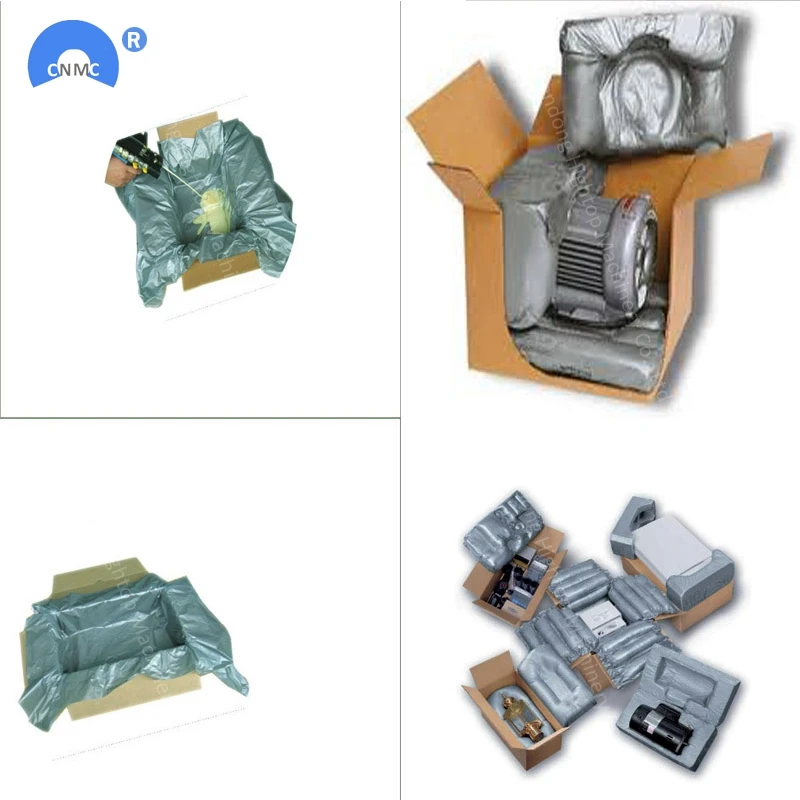

1. For Packaging: packaging for valued equipment and instrument, fragile articles, ceramics and lights, and other cushion packaging.
2. For Thermal insulation filling: water dispenser liner, portable electronic refrigerators in car, vacuum cups, electric water heaters, thermal insulation floor, solar water heater, freezer and the like.
3. For Filling: all kinds of door industry, handicraft article, flower mud, etc.

Parameter of Low flow rate PU foam polyurethane injection filling machine for insulation

Model	CNMC-4
Power supply	220V 50HZ/60HZ
power	4.5KW
Flow rate	1-4 kg/min
Liquid pressure	1.2-3MPA
Tempering	ISO 0-99℃ POL 0-99℃
Air supply	0.4m 3 /min
Size	1.2*0.6*0.6m
Injection time	Adjustable



System Main Features:
1. Imported original inner heating hose in 5m.
2. Floor type operating platform (optional) ,easy for installation.
3. Gunhead has innovative structure, small volume, light weight, and easy operation.
4. With computer self-checking system, failure warning, and leakage protective device, the operating is safe and reliable.
5.With foam gun heating device, the users do not need to worry about the material head; it saves both of material and work time.
6. Pouring time preset,manual pouring switched rapidly, easy operation and time saving.
7.Automatic operation, automatic cleaning, pipeline no block.

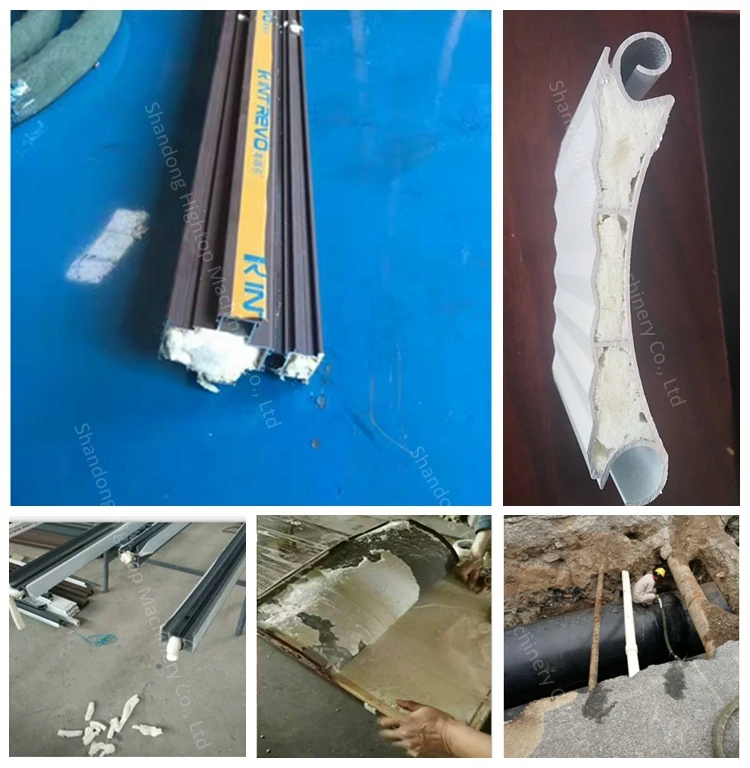

Applications of Low flow rate PU foam polyurethane injection filling machine for insulation
