This kind of motor belt conveyor is used in the beverage production lines to connect the separate machines into a wohle automatic line.
It is used to convey glass bottles or the fullyfilled plastic bottles.
The length and width as well as material of this conveyor can be made according to clients' requirements.
It has features as: low bottlebreaking rate, speed is adjustable, height is adjustable to match the machines, easy operation, long life span, etc.
It is required equipment in various beverage production lines.
Technical Parameter
Material of the conveyor
Stainless steel.
Material of the distribution chain
plastic
Width of the distribution chain
82-92 mm
Height of the distribution from the floor area
860-1010mm
Length of the conveyor from
2m
Width of the movable bottles
to 100mm
Speed of the moving belt
5-25 m/min
Rated capacity
0,37 kW for 2-4 m 0,55 for 6m
Supply voltage
380/220v/50Hz
Length (up to customers requirements)
2, 4, 6, 8, 10m
Width of the working zone for standard work
0-110mm

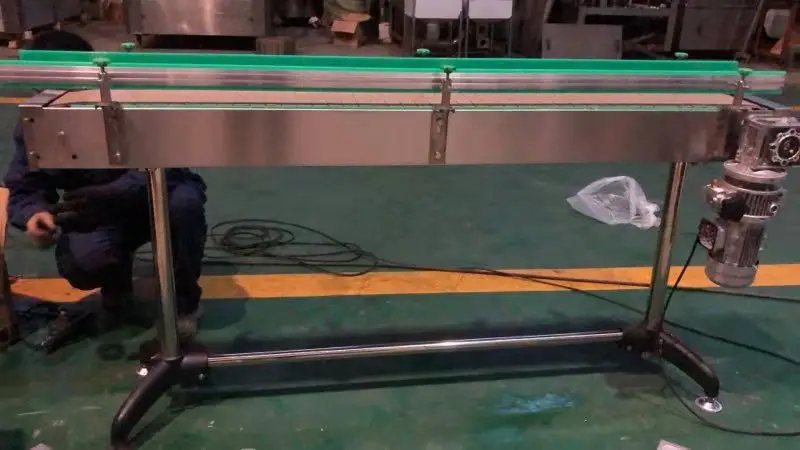

Detailed Images

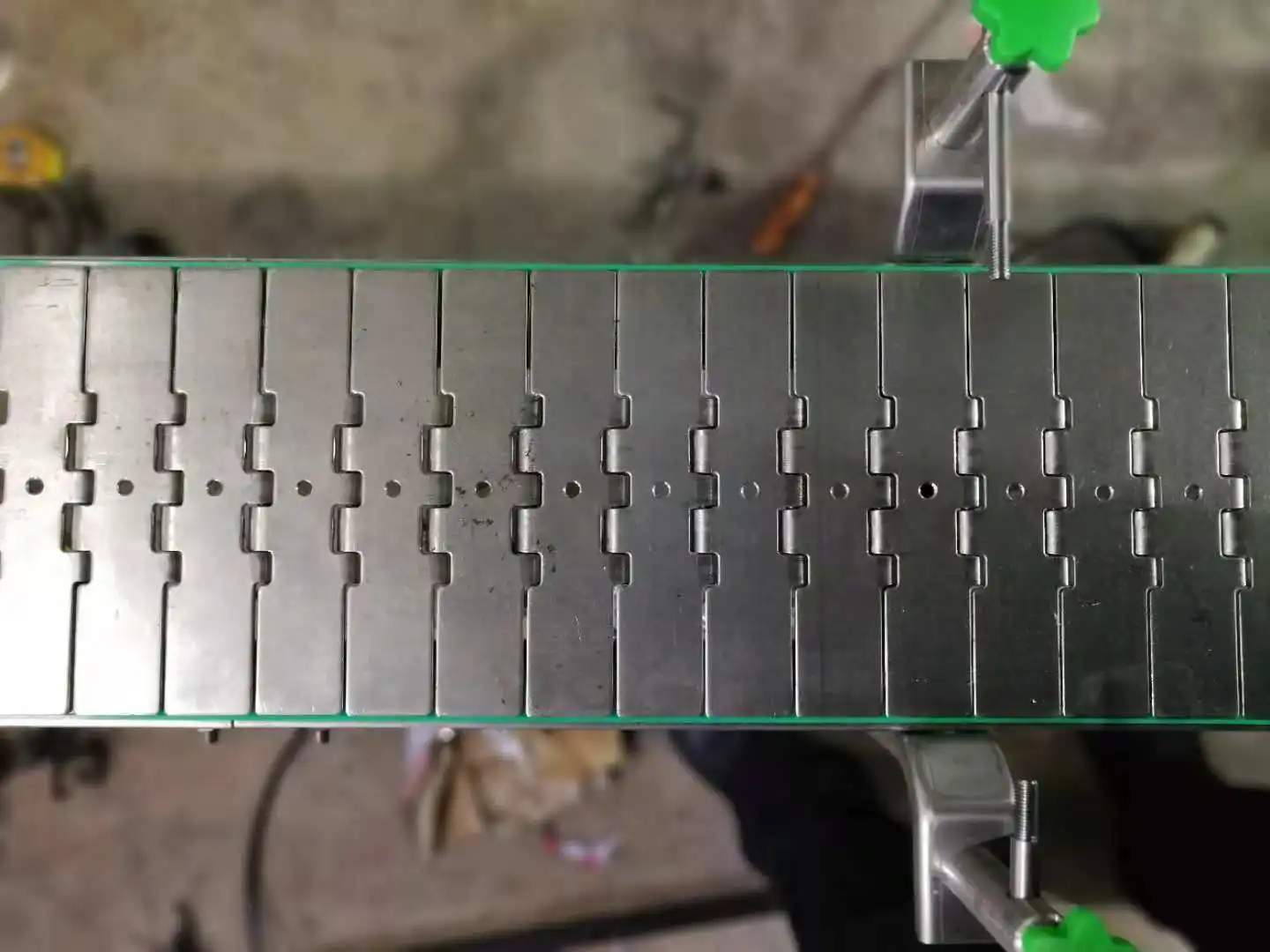

This type conveyor can be customized, the conveyor chain can be plastic chain and stainless steel chain, the width of the conveyor chain has 86.5mm, 114mm, 156mm, 192mm, 255mm, 304mm types;
The conveyor frame is made of good quality SUS304.
Our customer need make hole in every stainless steel chain piece, we can customized for you if you need.
Company Information
Packaging & Shipping
FAQ
Q: How to get an appropriate offer from your company?
A: Please inform us:
1, production capacity per hour/per day/per month ... ...
3, bottle type: plastic bottle, glass bottle, can or ... ...
4, cap type: screw cap, crown cap, can lid or ... ...
5, for water treatment, it's better offer us the raw water quality report ... ...
Q: This is the first time I cooperate with your factory. How can I trust you about the machien quality?
A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years
Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side.
Q: Can I run the machines in your factory if I buy the complete line in your factory?
A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;
Q:How about the spare parts?
A:After we deal down all the things , we will offer you a spare parts list for your reference.
Q: How can I install the machine and commissioning? Do you have the technician to my factory?
A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.
