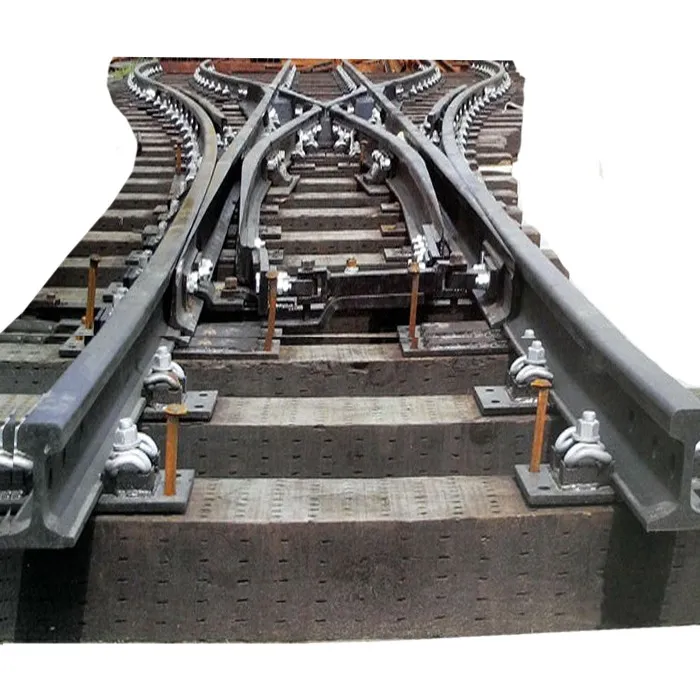

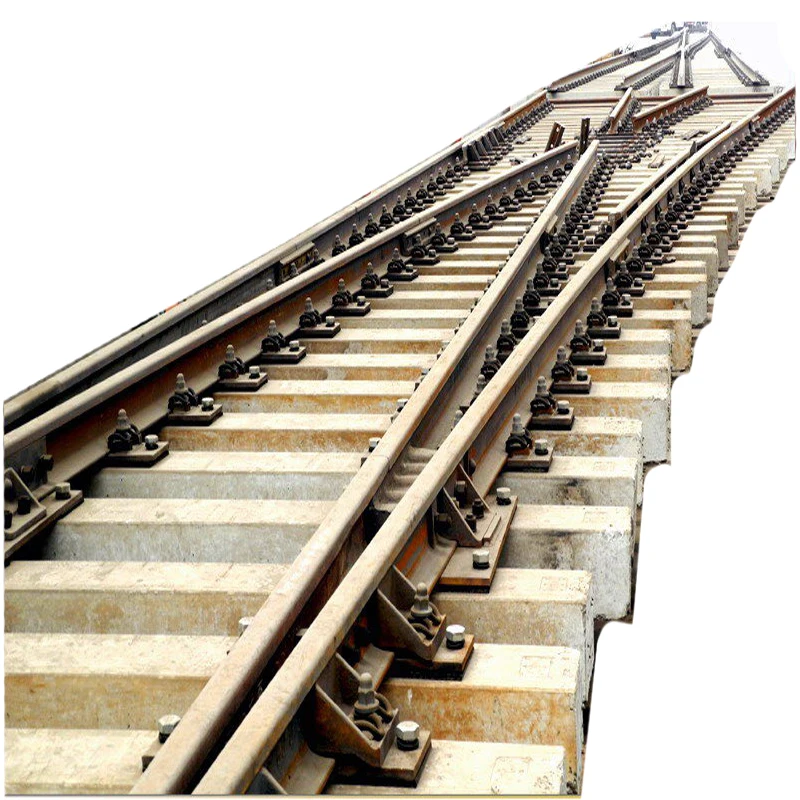

Railroad rail Symmetric switch for subway line

Product Overview

Description

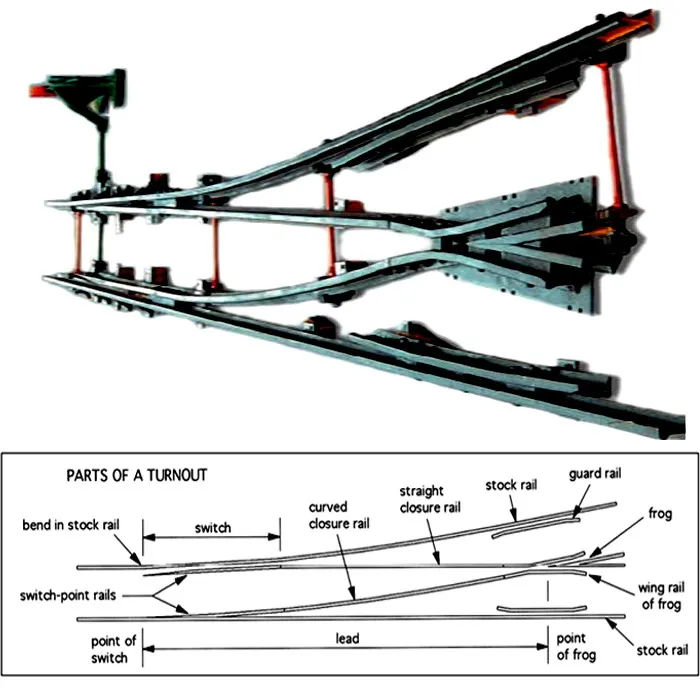

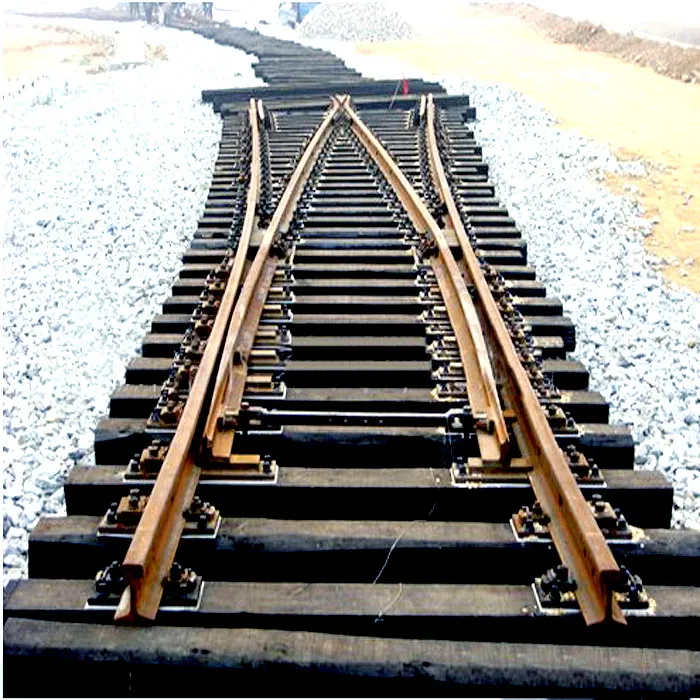

Railroad track switch turnout

Railroad track switch turnout
1. Mining turnout switch
2. Railway turnout switch
3. Gauge 1067mm or 1435mm

Please send us your design drawing, let's confirm it in advance, the normal kinds of turnout as below:

1. Rail type: 8kg/m, 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m, 38kg/m, 43kg/m, 50kg/m, 60kg/m etc.

2. Turnout number type: 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 12# etc.

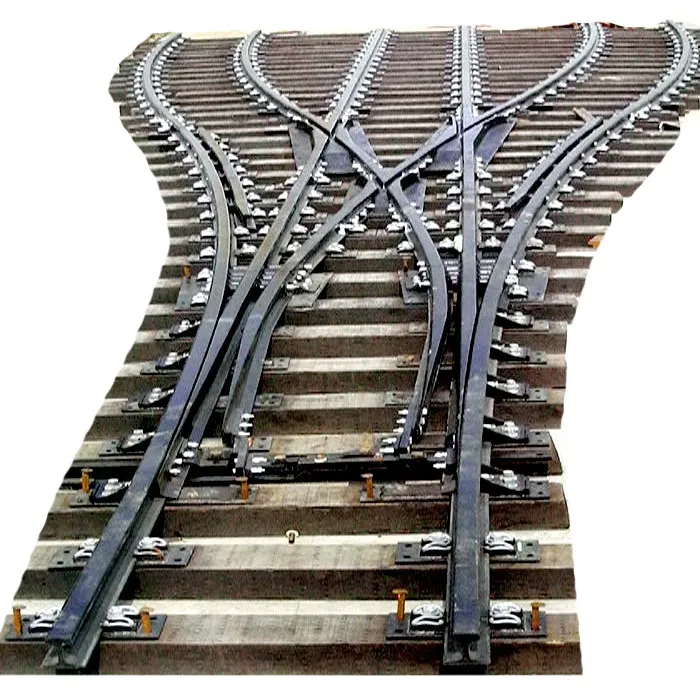

3. Usage type: Single turnout, symmetrical turnout, three turnout, crossing crosses turnout etc.

4. Special turnout: Non-standard custom switch, railway, city, industrial and mining, ferry special switch, high manganese steel frog, etc



50kg-9# PARTS LIST
Name	Specification	Unit	Qty.	Pcs/Unit	Total	Remark
Simple turnout	50kg-9#	sets			1
Front straight Stock rail	11000	pcs	1	1	1	With switch rail and rail brace
Latter straight Stock rail	9910	pcs	1	1	1	With guardrail
Front curving Stock rail	10917	pcs	1	1	1	With switch rail and rail brace
Latter curving Stock rail	9910	pcs	1	1	1	With guardrail
Straight connect rail	10449	pcs	1	1	1
Curving connect rail	10486	pcs	1	1	1
High manganese steel frog core	50kg-9#	pcs	1	1	1
Slid plate		pcs		14	14
Rail brace plate		pcs		16	16
Guard rail tie plate		pcs		14	14	No.26, 28, 30, 30 &32 behind straight stock rail, No.27, 29, 31, 31 &33 behind curving stock rail
Heel of Switch plate		pcs		2	2	After switch rail
(Gauge support plate) Heel latter plate		pcs		14	14	No.19-22 used for straight stock rail and curving connect rail, No.23-25 used for curving stock rail and straight connect rail
Track cross plate		pcs		11	11	For No.22 before frog core
(Dual)Square shoulder plate		pcs		48	48
Fishplate		pcs		18	72
Screw spike	M24	pcs		72	288
T bolts	M22*65	sets		76	304
Rail brace		pcs		26	104
Fishbolts	24X145	sets		36	144
Dog spike	16X16	pcs		350	1400
Pull rod		pcs	4	1	4
Connect rod		pcs		1	4
