Paraffin Wax Melting Pot Melting Wax Machine
US $56.00-$130.00
Surgical cotton wool roll making machine for hospital
- Category: Home Product Manufacturing Machinery >>>
- Supplier: Qingdao Lebon Industry Co. Ltd.
Share on (60826496428):
Product Overview
Description
Product Description

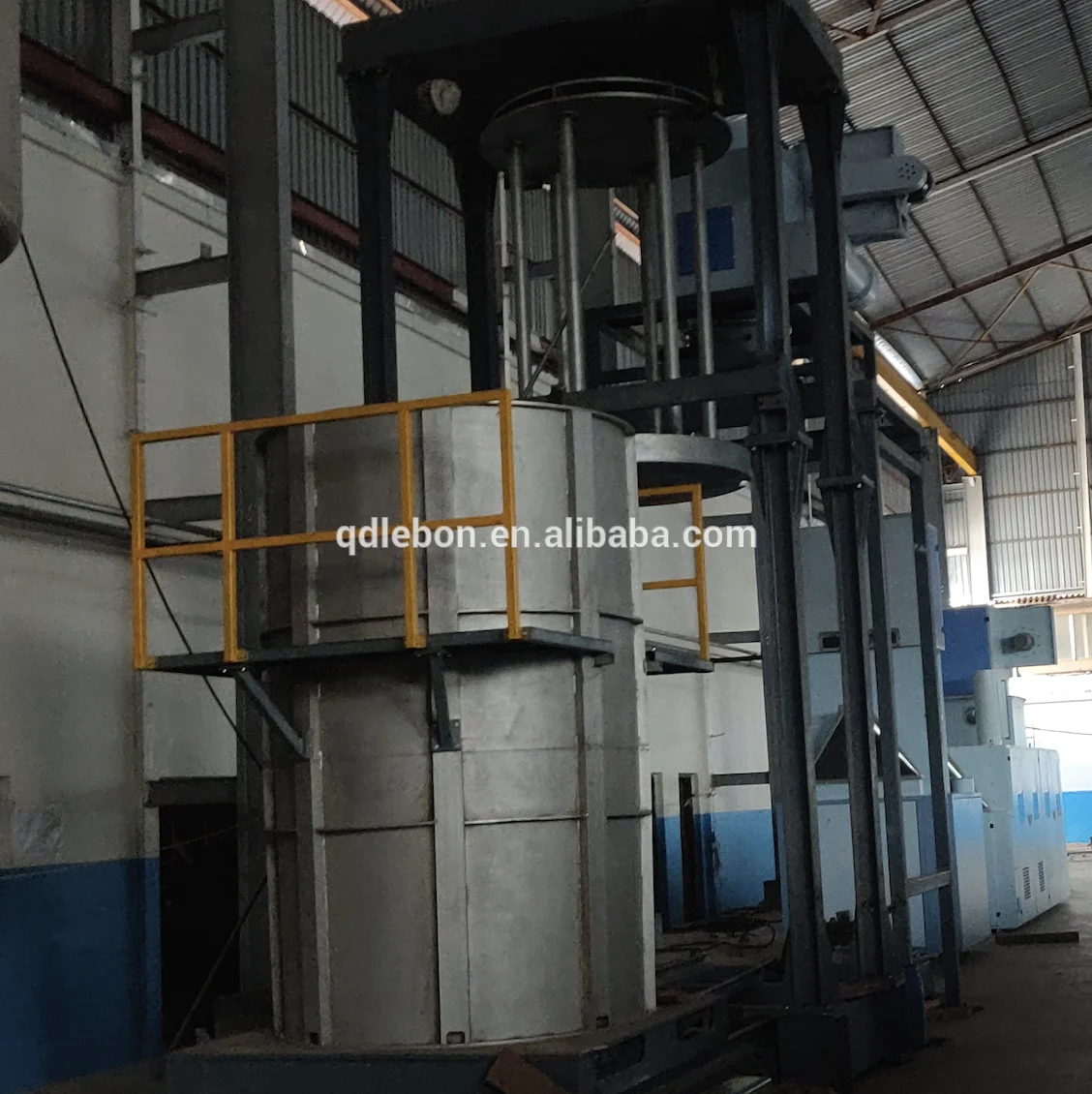

Use and characteristics:
High temperature and high pressure, scouring and bleaching machine can
complete degreasing, bleaching and other functions. suitable for Absorbent products.
Technical date:
1. Bleaching machine diameter:1600mm,1860mm,2000mm
2. Load:500kg ,1000Kg,1500Kg
3. Installed power:13.75Kw,24.75Kw,32.75Kw
4. Gauze bleaching machine design pressure:0.4Mpa
5. Steam pressure:0.6Mpa
6. Compressed air pressure:0.6Mpa
7. Water pressure:0.3Mpa
8. Cloth roll loaded quantity:2-3 Layer

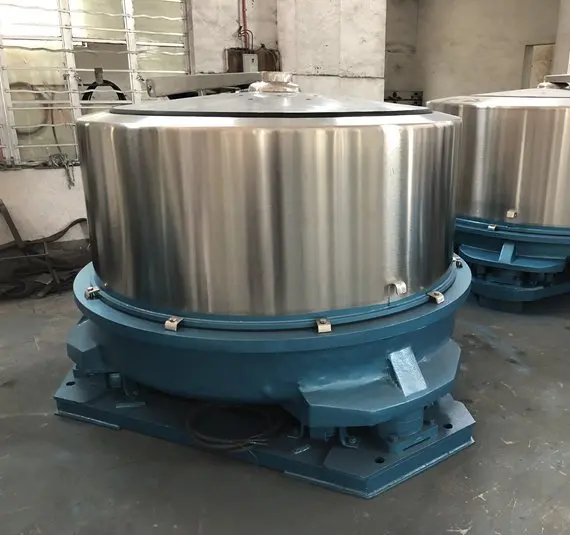

Use and characteristics:
The variable frequency control automatic three-bearing foot dangling loose
hair dryer for loose fiber dyeing press cake after the dehydration process the
entire volume with dehydration rate, high degree of automation, compact
structure, large capacity, easy to operate . Dehydration entire volume loading
greatly reduces the labor intensity and improve production efficiency. The
machine is equipped with complete shock and timing, automatic safety control
system, safe and reliable operation. Its main components made of stainless
steel, durable, the vast pulp, dyeing and other fabric industry's most advanced
and ideal dewatering equipment
Use and characteristics:
Drying use this machine for wool, chemical fiber, cotton, linen and other loose fibers after processing
Scope of application | Apply to the local cotton and chemical fiber spinning pure or blended with Mianjuan feeding. | |
Quantitative production | 3.5 ~ 6.5 g / m | |
Production | 30-35 kg / h | |
Working width | 1000 mm | |
Additional pieces of comb | Roller carding a board | |
Cover fixed after 2 | ||
Cover fixed before the | ||
Drawing a multiple of total | 67 ~ 120 | |
Spurs roll diameter of the work | Φ250 mm | |
Barbed roller speed of the work | Cotton | 1070 to / |
Fiber | 980 / | |
Work of the cylinder diameter | Φ1289 mm | |
Cylinder speed of the work | Cotton | 360 / |
Fiber | 330 / | |
Work of Adolf diameter | Φ706 mm | |
Speed of the work of Adolf | 21.3 ~ 38.2 to / | |
Cover the number kan | 40/106 | |
flat rate of | Cotton | 177 214 266 mm / sub |
Fiber | 81 98 122 mm / sub | |
Sliver application of the tube | Φ600 × 900 mm | |
Dust | Cylinder triangle-Astoria, gill cover roller cover, curtain delivery vehicles belly 3 miscellaneous cleaning | |
Suction air flow in a row | 1300 m 3 / h | |
Wind | -500 ~ -600 Pa | |
Total power installed capacity | 4.4 kW | |
Main motor | 3.3 kW | |
Adolf drive motor | 1.1 kW (frequency, a significant number of users may choose to use) | |
Area (length × width) | 3809 × 2092 mm | |
Weight of the whole machine | About 4500 kg | |

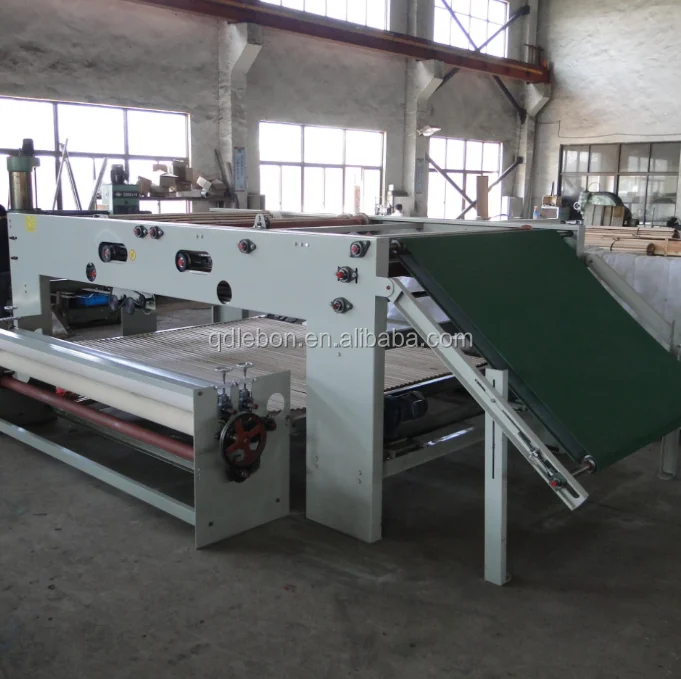

Uses and characteristics:
To fold and pave the mesh after carding evenly into certain width and thickness,then transfer it to next procedure after pressurization.All paving aprons are driven separately for easy adjustment.The reciprocal commutation is controlled by frequency conversion and the wall is proof against leaking.
Main specifications:
Input apron width:1700-2700mm
Output apron width:2200-7200mm
Lapping speed:40m/min
Total power:6.5KW
Packaging & Shipping
Export standard package
1) wooden case/polywood case
2) plastic foam packing
3) nude packing
Our Services
1) Engineers available for overseas service according to request.
2) Any machine from our factory has one year guarantee.
3) 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4) manual book in English version with details.
