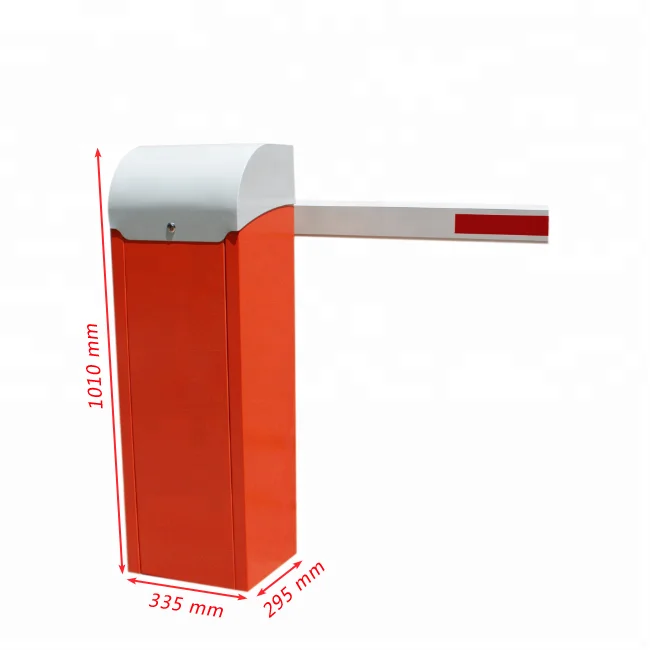

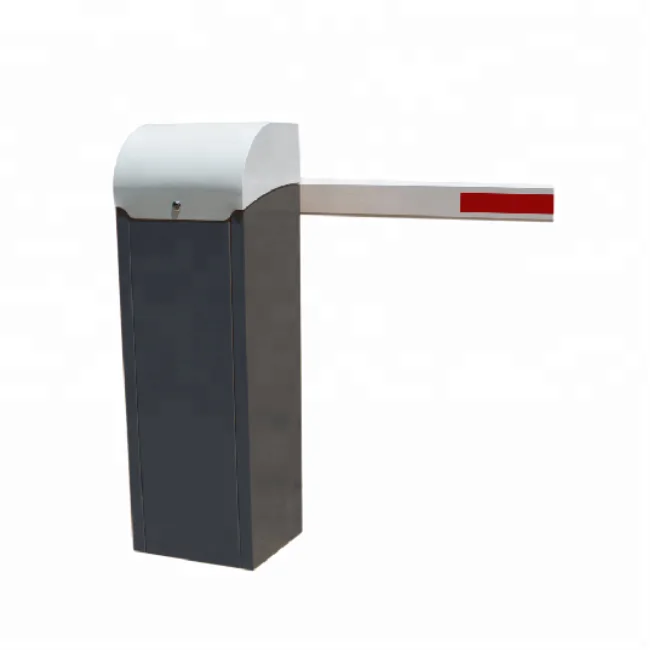

Stable Barrier Gate Mechanism, Automatic Aluminum Barrier Gate for Vehicle Access Control
- Category: >>>
- Supplier: Integer Technology Ltd.
Share on (60826592845):
Product Overview
Description
Stable Barrier Gate Mechanism, Automatic Aluminum Barrier Gate for Vehicle Access Control
Welcome to Send Enquiry to us NOW to know more NEW PRODUCTS
Product Description
IBG-109 Auto Vehicle Aluminum Barrier Arm Gate Selling Points:
- Accurate and safe Operation
- Reverse on Obstacle detection
- Anodized aluminum boom
- Slow down speed adjustable
- Compact control unit
- Versatile configuration options
- Silent and Smooth Operations
- Automatic Fault Detection
- Rapid openings and intensive use
- Break Away Arm mechanism available
IBG-109 Auto Vehicle Aluminum Barrier Arm Gate Features:

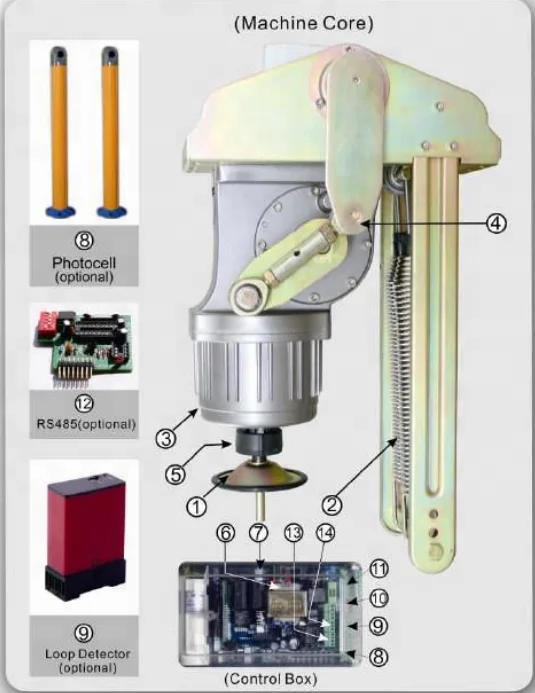

- Intelligent.Auto-detect opening and a closing position in high accuracy by both mechanical and electrical limit detector. Combination of special inner working design and smart motor ensures swift and smooth arm movement in falling and lifting to reduce bouching.
- Durable: Extension spring is more durable than compressed spring in the heavy-duty site where barrier gate will open and close continuously.AC motor can support long-lasting working of barrier gates. Cooling Fan processor is for decreasing working temperature.
- Safe: Arm will be reverse back when it meets any obstacle in its movement. Optional rubber arm can avoid any damage when arm touches anything. Additional photobeam further ensures safety.
- User-friendly: Interfaces for photocell, loop detector, arm light, etc are reserved. No need to change spring if the arm is changed(Eg.Arm is changed from 3m to 6m, the same spring can support.)

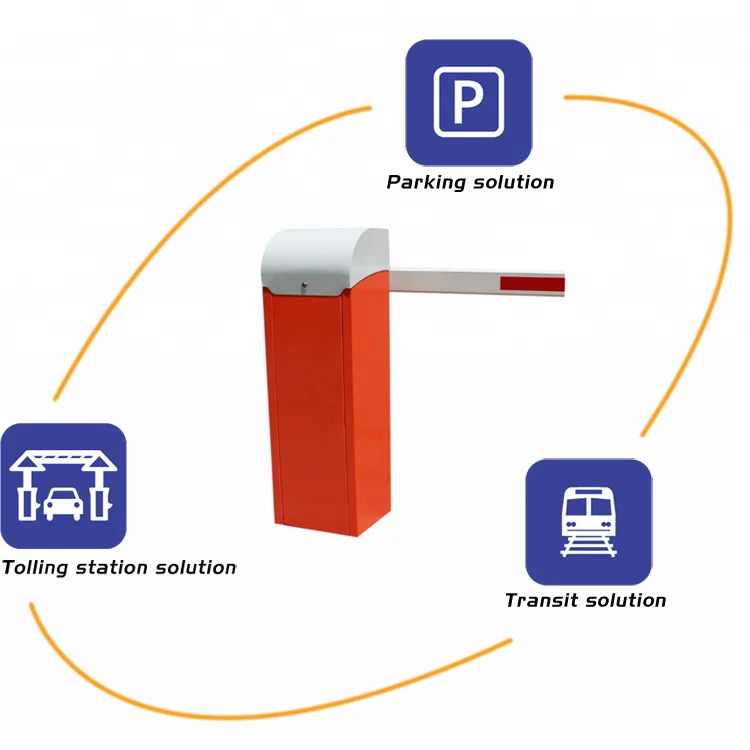

IBG-109 Auto Vehicle Aluminum Barrier Arm Gate Applications:
- Parking lots.
- Toll gates.
- Goods yards.Railway crossings.
- Commercial premises.
- Apartment block access.
- Hotle&Convention center.
Technical Parameter:
| Model | IBG-109 |
| Working Temperature | -35℃~60℃ |
| Power | 80W |
| Motor Voltage | 220V±10%,110±10% |
| Frequency | 50/60HZ |
| Protection Grade | IP44 |
| Boom Weight | 3-9Kg |
| Boom Dimension | 45*80mm/45*100mm |
| Max Boom Length | 3-6m |
| Boom Type | Straight/90°folding/180°folding/2 fencing/3 fencing |
| Running Time | 1.5-6sec |
Our Services
1. One year free service is supplied. (not including the arm)
2. Lifetime charged service is supplied.
3. Technical service is supplied.
4. We can customized machine case, color, logo for you, which according to your detailed requirements.
5. Technical support and aftersales service, it is a long-term relationship between us.
6. Price can be negotiable when you have a big order quantity.
FAQ
Q: Do you provide samples ? is it free or extra?
A: Yes, we can't offer the sample for free charge, but sample charge can be returned after your order.
Q: What are your warranty?
A: 1-year time free warranty, little charge after one year, and all the lifetime technology freely.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipping.
Q: Why your price is higher than others?
A: Full automatic turnstile with DC brushless motor, best materials, our technology is the most advanced in China. And at the same time, we can supply the cheap price turnstile to meet different clients.
