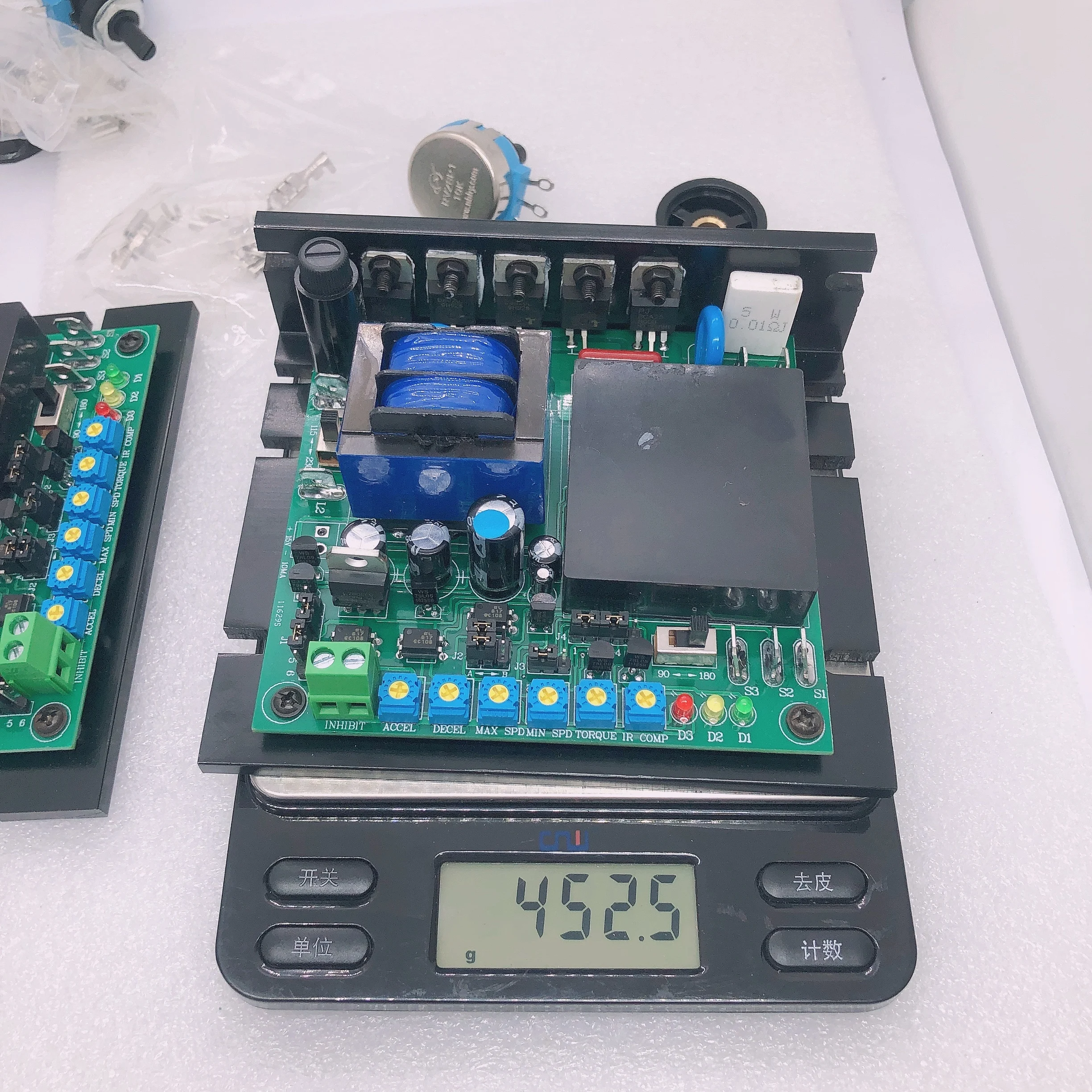

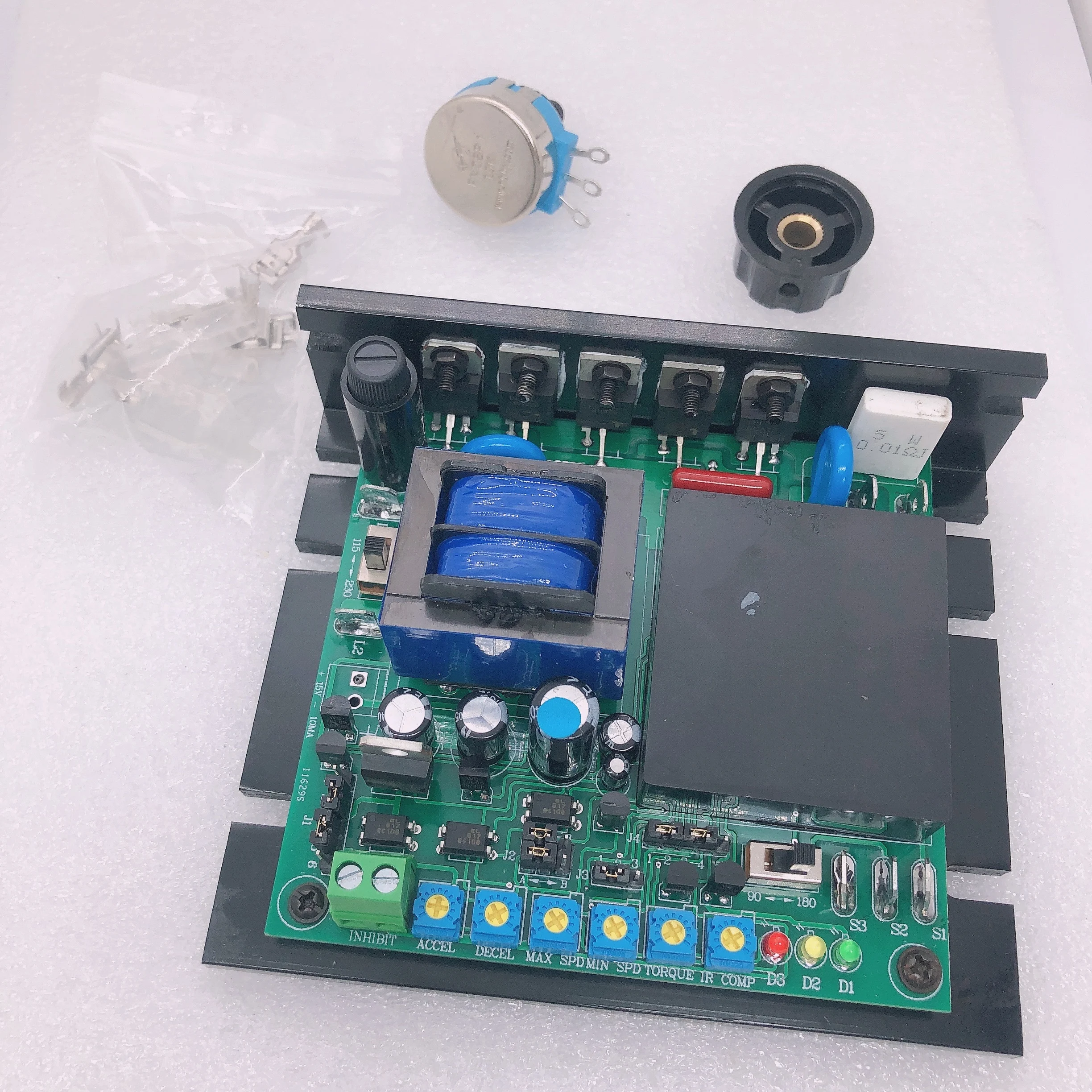

0 5v 0 10v analog signal control 110v 220v ac input 90v 180v dc output brush motor speed controller 10A
- Category: Motor Controller >>>
- Supplier: Shenzhen Ruised Technology Co. Ltd.
Share on (60827467758):
Product Overview
Description
0-5v 0-10v analog signal control 110v 220v ac input 90v 180v dc output brush motor speed controller 10A
| Product Description |
MMT-115/230DR Series DC motor driver is a kind of speed governing product developed and produced by adopting past successful experience and combining modern advanced technology. This series of products have met international standard requirements and are sold to many countries. This driver adopts thyristor chopping control principle and uses independent trigger mode. Even there is no velocity feedback, high speed ratio can be achieved to make it more accurate and reliable.
Excellent performance, reliable quality and high cost performance make it a strong performer in DC motor driver field and it was widely used in plastic machinery, food machinery, cable equipment, machining, paper printing, testing equipment, laboratory equipment and mixing equipment, etc.
1. SMT technology, small size |
| 2. Good following features, rapid respond speed |
3. Wide speed ratio, strong mechanical features |
| 4. Applicable to permanent magnet ,separate excitation type and DC torque motor |
| 5. Double closed-loop PI regulation (Voltage, current) |
| 6. Current setting and current-limiting protection (continuous operation setting current) |
| 7. Large low speed output moment |
| 8. Over-current protection function |
| 9. Quick stop function |
| 10. Arbitrary setting of upper and lower speed |
| 11. Soft start, soft stop setting function |
12. Selection of speed mode, torque mode |
13. Normally open, close selection of enable signal |
| 14. Selection of input, output voltage switch |
| 15. Driver speed governing controlled by standard signal input 0-5V or 10K potentiometer |
| Specification for 115/230DR10AL-02 | |
| Input voltage range | AC110V/220V switchable (please notify before place the order) |
| Max output current | 10A |
| Output voltage | 0-90V 0-110V 0-160V 0-180V 0-220V (please notify before place the order) |
| Operating mode | Speed mode, Torque mode |
| Control ways | Potentiometer, 0-5V (if you need 0-10V, kindly advise) |
| Protection | Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function. |
| Temperature protection | When the temperature is 70°C, the controller will reduce output by overheating protection and stop output. |
| Working Temperature | -10°C -- +60°C |
| Ambient humidity | Relative humidity less than 80RH |
| Size | L*W*H = 116*103*48 mm |
| Weight | 500g |
| |
