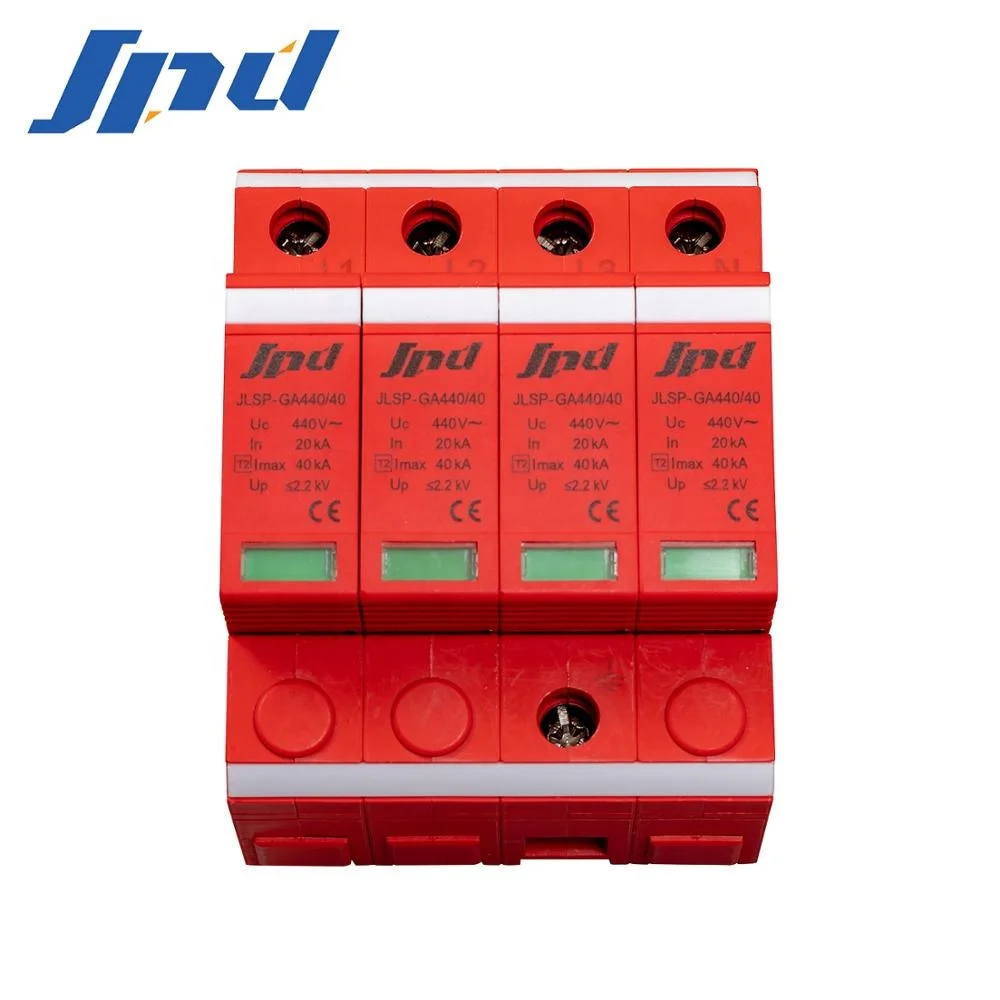

JINLI JLSP GA440/40 AC indoor low voltage power system spd protection device surge arrester 440V 40kA
JINLI JLSP-GA440/40 AC indoor low voltage power system spd protection device surge arrester 440V 40kA
JINLI JLSP-GA440/40 AC indoor low voltage power system spd protection device surge arrester 440V 40kA

JINLI JLSP GA440/40 AC indoor low voltage power system spd protection device surge arrester 440V 40kA

Share on (60827494152):


Price:

Quantity:


Product Overview

Description


Company Information

-_01_02_03_04

Product Description







Model



JLSP-GA440/40JLSP-GA440/80JLSP-GA440/100



IEC Classification



Class IIClass IIClass II



AC Network Un (50/60Hz)(V)



230/400, 240/415(TN/TT/IT)

230/400, 240/415(TN/TT/IT)

230/400, 240/415(TN/TT/IT)



Max. continuous operationg voltage Uc (V)



440440440



Nornimal discharge current In (kA)



204060



Max. discharge current(8/20us) Imax (kA)



4080100



Voltage protection level Up (kV)



≤2.2≤2.3≤2.5



Max. backup fuse (A)



100 (gG)100 (gG)100 (gG)



Response time tA



≤25ns≤25ns≤25ns



Capacity of withstand short circuit



25kA25kA25kA



Operating temperature



-40°C∼+85°C-40°C∼+85°C-40°C∼+85°C



Relative humidity



≤95%(25°C)≤95%(25°C)≤95%(25°C)



Max. cross-sectional area of wire



16mm2 multi-strand cord25mm2 multi-strand cord35mm2 multi-strand cord



Dimensions (1P) (W*L*H) (mm)



18X90X6227x90x6236x90x65



Mounting



DIN Rail 35mmDIN Rail 35mmDIN Rail 35mm



Protection rating



IP 20IP 20IP 20



Housing material



PBTPA66PA66



Flame retardant rating



UL 94V-0UL 94V-0UL 94V-0



Capacity of remote signaling contact



250VAC/0.5A   30VDC/3A250VAC/0.5A   30VDC/3A250VAC/0.5A   30VDC/3A



Max.cross-sectional area of wire for remote signaling contact



1.5mm2  multi-strand cord/single cord1.5mm2  multi-strand cord/single cord1.5mm2  multi-strand cord/single cord



Status indicator



Normal: Green   Malfunction: RedNormal: Transparent   Malfunction: RedNormal: Transparent   Malfunction: Red



Standards compliance



EN50539-11  IEC61643-31  GB/T 18802.31EN50539-11  IEC61643-31  GB/T 18802.31EN50539-11  IEC61643-31  GB/T 18802.31
