Product Overview
Description
Warranty

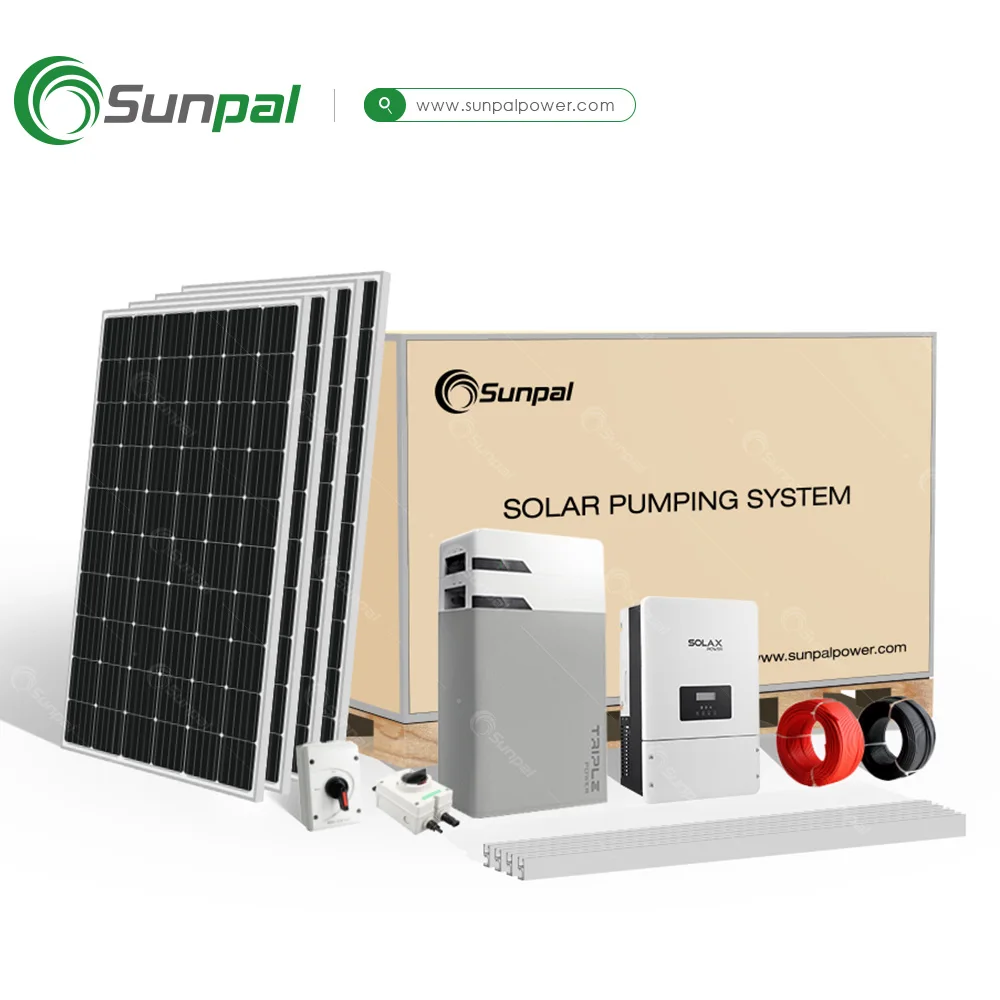

What's Included:
Components | SP3KW-HY | SP3.7KW-HY | SP4.6KW-HY | SP5KW-HY | |||
280W Mono Solar Panel | 12 Piece | 14 Piece | 18 Piece | 20 Piece | |||
DC Disconnect Switch | 1 Piece | 1 Piece | 2 Piece | 2 Piece | |||
Hybrid Inverter | X1-HYBRID-3.0T | X1-HYBRID-3.7T | X1-HYBRID-4.6T | X1-HYBRID-5.0T | |||
Triple Power Battery | 4.5 Kwh | 4.5 Kwh | 6.3 Kwh | 6.3 Kwh | |||
DC Cable 4mm2 | 100 meter | 100 meter | 200 meter | 200 meter | |||
AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece | 1 Piece | |||
MC4 Connector | 10 | 10 | 15 | 15 | |||
Mounting System | Standards Pitched Roof ( Customized Optional) | ||||||
PV Tools | 1 Set | ||||||
Technical Support
Juray Zhu
Remote Monitoring System
PV Mounting System
DC & AC Disconnect Switch
DC Cable & MC4 Connector
PV Tools
Juray Zhu
Mob/Whatsapp/Wechat: +86 180 5513 2023
Email: juray(at)sunpalpower.com
Skype: juray.zhu
Web: www.sunpalpower.com

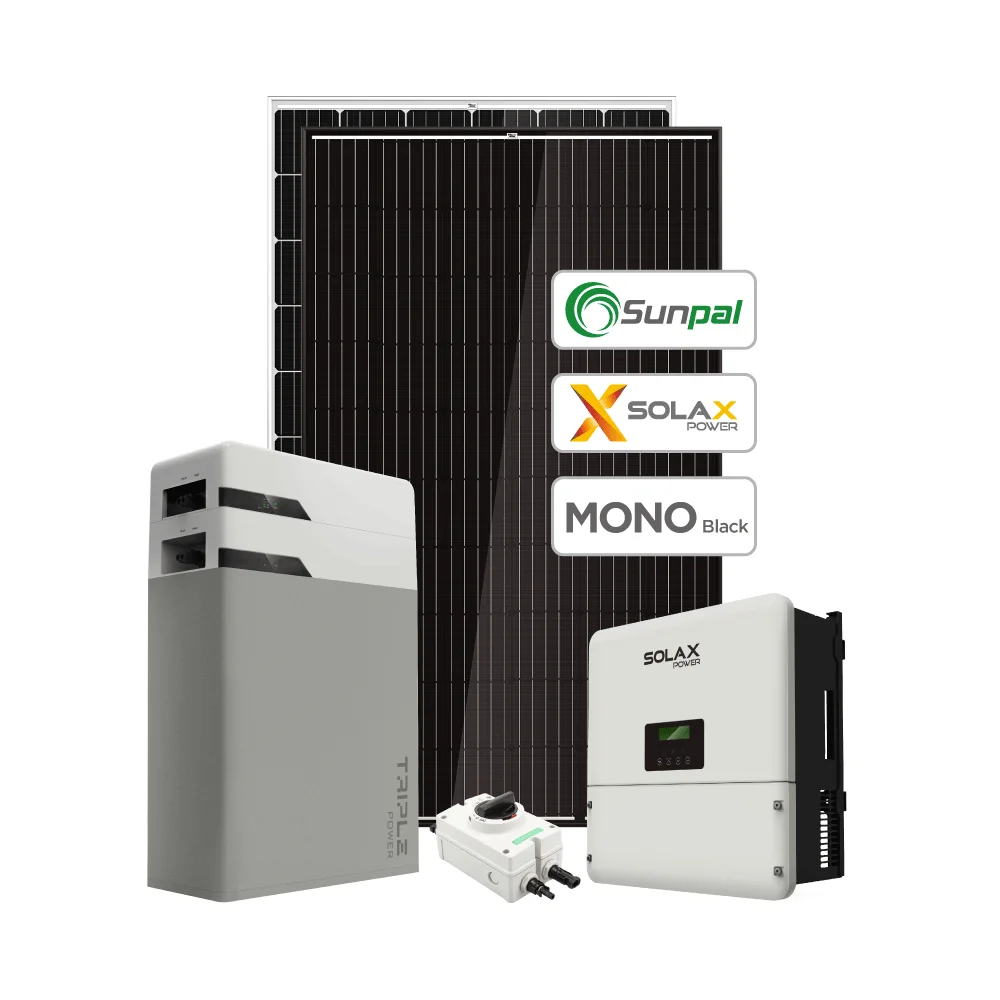

Hybrid Solar System Configuration
Black Mono Solar Panels
Peak Power Watts: 280W (SP280M-60)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)
Solax Hybrid Inverter & Data Logging Stick
Max.DC Input Power: 3KW/3.7KW/4.6KW/5KW
Max. DCInput Voltage: 600V
MPPT Voltage Range: 120-550V
Rated Grid Voltage: 230V(EU)
Warranty: 5 Years (STD) 10 Years (Optional)
Wifi Stick For STD, Lan & GPRS Optional.
Triple Power Lithium Battery
Capacity(kWh): 4.5/6.3
Operating Voltage(Vdc): 85-118
Max. charge/discharge Current(A) : 30A
Charge/Discharge Current (A): 25A
Standard Power(kW):25
Maximum Power(kW):3
T-BAT system safety:CE, FCC, RCM, TUV (IEC 62619), UL 1973
Remote Monitoring System
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS.
App Available for PC, IOS & Andriod
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
