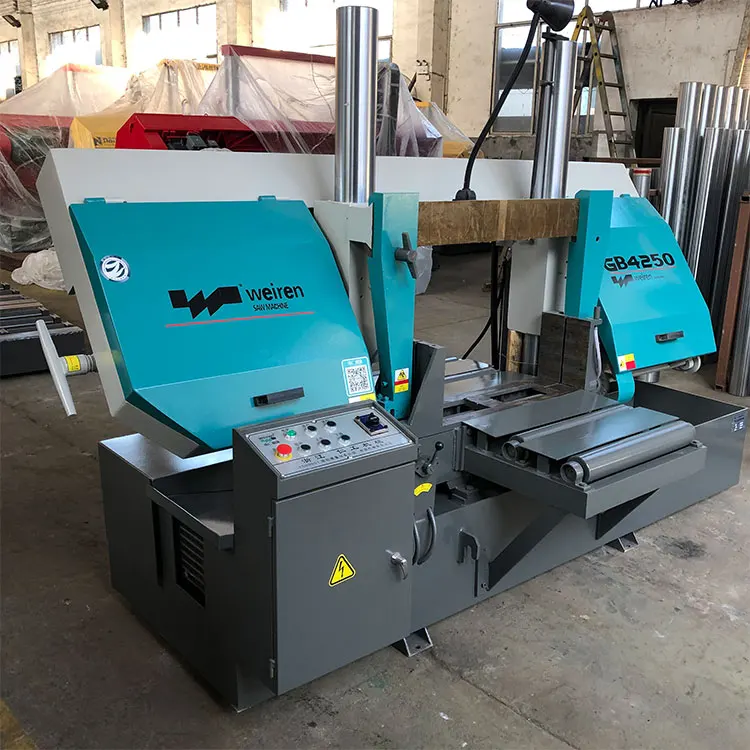

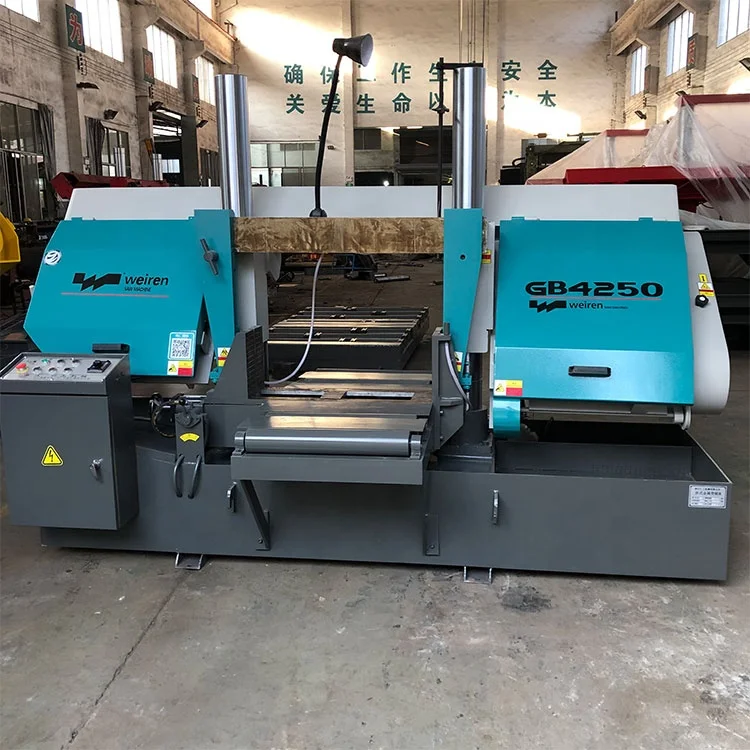

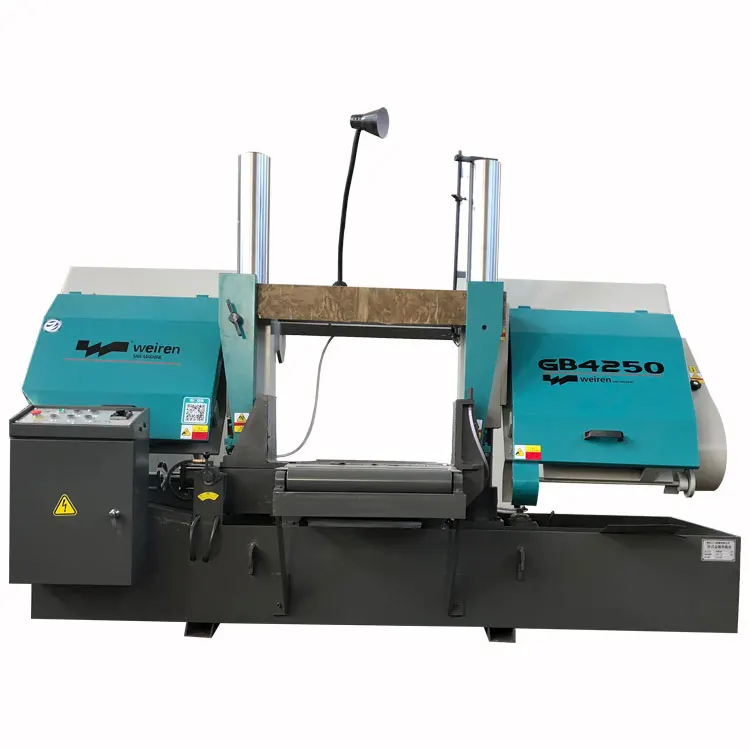

Low Price Double Column Horizontal Semi Automatic Industrial Metal/Iron Cutting Band Sawing Machine GB4250/70

Product Overview

Description

 Product Parameter of GB4250/70

character:

1. Adopt a full-length clamping structure, the workpiece can enter the sawing position from behind the sawing machine, and use clamps to fix the workpiece and perform sawing.
2. Design its own unique sawing tape guide clamping device to improve the working conditions of sawing tape, extend its service life, and reduce noise to reduce environmental pollution.
3. Double hydraulic cylinder design, with two diameter columns to form a solid sawing structure.
5. The oil pressure system and the saw bed are separated into separate closed structures. The hydraulic station is equipped with a temperature control system, which can ensure that the hydraulic system works normally under harsh ambient temperatures(working temperature ≤ 60 degrees, and the cooling system can prevent the hydraulic oil temperature from rising; To prevent oil viscosity decrease, oil leakage increase; Prevent premature aging of seals; To prevent air erosion caused by oil saturation and steam rise; Prevent oil and liquid oxidation, precipitate, and incur fatal failures such as preventing pump and valve movement, affecting normal sawing.
6. Centralized button switch control panel, electrical components use Zhengtai products.

Main features:
1. Double column and double cylinder structure greatly increases the service life of the machine tool and the full service life of the saw blade.
2. Cutting speed hydraulic control, stepless speed adjustment.
3. Saw wire speed adopts triangular band five speed adjustment.
4. Saw-cutting is stable and has high accuracy.
5. Hydraulic pressure is used to tighten the work clip, which is convenient for operation.
6. Roller feed may be used for work.
7. Saw-cut accuracy: At a size of 500 × 700MM, the vertical error of the upper and lower thickness, the vertical error of the left and right, and the slow speed of 3mm/min under knife pressure. Error ≤ 0.50 mm
Under knife pressure at 5-6mm / min speed. Error ≤ 0.70-0 .80 mm
8. Chromium + grinding of guide cylindrical surface with saw beam installed. The precision of the matching gap of the guide copper sleeve is matched with the precision of the small gap at the factory to ensure that the feed is smooth when sawing.
9. The blade angle torsion device needs to meet the flexible structure of the front end preparation torsion bearing, and the hard alloy rigid guide wheel at the back end, and has high precision to ensure that the saw blade runs smoothly during the saw cutting process.
The company adopts high quality materials, precision machine tools, and processes according to the process specifications.
1. Transmission components
The worm wheel is made of tin bronze materials and is processed on a precision roller hob using a precision worm hob. After harrowing, the worm is ground in a precision worm grinder with high surface finish and high precision. The box body adopts HT250 cast iron, which guarantees the processing accuracy with the special boring mode, and the worm wheel has a long service life.
2. Double columns
Hard Chrome surface grinding is very wear-resistant, its guide sleeve is made of self-wear wear resistant materials, no crawling phenomenon will occur during the work, the two of the small gap, good rigidity, good vertical sawing section.
3. Hydraulic components
The inner wall of the cylinder and the piston are both hard Chrome Plated and sealed with the world famous brand. Therefore, there is no crawling leakage and high durability.
4. Electrical component
wiring neatly, reasonable structure, strong heat dissipation. Main electrical components use Zhengtai products.

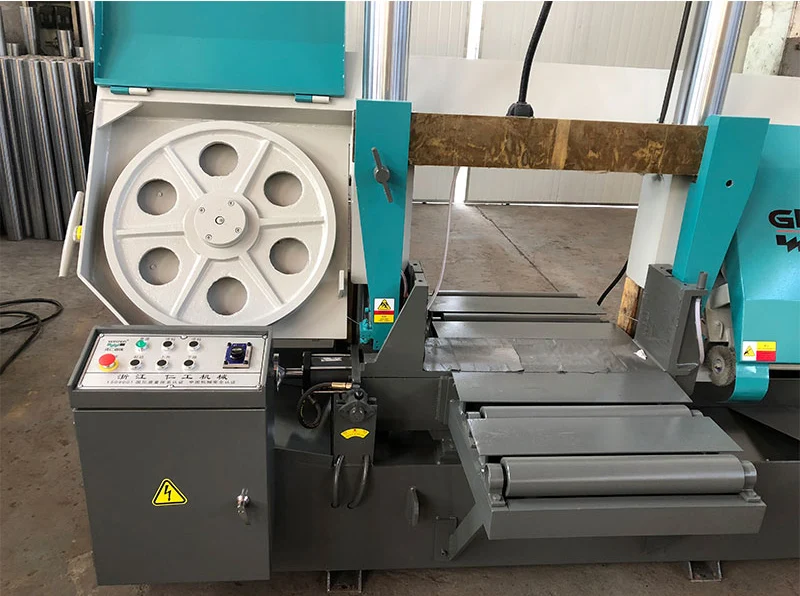

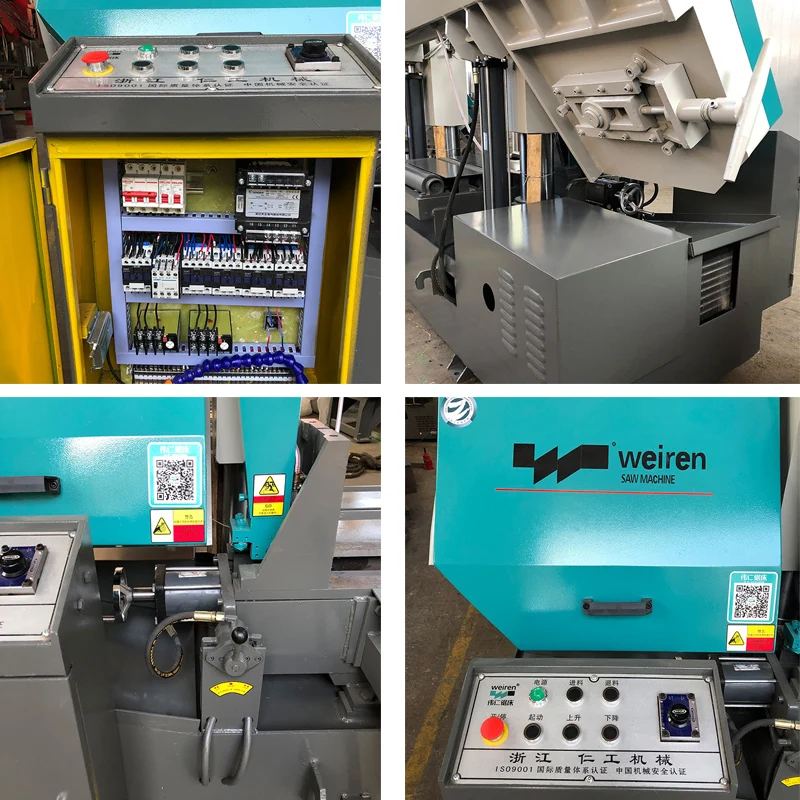

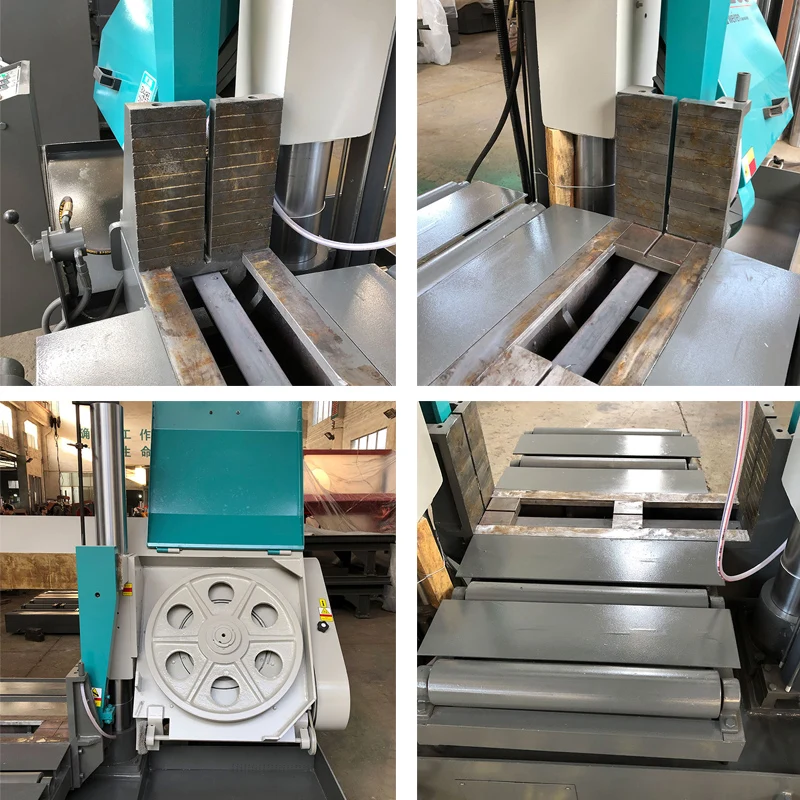

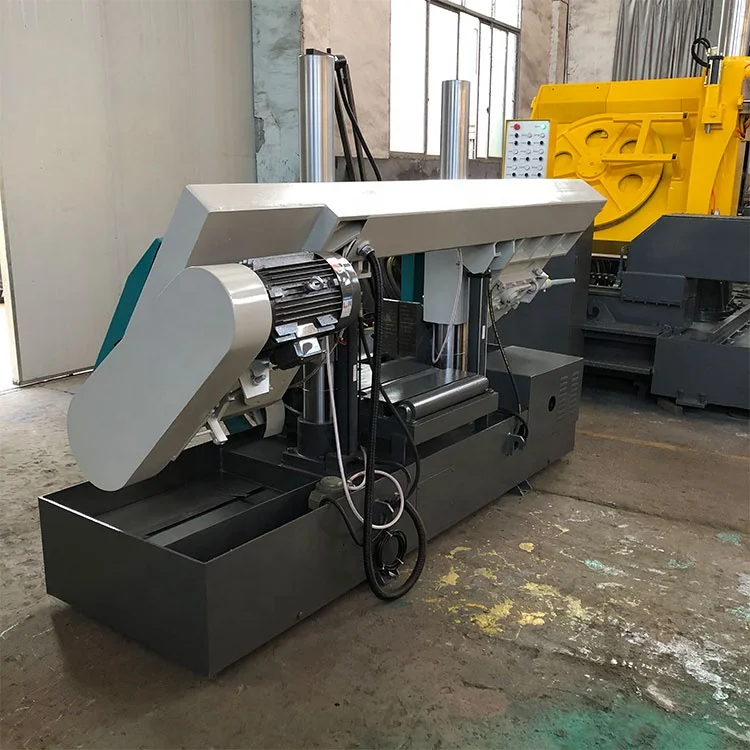

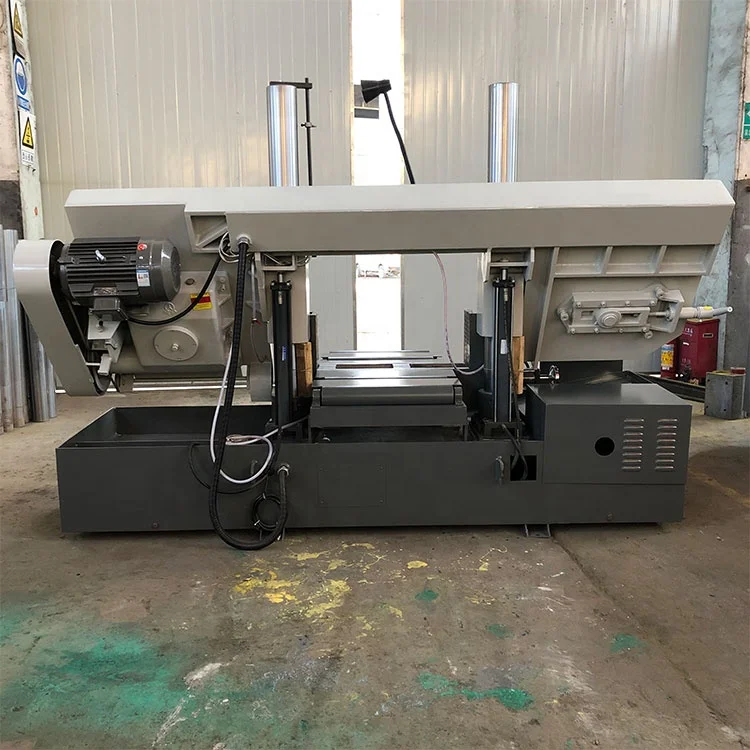

Details display

details diaplay
