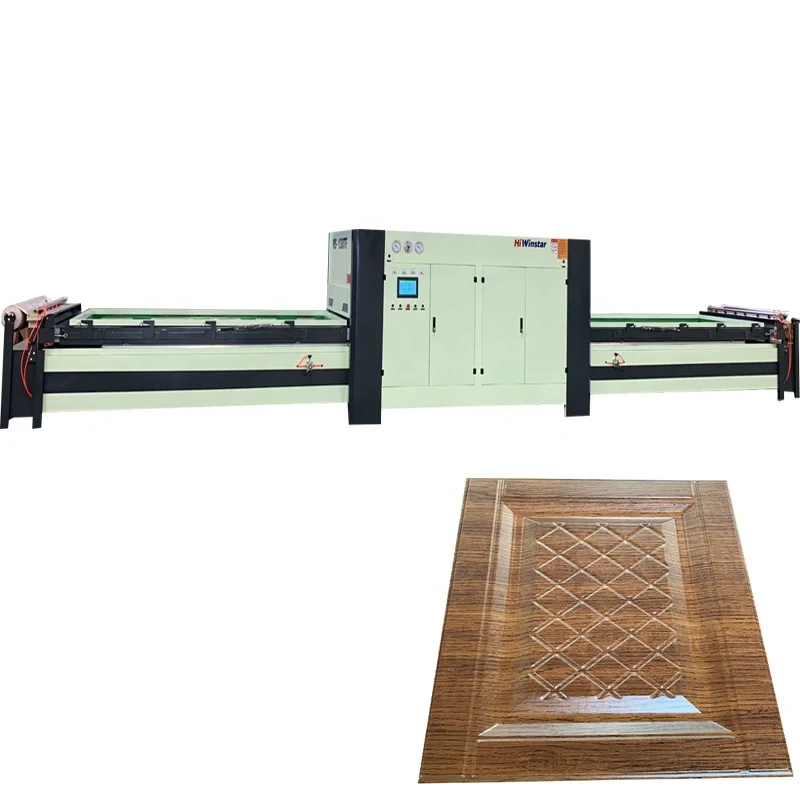

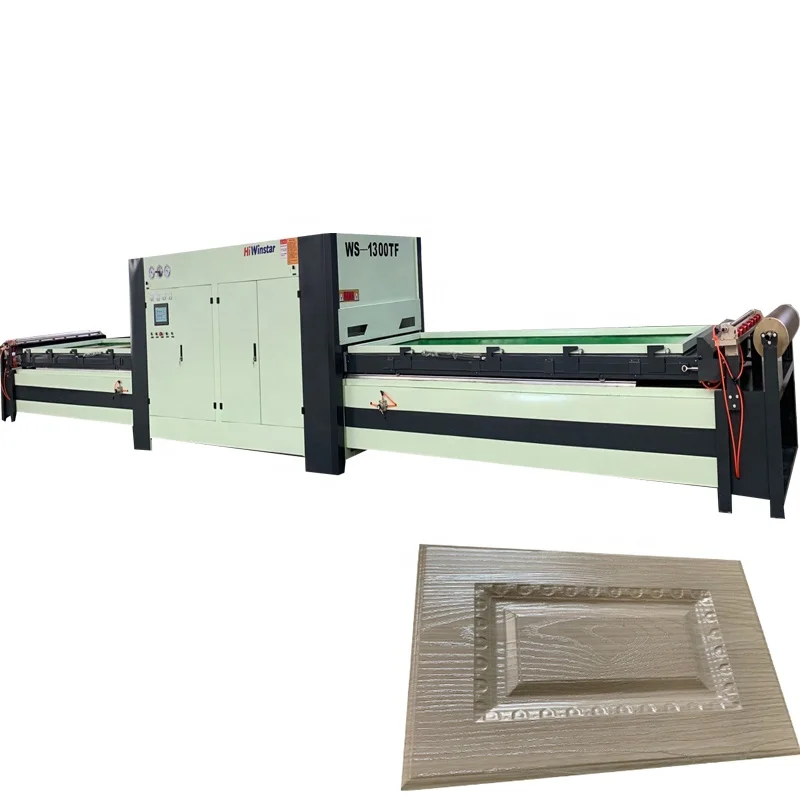

WS1300TF woodworking door pvc foil vacuum membrane press laminating machine
Product Description
Model Number
WS1300TF
Worktable Size
1250x2550mm, W x L
Other dimensions also available
Max. Processing Height
60mm
Working Method
Manual and automatic control
PVC Thickness
0.08-0.60mm
Heating Method
Upper heating
Max. Temperature
300ºC
Vacuum Pump
100m³/hr, 50/60Hz
Max.Vacuum Press
Negative pressure ≥-0.1Mpa
Total Power
22kw
Actual Power Consumption
10kw
Voltage
380v,50Hz
Machine Weight
2800kg
Machine Size
9500x1700x1400mm, L x W x H, Double worktable
6500x1700x1400mm,L x W x H, Single worktable

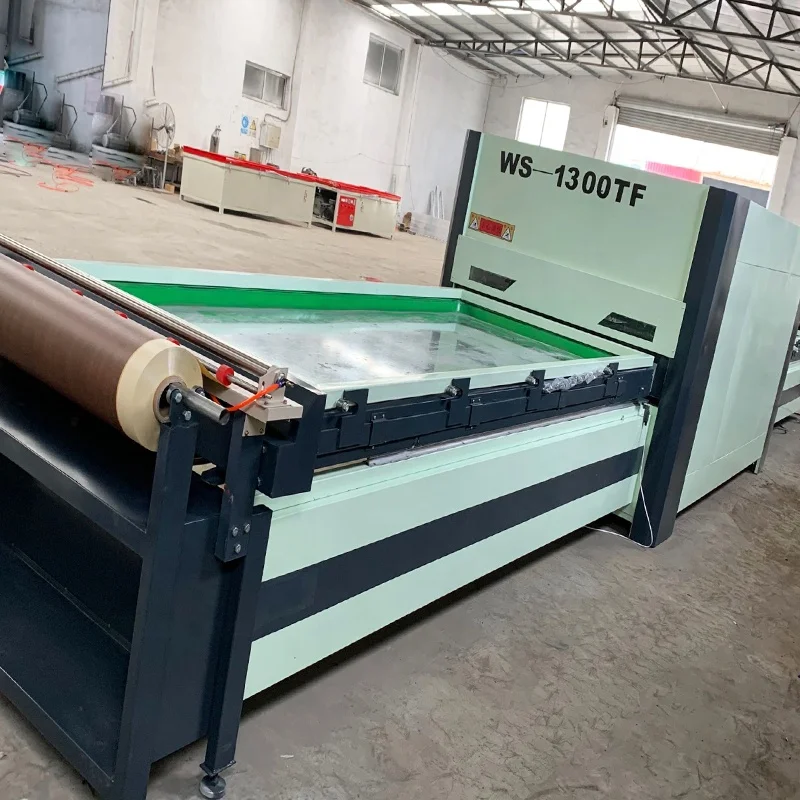

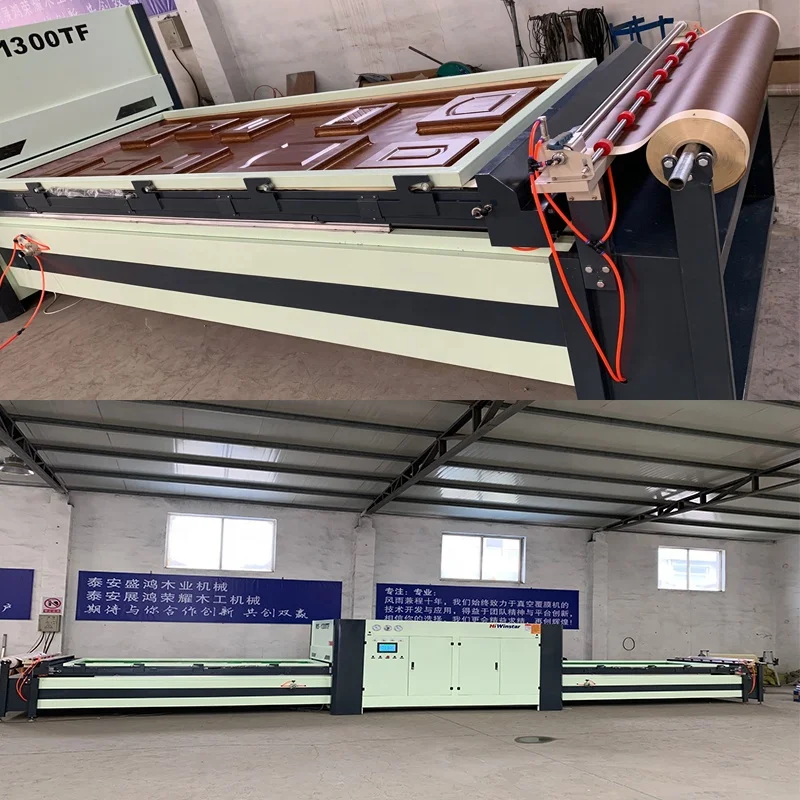

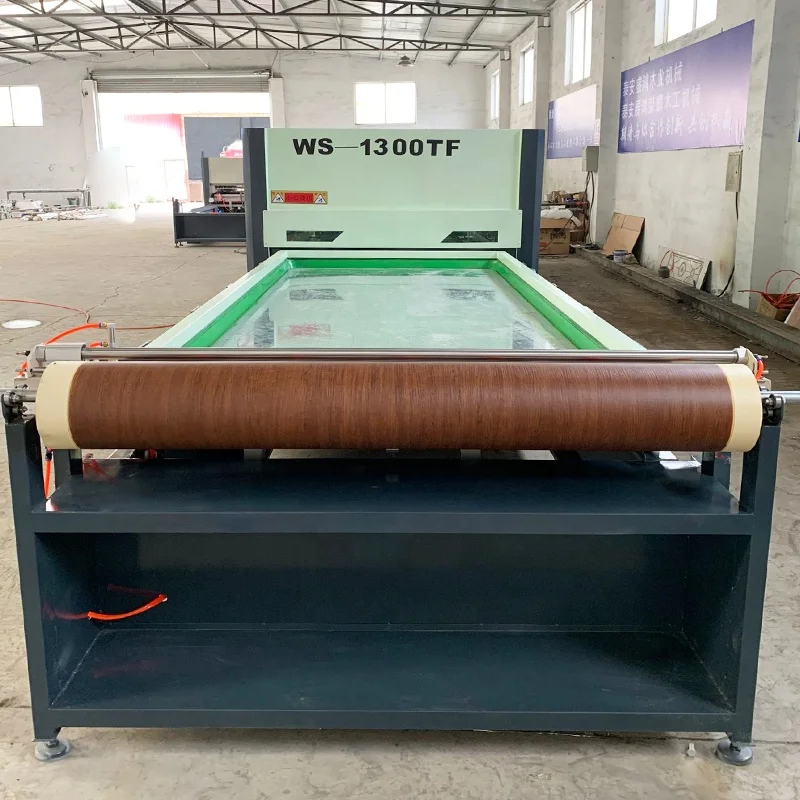

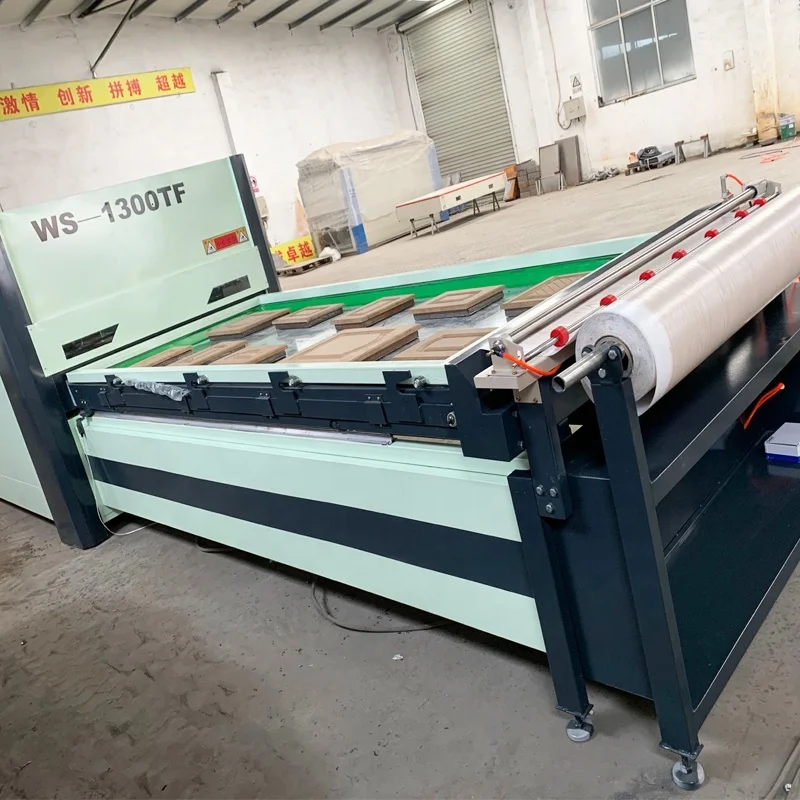

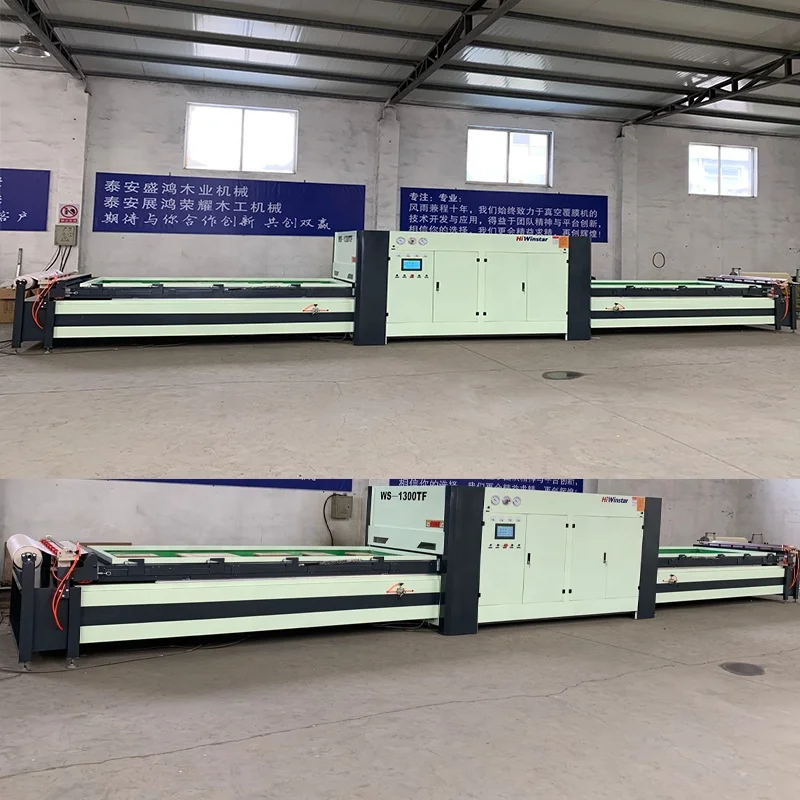

Features 1,High quality vacuum pump, reliable quality and stable performance. 2,Double gas path double-enlarged gas storage tank, uniform suction, PVC film is not easy to damage. 3,This machine is equipped with two frequency converters to better control the automatic entry and exit, speed, start, and brake stability. 4,The local control circuit has advanced PLC control, which can better control the machine's trouble-free rate. Detailed Pictures
Application
Automatic vacuum membrane machine can be used to coat PVC on the surface of process composite doors, furniture, cabinets, speakers, etc., such as the use of special silica gel plates provided by the company, and also for solid wood door panels and furniture. The surface of the products is covered with solid wood, thermal transfer, etc.
Packaging & Shipping

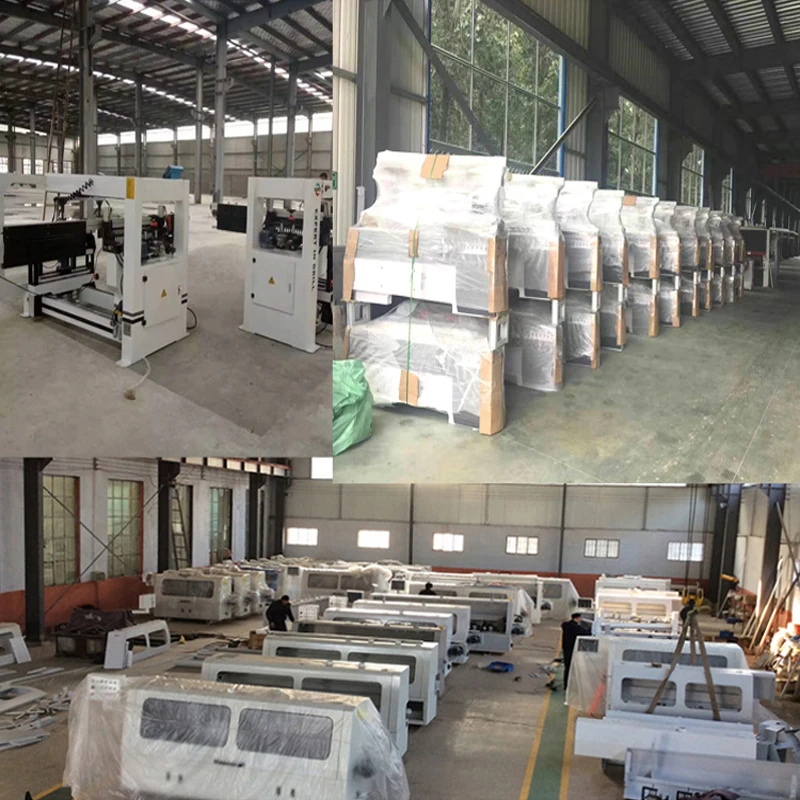

Company Information
FAQ
1,Can you offer good price with fine quality also?
Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don’t want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don’t be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.
4,What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
