Промышленный высокомощный низкотемпературный водяной охладитель мощностью 40 л.с. для лазера

Product Overview

Description

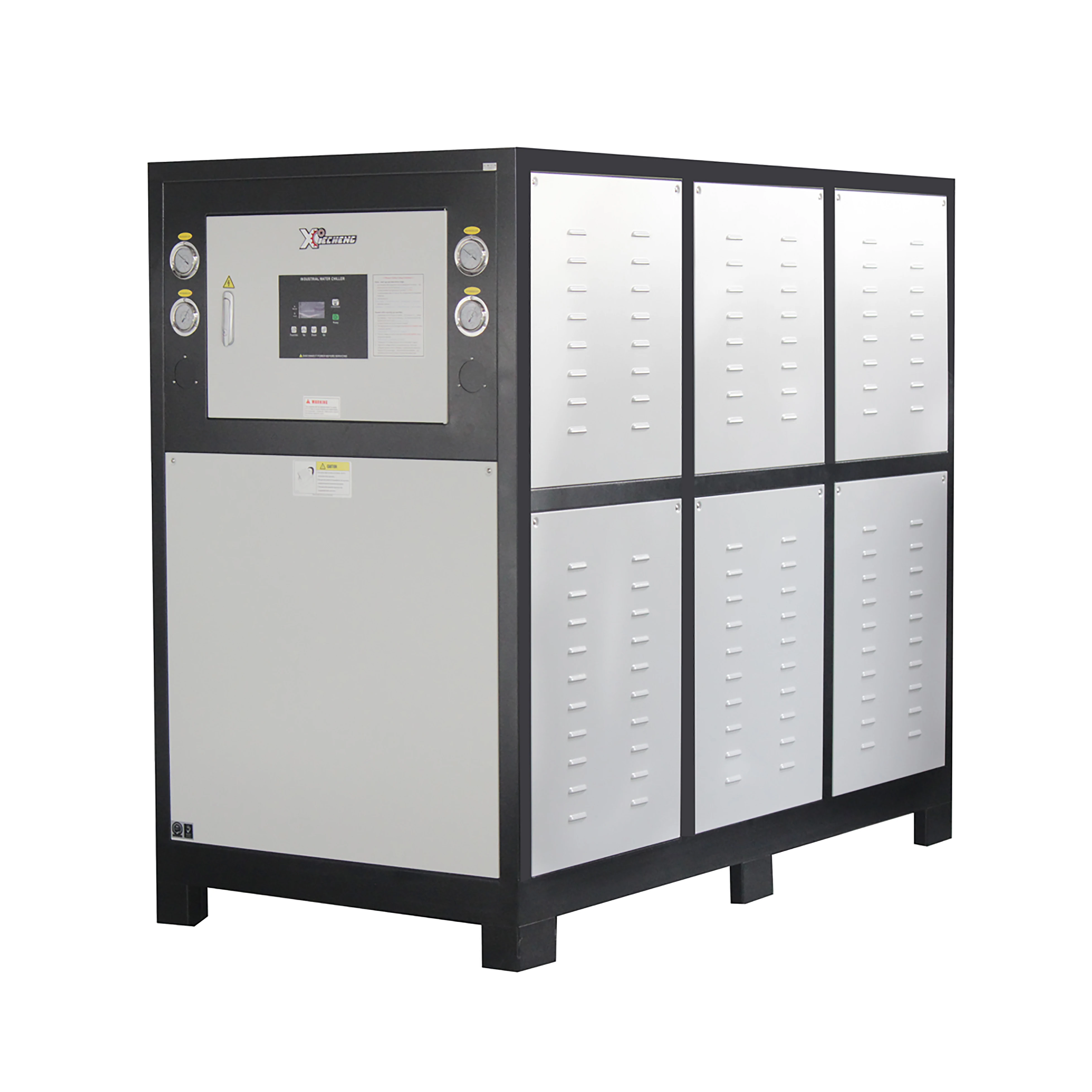

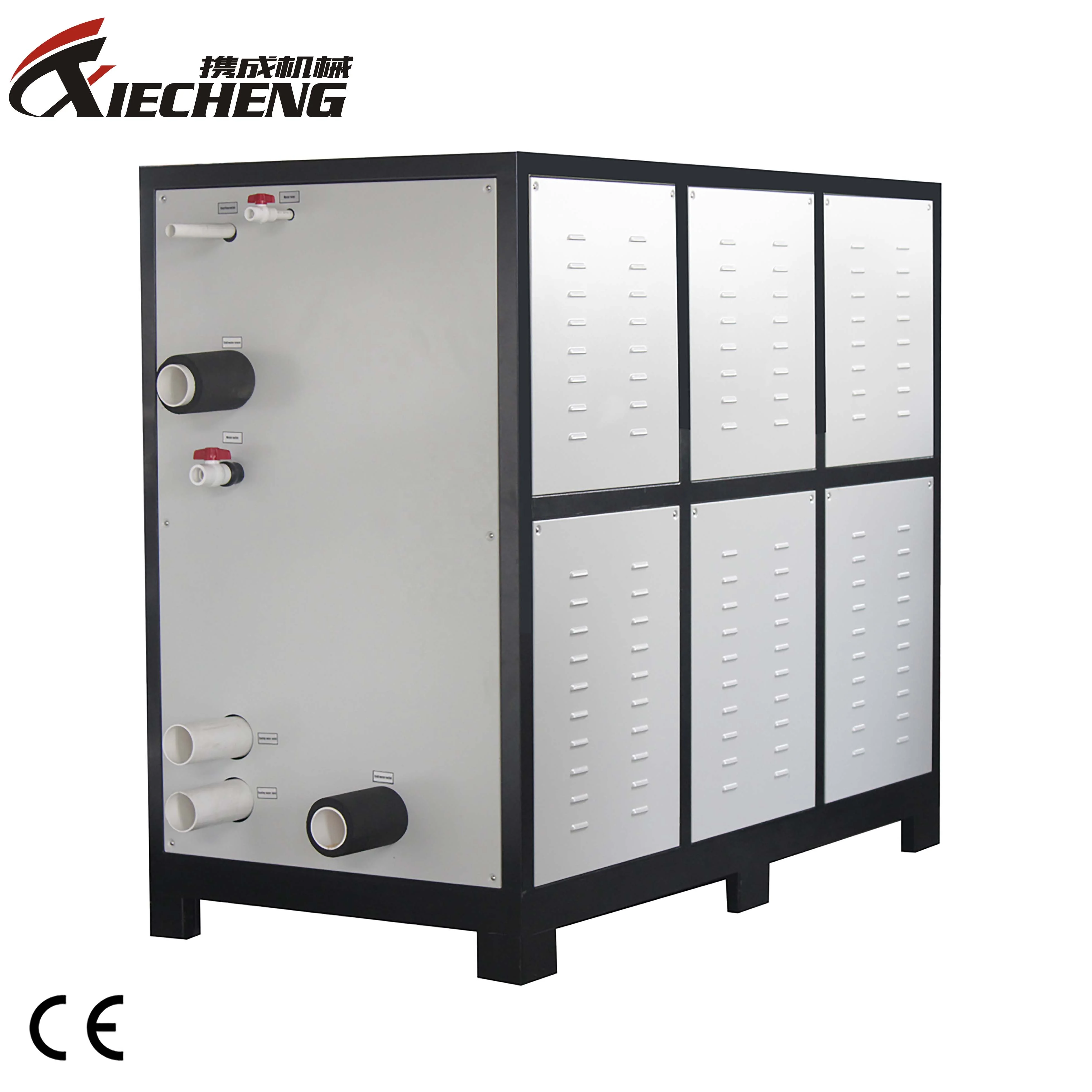

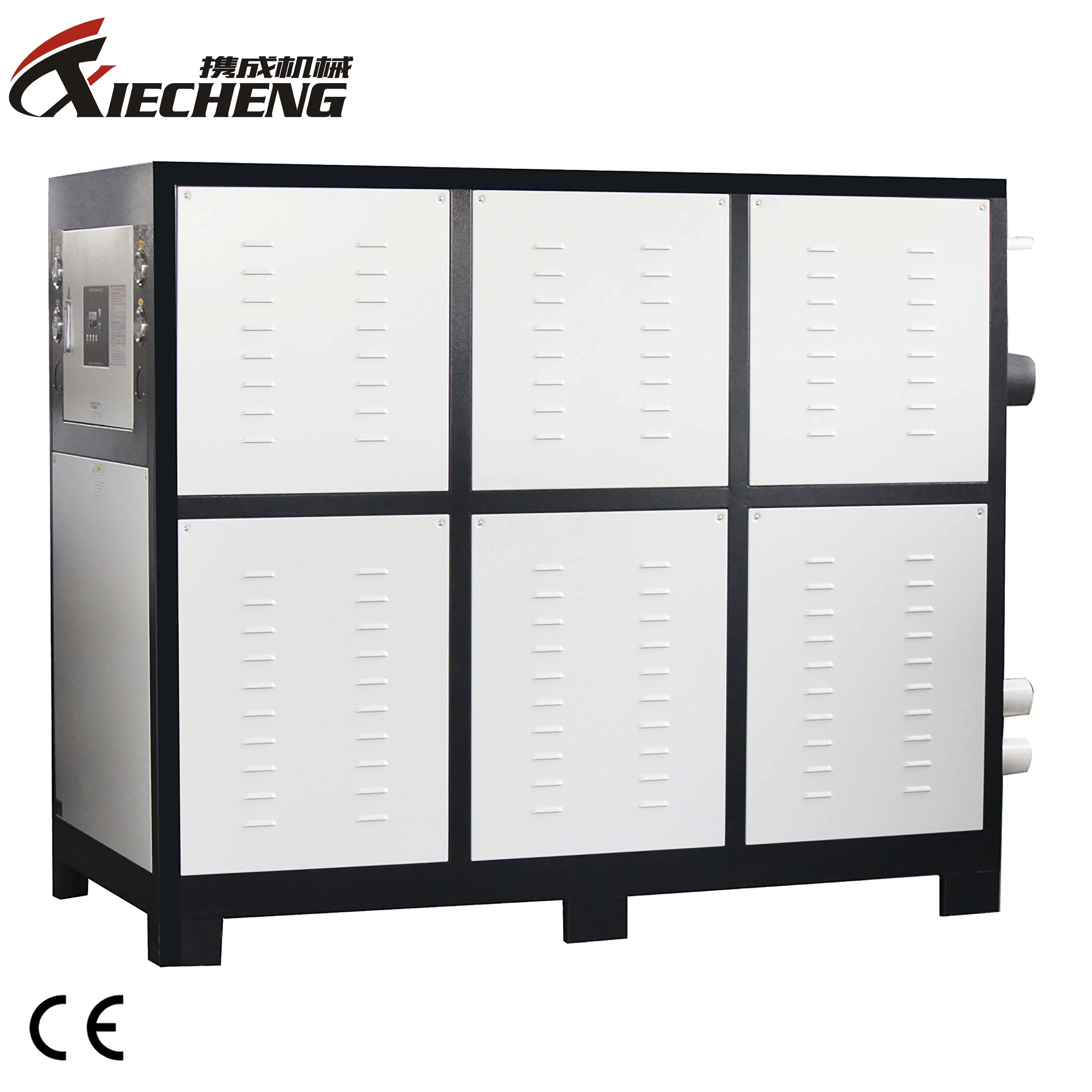

Industrial 40 HP High Power Low Temp Water Chiller for Laser

Model		Unit	XC-L25W	XC-L30W	XC-L40W
Cooling Capacity		KW	81.4	108.5	144
		Kcal/h	70021	93361	123805
Compressor	Input Power	KW	9*2	7.5*3	7.5*4
	Rated power	HP	12.5*2	10*3	10*4
Power			3PH-380V/50HZ
Evaporator	Type		Shell and Tube
	Pipe Diameter	inch	3'	3'	4'
Refrigerant	Type		R22
	Quantity	KG	11	12	18
Condenser (water chiller)	Type		Shell and Tube Condenser
	Pipe Diameter	inch	3'	3'	4'
Cooling Water Flow		m³/h	10.06	13.6	17.75
Water Tank Capacity		Liter	130	150	180
Pump	Power	KW	4	4	5.5
		HP	5	5	7.5
	Distance	m	16	16	16
	Flow Rate	L/min	700	700	700
Dimensions(L*W*H)		mm	1880*880*1650	2050*1000*1730	2150*1080*1950

for more information,pleases click to contact



CONTACT US







Water Cooled Chiller



The water chiller is to provide a cooling process in plastic molding,

to improve quality of molded products

and shorten period of injection molding cycles.

Hence maximizes productivity of plastic molding manufacturing

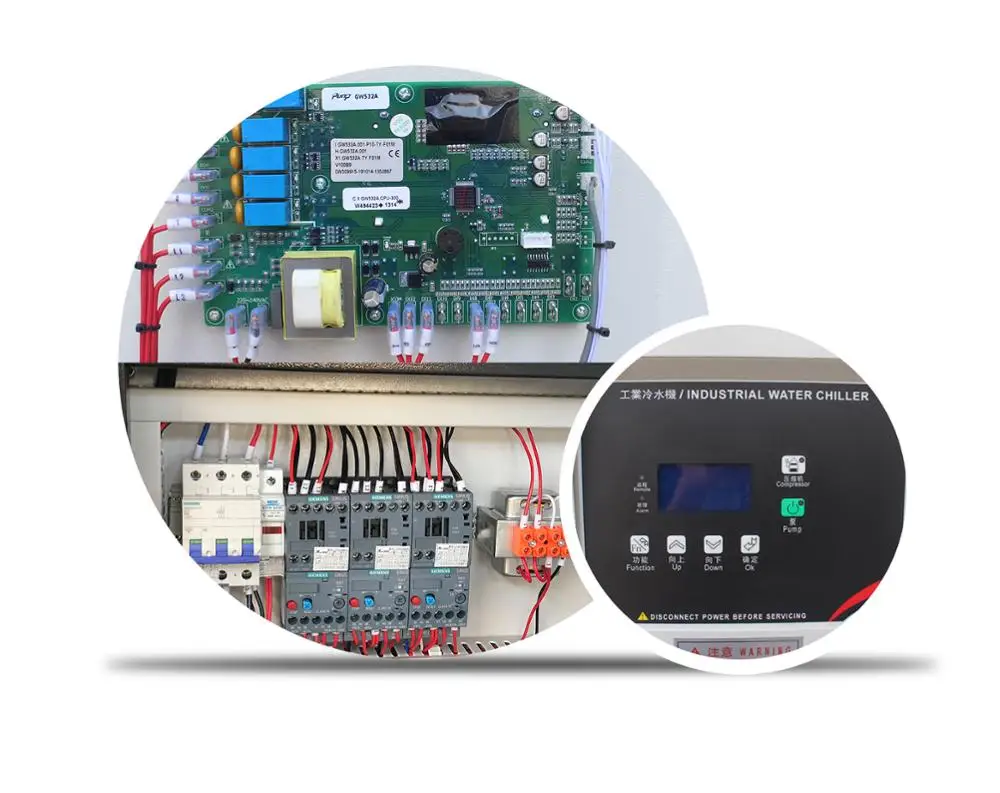

	P.I.D Microcomputer Full Function Control 1. The whole machine adopts Siemens electronic components 2. Easy to operate, accurate control of water temperature within 3℃ to 50℃ 3. The screen displays the setting temperature of cold water outlet, cold water inlet and equipment at the same time

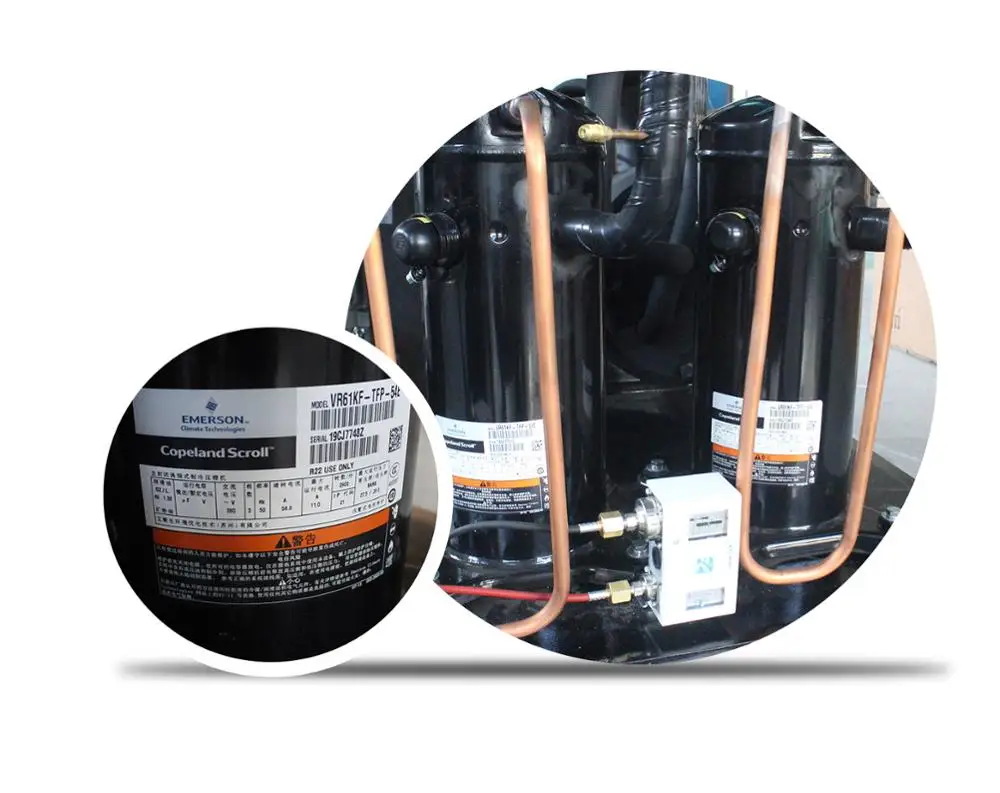

Valley Wheel Vortex Compressor World famous brand fully enclosed scroll refrigeration compressor and evaporator combination, super cooling, quiet and energy-saving

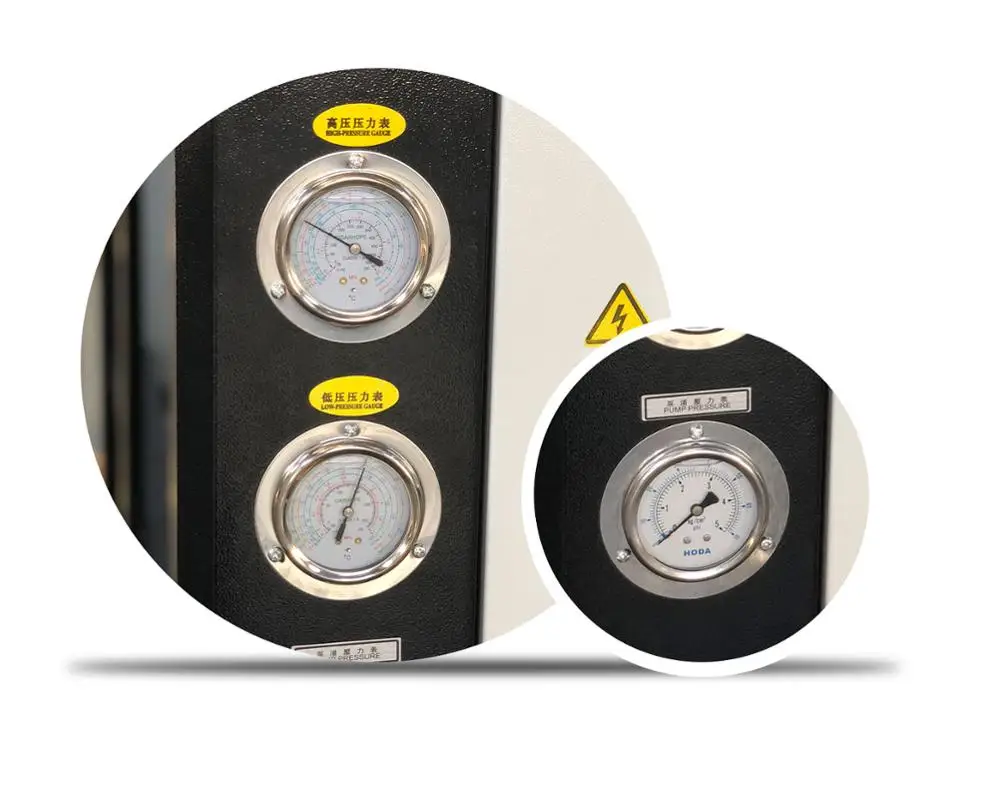

	Cold and Hot Water Pressure Pump Table 1.Assemble pressure gauge, check the pressure of water pump when working 2.With current overload protection, high and low voltage suppression and electronic time delay and other perfect safety protection device, abnormal indication system

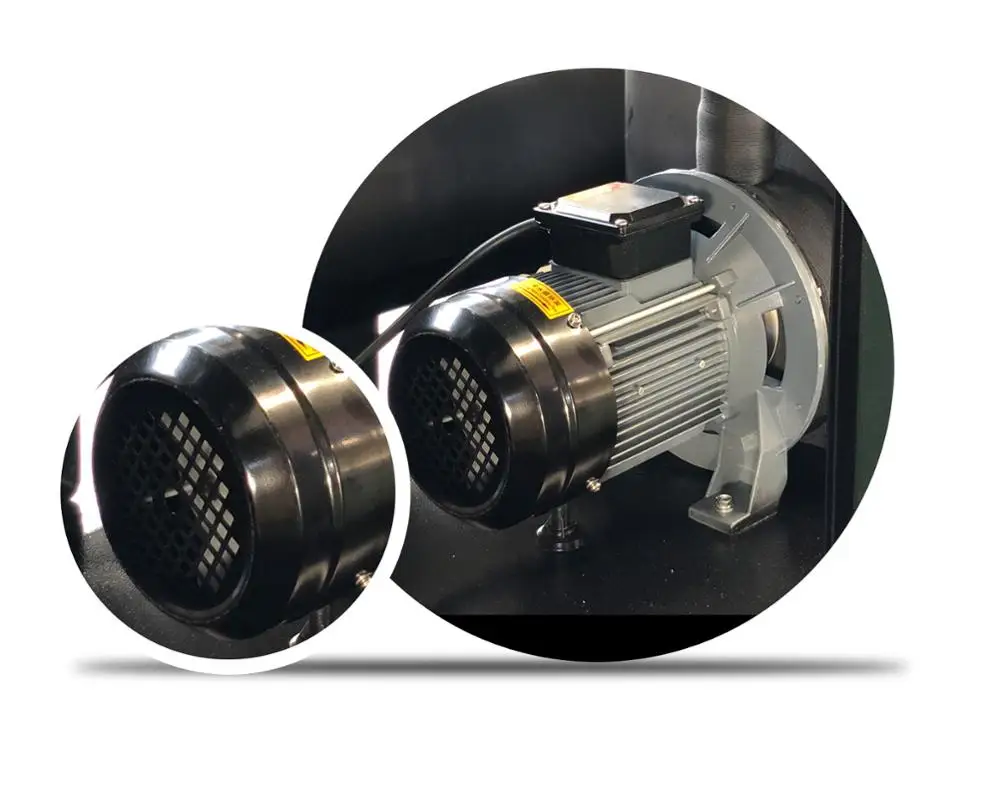

Efficient Water Pump Auenac stainless steel pump head, low noise, no leakage, no maintenance

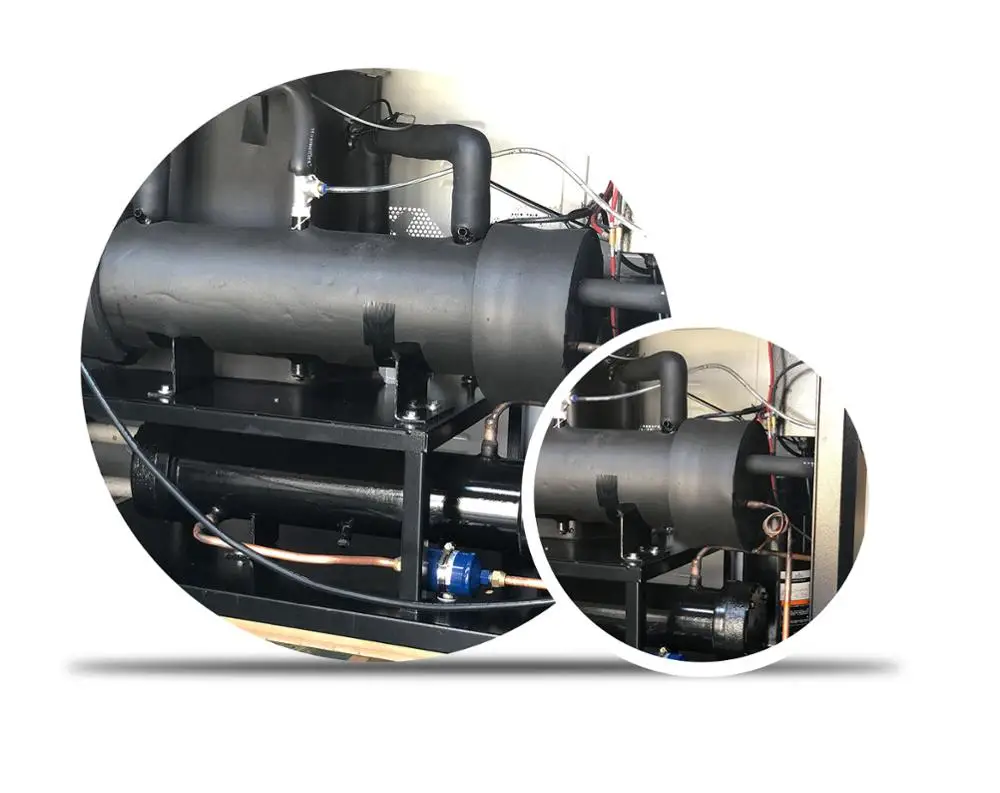

	Efficient Cooling System Standard shell and tube condenser, excellent heat conduction performance, increases heat dissipation area







Industrial Chiller

^{Industrial chiller, other names: water chiller, water cooling machine.}

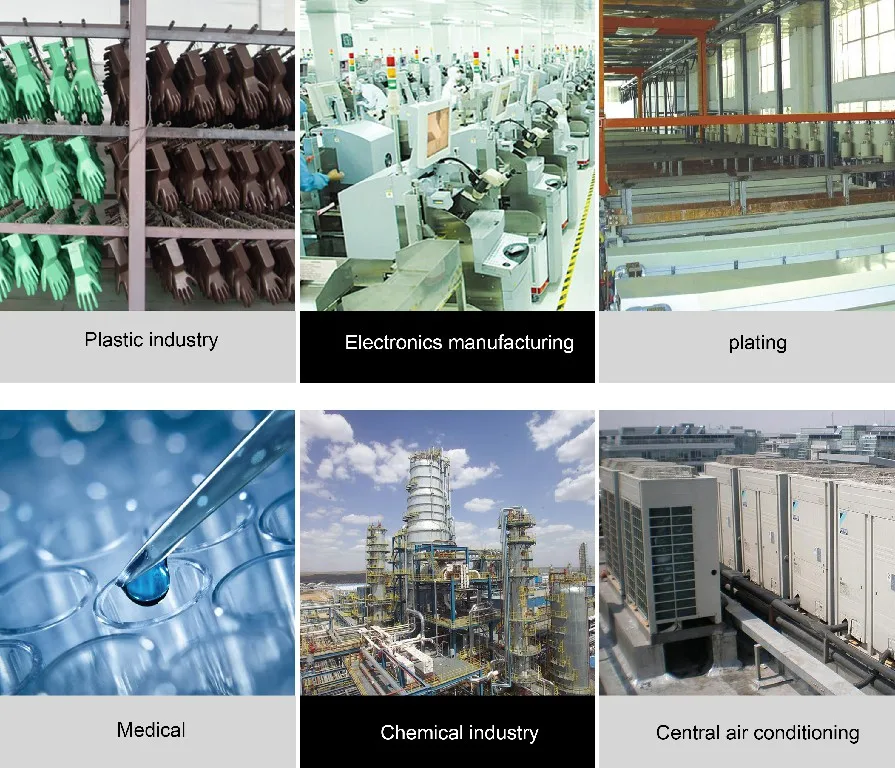

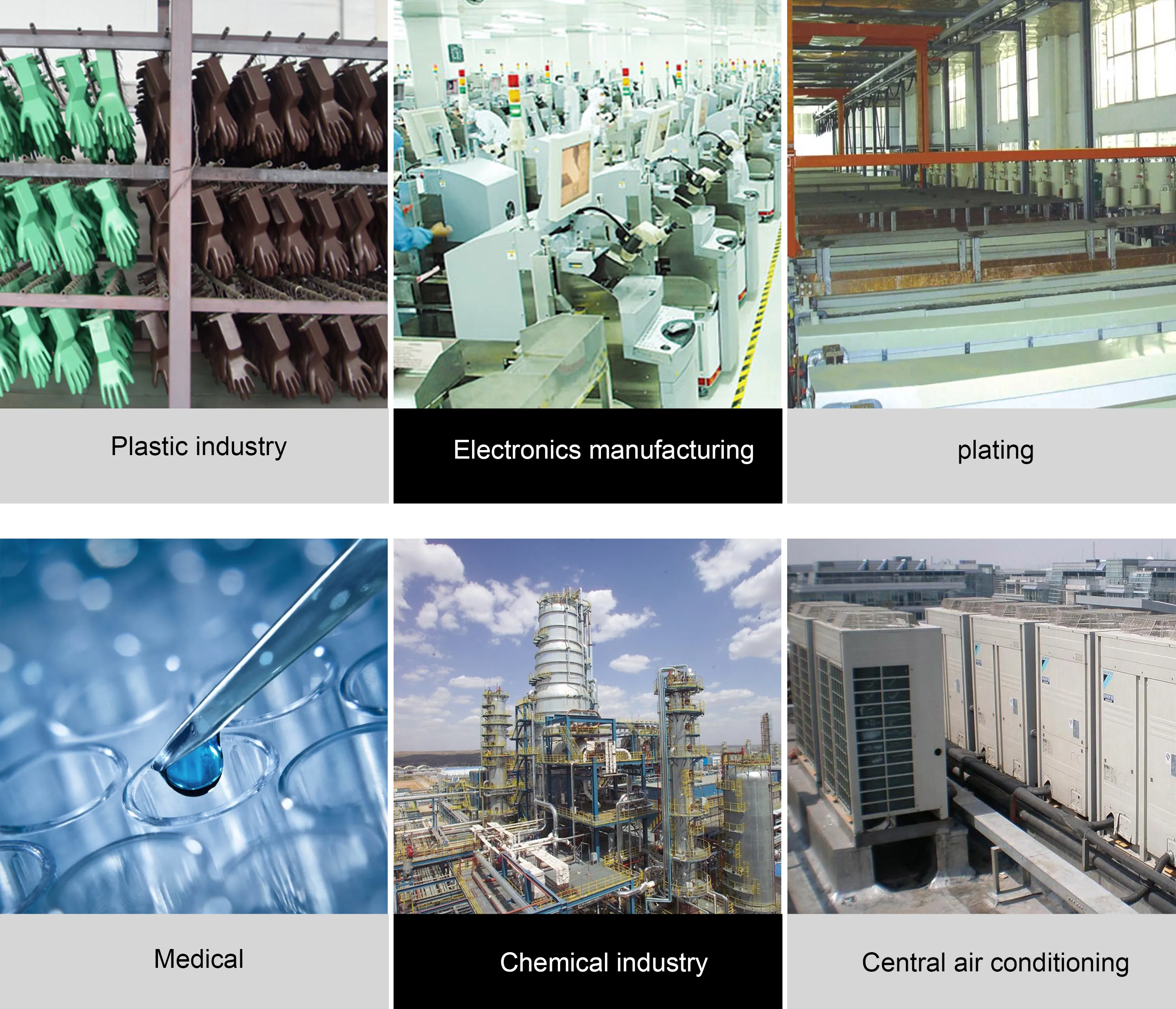

^{Widely used for Plastic molding, electronics industry, electroplating industry,}

^{Machinery industry, construction industry, vacuum coating and food industry etc.}

^{Divided into water cooled chiller/air cooled chiller}





for more information,pleases click to contact



CONTACT US

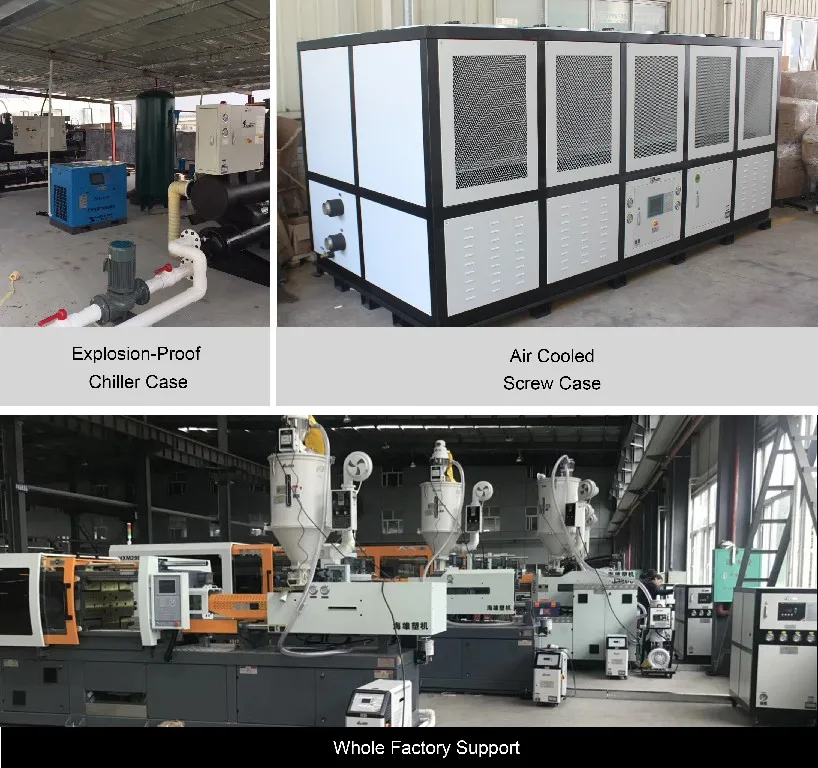

Customer Case

^{User-centered service and detailed control}

^{can provide customers}

^{with cost-effective and reasonable solutions}







About Us

^{Tailored to your specific needs}

^{User-centric service and detailed control}

^{Provide cost-effective and reasonable solutions}

^{Good maintenance service}





Certification

^{Quality Management System certified}

^{By SGS/Quality Management}

^{System certified by BV}







Exhibition

^{Established an international sales team}

^{for overseas market explorations}





FAQ

Frequently asked questions when buying products



Q: How many years have your factory been established?

A:Our factory established from 2009,

but most of our engineers are working in this industry over 15 year.



Q: How long is your delivery time ?

A:we have a few stock .but if produce,

1 set for normal machine need about 3-7 working days ,

if 1 or more containers, need about 15-20 working days.



Q:how long is the warranty?

A:Within 1 year from date of the factory, if parts failure or damage

(because of the quality problem ,except wearing parts),

our company provide these parts for free.



Q:What is your payment term ?

A:TT 100% before shipment ,LC at sign,

Western Union or Trade Assurance order recommended.
