50HZ/60HZ high pressure PU polyurethane spray foam machine

Share on (60828439693):


Price:$3,100.00 - $3,200.00

Quantity:


Product Overview

Description


Product Description

50HZ/60HZ high pressure PU polyurethane spray foam machine

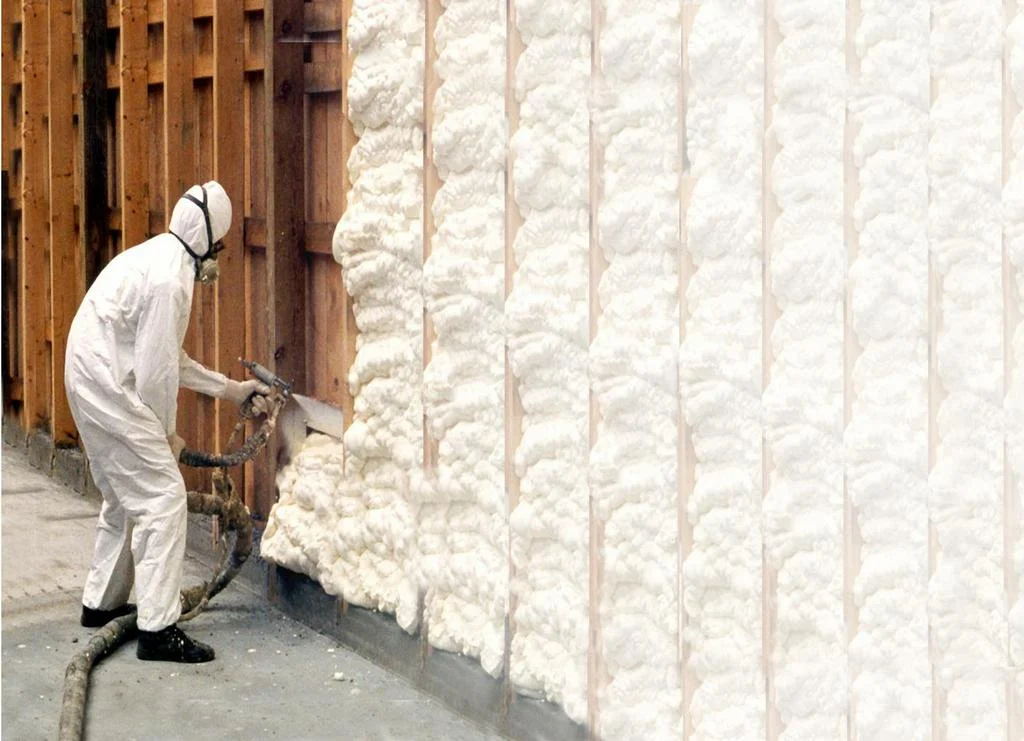

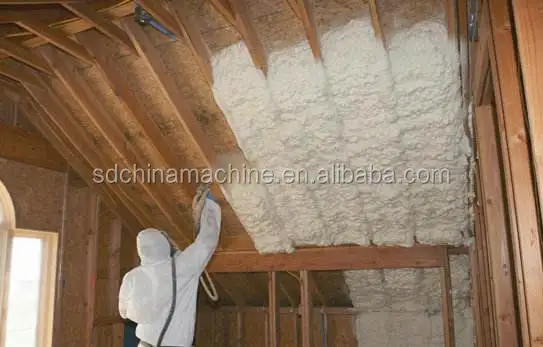

Product Application

Polyurethane spraying machine is specially equipped with adjustment buttons according to different application habits of users. It can be adjusted according to the habits. The model specifications are different. Users can use it safely when using it to ensure that the polyurethane spraying machine equipment will not be used during use. Because of the application effect of polyurethane spraying, our manufacturer's polyurethane spraying machine equipment is equipped with special instructions at the moment, which can be put into use with confidence, and can meet the application needs of many users at present, easy to apply, fast, practical effect

SPECIFICATIONS FOR CNMC-E
Power source
single WIRES 220V 50Hz
Heating power
7.5KW
Driven mode
pneumatic
Air source
0.5~0.8 MPa ≥1.2m³/min
Raw output
2~12 kg/min
Maximum output pressure
36MPA
AB material output ratio
1:1
Spray gun
1 Set
Feeding pump
2 sets
Heating hose
15meters
Gun connection pipe
2pieces
Feed delivery pipe
5meters
pneumatic pipe
5 meters
Packing size
860mm X 860mm X 1560mm

Main Features

1. Secondary pressurized device to ensure fixed material proportion of equipment, improve product yield;

2. With small volume, light weight, low failure rate, easy operation and other great features;

3. Feed rate can be adjusted,have time-set,quantity-set features, suitable for batch casting, improve production efficiency;

4. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

5. Minimizing spraying congestion with multi-feedstock device;

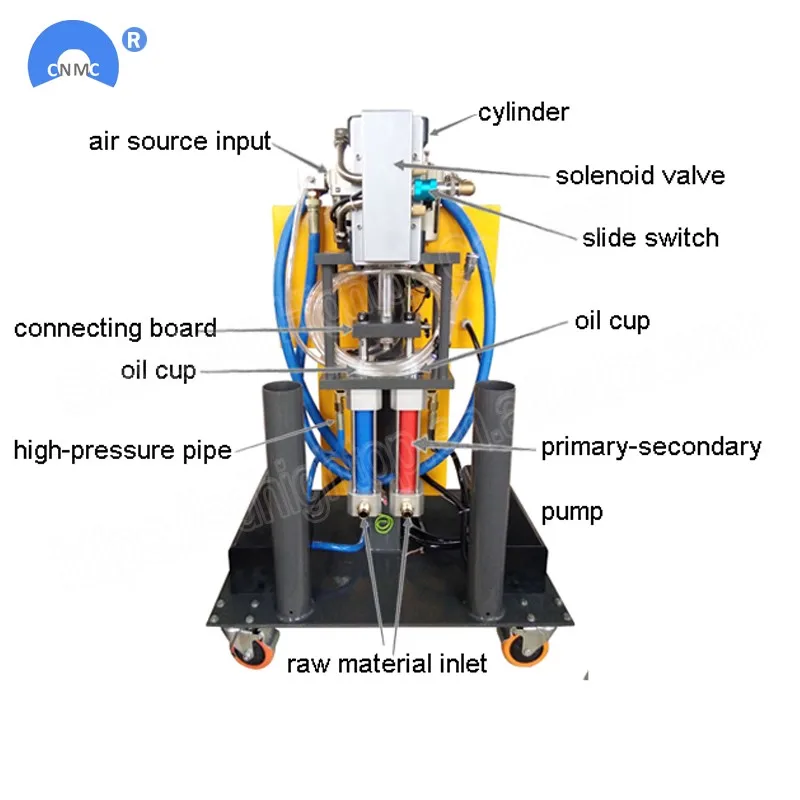

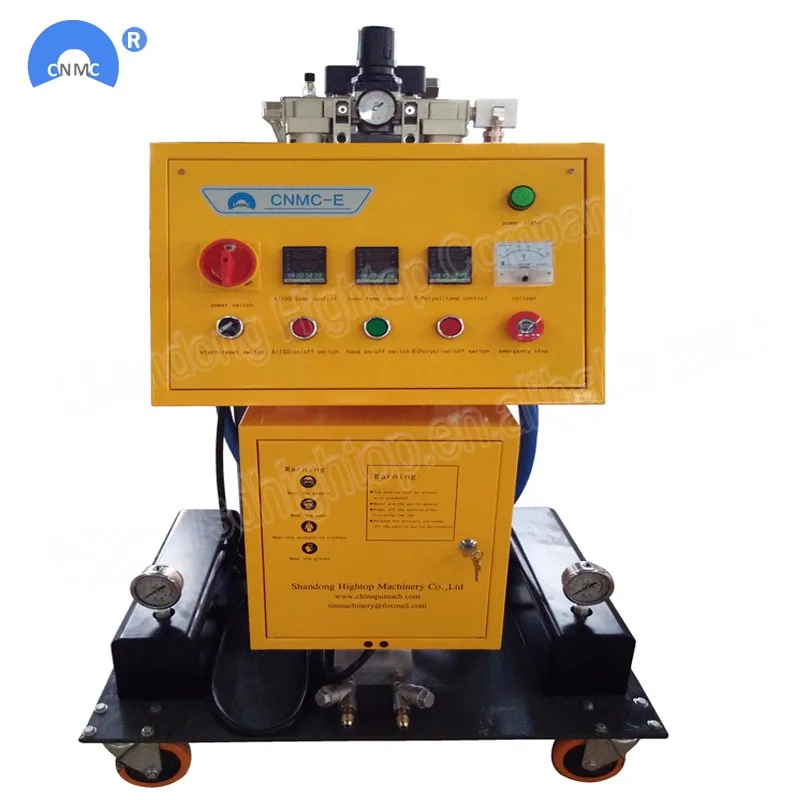

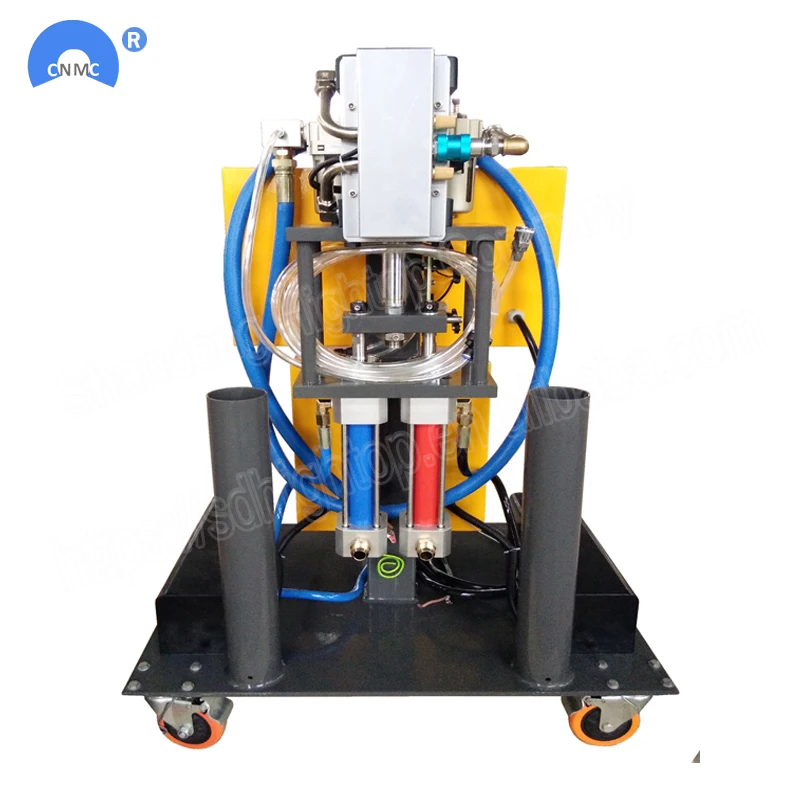

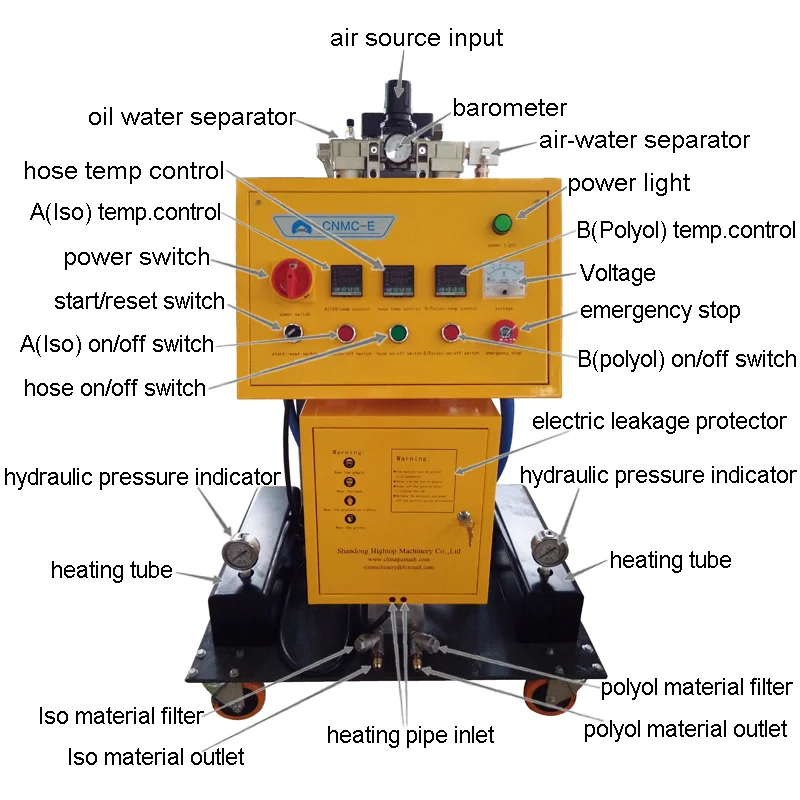

Detailed Images
Working Environment
Spare parts
Packing & Delivery
Certifications
