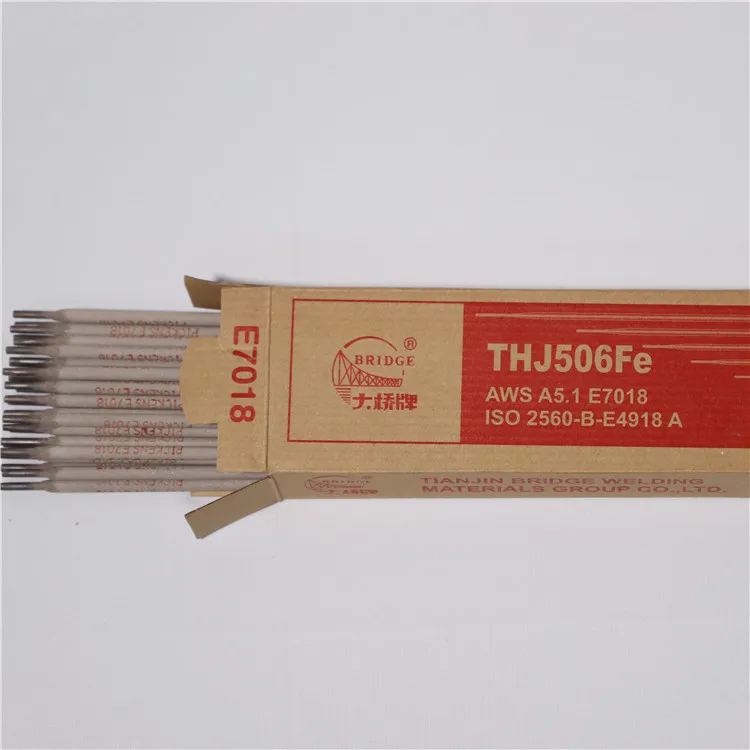

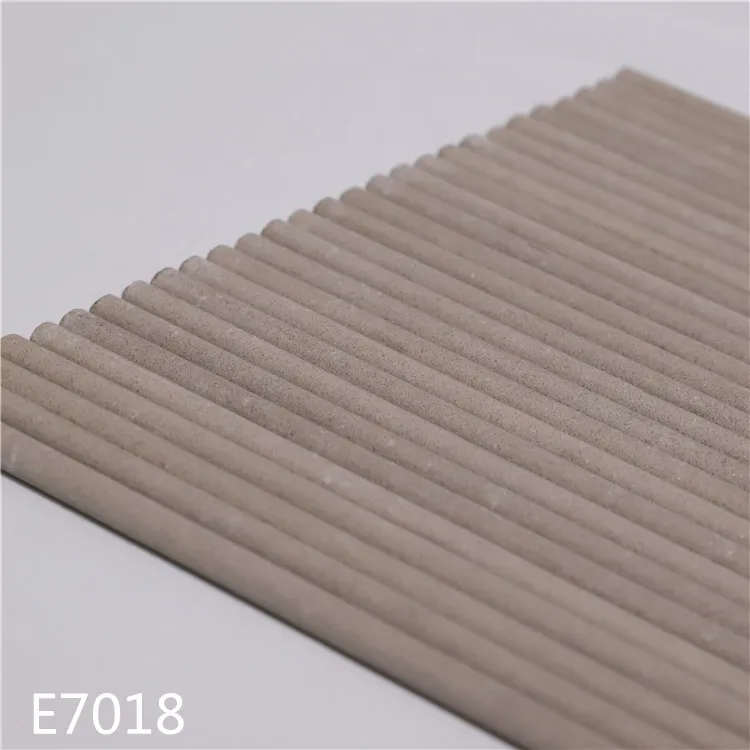

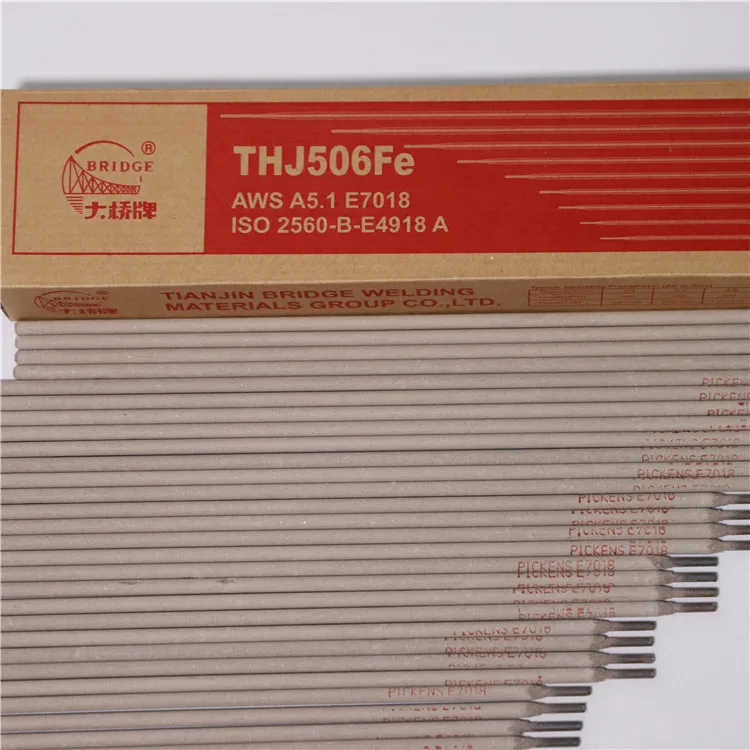

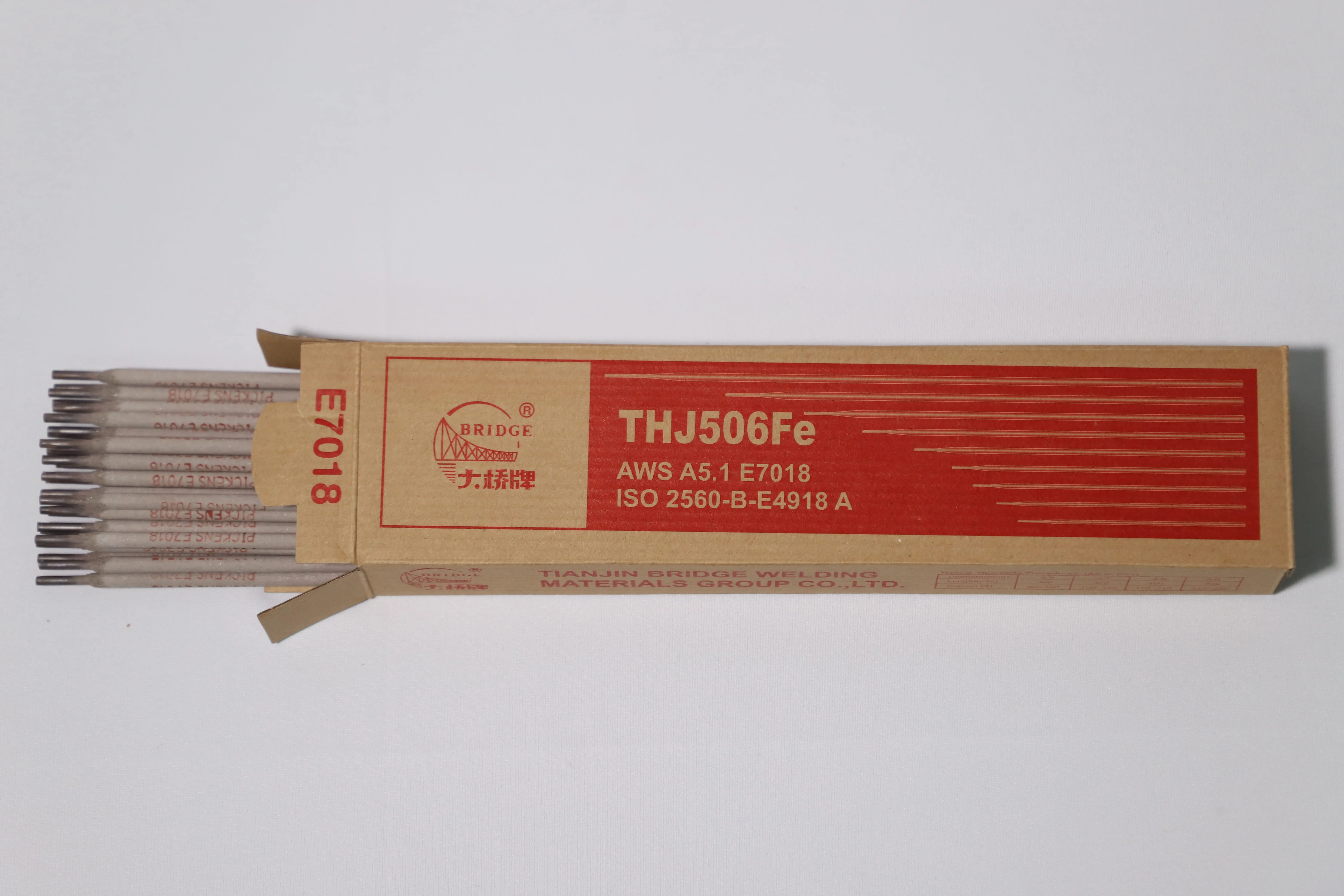

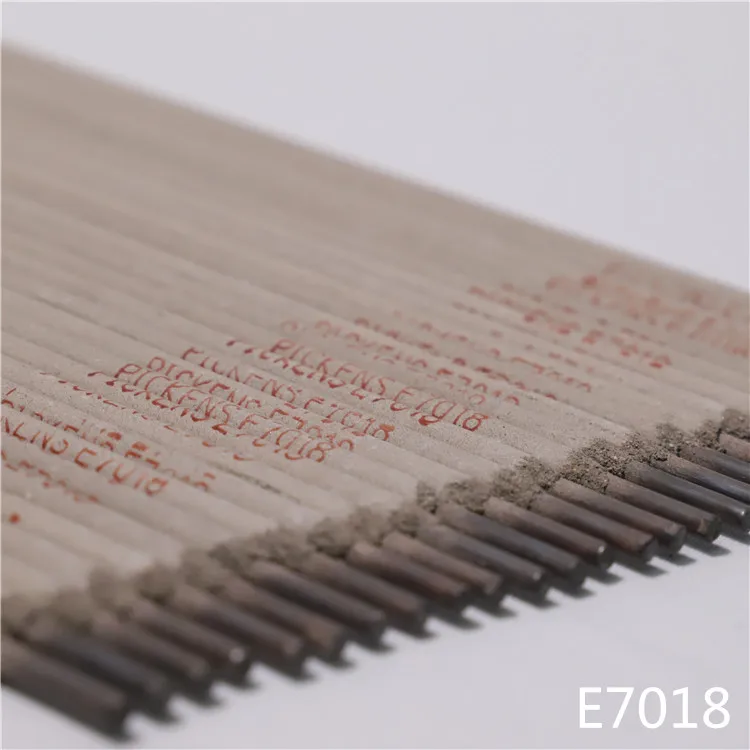

WELDING ROD Thj506fe AWS A5.1 E7018 ELECTRODE

Product Overview

Description

THJ506Fe (E7018)                                           AWS A5.1 E7018

Basic Iron Powder Type Electrode                               ISO 2560-B-E4918 A

GB/T 5117 E5018



Applications:

It is suitable for the welding of carbon steel and low alloy steel structure, such as Gr.50, and so on.



Characteristics:

THJ506Fe is basic potassium-iron powder type electrode with low hydrogen. Both AC & DC can be used and can be weld for all-position. It have excellent welding performance as good arc stiffness, little spatter, easy slag removal etc., and higher deposition efficiency.



Welding Positions:

PA, PB, PC, PD, PE, PF



Attention:

1. The electrode must be re-dry by 350℃-380℃ for 1 hour before welding.

2. The rust, oil, water and other impurities of the weld area must be removed before welding.



Chemical Composition of All Weld Metal:                     (Wt. %)

Items	C	Mn	Si	S	P	Ni	Cr	Mo	V
Require-ments	≤0.10	0.85-1.40	≤0.65	≤0.030	≤0.035	≤0.30	≤0.20	≤0.30	≤0.08
Typical Results	0.06	1.00	0.30	0.015	0.020	0.030	0.035	0.005	0.004



Mechanical Properties of All Weld Metal:

Items	Rm/MPa	Rel/Rp0.2 /MPa	A/%	KV2 (-30℃) /J
Requirements	490-660	≥400	≥22	≥80
Typical Results	590	480	28	160



X-ray Radiographic Inspection:

LevelⅠ



Typical Operating Procedures:(AC or DC⁺)

Diameter (mm)	2.5	3.2	4.0	5.0
Length (mm)	300	350	350	400
Current (A)	60-100	100-150	170-210	210-250



Classification of Society Certification:

Ship Inspection Agency	ABS	BV	CCS	DNV.GL
Recognition Level	3YH10	3YHH	3YH10	3YH10
Ship Inspection Agency	LR	NK	CWB	---
Recognition Level	3YmH15	KMW53H10	E4918	---
