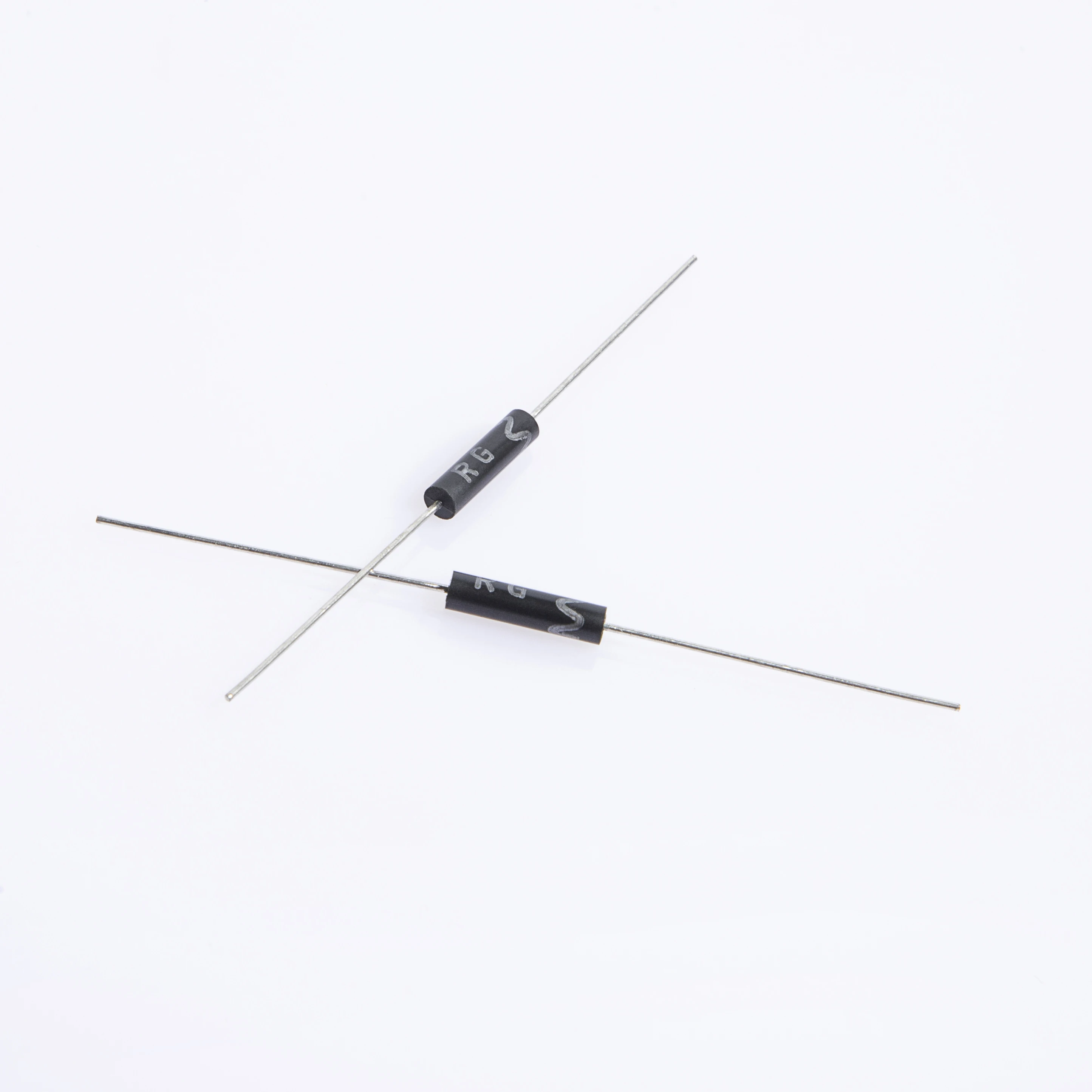

Leadsun HVRT250 best quality fast recovery high voltage diodes 25KV/30mA

Product Overview

Description



Leadsun HVRT250 best quality fast recovery high voltage diodes  25KV/30mA

Peak reverse repetitive voltage:  25KV

Average current:                         30mA

Max foward voltage:                  55V

Max forward surge current:        1.0A

Leakage current:                         2.0uA

Dimension:                                 3*12mm

Trr:                                              80nS

Type:Silicon Protective Diode



Structure:Epoxy Resin Molded



Appearance:The body shall be clean and shall not bear any stain ,rust or flaw,

                      The color of the case will be black



Absolute Maximum Ratings

No.	Item	symbol	Rating	Unit	Conditions
1	Repetitive Peak Reveres	VRRM	25	KV
3	Storage Temperature	Tstg	-40~+150	℃
4	Average Forward Current	IO	30	mA
5	Forward Surge Current	IFSM	1.0	A



Electrical Characteristics (Tamb=25℃,unless otherwise specified )

No.	Item	symbol	Rating	Unit	Conditions
1	Normal Temperature Reverse Current	IR1	2.0max	μA	VR=VRRM
2	High Temperature Reverse Current	IR2	50max	μA	VR=VRRM Tamb=100℃
3	Reverse Breakdown Voltage	VF	55.0	V	IF=30mA

Reliability Test
1.Test Conditions

No.	Item	Rating	Conditions
1	High Temperature Reverse Voltage  Test	1000 hours	Half  sinewave voltage with f=50HZ applied   Tamb=100℃
2	High Temperature  Storage Test	1000 hours	Tamb=130±2℃( in air )
3	Temperature change go on  Damp heat Cyclic Test	five cycle two cycle	[-40℃(30min)→R.T.(3min)→+130℃(30min)→R.T(3min)]×5 [25℃-55℃98%R.H.(3h)→55℃98%-93%R.H.(10min)→55℃93%R.H.(8h40min)→55℃93%-98% R.H.(10min)→55℃-25℃98%R.H.(3h)→25℃98%R.H.(9h)]×2
4	Resistance tp Soldering Heat Test	1 time	Solder trough Temperature : 350±10℃ Dip Time : 3.5s±0.5s
5	High-pressure smoke Test	10 hours	120℃, 2×105pa
6	Insulation Resistance Test	1000MΩ	Between the center of the body and terminal ,  See Fig 1
7	Insulation Strength Test	10KV	1 minute between the center of the body and terminal. See Fig 1
8	Lead Bend Test	1 time	Force 10 N to the lead ,bent it to positive and  negative 90 degree
9	Lead Pull Test	1 time	Force 70 N of axial to the lead for one minute
10	Drop Test	10 times	Naturally drop from 1 m height on maple plate

Item NO 1-5

The product shall meet the electrical specifications in paragraph 5 after being exposed to normal temperature for two hours after completion of the test

Item NO 6-7

the product shall meet the paragraph 4 absolute maximum ratings

Item NO8-10

There shall be no trouble in testing and the electrical characteristics in paragraph 5 shall be meet



Insulation resistance test condition : Measure between A and B by using a DC 500V insulation resistance tester



Insulation strength test condition : Apply half sine wave voltage with 10KV wave height between A and B in



Insulation liquid
