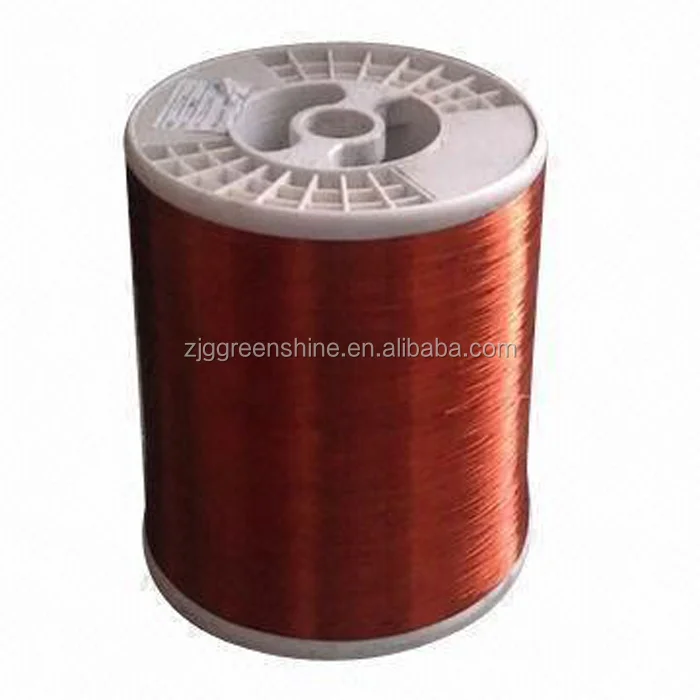

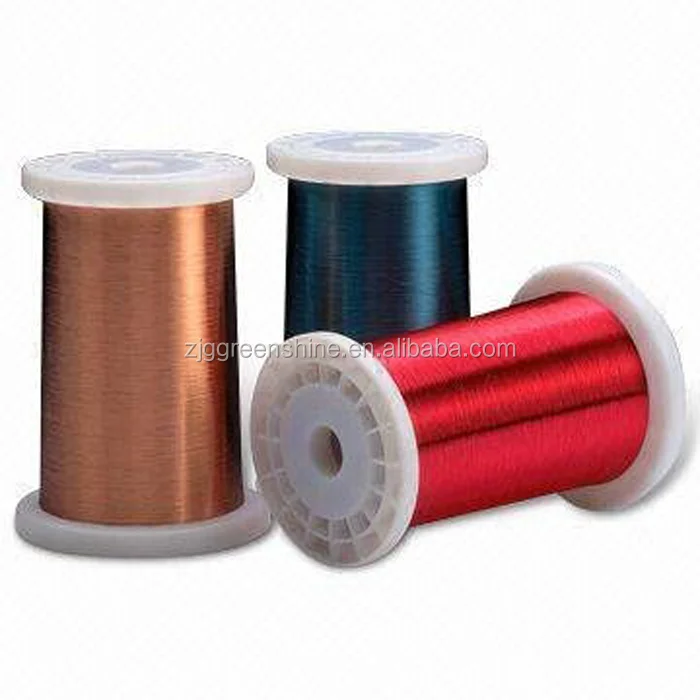

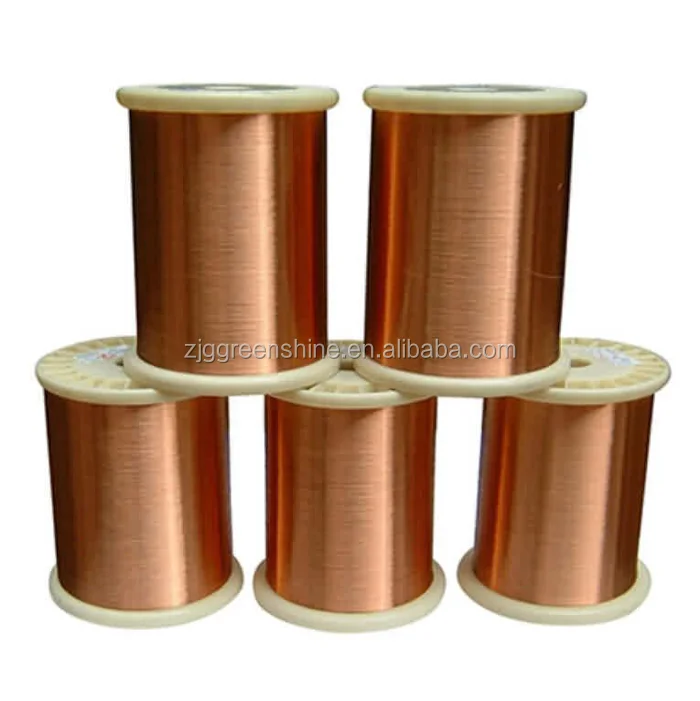

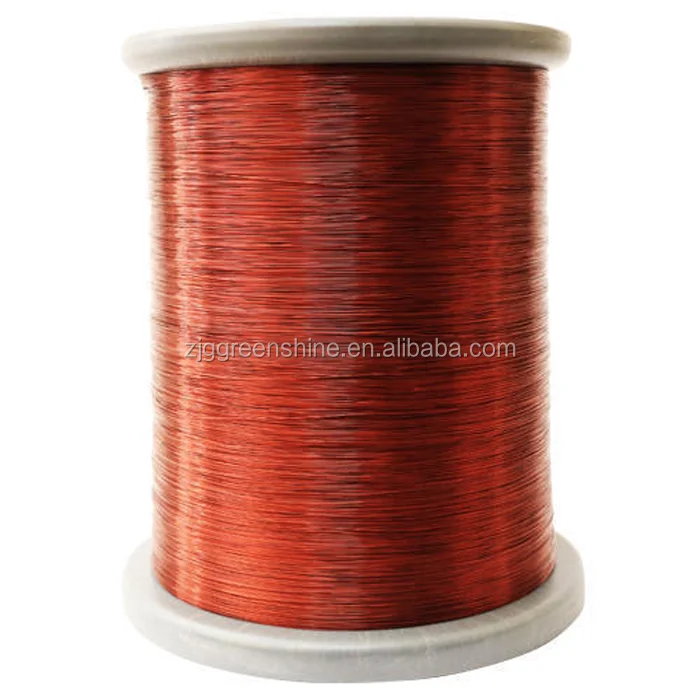

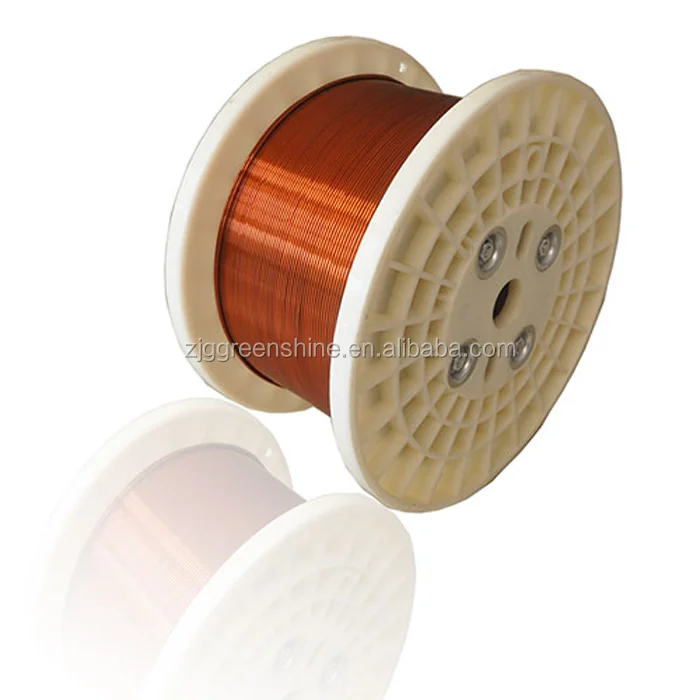

Electrical enamelled cca wire

Enameled CCA wire is a new electromagnetic wire taking copper clad aluminum as inner conductor material, with characteristics between copper and aluminum. It combines excellent conductivity of copper and light weight of aluminum.

Standard:

Reference to SJ/T11223-2000 Copper Clad Aluminum Wire and GB/T6109.1 ~ 11-2008 Enameled Round Winding Wire

Advantages of Enameled CCA Wire

1.


   DC resistivity: The DC resistivity of CCA wire is approximately 1.45 times that of copper wire;





2.


   With the same resistance, CCA wire is about 1/2 heavy of copper wire.





3.


   Good solderability: CCA wire is clad with a layer of concentric copper, so it has the same solderability as copper wire and doesn’t need special treatment as aluminum wire;





4.


   Light weight: The density of CCA wire is 1/3 of copper wire of the same diameter, very effective to reduce the weight of cables and coils.




Scope of Supply of CCA Wire: 0.15-4.60 mm

Models of supplies of enameled CCA wires: QA (N), QZ (N), QZY, and Q (ZY / XY)

Product Types

1.


   Polyester Enameled CCA round wire(PEW);





2.


   Polyurethane Enameled CCA round wire(UEW);





3.


   Polyesterimide enameled CCA round wire(EIW);





4.


   Polyesterimide over-coated with polyamide-imide enameled CCA round wire(EIW/AIW).

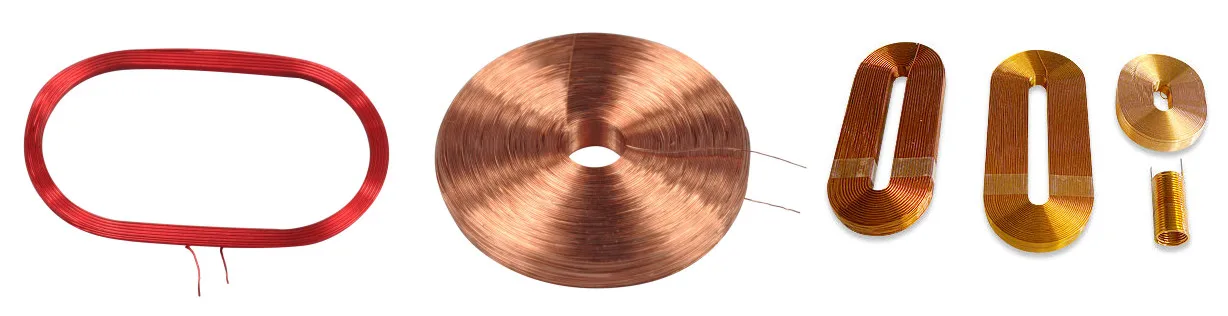

Applications:

1.


   High-frequency transformers, general transformers;





2.


   Induction coils, magnetic coils;





3.


   Electromotors including household electromotors, a variety of micro-motors, compressors, and other electromotors with high environment requirements;





4.


   Special electromagnetic wire for audio coils and CD drivers;





5.


    Electromagnetic wire for monitor deflection coils;





6.


    Various types of magnetic coils and induction coils.
