GRINDING & POLISHING MACHINE MODEL MP 1B METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE

Share on (60829338136):


Price:$700.00 - $900.00

Quantity:


Product Overview

Description


Product Description
Specification
MODEL MP-1B
METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE

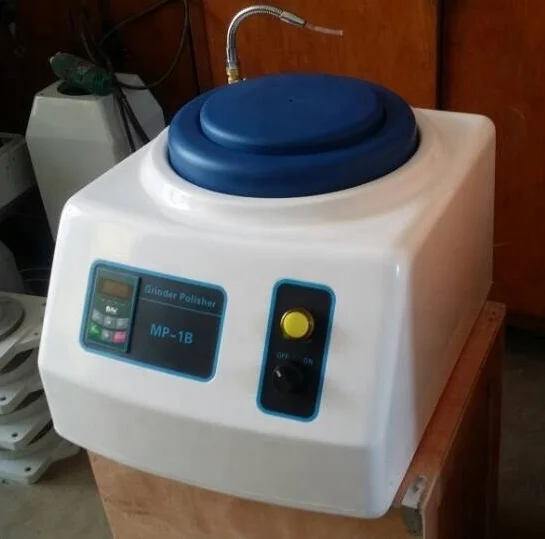

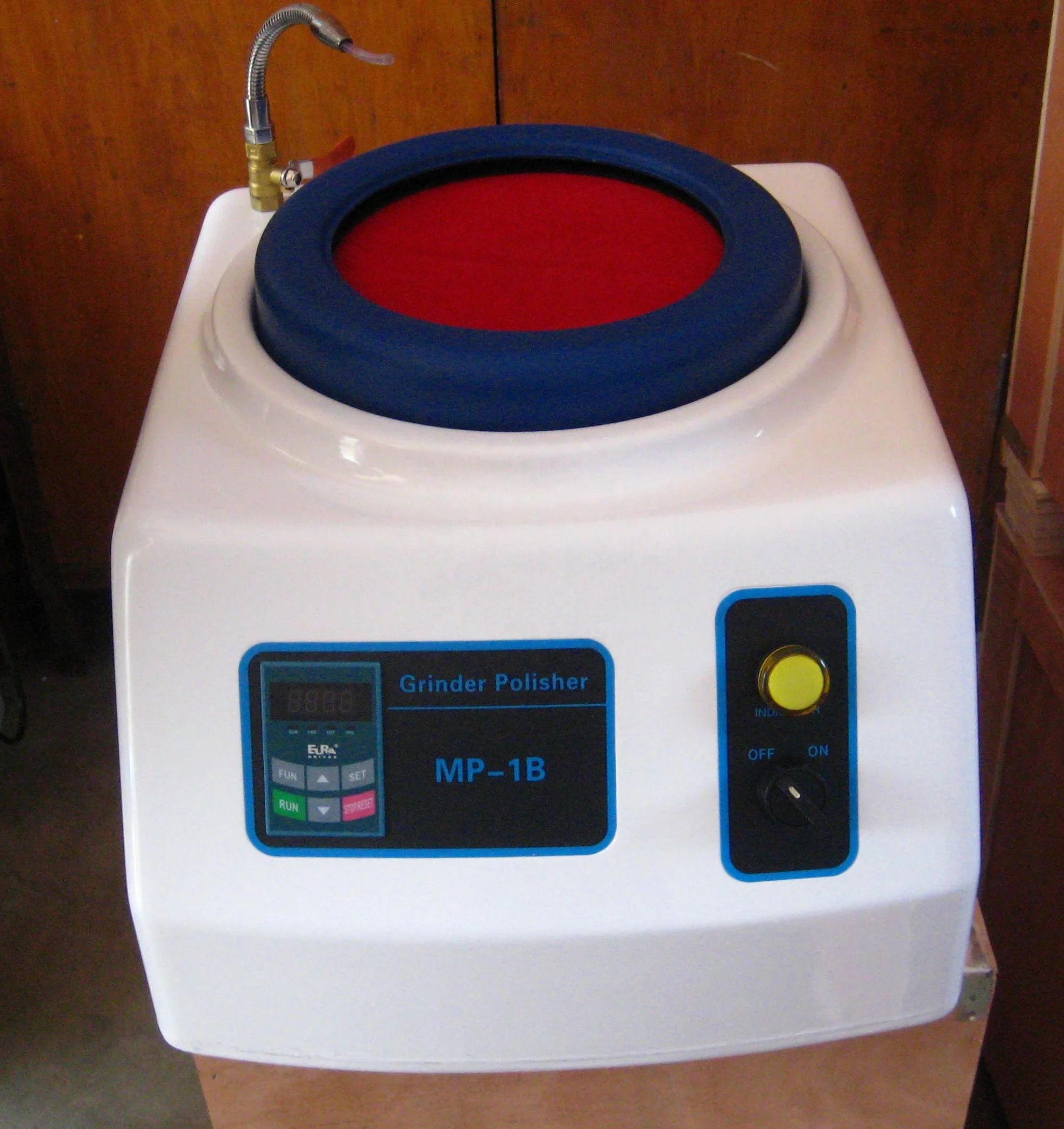

        Model MP-1B Metallographic specimen grinding & polishing machine is equipped with single disc and features stepless speed changing grinding and polishing. The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm. It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying. It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Technical specifications

Digital display of rotating speeds of grinding and polishing disc
Diameter of grinding disc: Ø 230mm, rotating speed 50-1000 rpm
Diameter of polishing disc: Ø 200mm, rotating speed 50-1000 rpm
Diameter of sand paper: Ø 200mm
Motor: 180W
Power supply: Single phase, 220V, 50Hz
Dimensions: 48 ×39 × 37 cm
Net weight: 13 Kg

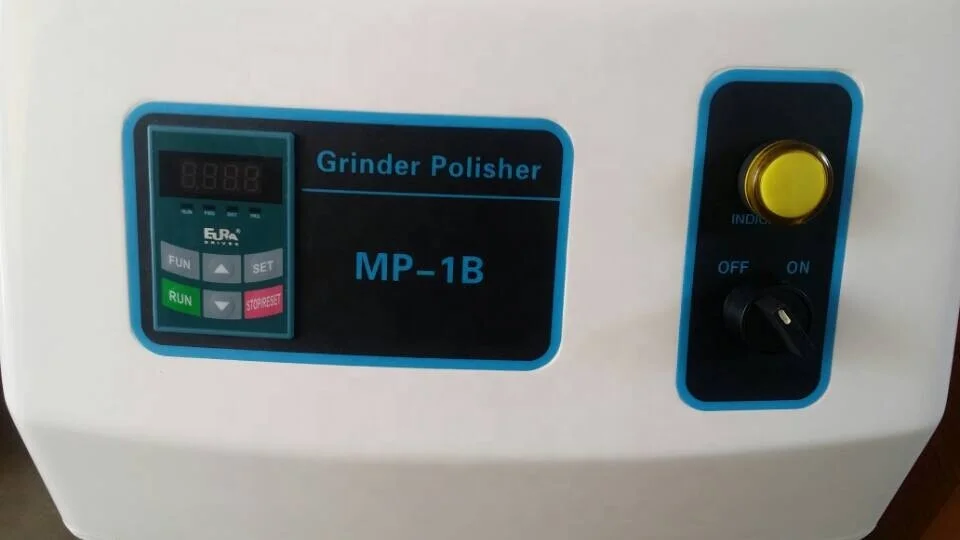

TRANSDUCER FOR SPEED CONTROL
Stepless speed control with the range of 50-1000rpm
WATER COOLING TAP
Water cooling tap is equipped with MP-1B for the purpose to bring away the heat produced during grinding & polishing process and avoid damage to the metalographic structure od specimen.

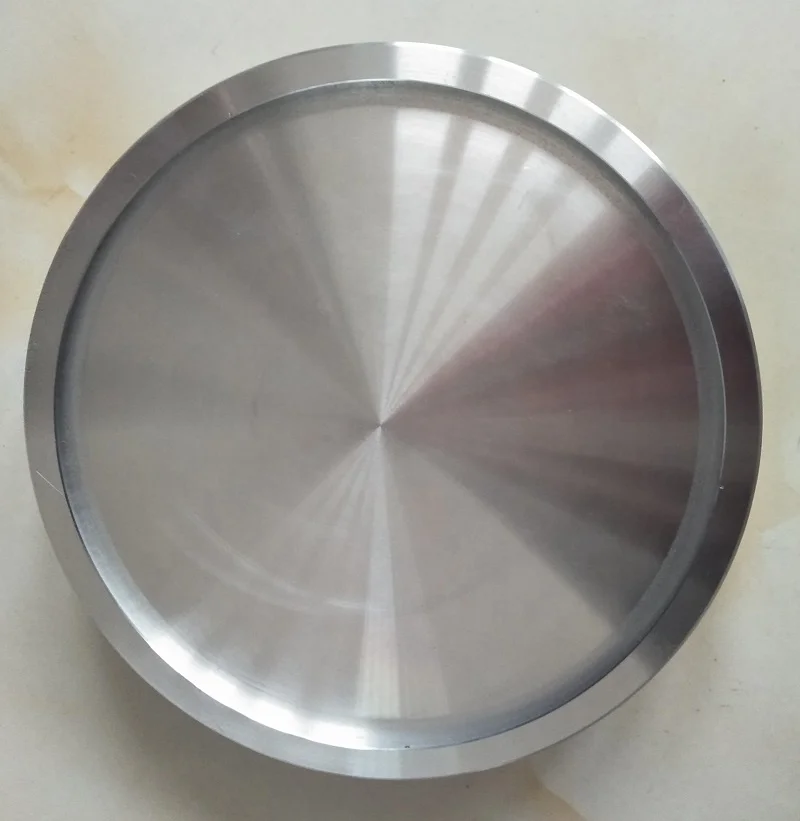

200MM POLISHING DISC
High quality 200mm flat polishing disc. The polishing cloth can be fixed on it by clamping ring.

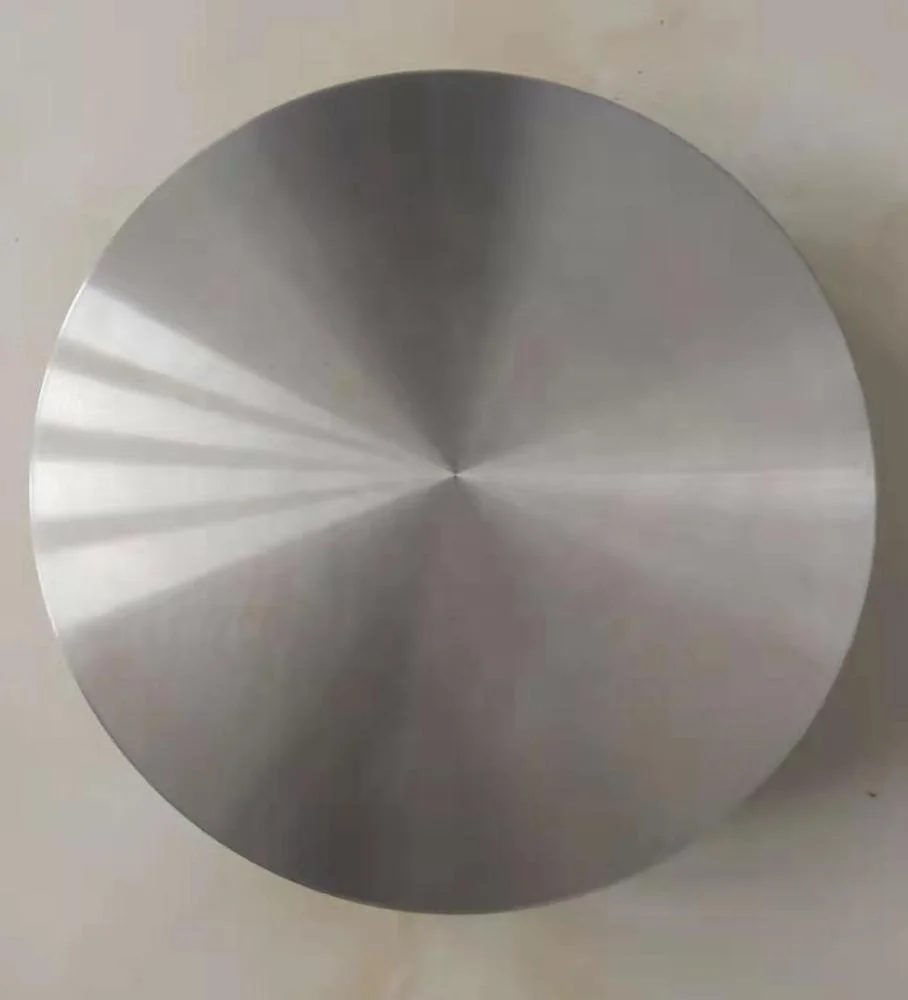

230MM GRINDING DISC
230mm grinding disc with groove design. Suitable for abrasive paper of 200mm.
Packing & Delivery
Factory View
Our Company

        Laizhou Lyric Testing Equipment Co., Ltd. is a professional company producing and supplying metallographic specimen preparing machines, such as grinding & polishing machine, cut off machine, mounting press, metal and non-metal materials hardness testers, impact testing machines, universal testing machines, torsion testing machines, coating thickness gauges, ultrasonic thickness gauges, vibration meters, roughness testers and microscopes etc. Our products are selling well and exported to America, E.E.C., Southeast Asia and so on, more than 50 countries and regions.

The company's staffs are consisted of a group of specialists with over 20 years of experience in the industry of hardness testers and metallographic equipments, etc.. Our principle is "Quality First, Reputation First" and our spirit is "Professional, Intent, Dedicated". We believe that "Quality makes Successful Brand". We will work hard to provide our customer with best solutions, professional and high quality testing instruments & technical support, and perfect after-sales service. We are looking forward to cooperating with you in the prosperous future!
