heavy duty four side moulder wood planer
US $22300-$23300
ZICAR Brand M416A four side planer moulder with 5 spindles 4sides moulder
- Category: Wood Planer >>>
- Supplier: Jaya International Co. Ltd.
Share on (60829387826):
Product Overview
Description
Product Features
1. The machine bed is cast from high grade cast iron to ensure the stability of the machine.
2. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min.
3. Each main shaft is driven by independent electric motor, cutting force is powerful
4. Main shaft is adjusted to focus on the front, operation is convenient;
5. Hard chrome plating work table is durable;
6. Equips with auxiliary unit alarming lack of material, it effectively improvises smooth feed-in while lack of material;
7. Multi-group drive rollers improve feeding efficiency;
International brands electrical parts are applied for good stability;
8. Spare parts are thick and solid to maintain high precision, high stability and high reliability;
9. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;
10. Which is favorable for smooth feeding of timbers with different thickness;
11. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
2. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min.
3. Each main shaft is driven by independent electric motor, cutting force is powerful
4. Main shaft is adjusted to focus on the front, operation is convenient;
5. Hard chrome plating work table is durable;
6. Equips with auxiliary unit alarming lack of material, it effectively improvises smooth feed-in while lack of material;
7. Multi-group drive rollers improve feeding efficiency;
International brands electrical parts are applied for good stability;
8. Spare parts are thick and solid to maintain high precision, high stability and high reliability;
9. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;
10. Which is favorable for smooth feeding of timbers with different thickness;
11. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Product Parameter
Model | ZICAR Brand M416A Heavy-duty Four Axis Four-side Planer |
Working Width | 25-160mm |
Working thickness | 8-100mm |
Feeding speed | 10-50m/min |
Main shaft diameter | 40mm |
Axial movement | 0-20mm |
Main shaft revolution | 8000r/min |
Air pressure | 0.6Mpa |
1st Lower Shaft | 4kw |
1st Upper Shaft | 5.5kw |
Left Vertical Shaft | 4kw |
Feeding motor | 4kw |
Feeding Beam Lifting | 0.75kw |
General Power | 22.25kw |
Left and Right Vertical Shaft | 125-180mm |
Dust outlet Diameter | 140mm |
Feeding wheel diameter | 140mm |
Dimension | 3550*1630*1750mm |
Net Weight | 2500kg |
Product Details

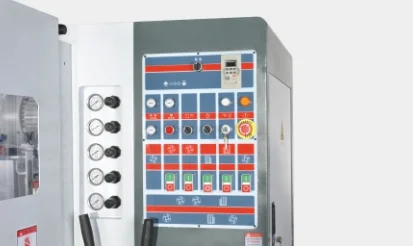

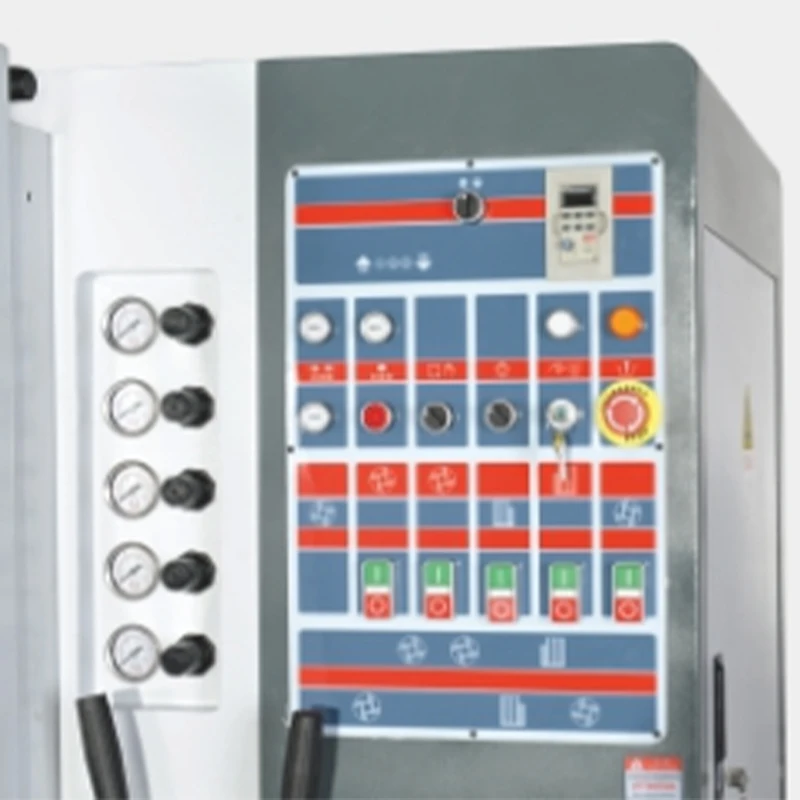

The new panel design is more intuit-ive and more beautiful, with variable frequency feeding.
Speed adjustment is convenient.

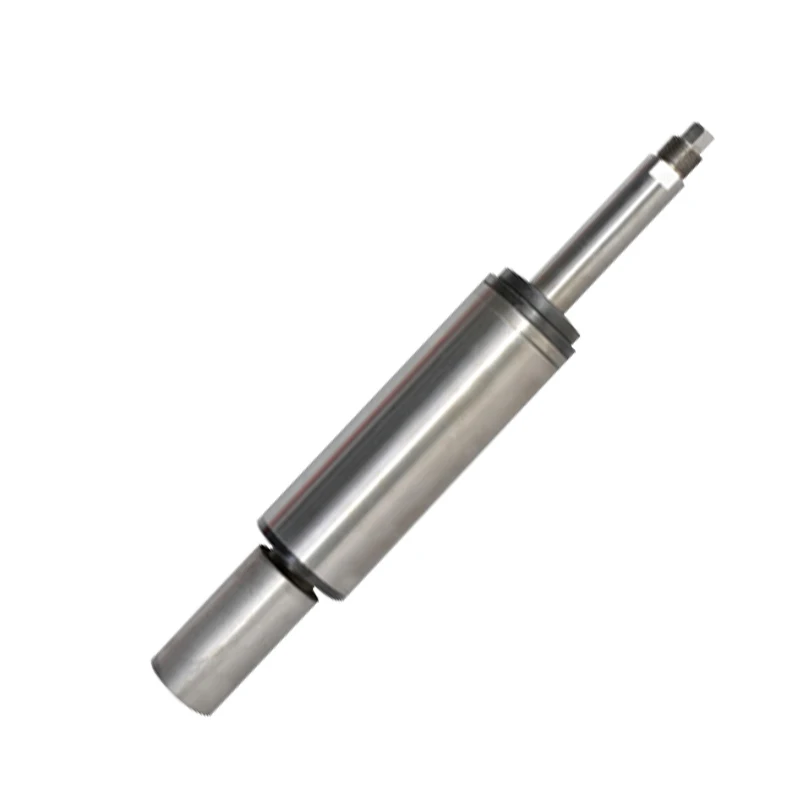

Art equipped with SkF brand bearings, the spindle is more stable and durable.

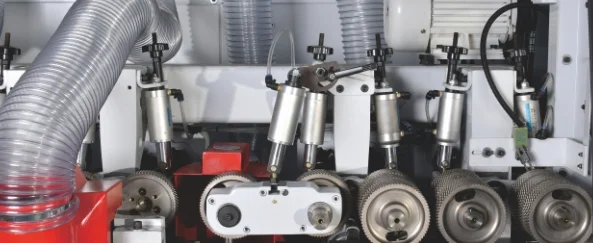

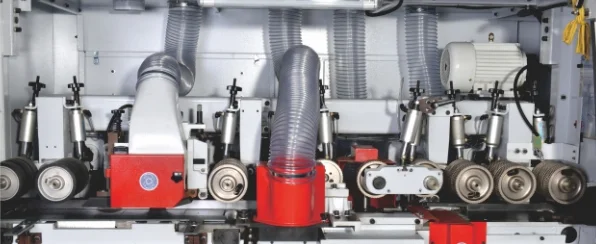

This structure effectively improves the feeding of short materials more smoothly, and the auxiliary feeding wheel has a
transmission function and is more efficient.
Related Production
Customer Vist
Certifications
About Us
JAYA INTERNATIONAL, has been dealing in woodworking machinery for more than 27 years,started from Jaya Trading at the beginning of 1992. In 2008, we made great investment and became the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over 59 years' history of manufacturing all kinds of China- ·made woodworking machinery since 1960, especially for the MQ & ML series combined woodworking machine, it has the extremely important guiding function in the circle. During the past few years, with the development of the company and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood making machine and related hardware, ect.
Thanks for our top quality, excellent service and competitive price, thanks for all the support from our customers, now our
machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:
* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
Thanks for our top quality, excellent service and competitive price, thanks for all the support from our customers, now our
machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:
* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
*ISO9001:2000, CE certified, 15 nationalpatents
* One-stop service, meet needs of the customers from individuals to international companies.
* One-stop service, meet needs of the customers from individuals to international companies.
*OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
*lnquiries are typically answered within 8 hours. After sale Service: experienced and knowledgeable team of technical support
*annual turnover: USD 20 million
We trust that our experience and intimate knowledge of this line will entitle us to your confidence.
The more you know us, the more you trust us!
*annual turnover: USD 20 million
We trust that our experience and intimate knowledge of this line will entitle us to your confidence.
The more you know us, the more you trust us!
FAQ
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationship with each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationship with each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
