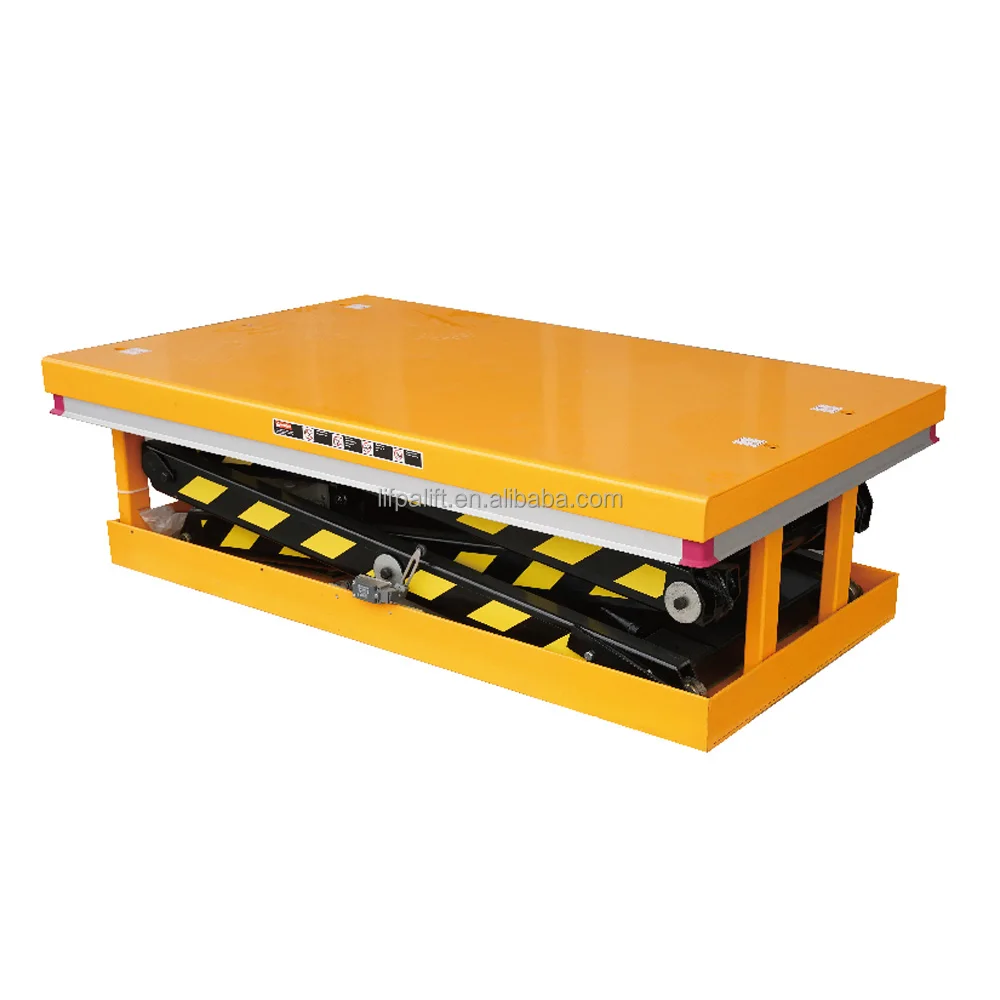

1000kg Electric Hydraulic Double Scissor Lift Platform

Product Overview

Description

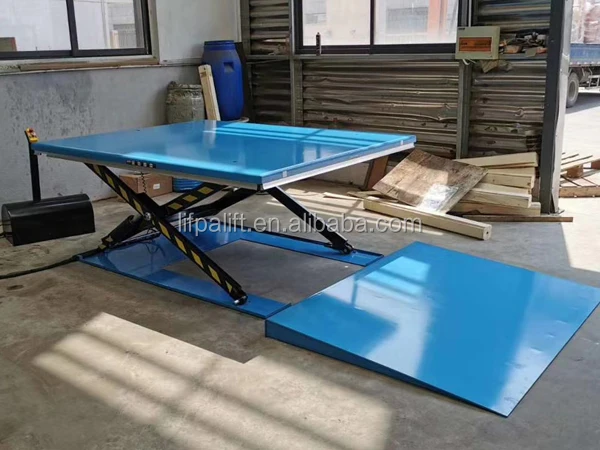

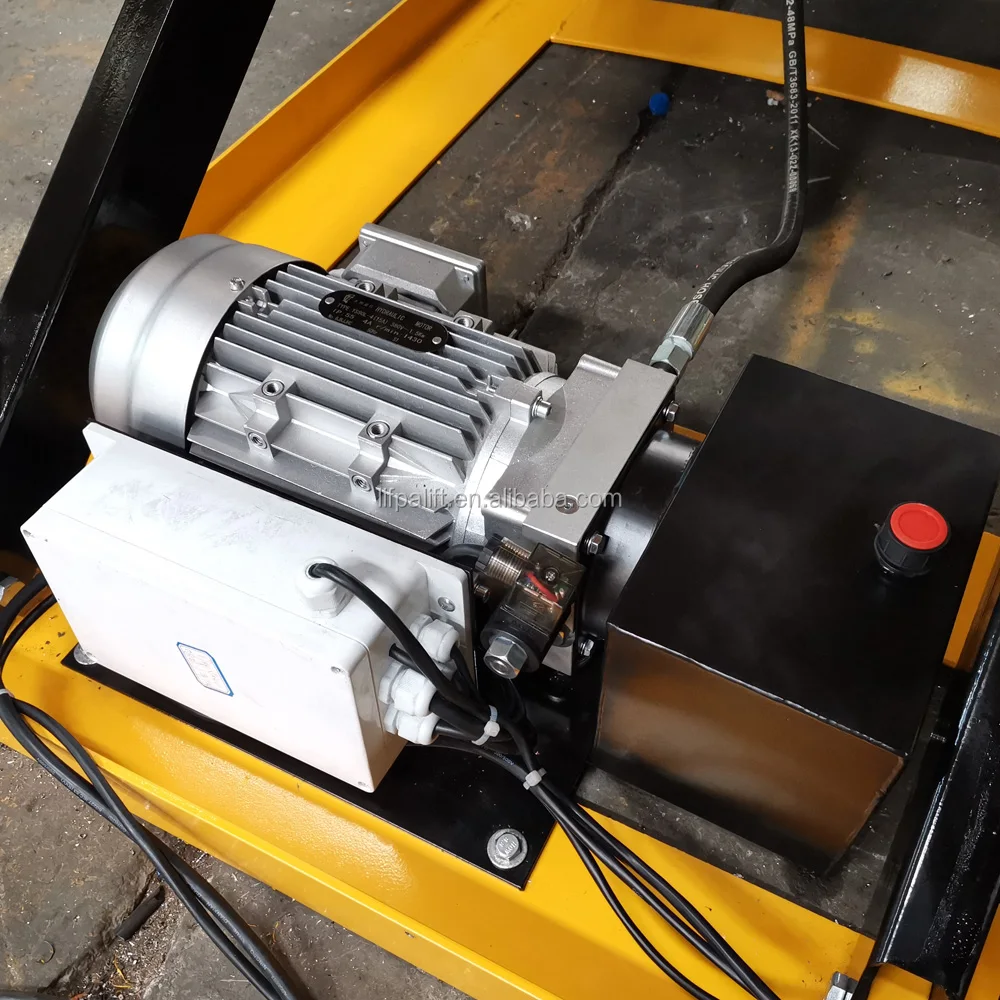

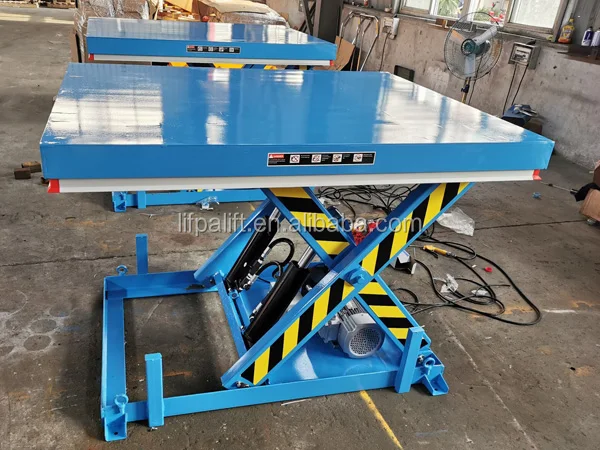

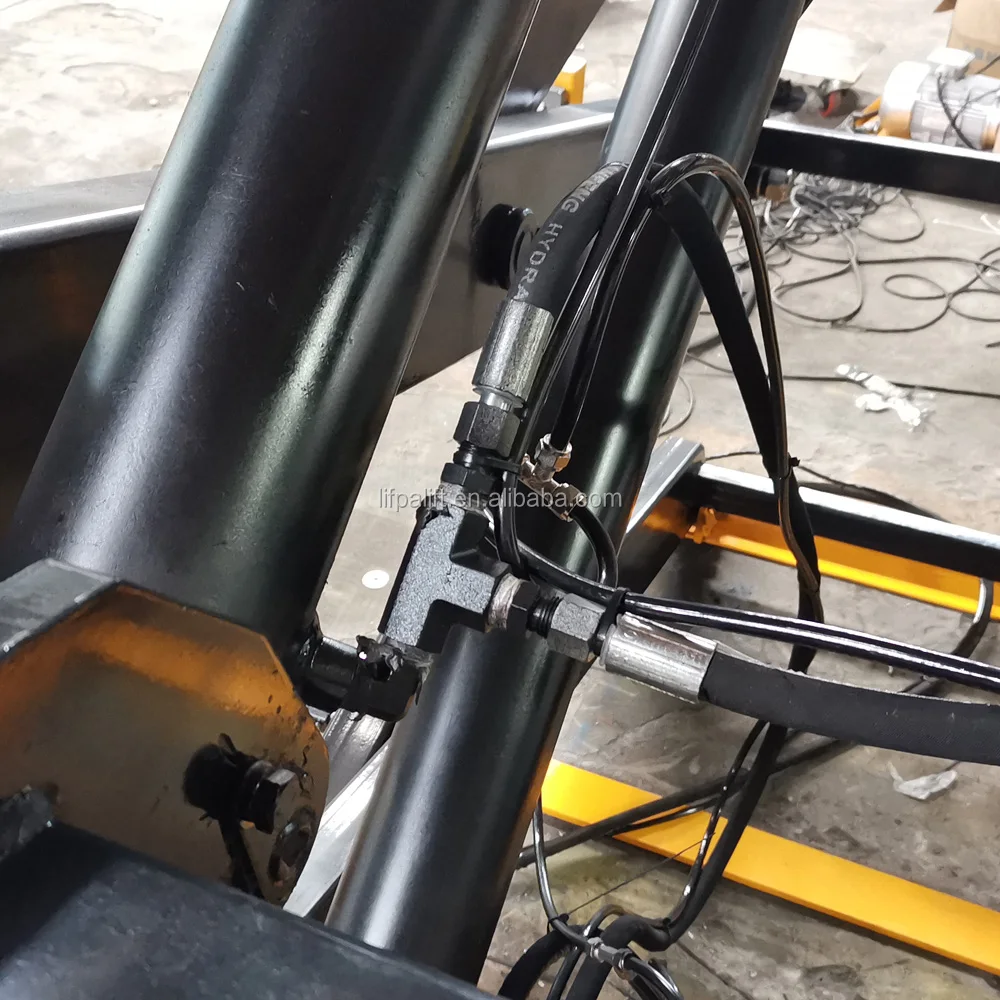

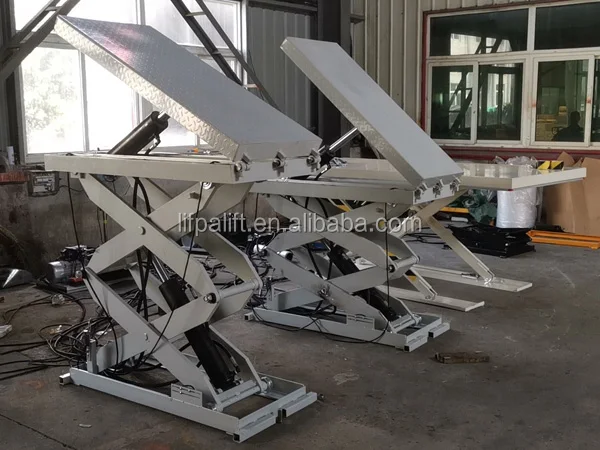

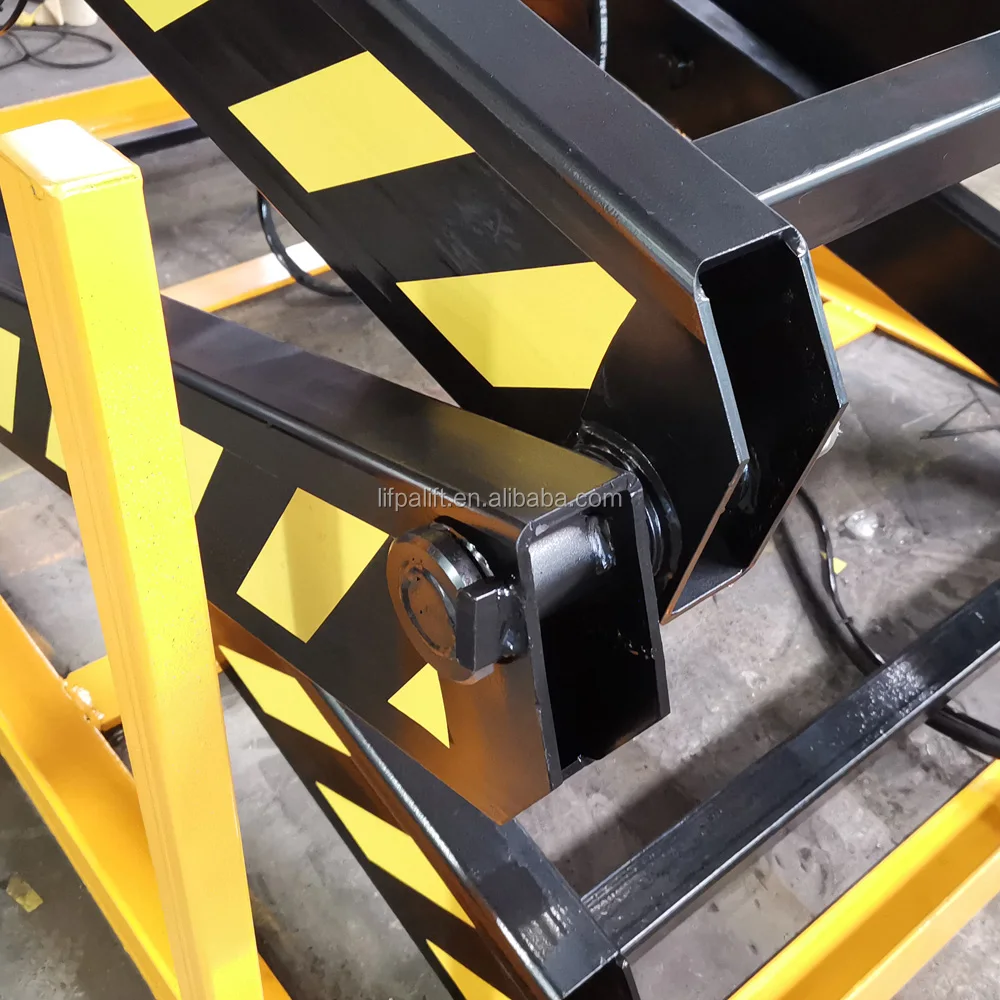

Real Pictures





Product Highlights



• Electric toe guard protects pinch points during lowering of the table

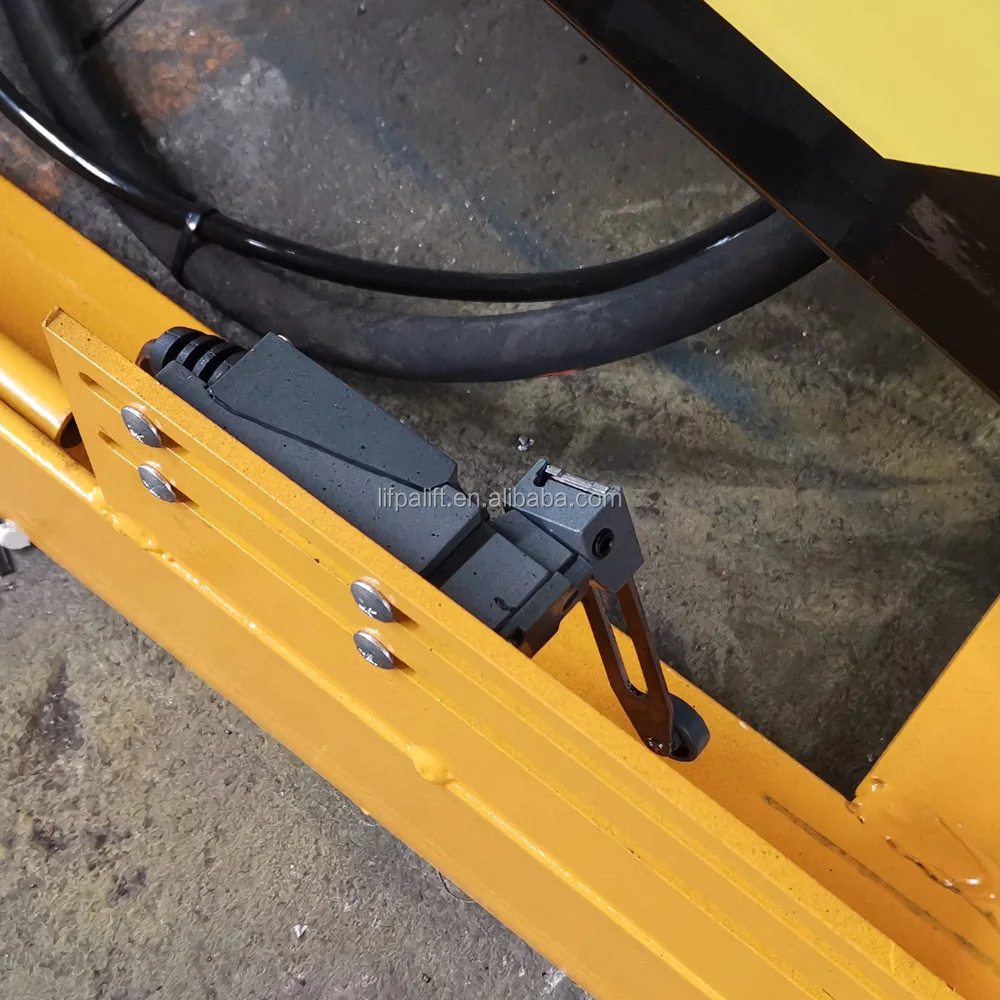

• Upper travel limit switch to stop table at maximum height







• AC 110/220/380/415V, 50 or 60Hz motor available





Features

• Portable ergonomic elevating table minimizes workers bending and lifting

• Electric toe guard protects pinch points during lowering of the table

• AC 110/220/380/460V, 50 or 60Hz power supply

• Brass velocity fuse maintains platform height regardless of hydraulic pressure

• All steel frame with powder coated finish

• Pushbutton power control for effortless operation

• Custom size and specs available





Main Parameters

Model		PG-10-B	PG-20-B	PG-40-B
capacity	kg	1000	2000	4000
table size	mm	1300 x 820	1300 x 850	1700 x 1200
raised height	mm	1780	1780	1780
lowered height	mm	305	360	400
power supply	V	AC 220 / 380	AC 220 / 380	AC 220 / 380
lift motor	kW	1.50	2.20	3.70
lift speed	mm/s	55	50	40
weight	kg	230	320	570





Optional Equipment
