1 Вт, 3 Вт, инфракрасный светодиод высокой мощности, 760 нм, 770 нм
- Category: High Power LED >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (60829703389):
Product Overview
Description

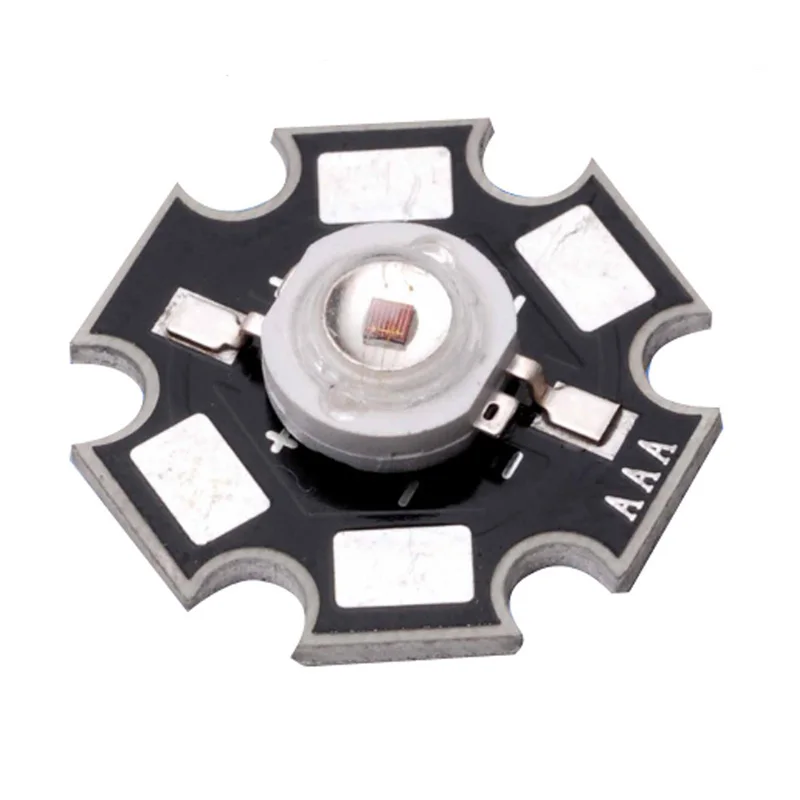

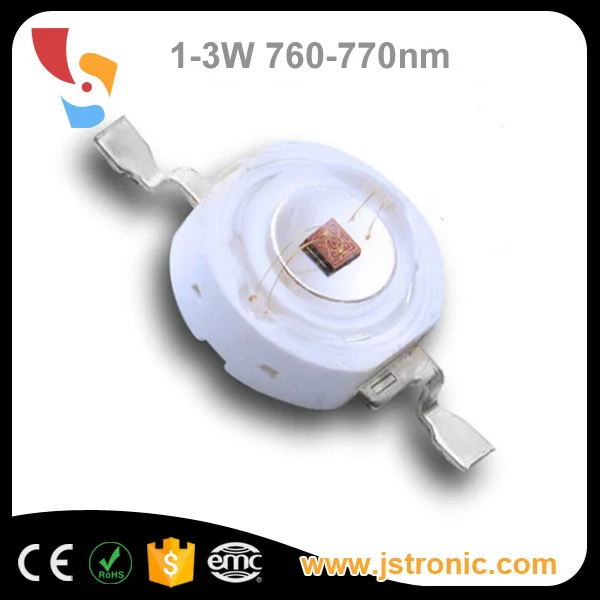

1W 3W infrared IR high power led 760nm 770nm
Product Description
Highest Flux IR
low voltage DC operated
high reliability and long life time
soon delivery
RoHs&CE
1W 3W high power led 800nm IR led with epistar chip
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage
| VF | IF = 700mA | ---- | 1.7 | 2.4 | V |
Luminous Flux
| Φv | IF = 700mA | 180 | 260 | ---- | mw |
Viewing Angle
| 2θ1/2 | IF = 700mA | ---- | 120 | ---- | Deg. |
Dominate Wavelength
| λd | IF = 700mA | 760 | --- | 770 | nm |

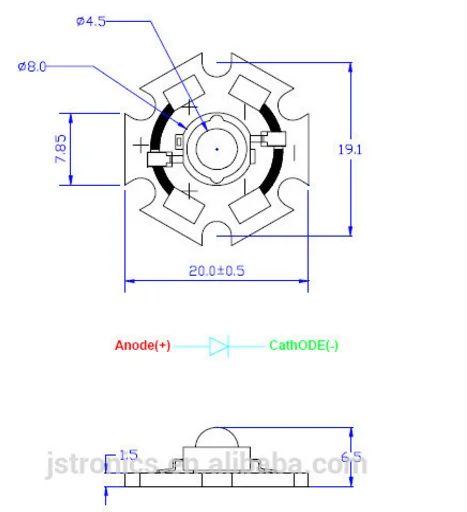

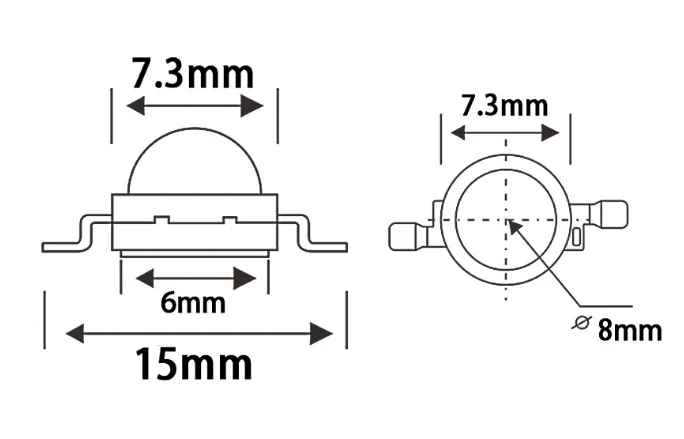

package dimension
1W 3W infrared IR high power led 760nm 770nm
Parameter | Symbol | Test Condition | Value | Unit | |
Min. | Max. | ||||
DC Forward Current
| IF | ---- | ---- | 700 | mA |
Peak Pulse Current
| Ipeak | Duty=0.1,1kHz | ---- | 1000 | mA |
Power Dissipation
| Pd | ---- | ---- | 2.5 | W |
LED Junction Temperature
| Tj | ---- | ---- | 120 | ℃ |
Operating Temperature
| Topr | ---- | -25 | +100 | ℃ |
Storage Temperature
| Tstr | ---- | -40 | +120 | ℃ |
ESD Sensitivity
| --- | HBM | 8000 | ---- | V |
Soldering Temperature
| --- | ---- | 260℃ for 5 Seconds max | ||
Related products

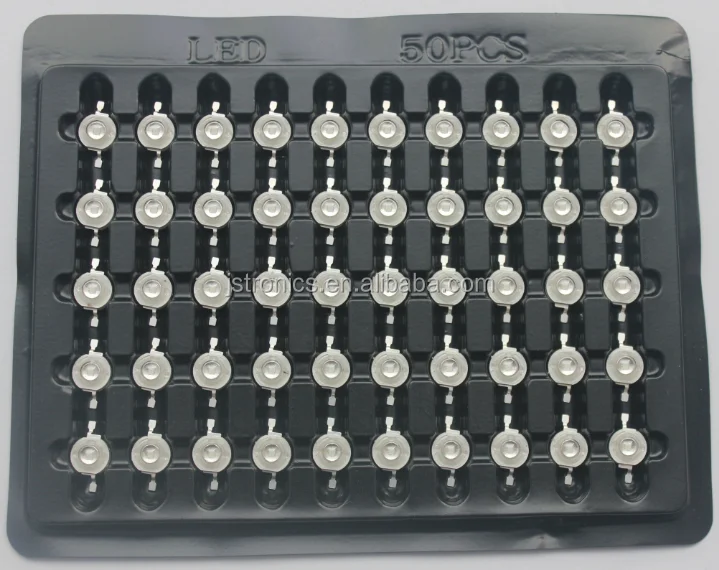

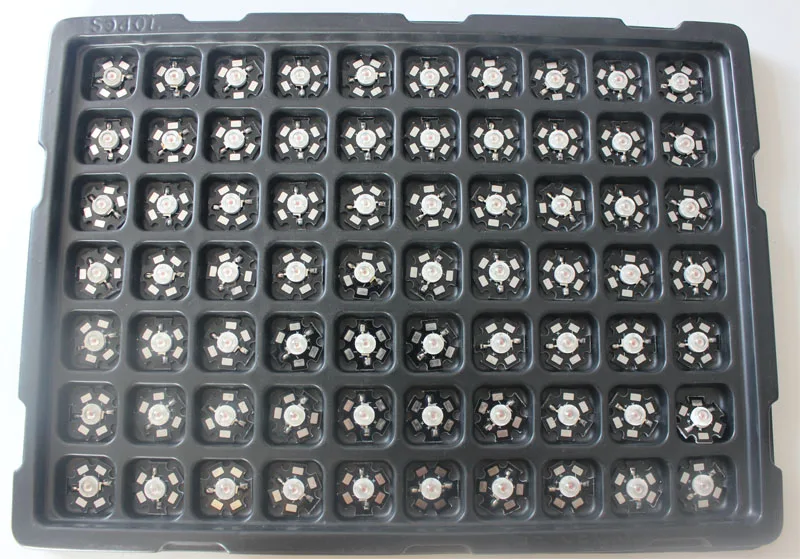

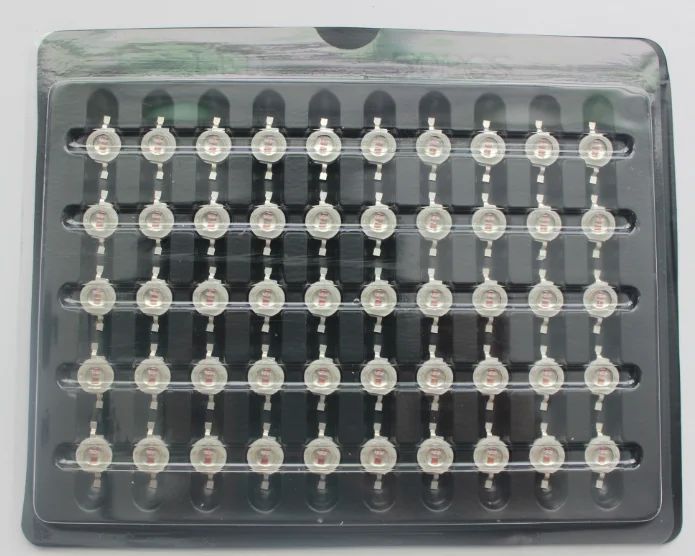

Product Packing
