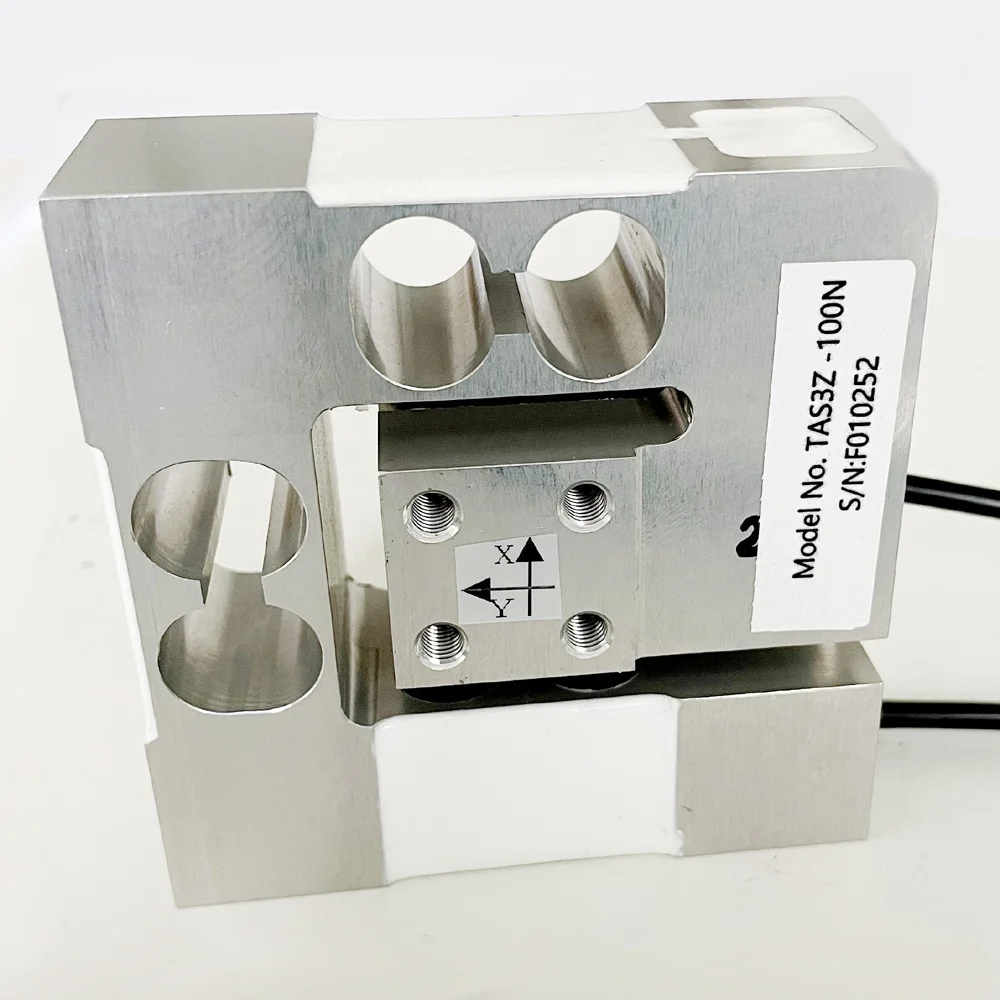

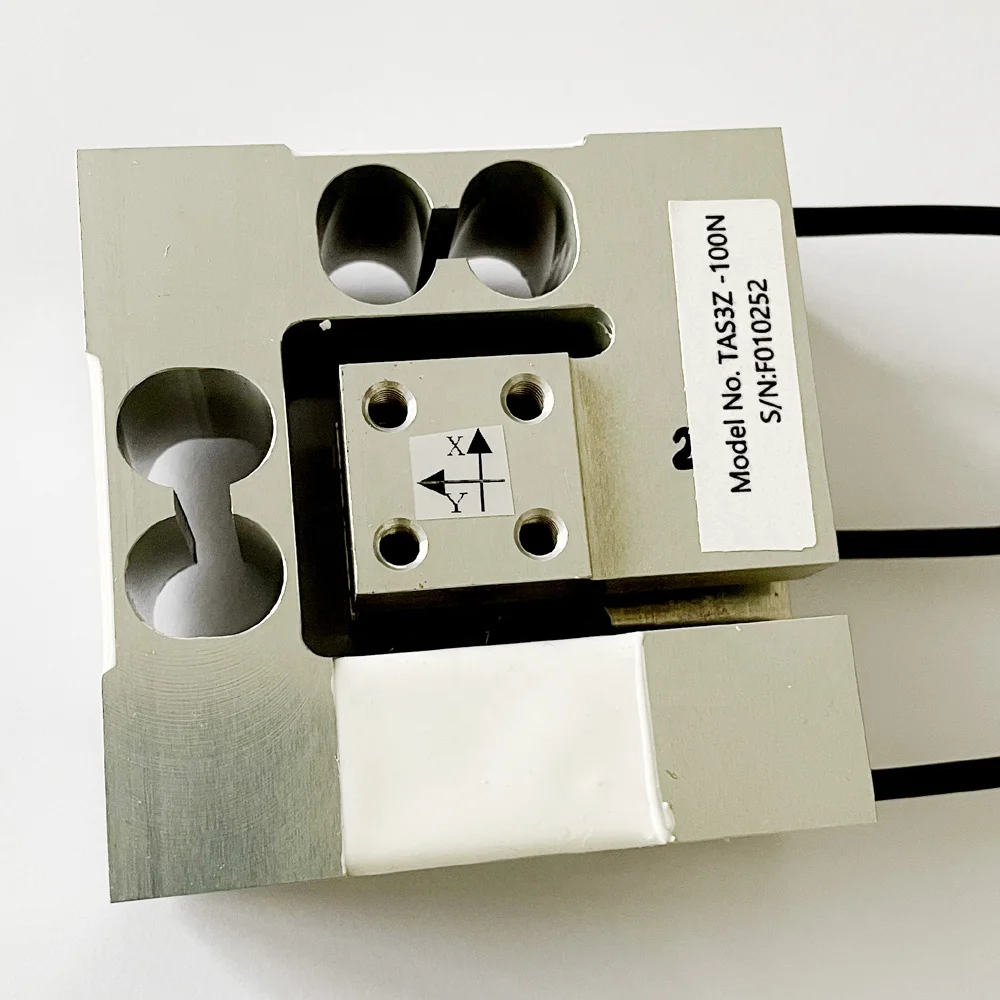

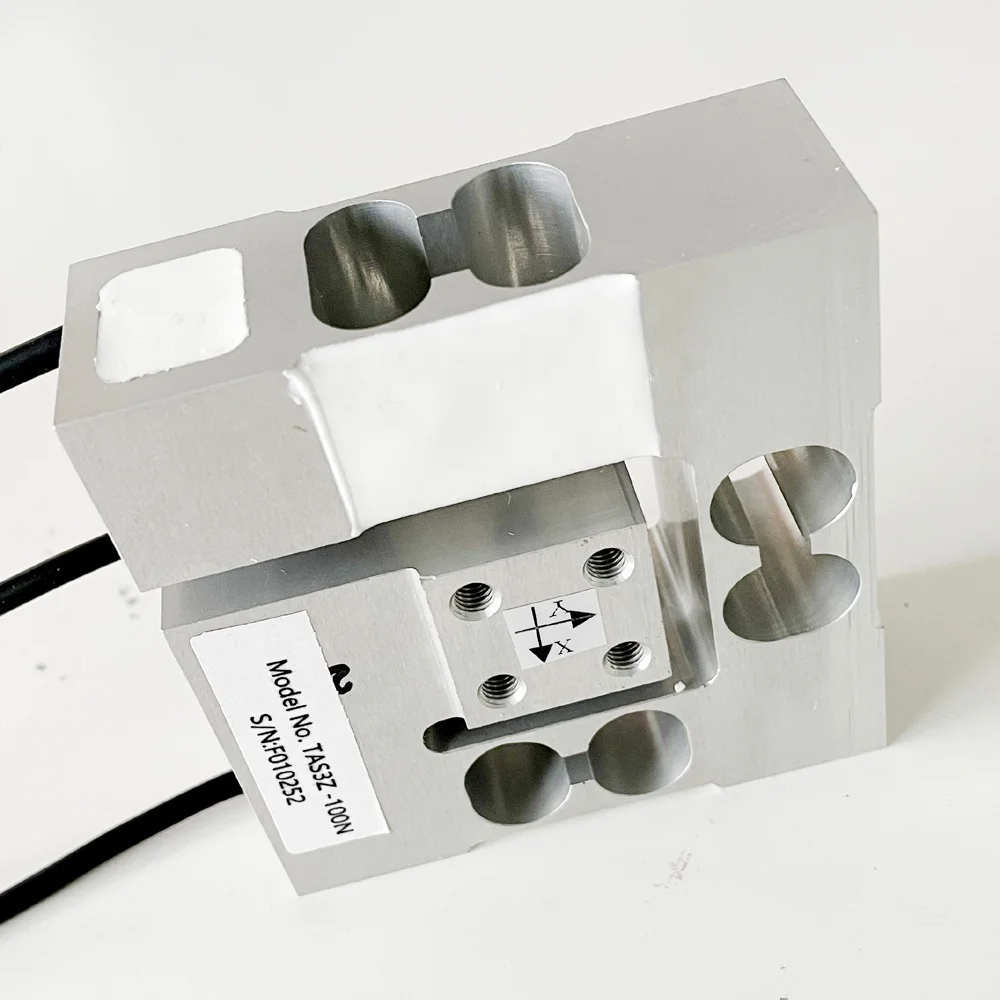

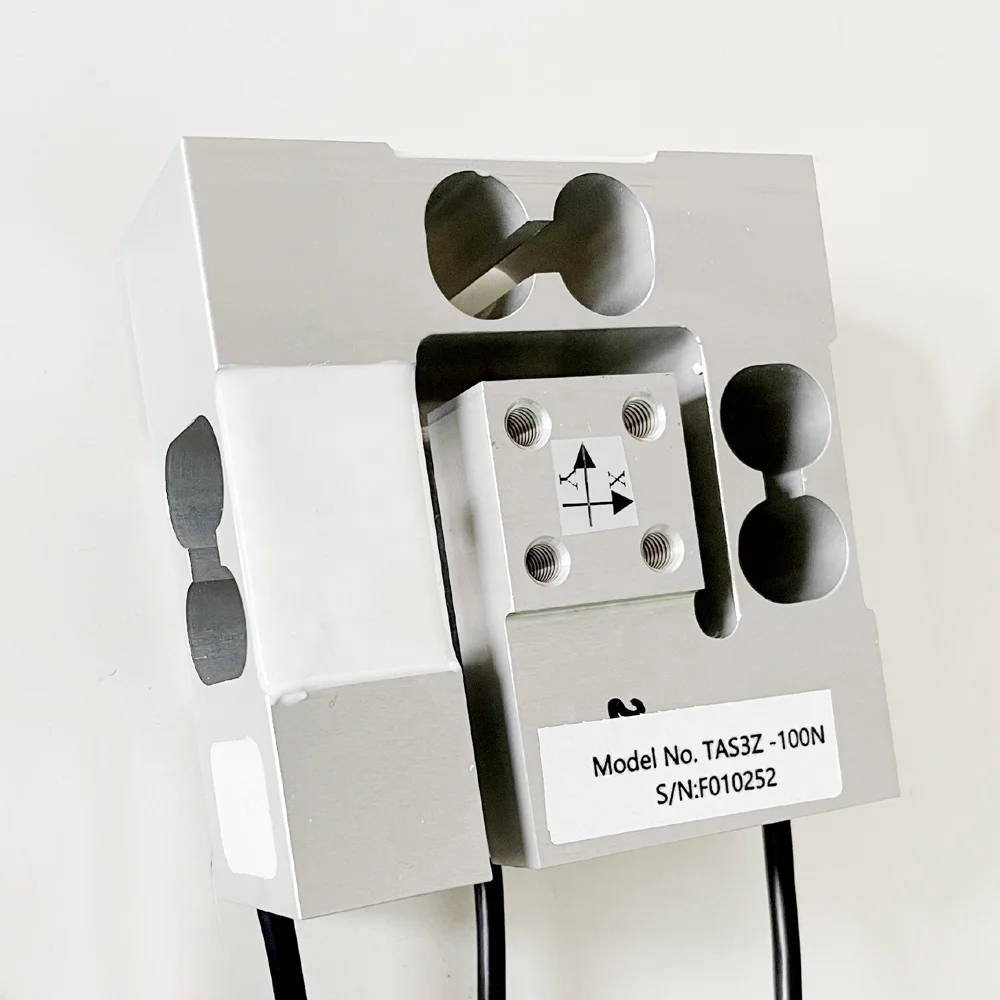

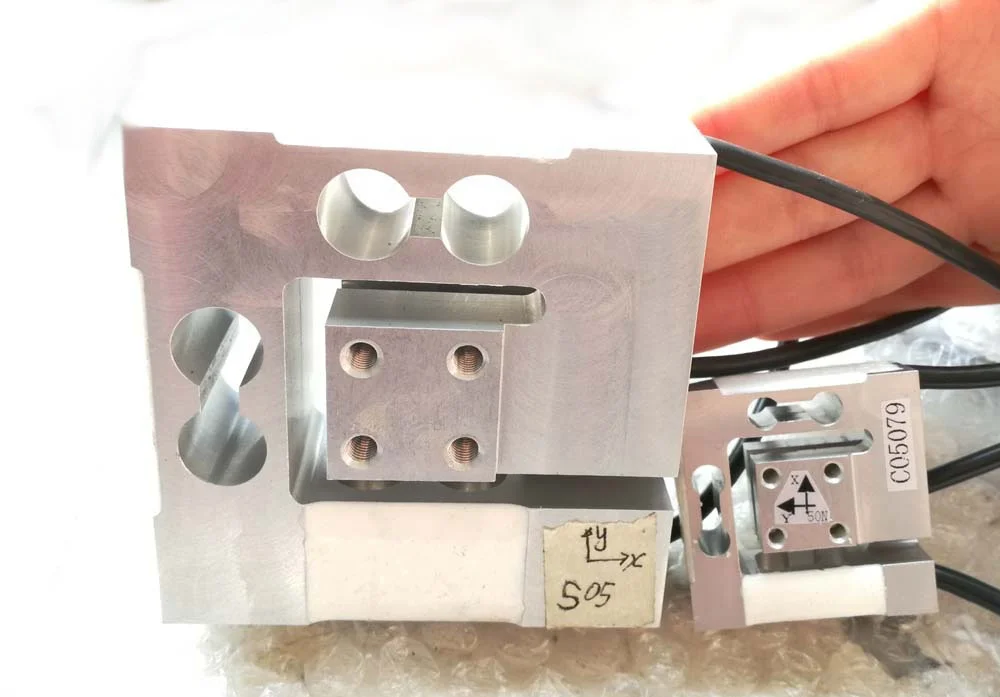

TAS3Z трехосный силы transduer мульти 3 оси по индивидуальному заказу датчик нагрузки датчик силы
- Category: Sensors >>>
- Supplier: HT Sensor Technology Co. Ltd.
Share on (60829800243):
Product Overview
Description

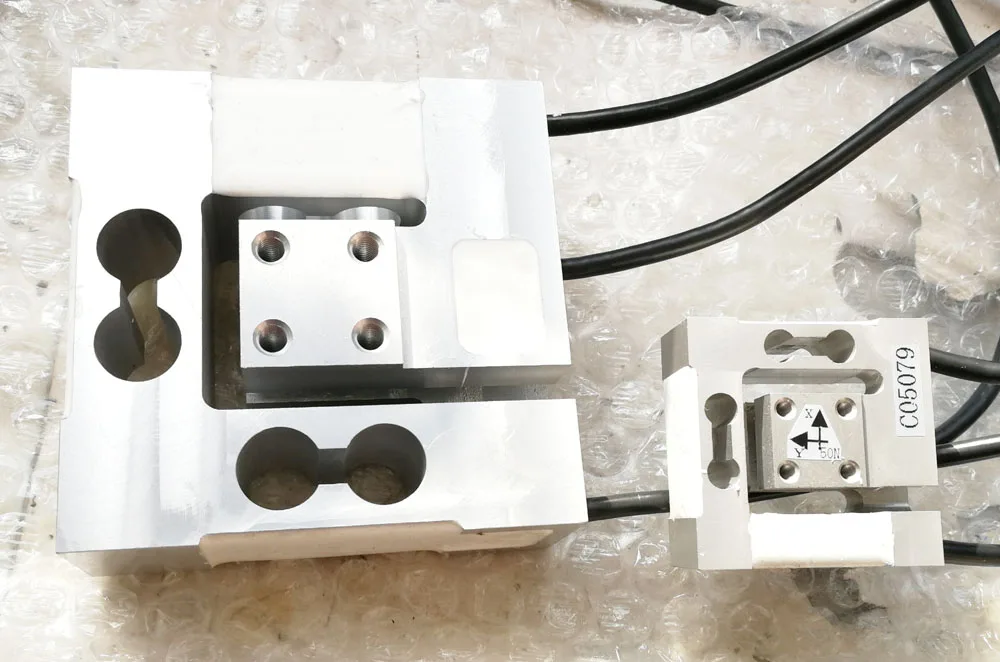

TRIAXIAL FORCE TRANSDUER

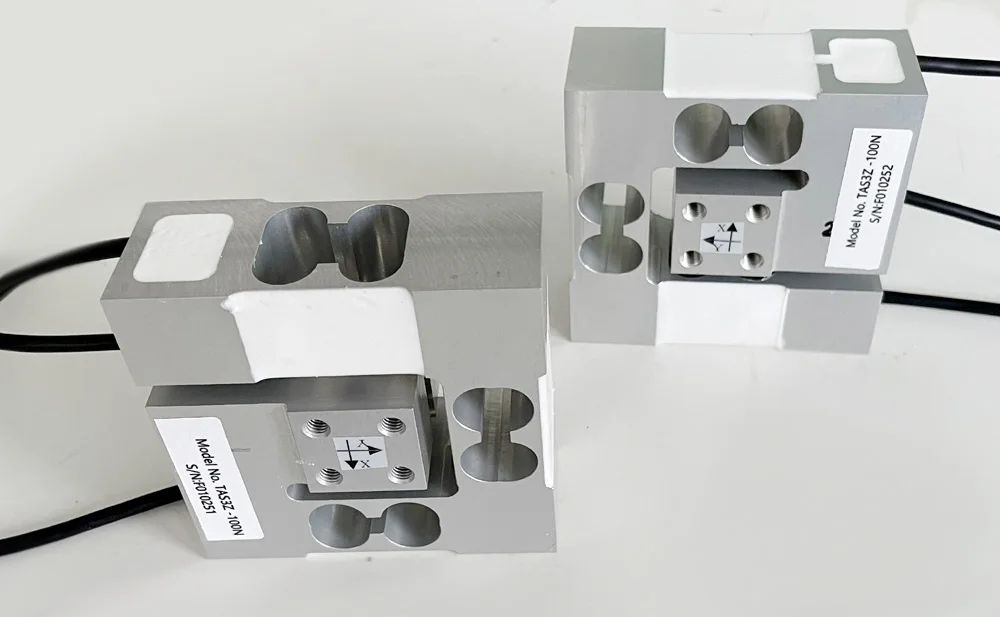

Model No. TAS3Z Capacity: 100N , 200N, 300N, 500N, 1000N Dimension: 80 x 80 x 35
Model No. TAL3Z Capacity: 10N , 20N , 30N, 50N Dimension: 40 x 40 x 10
◆Material: Aluminum alloy or Alloy steel or stainless steel
◆Defend grade: IP67.
◆ High accuracy, high stability, anti-interference
◆Application:. It is suitable for multi direction force measuring system, (X/Y/Z) 3 direction independent (full) bridge, such as actuators and robotic applications
◆ Custom design is available for different applications.
◆Defend grade: IP67.
◆ High accuracy, high stability, anti-interference
◆Application:. It is suitable for multi direction force measuring system, (X/Y/Z) 3 direction independent (full) bridge, such as actuators and robotic applications
◆ Custom design is available for different applications.

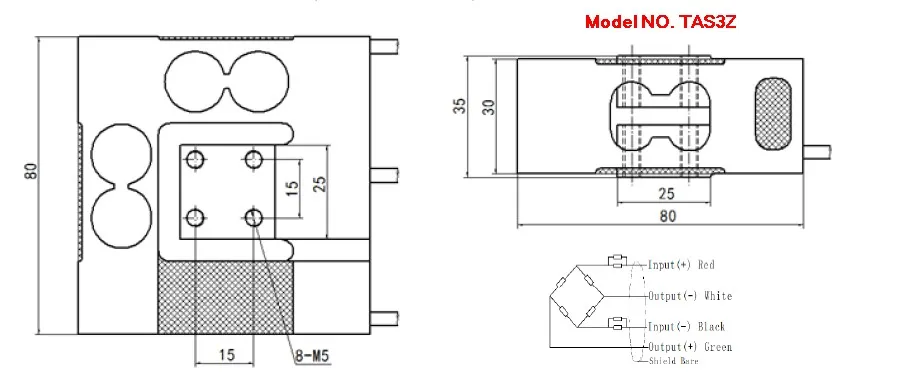

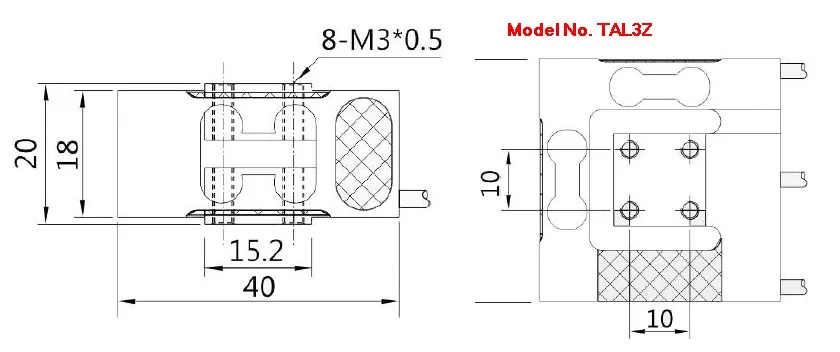

Dimensions
Specificaiton
Techncial specifcaiton | ||
Capacity | N | 10,20,30,50 |
safe overload | %FS | 120 |
Rated output | mV/V | 1.0±0.5%mV ( 10~500N) 1.0±0.5%mV (2000N) |
ultimate overload | %FS | 150 |
excitation voltage | Vdc | ≤6 |
combined error | %FS | ≤±0.2% |
non-linearity | %FS | ± 0.2 |
hysteresis | %FS | ± 0.2 |
repeatability | %FS | ± 0.2 |
creep | %FS/30min | ± 0.2 |
input resistance | Ω | 350 ± 10 |
output resistance | Ω | 350 ± 10 |
insulation resistance | M Ω | ≥ 2000 @ 50 Vdc |
operating temperature range | ℃ | -20~ +60 |
compensated temperature range | ℃ | -10 ~ +40 |
temperature coefficient of SPAN | %FS/10℃ | ± 0.2 |
temperature coefficient of ZERO | %FS/10℃ | ± 0.2 |
Electrical connection | cable | 4 core shielded PVC cable,2m |
