JIS standard Stainless steel 304 Flat Square Washers

Product Overview

Description

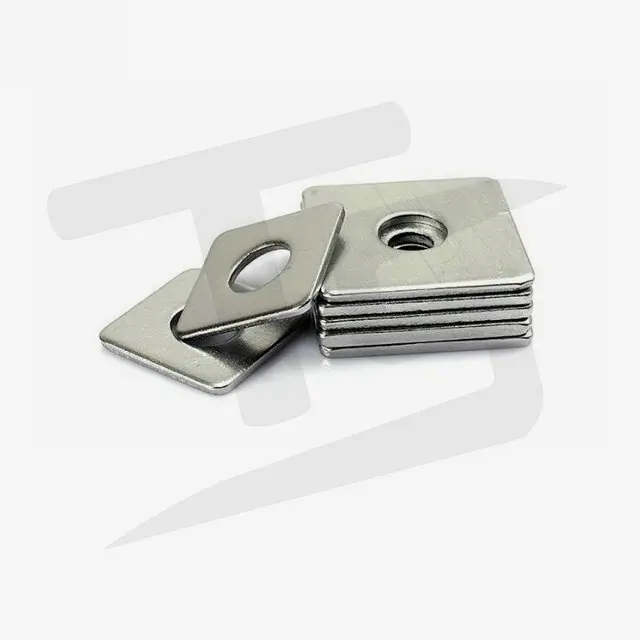

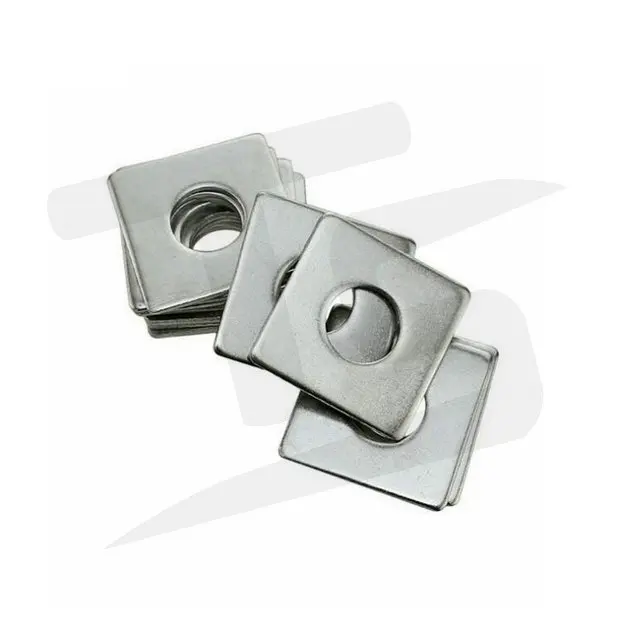

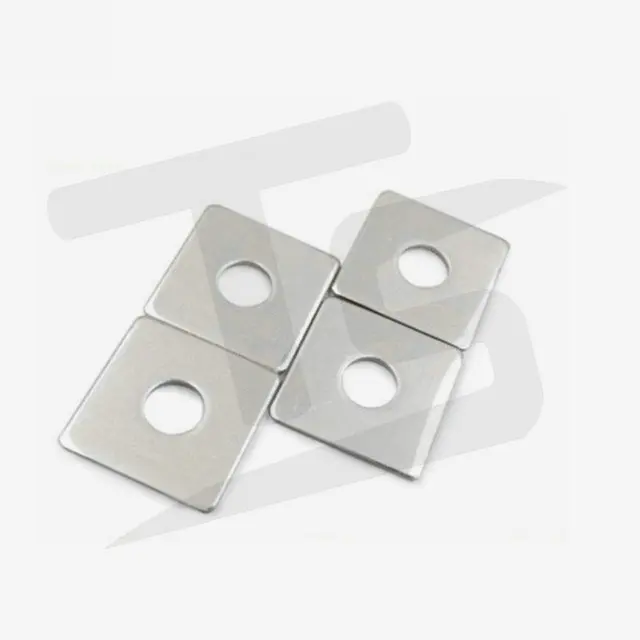

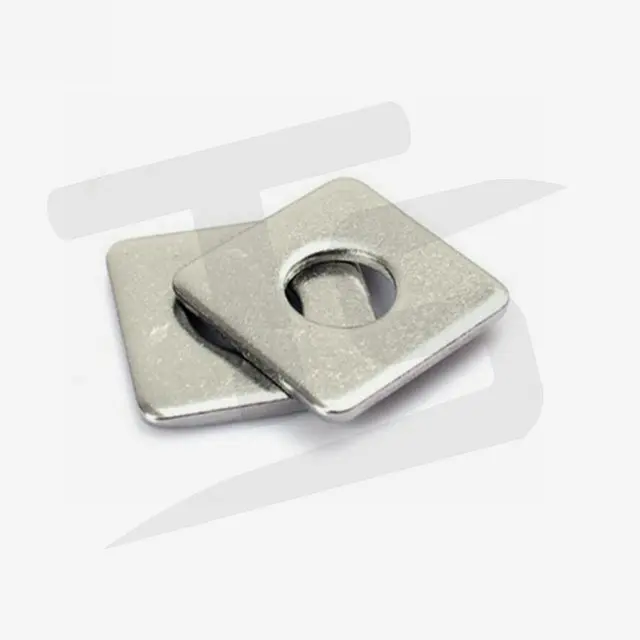

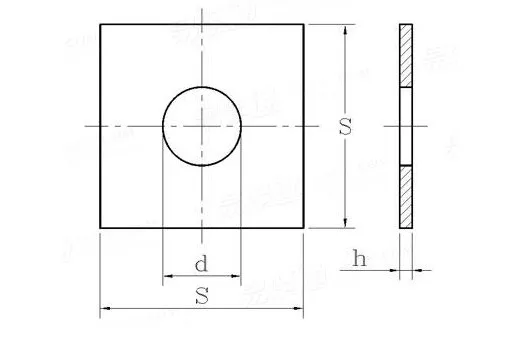

JIS standard Stainless steel 304 Flat Square Washers

Size Φ8,Φ12,Φ20 , SS304 Flat washers in store qty , Ready to ship.

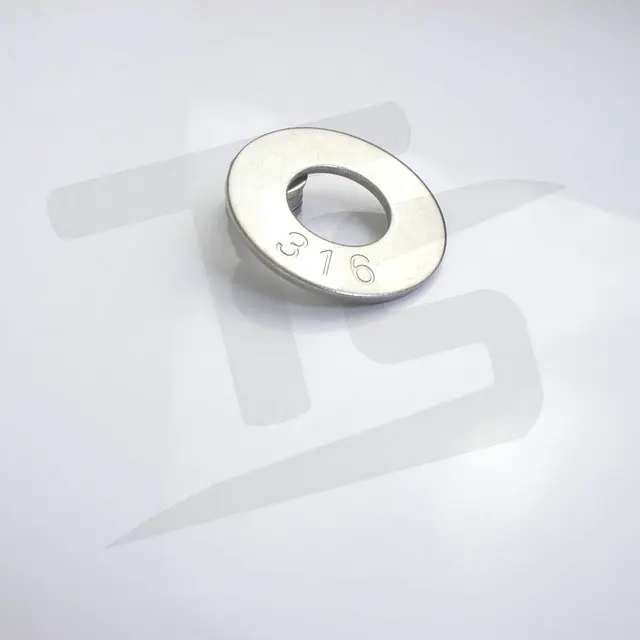

SS316 M8-1.5mm Grade A4 also Ready to Ship!





Refer washers, pls. see following

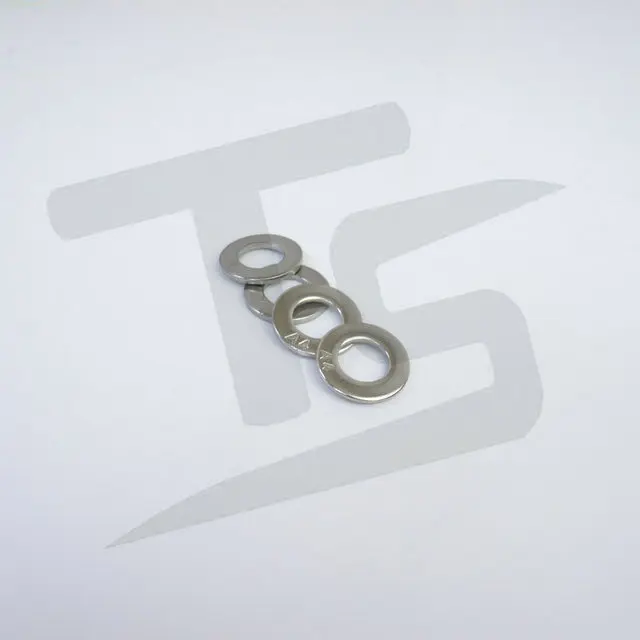

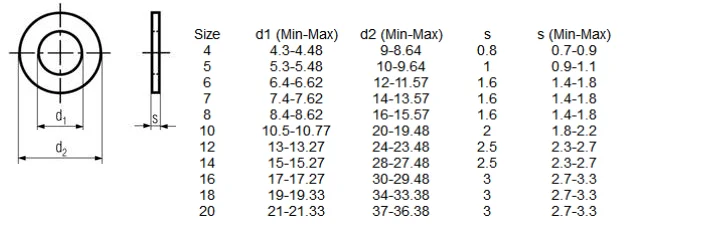

DIN125A Standard Flat Washers,

General Standard of the metric specifications, compatiable with the

ISO/EN/JIS/AS/NZS/GB Related Standards






DIN126 Standard Flat Washers

Size	ID	OD	Thickness	Tolerance
5.5	5.5-5.6	10-9.1	1	1.2-0.8
6.6	6.6-6.96	12-10.9	1.6	1.9-1.3
7.6	7.6-7.96	14-12.9	1.6	1.9-1.3
9	9-9.36	16-14.9	1.6	1.9-1.3
11	11-11.43	20-18.7	2	2.3-1.7
13.5	13.5-13.93	24-22.7	2.5	2.8-2.2
15.5	15.5-15.93	28-26.7	2.5	2.8-2.2
17.5	17.5-17.93	30-28.7	3	3.6-2.4
20	20-20.52	34-32.4	3	3.6-2.4
22	22-22.52	37-35.4	3	3.6-2.4
24	24-24.52	39-37.4	3	3.6-2.4
26	26-26.52	44-42.4	4	4.6-3.4
30	30-30.52	50-48.4	4	4.6-3.4
33	33-33.52	56-54.1	4	4.6-3.4
36	36-37	60-58.1	5	6-4,
38	38-45	66-64.1	5	6-4.
42	42-43	72-70	5	7-5.
45	45-46	78-76.5	7	8.2-5.8
48	48-49	85-82.8	7	8.2-5.8
52	52-53.2	92-89.8	8	9.2-6.8



Other size
M10-M36 we have in store quantitys ,contact with us to confirm size and thickness and store qty.



Transhow Fasteners, produce and export a wide selection of spring washers, flat washers, lock washers, retaining rings, internal circlips and external circlips, snap rings, E Rings, Adjusting Rings, Metal Stampings and the related products

.

Supply Standard Flat Washers, ANSI/ASME B18.22.1, ASTM F439, DIN125, ISO7089, 7090, DIN126, DIN9021, DIN440, DIN443, DIN1440, DIN6916, DIN7349, DIN7603, DIN7989, DIN434, DIN435



Spring Washer, ASME/ANSI B18.21.1 ASTM F959, DIN127, DIN128, DIN7980, DIN137A, DIN137B

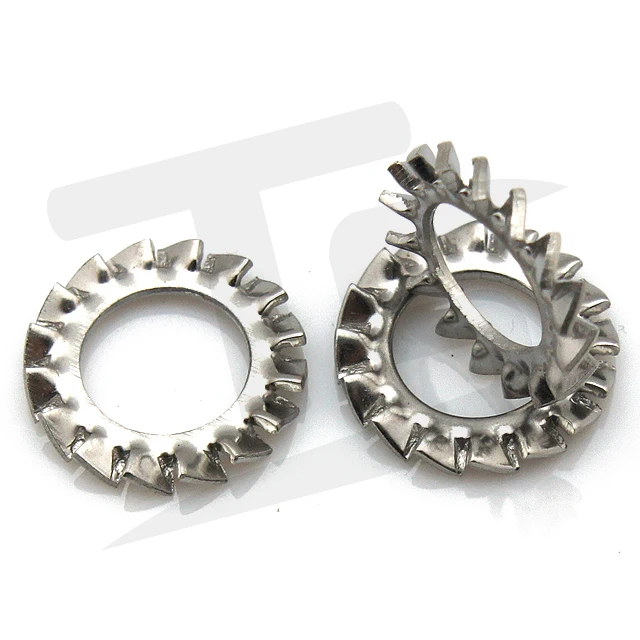

Lock Washer, DIN6797A, DIN6797J, DIN6798A, DIN6798J, DIN6798V, DIN6796

Retaining Rings, DIN471, DIN472, DIN6799, DIN705, DIN7993
