Price:$25,000.00 - $35,000.00

Quantity:


Product Overview

Description



Product Overview

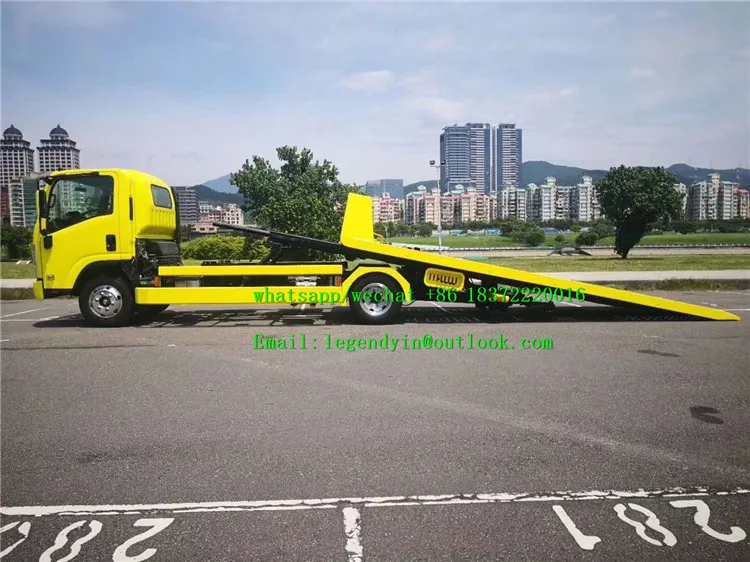

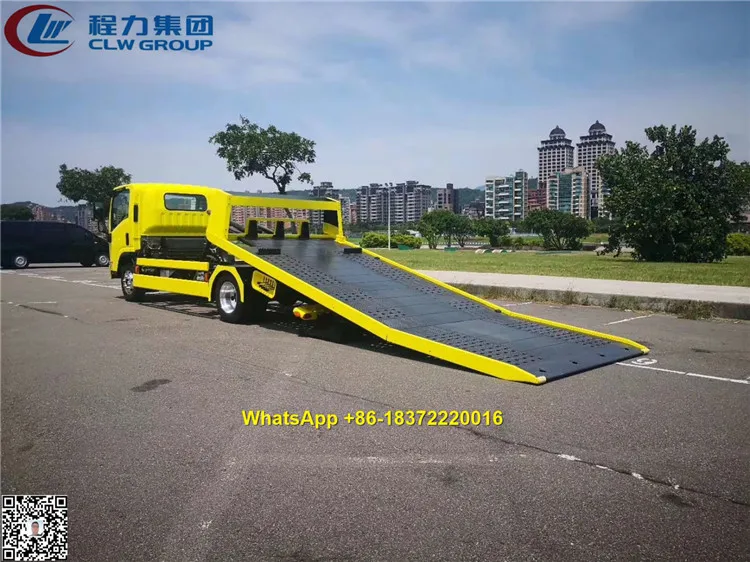

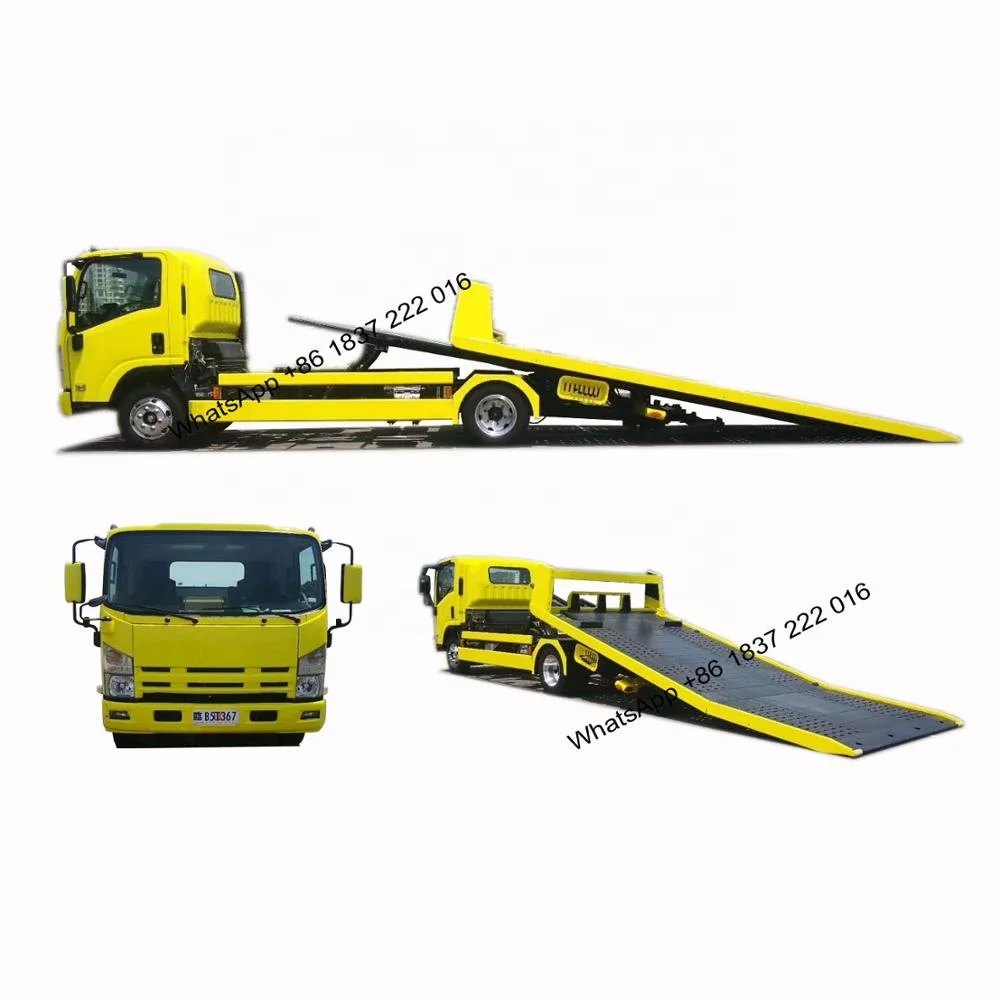

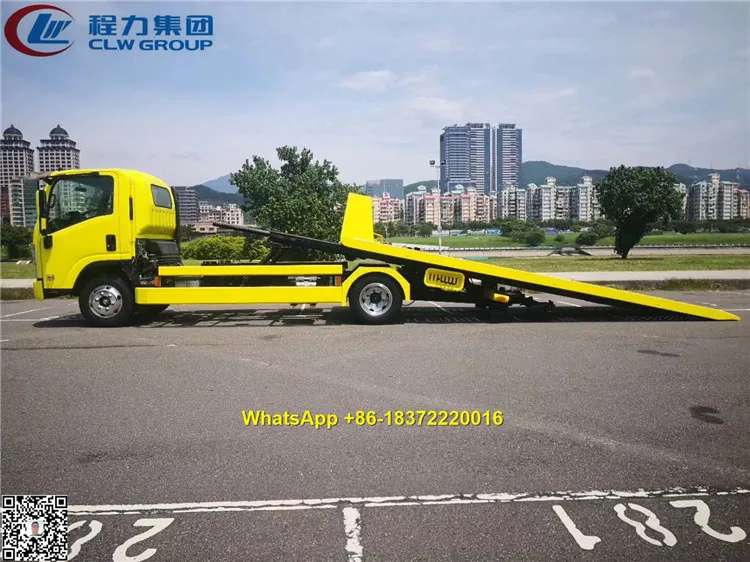

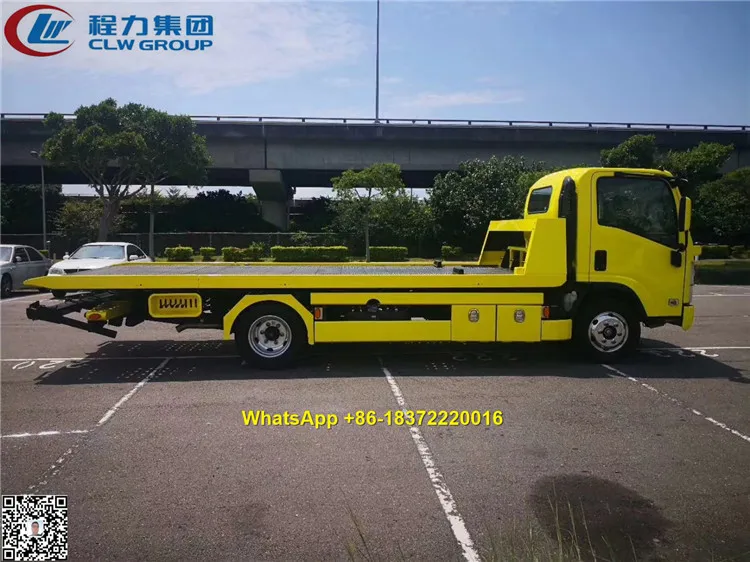

CLW5100TQZQL5 5 tons Japan Tow Truck Wrecker
> One-towed-two type tow wrecker truck, mainly used for emergency resuce services once your cars or vehicles got broken. Truck repairing service station, police station, after-sales center, etc.
> With strong lifting arm and rear tow arm, it can easily tow vehicles weight 4~8 tons;
> 5 tons winch with 25m steel rope can help the vehicle moving to the rear of vehicle that the engine of vehicle is broken
Import hydraulic system, more reliable and stable
> Control levers on boths side of wrecker truck, you can control it freely
> With one set of assist wheelers. When the wheel of cars broken, the assist wheelers can help the cars moving


FEATURES AT A GLANCE


Basic Parameters
- lSU2U 700P/190HP Diesel
- 5600x2350mm wrecker tray/plate
- Wrecker plate load 5-tons
- Wrecker rear tow arm 5 tons
- 5-ton hydraulic winch with 25m rope
- Double side linkage operation
- Two pcs assist wheelers
- Two pcs ‘L“ shape tire holder
- Can export upper body without truck


Wrecker Plate Load
Recovery Two(2) Cars
Customer/s feedback


PRODUCT SPECIFICATIONS




Integral vehicle
Tow Truck Type
One-tow-two cars type, wrecker plate type
Vehicle Model
CLW5100TQZQL5
Overall Dimension
7500x2300x2520 (mm)
Gross Weight
10,000 kgs
Tare Weight
4,500 kgs





Chassis
Chassis Brand
Qingling lSU2U

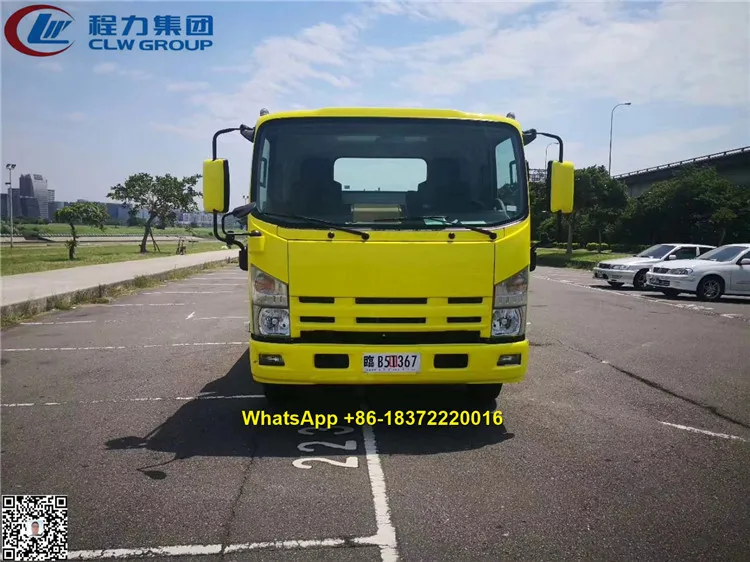

Cab
Single cab, power assist steering, fabric seat, seat belt, AM/FM radio USB speakers, with A/C, cab tilting
Engine
Qingling lSU2U 190HP Diesel Engine, 5192cc, turbocharged, intercooling, electronic control direction inject
Wheelbase
3815, 4475mm
Tire
235/75R22.5, 7 pcs
Axle Load
4 tons/7 tons

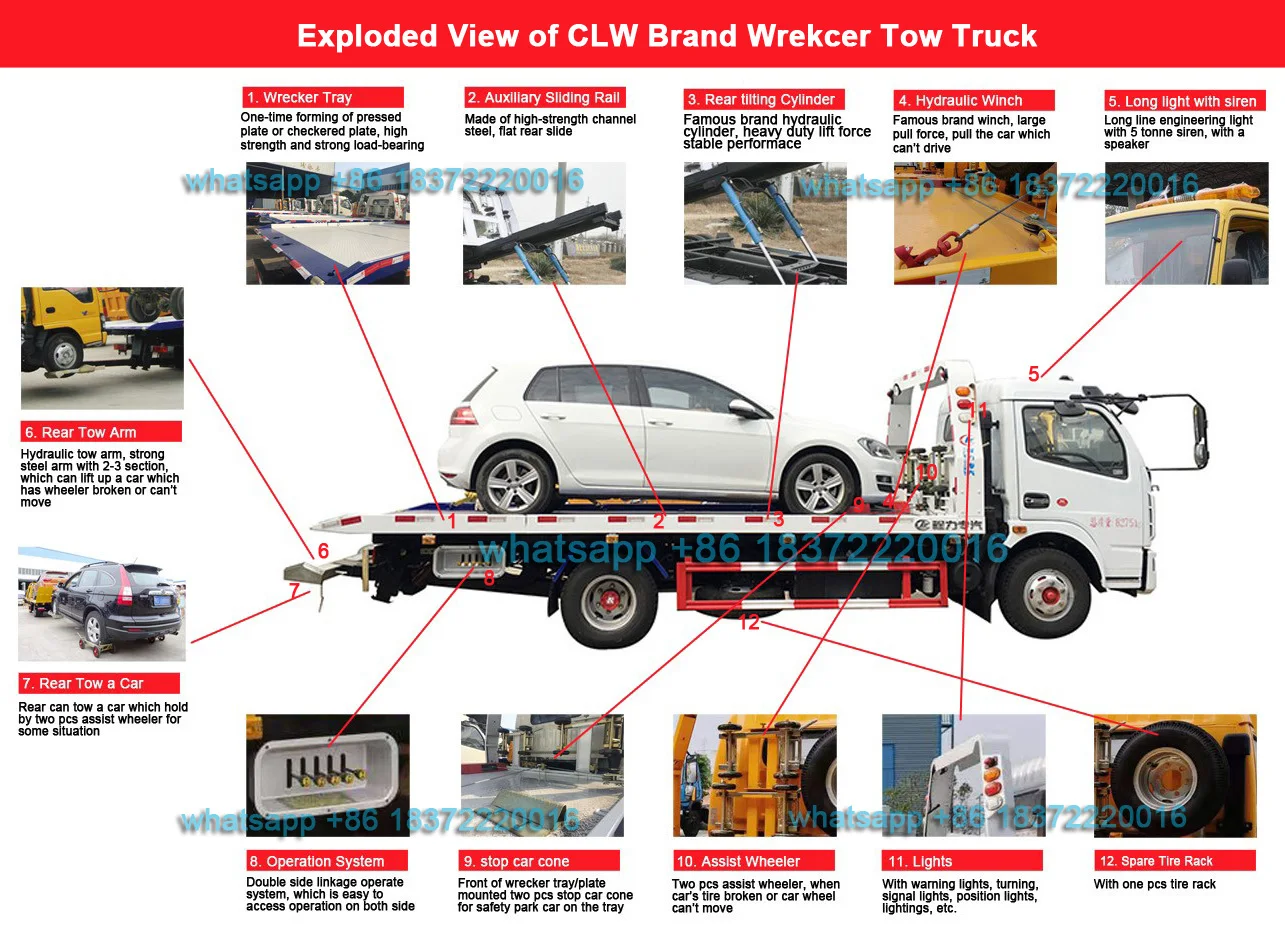

Upper Structure Recovery System

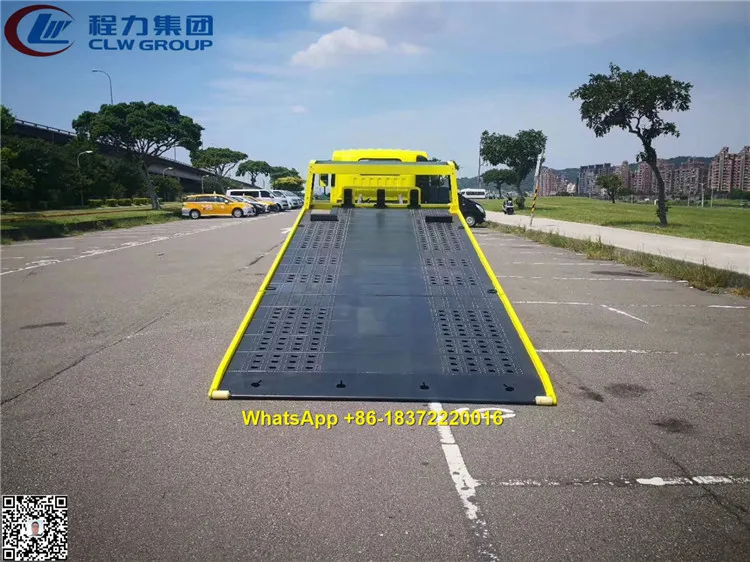

Integral Carry Plate
5600x2300 (mm)
Plate Carry Load
rated 5 tons, max 6-7 tons
Hydraulic Winch
5-ton pull force, with 25m steel rope
Rear Tow Arm
Tow lift force 3.5 tons (vertical force)
Tow drag force 6-8 tons (horizontal force)
Rear Tow Arm Extension
1.5 meters

Relation Parts

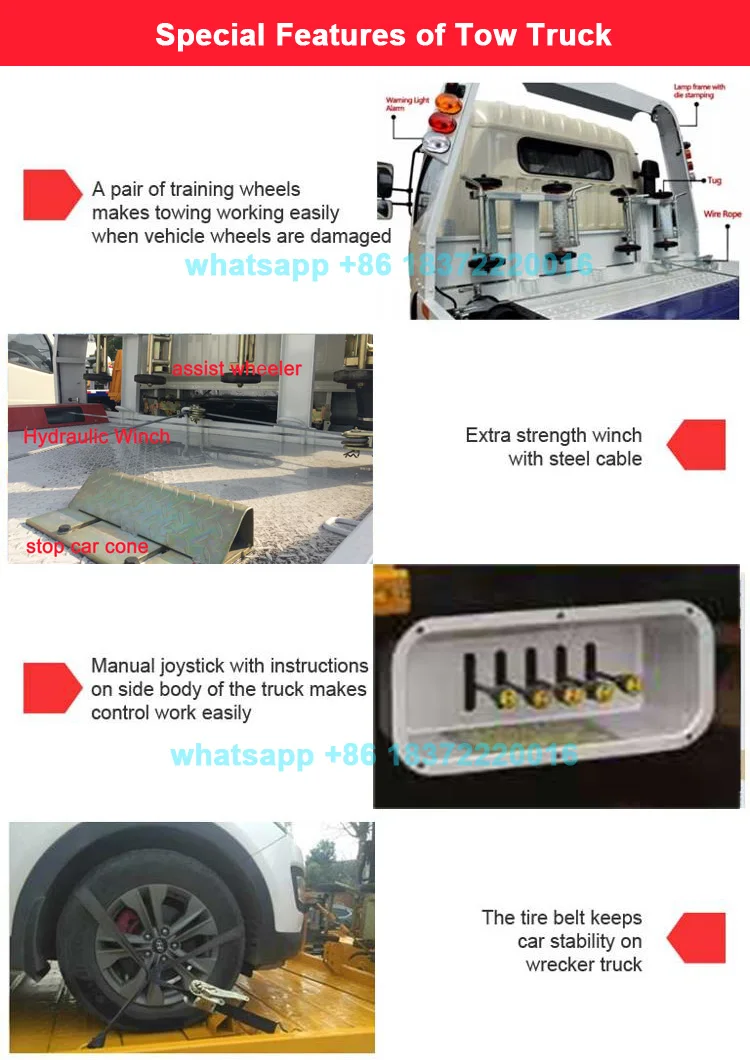

Equipped with a 50kN hydraulic winch (25m steel wire rope), two auxiliary trolleys, four binding belts, lightweight mud guards, a pair of 7-shaped forks (used when the tire is locked), a pair of square sleeves, and a triangular tire block A pair of devices, a pair of LED driving lights, engineering police lights with siren, a megaphone, and a tool box.
For more details or you have special requirements, please directly contact us whatsapp/wechat +86 18372220016, email legendyin @ outlook.com


Manufacturing Technique






Successful Project


Exported to Ghana
China Jiangsu Customer
Exported to Fiji


SIMILAR PRODUCTS




Our Factory Information


Chengli Special Automobile Co.,Ltd
Establized in 2004, parent company, developed to now ChengLi Group, which is the Biggest Special Truck Factory in China, located in the Southern Suburb of Zengdu District, Suizhou City, is a diversified group company integrating automobile technology research and development, automobile manufacturing, automobile modification, auto parts, finance, education and home investment.

Chengli "CHENGLIWEI" brand special trucks are the best sells in 29 provinces and autonomous regions of whole nation, and exported to South America, the Middle East, Central Asia, Southeast Asia, Africa, more than 30 countries and regions. At present, our Group, in comparison with the same industry, has the most complete production qualification, the largest variety of products, among which the sales of sanitation trucks, fuel tanker truck and light special trucks continually ranked first in whole country for many years.

CLW Group "CHENGLIWEI" brand products occupy an important share in the domestic and international market. The leading products include: all kinds of water trucks, garbage trucks, suction sewage trucks, road sweeper trucks, fuel tank trucks, chemical trucks, wrecker trucks, aerial work trucks, fire trucks, truck mounted crane, refrigerated trucks, van trucks,LPG(pressure vessel), highway maintenance trucks, flatbed transport trucks, bulk grain trucks, dry mix mortar trucks, mobile beekeeping trucks, stage trucks, LED advertising trucks, mobile sales truck, heavy duty truck mounted crane, concrete pump trucks, drug transport trucks, food transport trucks, new energy trucks, and other series of more than 800 varieties. Compared with same industry in domestic, ChengLi is a special trucks company with the largest variety of products, the most complete production qualification, first-class production equipment and the most complete detection means.


Contact information


We are Direct Factory which is verified by Alibaba office. Welcome your visit and inquire!
For a quick response and better communication, you can call me through whatsapp or wechat +86-18372220016. I will reply you within half hour with pictures, price and specifications! Thanks.
