Industrial common salt powder grinder machine

Share on:


Price:RUB 743,271.00
Price in USD:Details

Quantity:


Product Overview

Description

Industrial common salt powder grinder machine

Product Application

  This machine is made up of crusher, cyclone separator, pulse dustevacuator box and blower fan etc.
  By means of relative motion between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material.  The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder. The crushing size can be adjusted by the screen.

  Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.

Main Features

1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)No need screen, particle size can be changed by change speed; particle size varies from 12 to 120 mesh.
5) Around mill chamber and bearing, there is water-cooling jacket to cool the machine.

Technical Data
Detailed Images

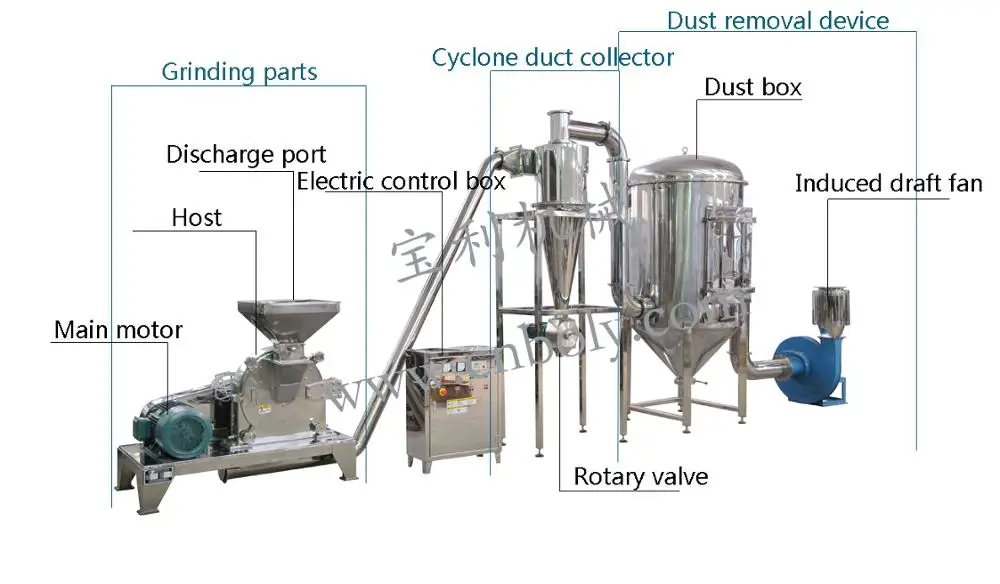

Grinding Parts

(1) The left motor is grinding motor;
(2) The circular one is grinding chamber

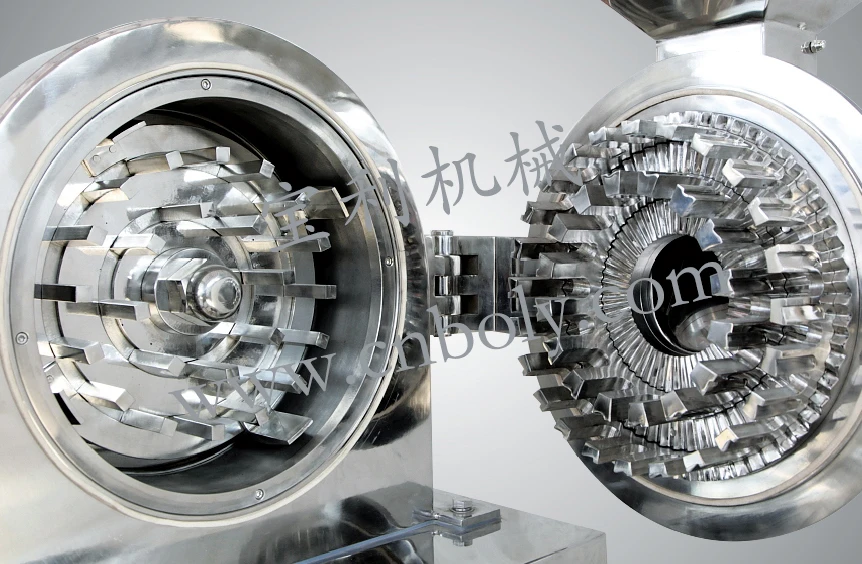

Inside mill chamber

This is toothed disc Type.

Also we could change turbo, hammer or any other type.


Cyclone part
(1) Cyclone can seperate dust from powder(granules)

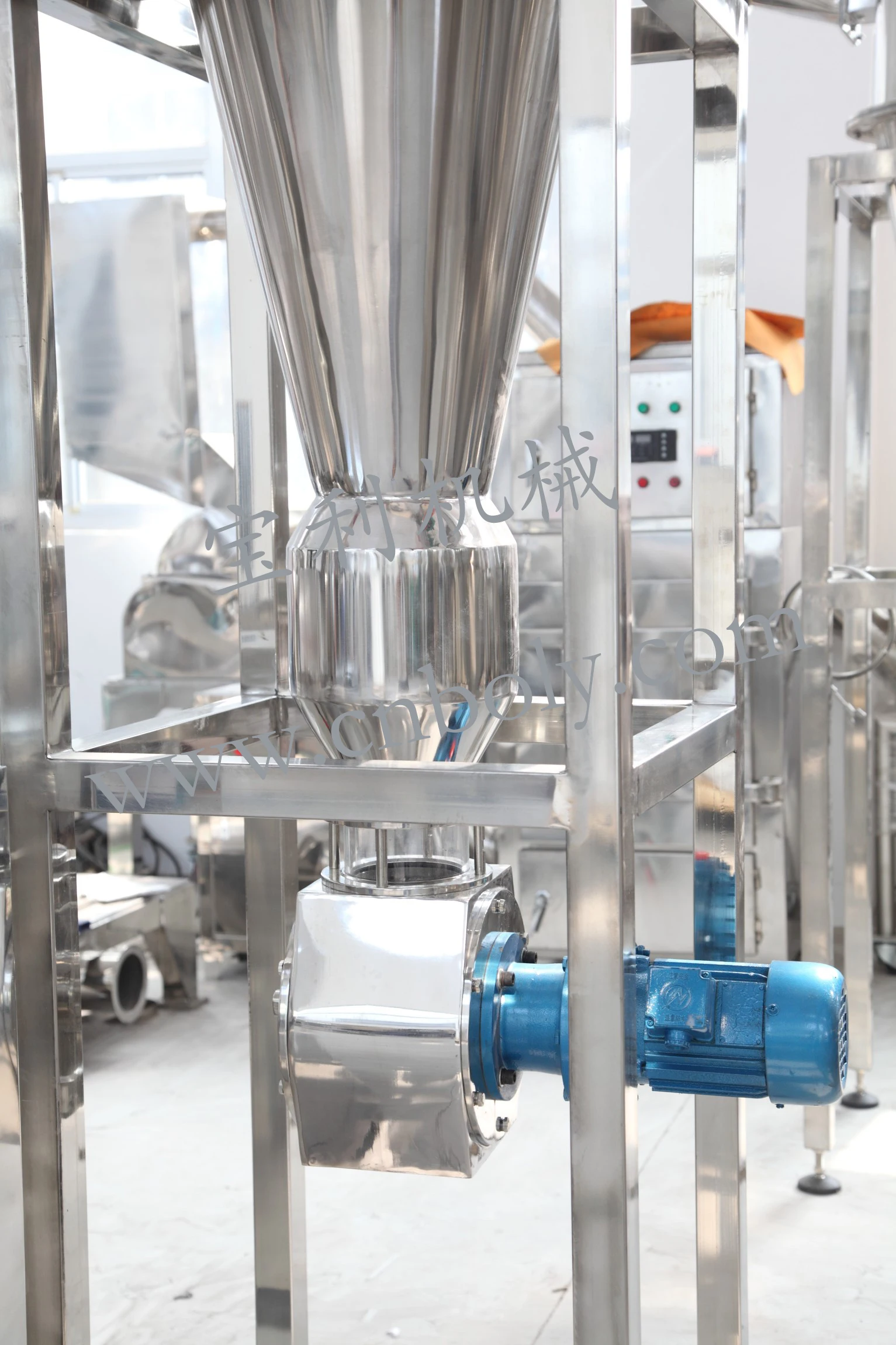

(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel and to clean it and dismantle is convinient.

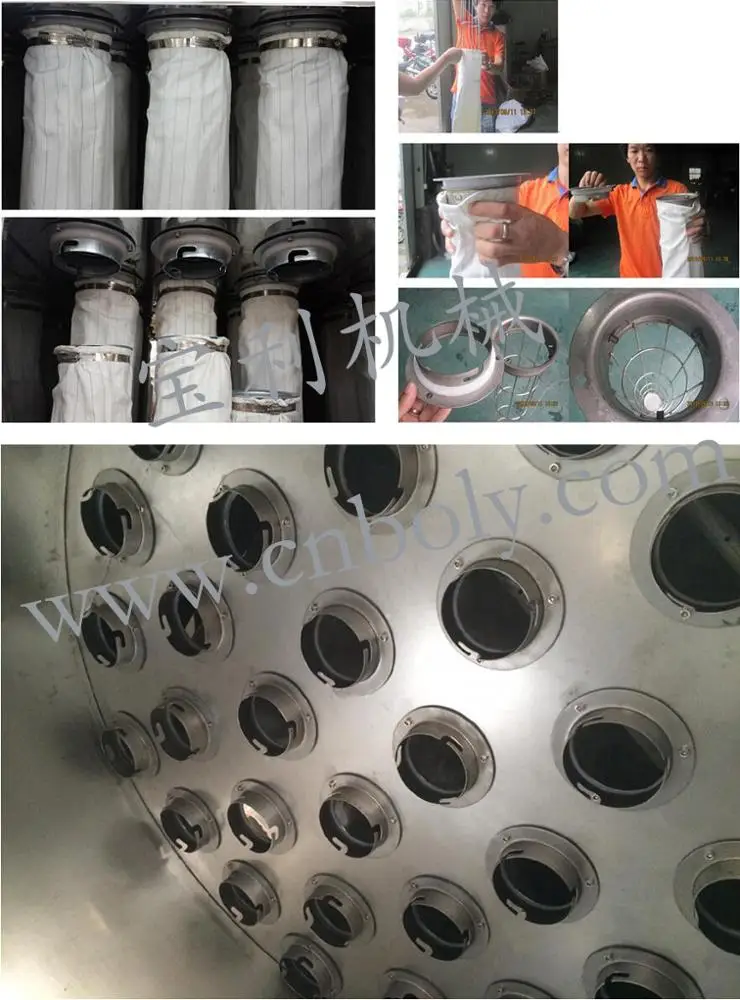

Pulse Dust Collecting box
The dust collecting bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environmental protection in waste gas discharge.




Related Products

sugar powder grinding machine

91.8% Response Rate

Electric Herb Spice Grinding Machine

91.8% Response Rate

chilli power grinding machine

91.8% Response Rate

If you want to send inquriy about Industrial common salt powder grinder machine, could you please tell me?
1) What material you want to grind, is it dry? what is the size of feed material
2) What capacity you expect ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.


Certifications
Our Company

Jiangyin Baoli Machinery Manufacturing Co.,Ltd is a manufacturing-oriented enterprise founded in 2004.

After more than ten years of unremitting efforts, our company mainly applicated in Crushing/Mixing/Coneying/Sifting/Drying equipments from all over the world.

Packing & Delivery
Packaging
Size
Depends
Weight
Depends



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
20 ft container; 40 ft container
Weight
Depends



Packaging Details
If machine is big, we will fix the machine inside container with steel wires and nails.

Machine won't move inside the container.
Our Service

Pre-Sales Service

* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.

After-Sales Service

* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.
