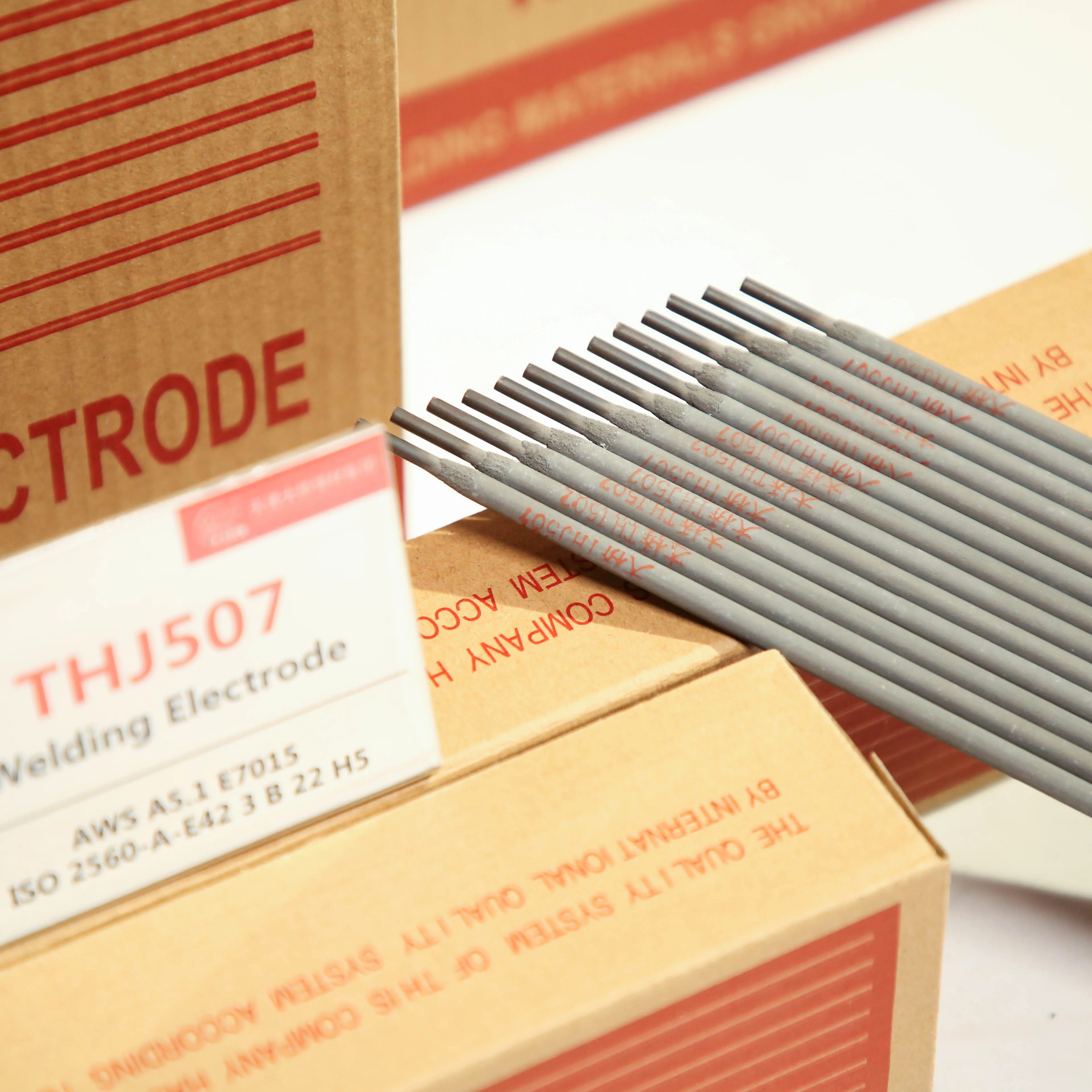

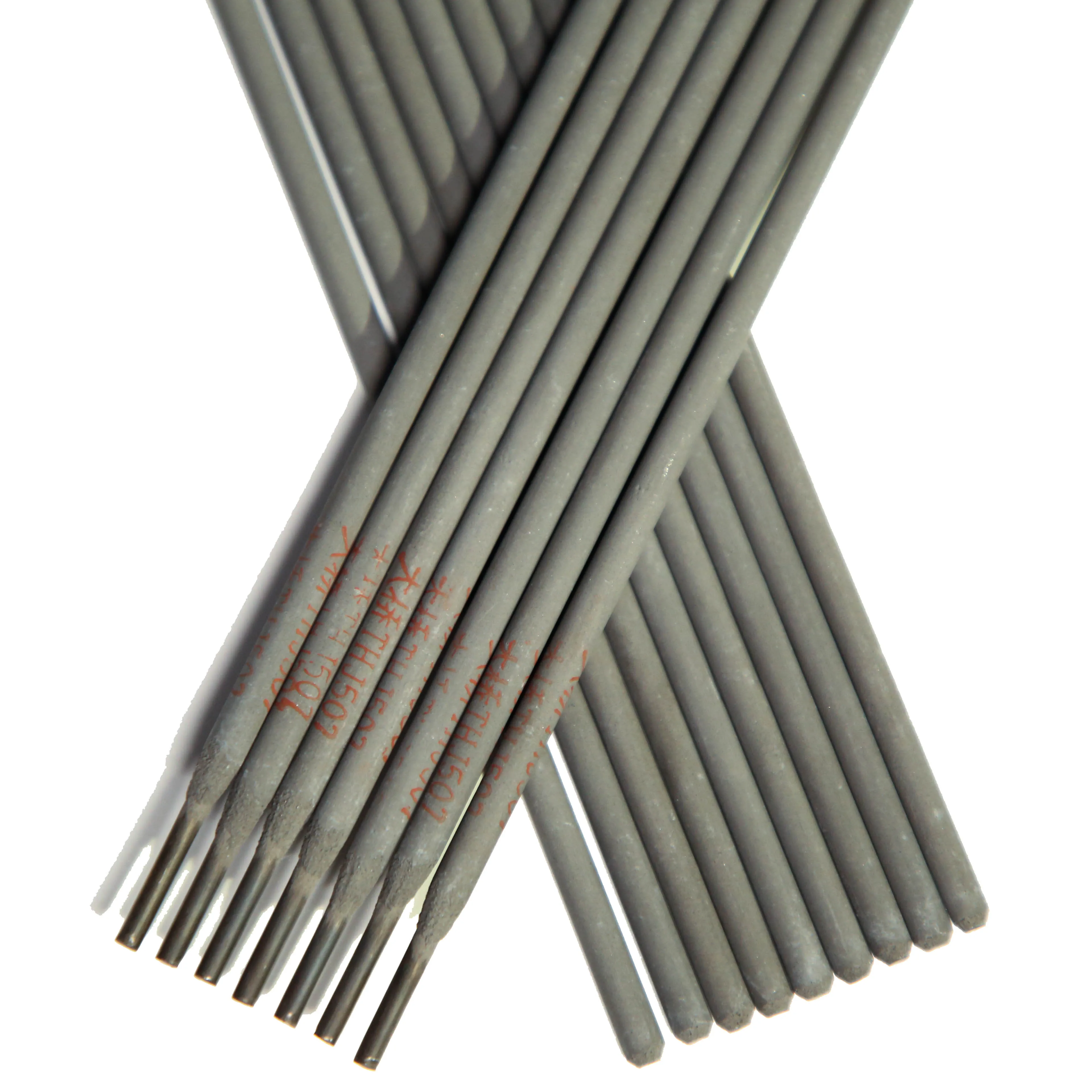

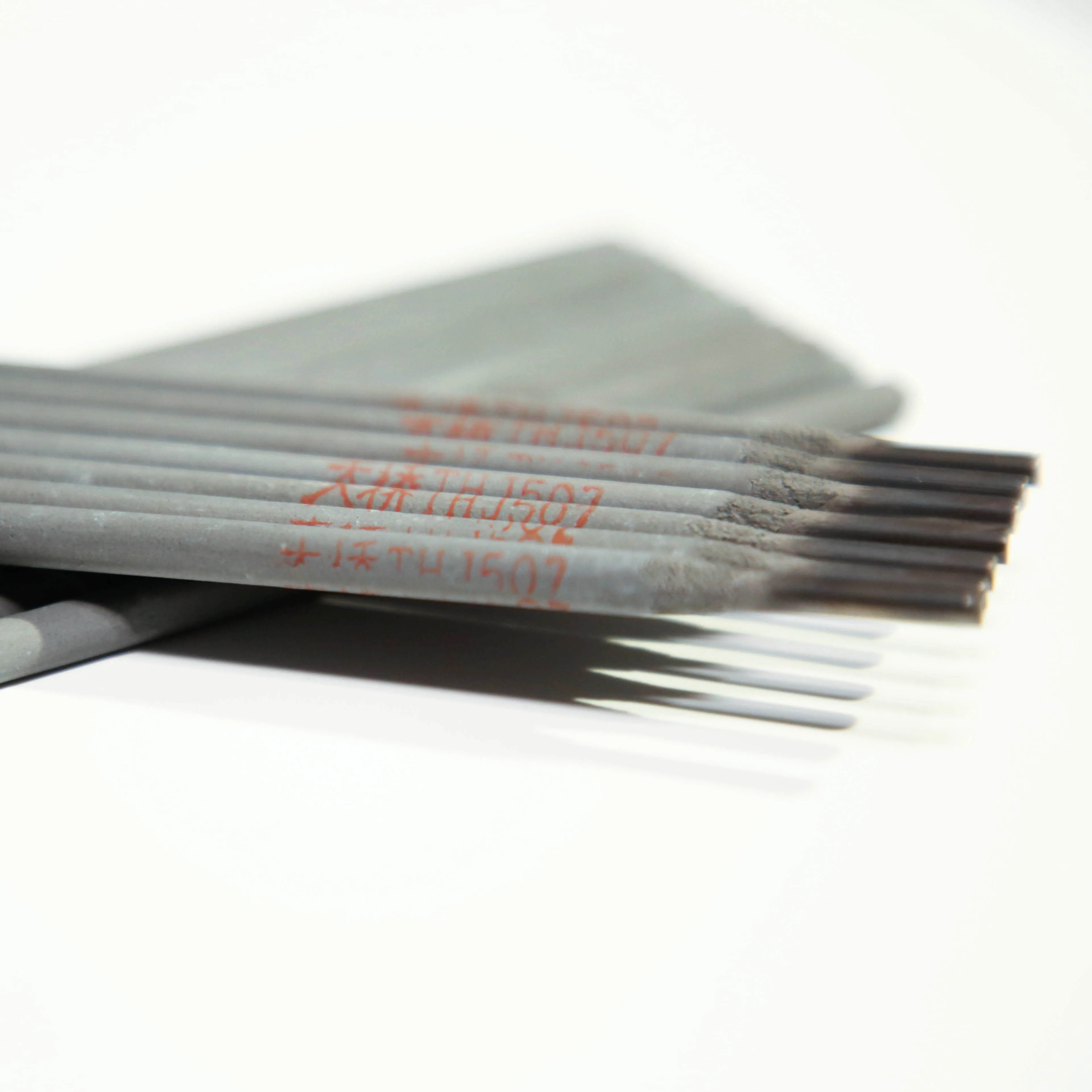

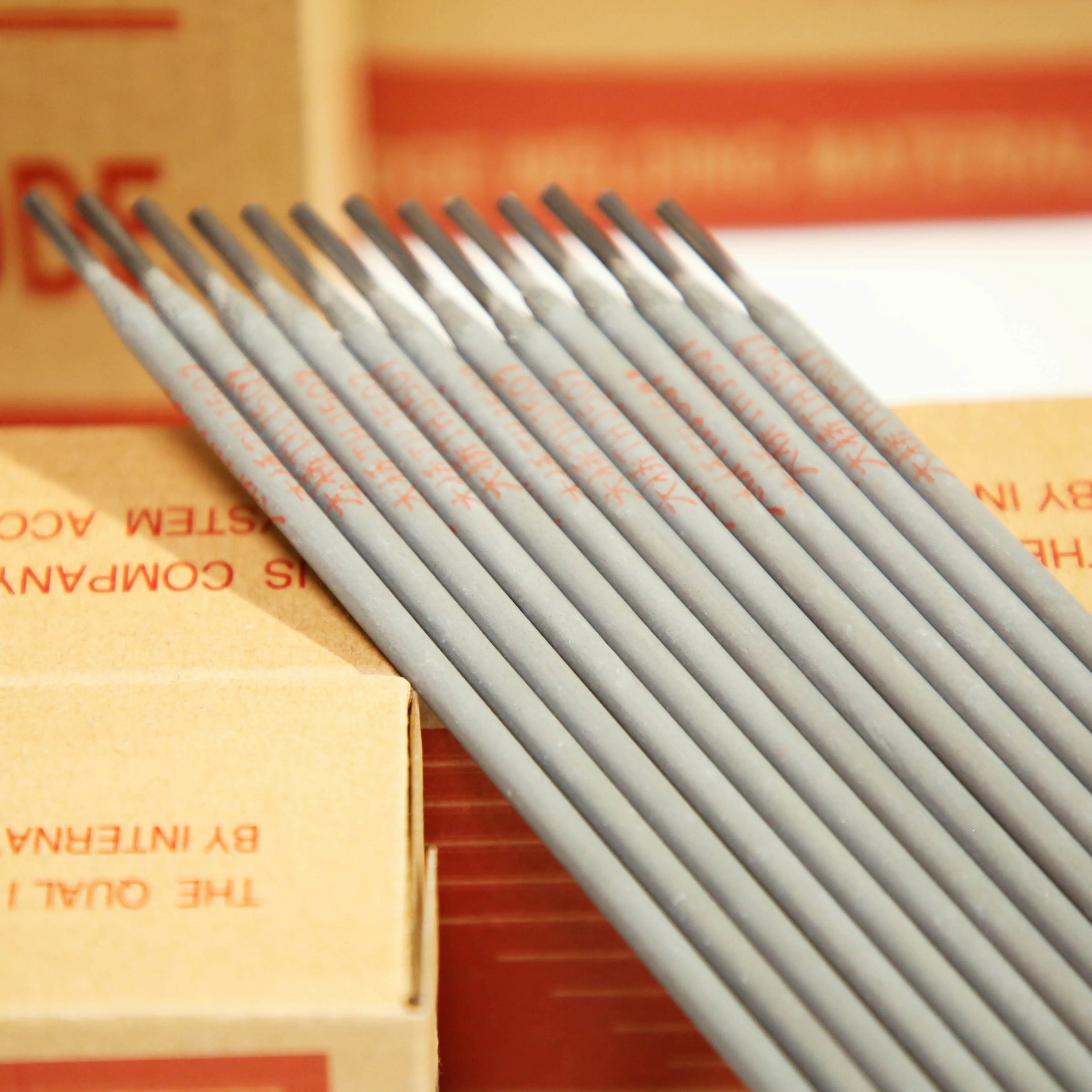

Welding Electrode J507 AWS A5.1 E7015 3.2mm

Product Overview

Description

THJ507                                                     AWS A5.1 E7015

Basic-sodium Type Electrode                              ISO 2560-A-E42 3 B 22 H5

GB/T 5117 E5015



Applications:

It is suitable for the welding of carbon steel and low alloy steel structure, such as Gr.50 etc.



Characteristics:

THJ507 is basic-sodium type electrode with low hydrogen. Can be weld for all-position with DC⁺ only. It have excellent welding performance as good arc stiffness, little spatter, easy slag removal etc., and perfect mechanical properties of deposited metal.



Welding Positions:

PA, PB, PC, PD, PE, PF



Attention:

1. The electrode must be re-dry by 350℃-380℃ for 1 hour before welding.

2. The rust, oil, water and other impurities of the weld area must be removed before welding.



Chemical Composition of All Weld Metal:                     (Wt. %)

Items	C	Mn	Si	S	P	Ni	Cr	Mo	V
Require-ments	≤0.10	0.85-1.40	≤0.65	≤0.030	≤0.035	≤0.30	≤0.20	≤0.30	≤0.08
Typical Results	0.07	1.00	0.32	0.012	0.017	0.030	0.035	0.005	0.004



Mechanical Properties of All Weld Metal:

Items	Rm/MPa	Rel/Rp0.2 /MPa	A/%	KV2 (-30℃) /J
Requirements	500-640	≥420	≥22	≥80
Typical Results	580	490	30	180



X-ray Radiographic Inspection:

LevelⅠ



Typical Operating Procedures:(DC⁺)

Diameter (mm)	2.0	2.5	3.2	4.0	5.0	5.8
Length (mm)	300	300	350	400	400	400
Current (A)	40-70	60-90	90-130	140-180	180-230	20-280



Classification of Society Certification:

Ship Inspection Agency	ABS	BV	CCS	DNV.GL	RS
Recognition Level	3YH10	3YHH	3YH10	3YH10	3YH10
Ship Inspection Agency	LR	NK	KR	RINA	---
Recognition Level	3YmH15	KMW53H10	3YH10	3YH10	---



The European Union Certification:

Certification Authority	CPD - CE certification of steel structure
Grade	ISO 2560-A-E42 3 B22H5
