High Speed Molybdenum WEDM Hot Sale Factory Supplier EDM Machines Supplier DK7750 EDM Wire Cut Cutting Machine
- Category: >>>
- Supplier: Ipretech Machinery Company Limited
Share on (60831103476):
Product Overview
Description
Product Description
Ipretech Machinery——molybdenum WEDM is widely used in fields of mold, bulk production, electronic equipment, precision machinery, medical equipment, auto parts, aerospace and military industries, etc.
Specifications | Unit | DK7750 |
Worktable size | mm | 730*1040 |
X-Y Stroke | mm | 500*630 |
Cutting thickness | Mm | 500 |
Taper Angle | D/mm | ±3 |
Max. Taper Angle | D/mm | ±45 |
Wire Running Speed | m/s | 11.5 |
Table Loading | kgs | 800 |
Wire diameter | mm | 0.1-0.2 |
Worktable moving pulse | mm | 0.001 |
Machine weight | Kgs | 2300 |
Overall size | Mm | 1750*1350*1950 |
Max.Cutting Speed | Mm/min | 150 |
Cutting Accuracy | mm | 0.015 |
Cutting Roughness | Ra | <2.0 |
Power Consumption | KW | 1.5 |

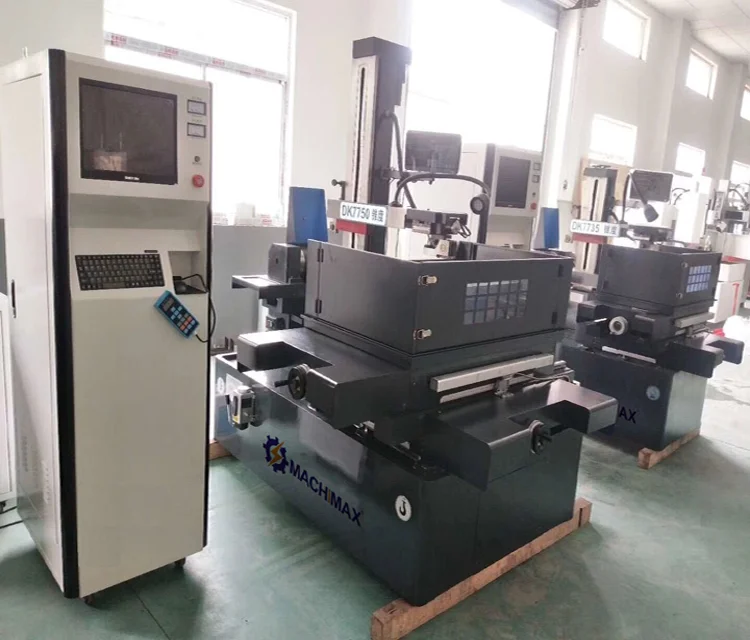

Machine Photo
Machine Features
· Stable structure: HT250 casting materials, resin sand process, enhanced internal stiffeners, after 2nd tempering and natural aging, which reduces casting distortion. Guide rail after bearing steel forging through heat treatment, to reach the standard hardness and extend the using life.
· High precision process: 15” LCD display, windows basis P4, 1G, 500G hardware, Autocut with Autocad programming synchronously, steel guide rail and ball screw
· Controller equipment: High integrated and intelligent of the electrical panel into only HF board and driving board, which is much easier for further maintenance and service.
Detailed Images
Our Service
1. Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2. After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One-year warranty.
*Free techinical support for machine life-sapn
Packing & Delivery
Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of electric sparking series CNC machine and milling machine, machine center, CNC lathe and so on. Our company all products are independent research and development, design and manufacture by advanced design idea & method, the machine body adopts modularization, solid sealed box type structure, after artificial aging qualified castings and a long time the natural aging, obtain complete and reliable stability, with our company independent research and development of the circuit system and software, has excellent mechanical and electrical matching performance, thus greatly improve the stability of product electrical performance.
Under the leadership of our boss Mr.JiaYi, the company has gained two systems ----ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, And own appearance design patent certificate and utility model patent certificate, science and technology enterprise qualification certificate 16pcs, ALSO ovserve contracts and keep promises etc. qualification and honor. Ipretech machinery have grown up to be one of the Top EDM manufacturer and Exporter in China. Our market covers the United States, Mexico, Brazil, Argentina, Chile, South Korea, Indonesia, Malaysia, Vietnam, India, Pakistan, Russia, Turkey,Egypt, Italy, Poland, the Czech Republic, Hungary and the United Kingdom.
