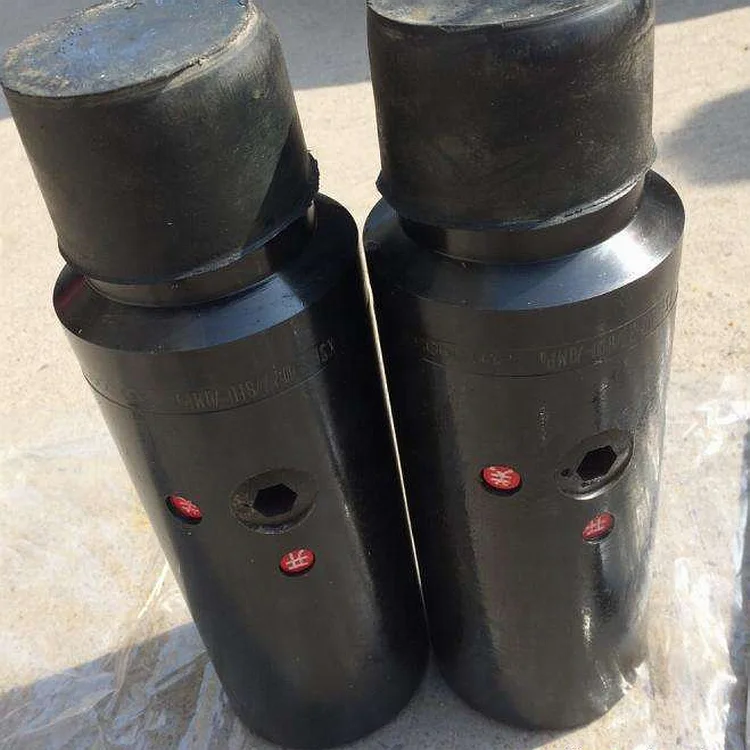

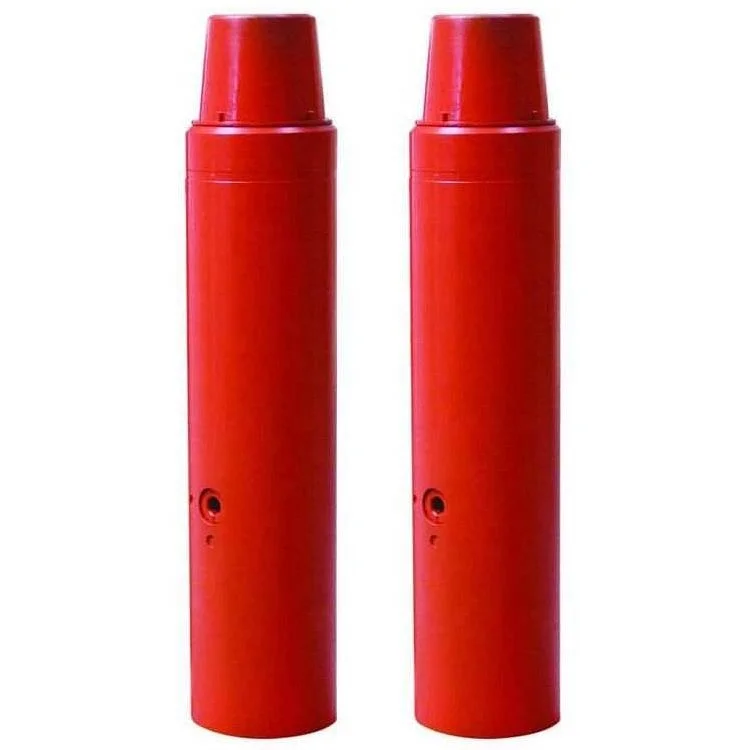

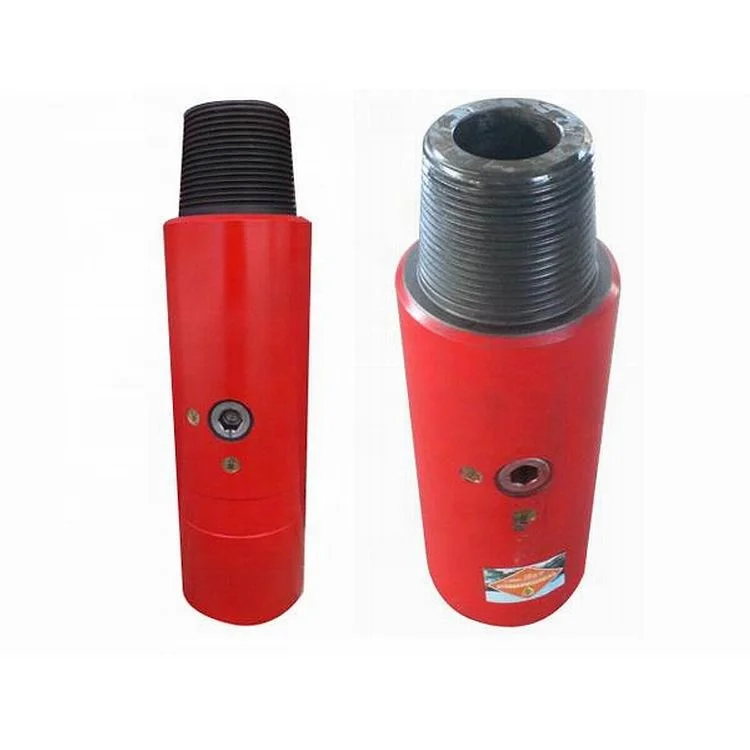

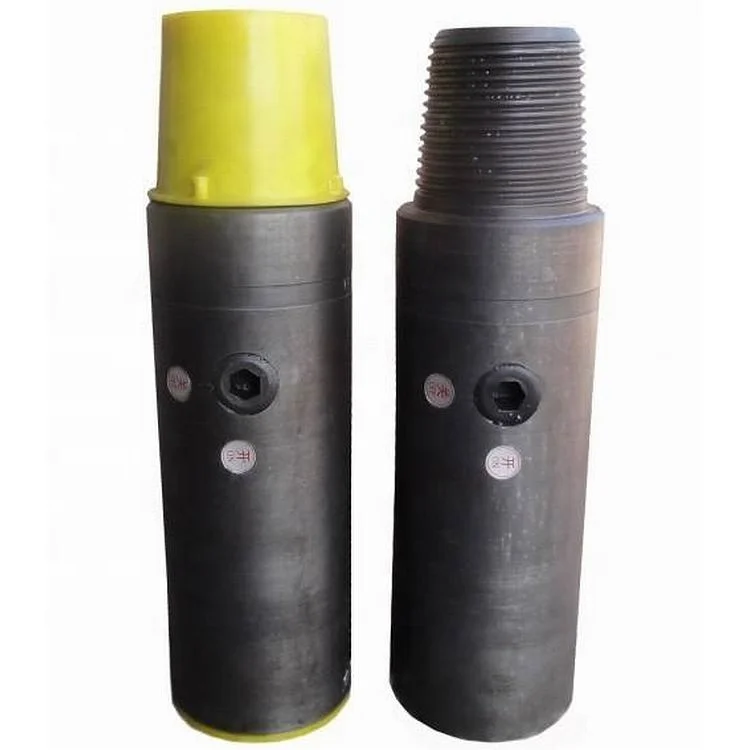

API Standard Kelly Cock Valve, Upper and Lower Kelly Valve

API Standard Kelly Cock Valve, upper and lower kelly valve

Descriptions

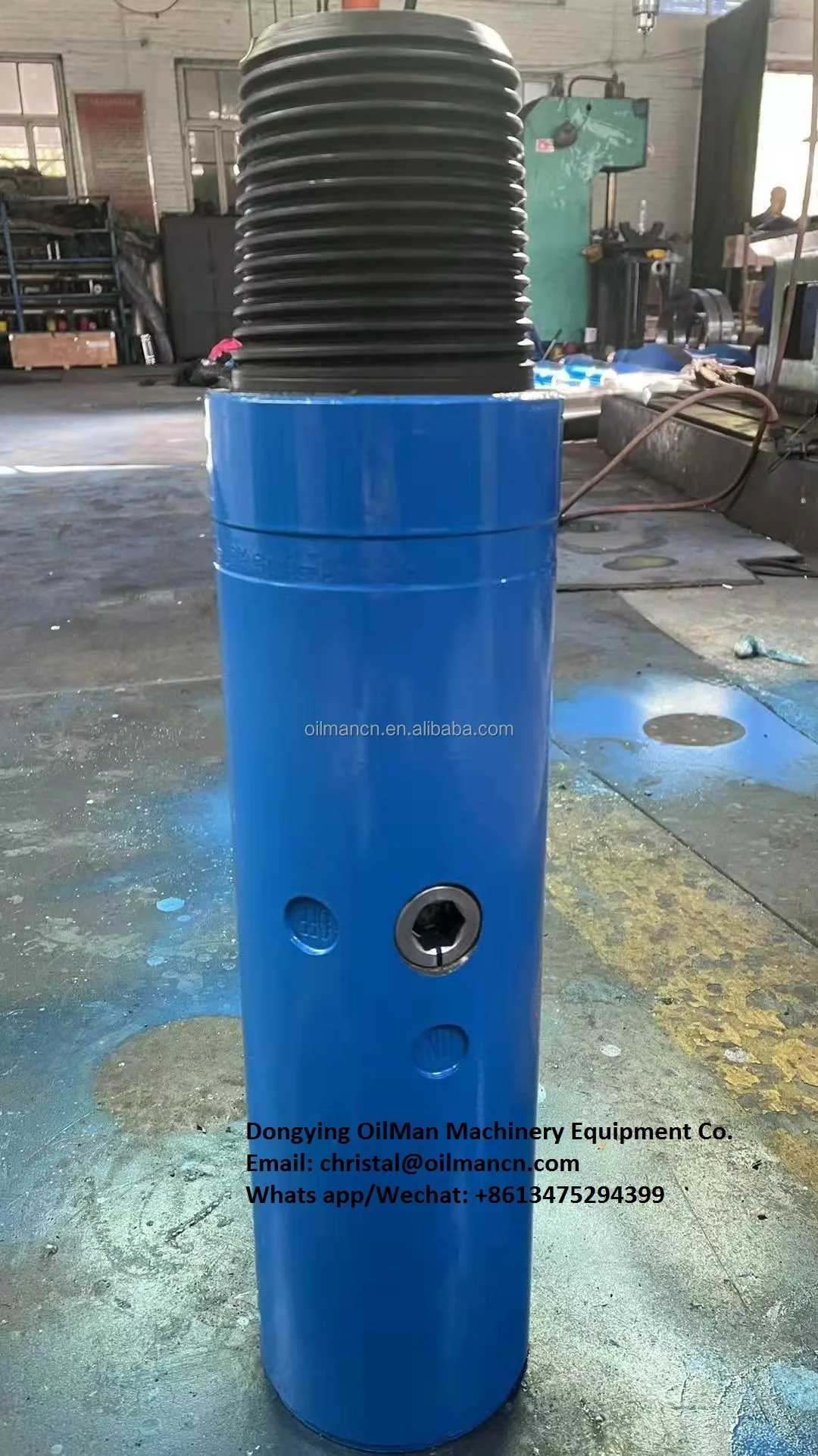

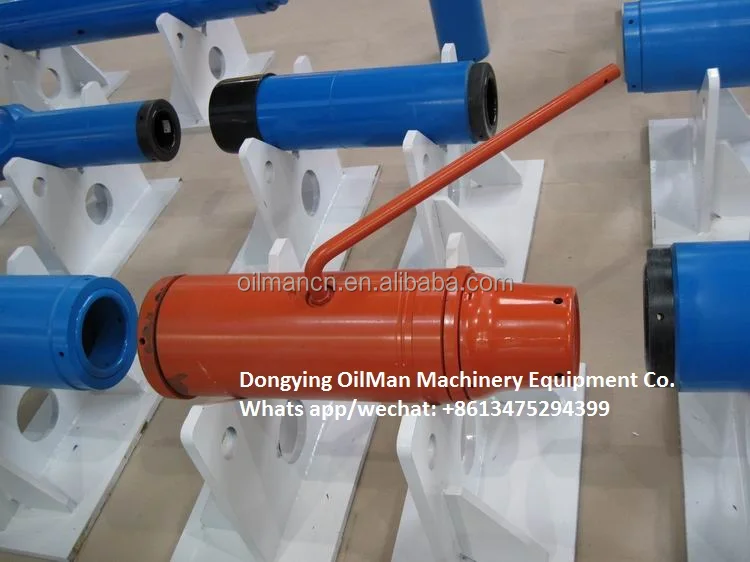

Kelly Valve also named Kelly Cock/Drill Pipe Safety Valve allowing free passage of drilling fluid without pressure loss. The valve can be used as a dill pipe safety valve or upper Kelly valve to control blowout pressures, or as a lower Kelly Valve to prevent loss of drilling fluid when the Kelly is disconnected. It has a pressure rating of 5,000psi or 10,000psi or 15,000psi.

Specifications

Kelly valve is a manually operated ball type drill stem valve; it is divided into upper Kelly valve and lower Kelly valve.

Kelly Valve features:

The sealing principle for Kelly valve is that the ball is positioned and provided with proceeding stress by the lower seat supported by spring load and a close seal between ball and ball seat is provided.

During normal drilling operation, the hole is kept unblocked by turning the stem to be “on” position; In case of kick or blowout, turn the operating stem to be “off” position to close off the internal bore of drill string, the kick or blowout accident is avoided due to a high pressure sealing situation between ball and ball seat.

When ordering please specify:

Upper or Lower type;

Tool OD;

Working Pressure: 5,000 / 10,000 / 15,000 PSI;

Tool connection.

Specifications - Upper Kelly Valve

Specifications - Lower Kelly Valve

API Standard Kelly Cock Valve, Upper and Lower Kelly Valve

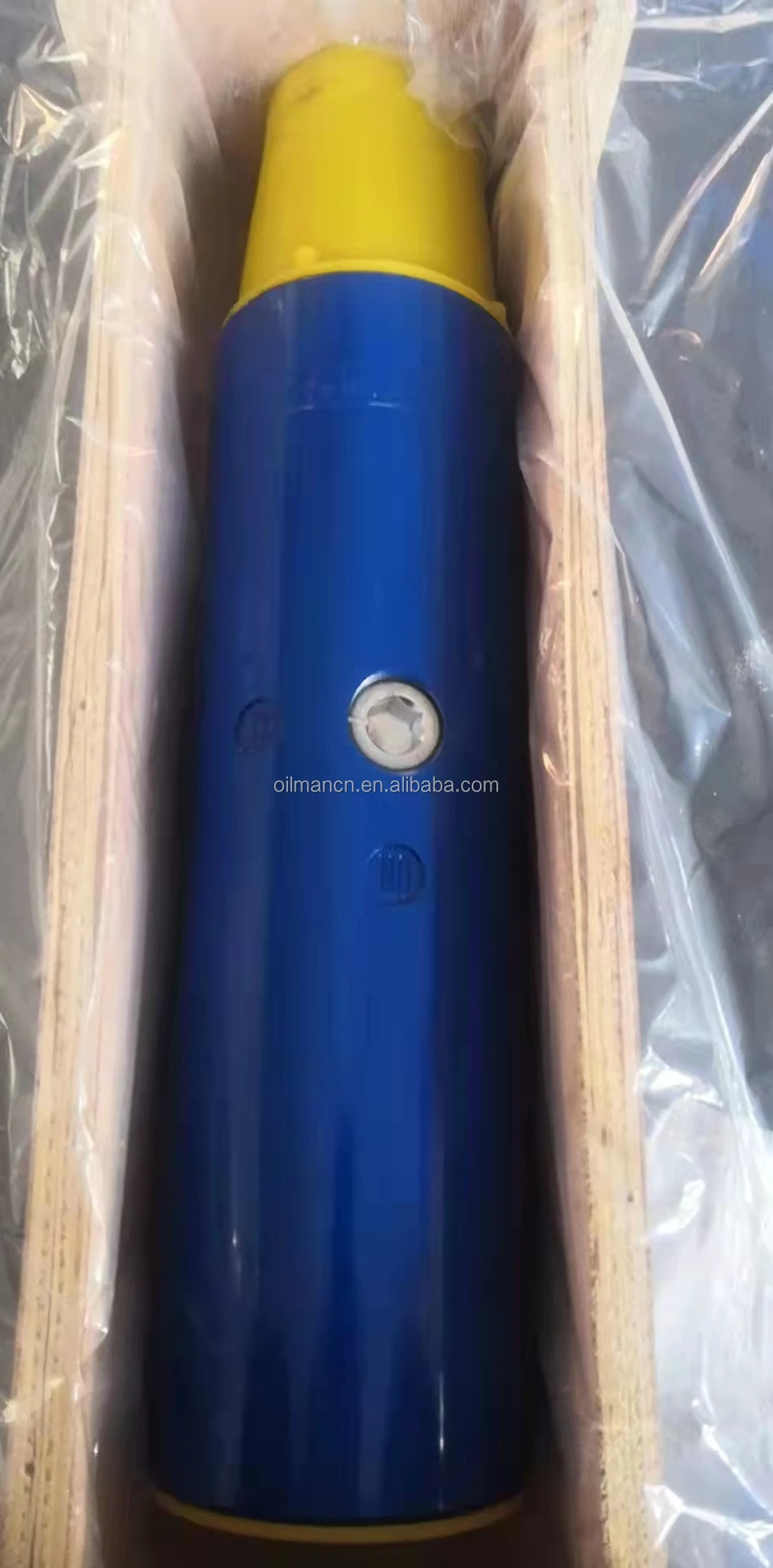

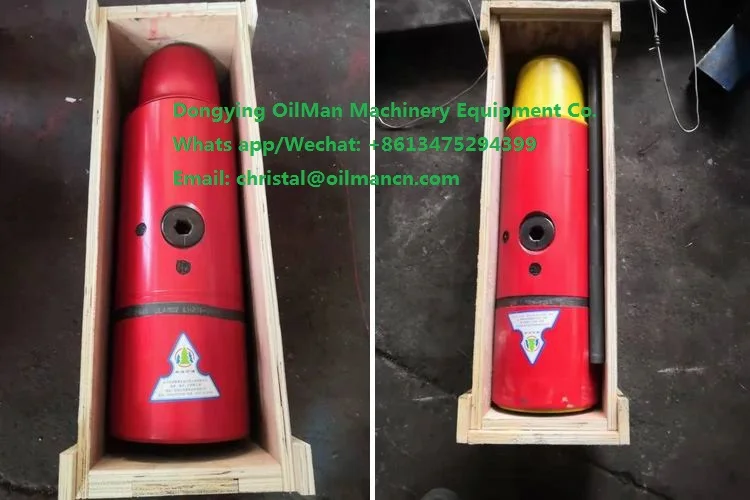

Packing: Wooden case, or customized packing.

Delivery time: Stock or depending on quantity

Delivery: By express, truck, train, air, sea

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.

Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.

I. Equipment arrived at the scene, by my company to send technical personnel and service personnel arrived at the scene, the installation of equipment debugging and technical training.

II. Equipment from the date of acceptance, the warranty period of one year, the warranty period, equipment problems, we respond within 12 hours, if necessary, our service staff received a notice within 5 days (international) to reach the scene, the two sides Technical analysis, a product quality problems, we are responsible for free repair or replacement, more than the warranty period, we provide technical services and spare parts supply.

III. After the device is running, we will conduct a telephone tracking service, and regular user visits.
