[JT-ML750]Die cutting and paper creasing machine
US $4500-$6500

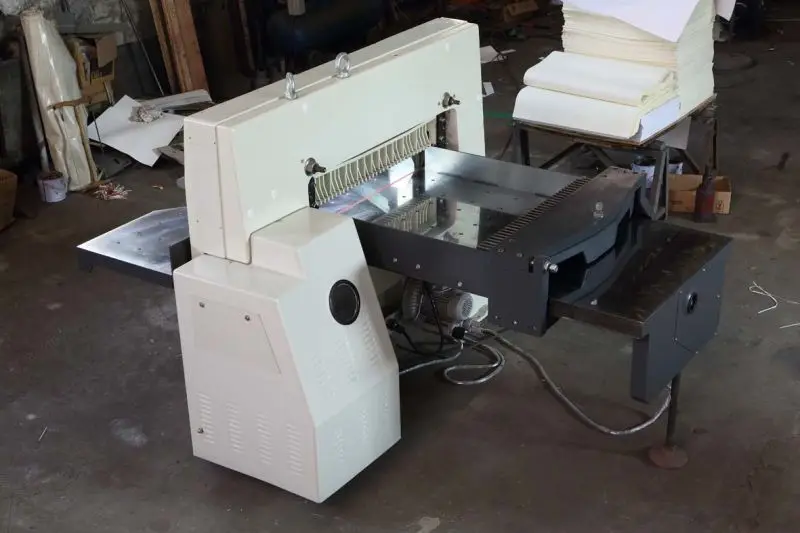

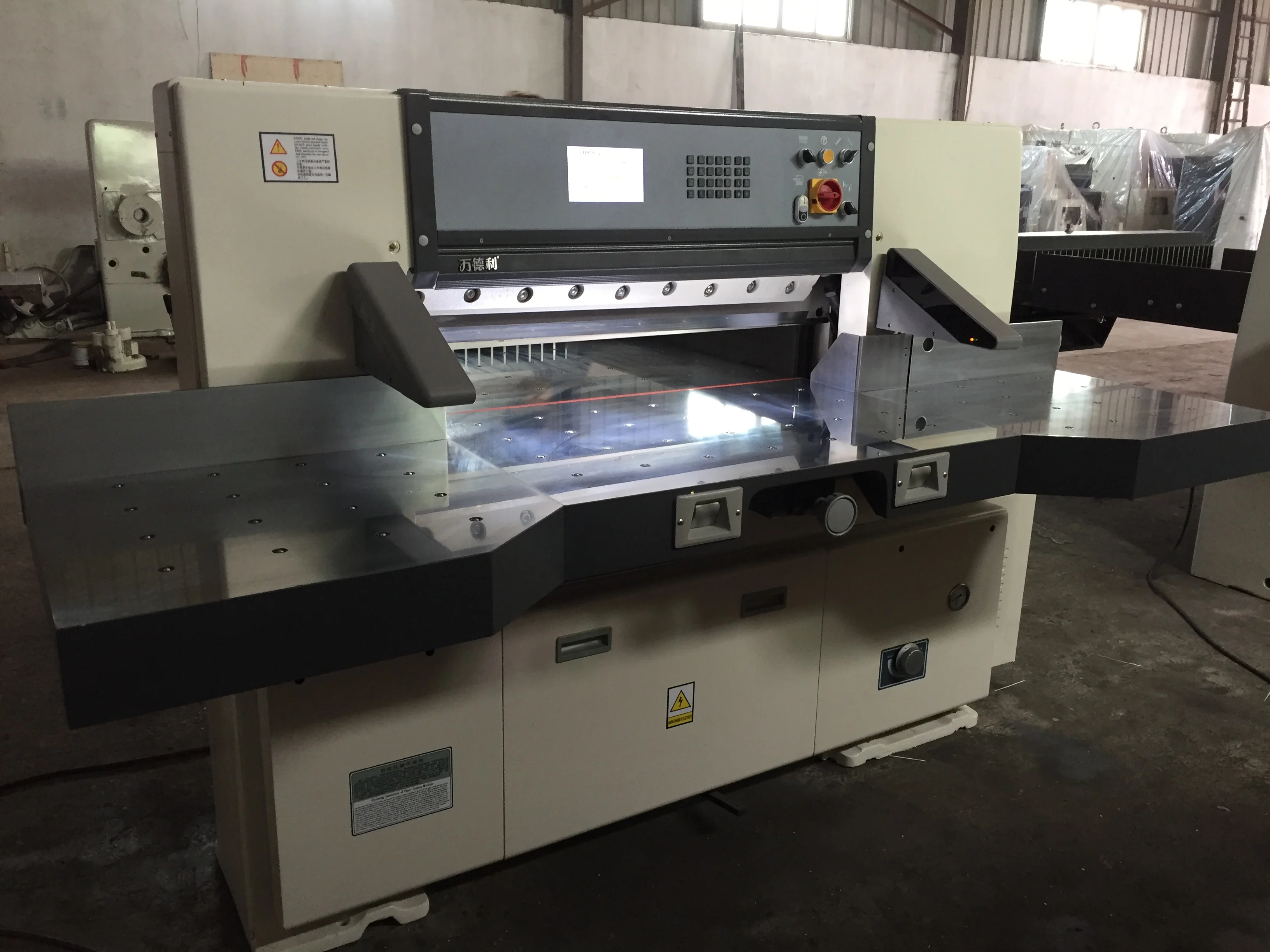

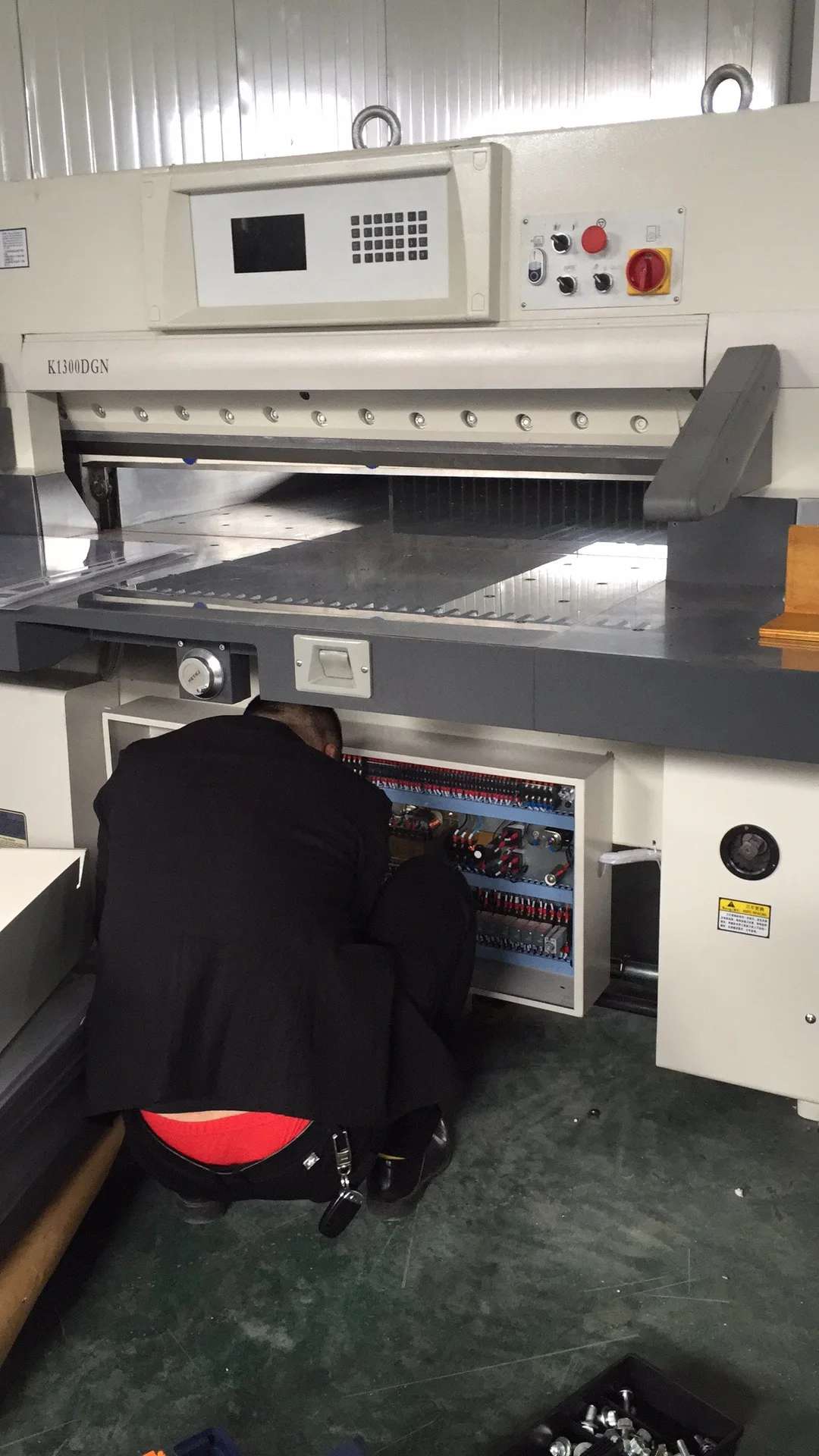

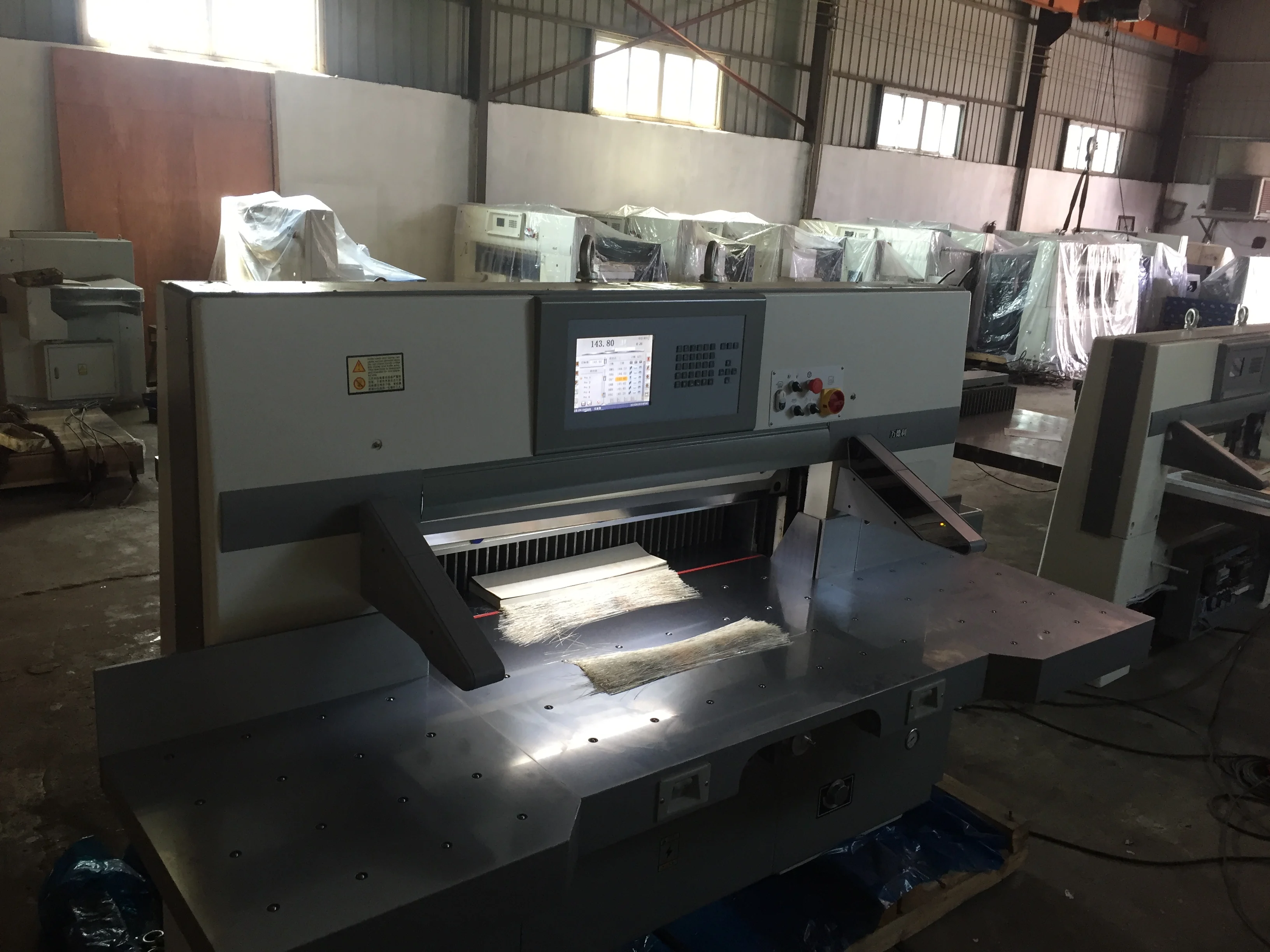

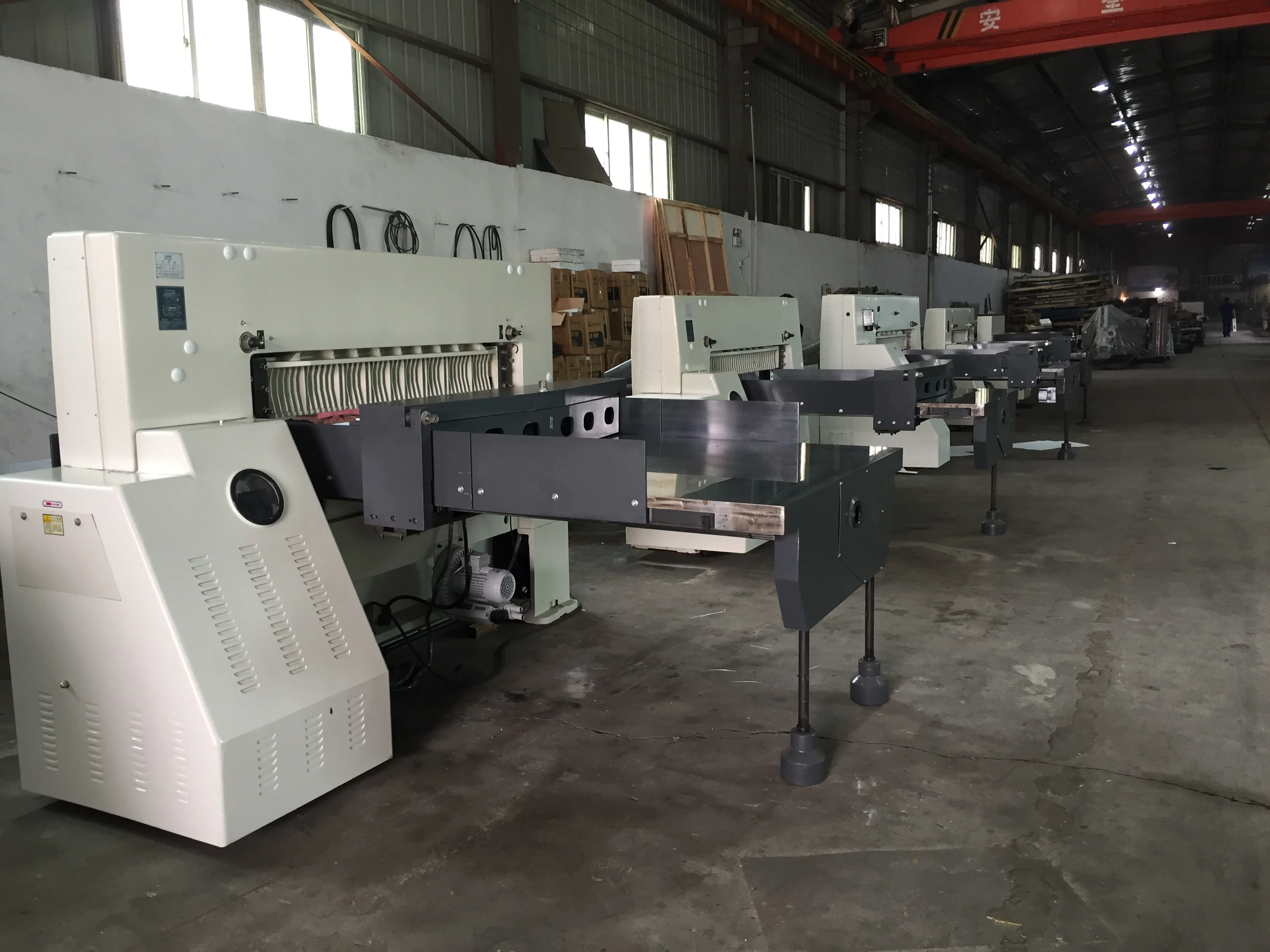

920mm Width Double Hydraulic Paper Cutting Machine
- Category: Paper Production Machinery >>>
- Supplier: Zhejiang Leanon Machinery Co. Ltd.
Share on (60831284471):
Product Overview
Description
Product Description
Info:
- DN series adopt advanced computer control system, which can make 100 groups of programs.
- Use sets of imported frequency control, improve efficiency.
- Paper feeding speed can be as high as 8 m/min with location precision less than 0.1mm.
- 7-inch color screen with fault self-diagnosis.
- Two-track and rapid knife change device.
Product Parameter
Model (more model please contact) | QZYK920DN | QZYK1150DN | QZYK1300DN |
| Max.Cutting width (mm) | 920 | 1150 | 1300 |
| Max.Cutting height (mm) | 120 | 165 | 130 |
| Max.Cutting length (mm) | 1100 | 1150 | 1300 |
| Main motor power (kw) | 3.0 | 4.0 | 4.0 |
| Cutting speed (cuts/min) | 45 | 45 | 45 |
| Machine width (mm) | 1720 / 2200 (with sideway) | 2500 / 2900 (with sideway) | 2500 / 2800(with sideway) |
| Machine length (mm) | 2180 | 2490 | 2490 |
| Front table length (mm) | 749 | 715 | 715 |
| Table height (mm) | 920 | 900 | 900 |
| Packing size (mm) | 2300*1200*1650 | 2755*1450*2000 | 2800*1450*1910 |
| Voltage (V) | 361-399 | 361-399 | 361-399 |
| Wire size (mm2) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 2100 | 3800 | 3800 |
Note: more model please CONTACT.
