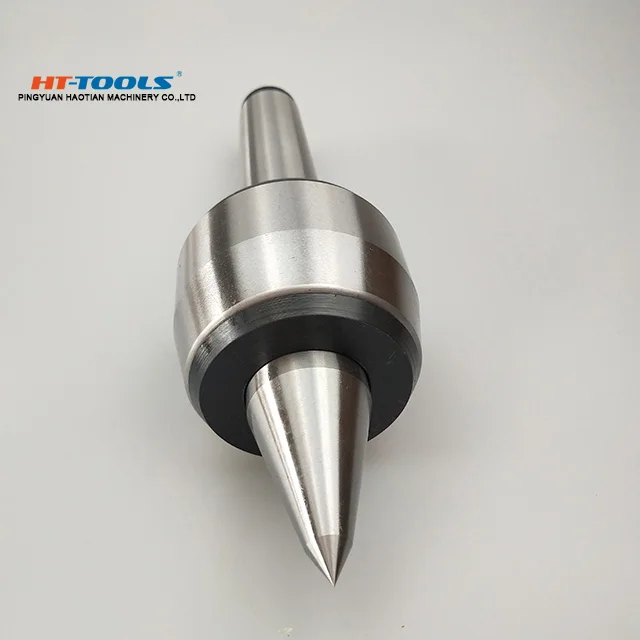

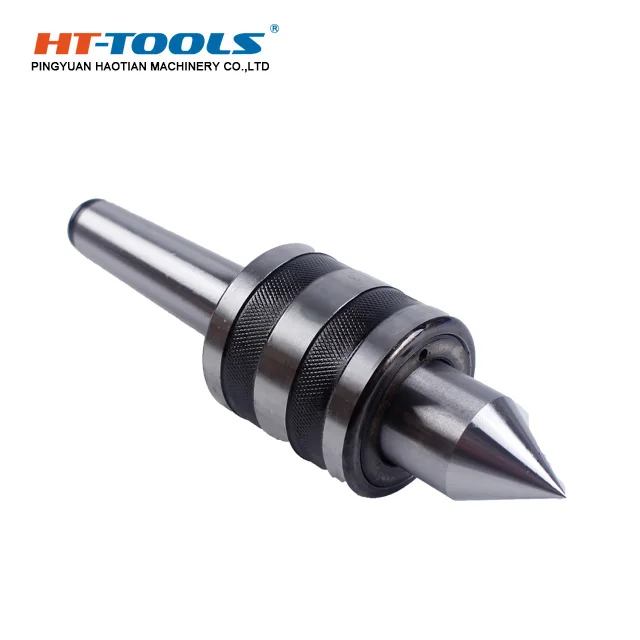

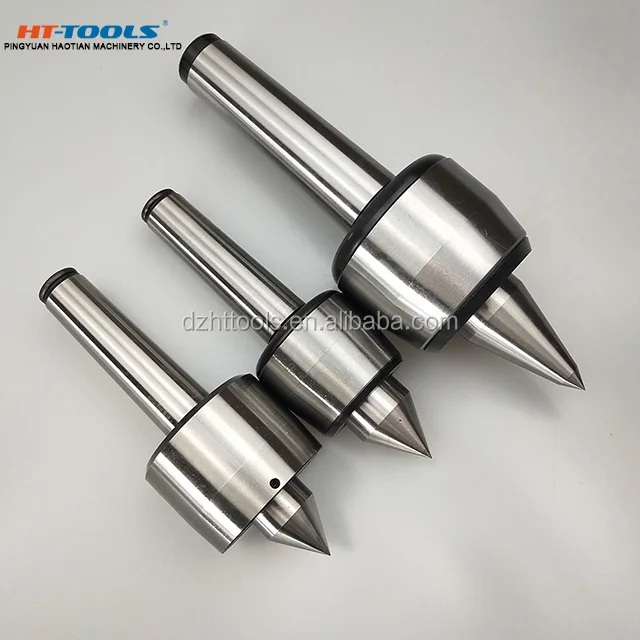

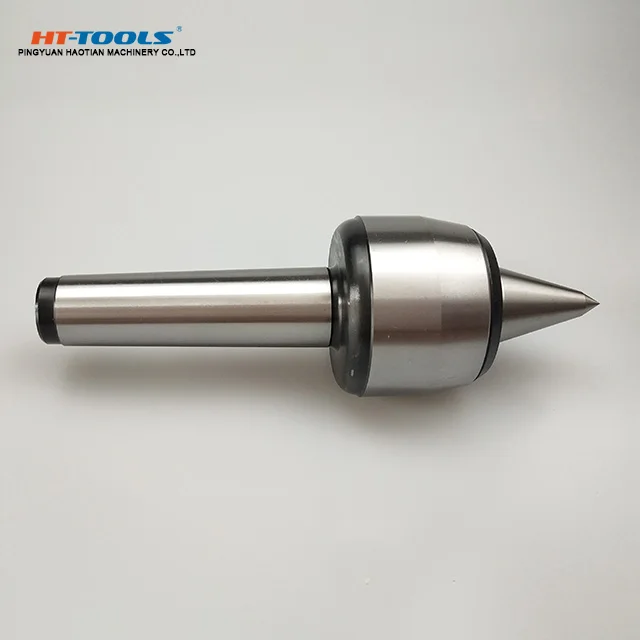

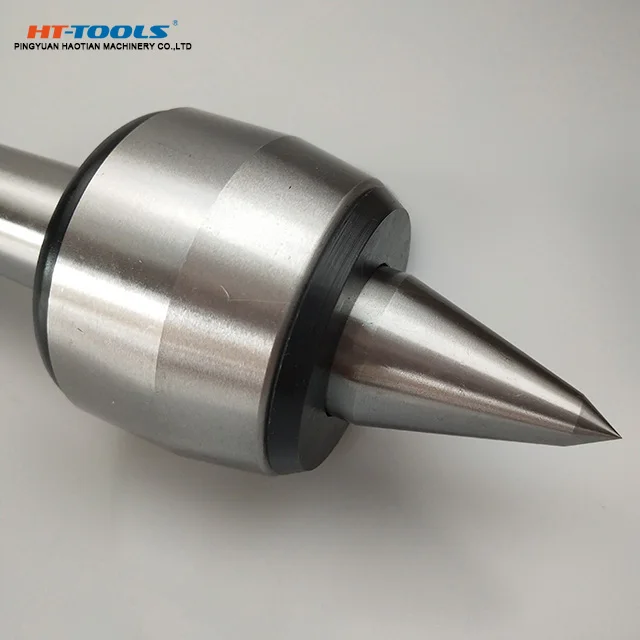

Precision lathe live center DM314 MS4
1.material:mandrel use bearing stell GCr15
2.hardness:HRC58-60,high rigidity and high durability
3.precision≤5μ,high speed 5000rpm
| HT-0048 | PRECISION LIGHT-LIVE CENTER | ||||||||
| Order No. | MS.NO. | L | D | L1 | d | D1 | Max Load | Max Speed | Accuracy |
| (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (rpm) | (mm) | ||
| DM311 | MS1 | 115 | 34 | 20.3 | 18 | 12.065 | 320 | 5000 | 0.005 |
| DM312 | MS2 | 129.6 | 45 | 28.6 | 25 | 17.780 | 400 | 5000 | 0.006 |
| DM313 | MS3 | 161.7 | 52 | 32.5 | 28 | 23.825 | 800 | 4500 | 0.006 |
| DM314 | MS4 | 191.7 | 60 | 36.5 | 32 | 31.267 | 1250 | 3500 | 0.006 |
| DM315 | MS5 | 244.5 | 80 | 50.8 | 45 | 44.399 | 1500 | 3000 | 0.006 |
| DM316 | MS6 | 350.5 | 130 | 74.8 | 75 | 63.348 | 1800 | 2500 | 0.006 |
| DM317 | MS7 | 423.5 | 130 | 74.8 | 75 | 83.061 | 2200 | 2000 | 0.006 |


We are specialized in resarching, producing and developing many kinds of collets, such as ER collets, er 11 collet, er 20 collet, er 32 collet, er 40 collet and OZ collets, including OZ 25 collets with different bore diameter, such as OZ 25 - 6, OZ 25 - 12 and so on; high quality ER nuts, such as er 11 nut, er 32 nut, er 20 nut and so on; Spanners or wrenches, including ER spanner, er 11 spanner, er 20 spanner, er 32 spanner and other types; EOC spanners with differernt diameters according to your requirements; Machine vises, fasteners etc, with high quality and full varieties.


1 Are you factory or Trade Company?
We are Industry and trade integration.
2 Could you supply samples?
Yes, we can supply.
3 Where do you export?
The whole world.
4 Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5 What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.
6. What are the shipping ways?
By international express, by air, by sea are all ok.
7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
8. What’s your payment way?
T/T, Pay pal, Western Union and so on.
9. What’s your delivery time?
5-20 days after order confirmed
10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
