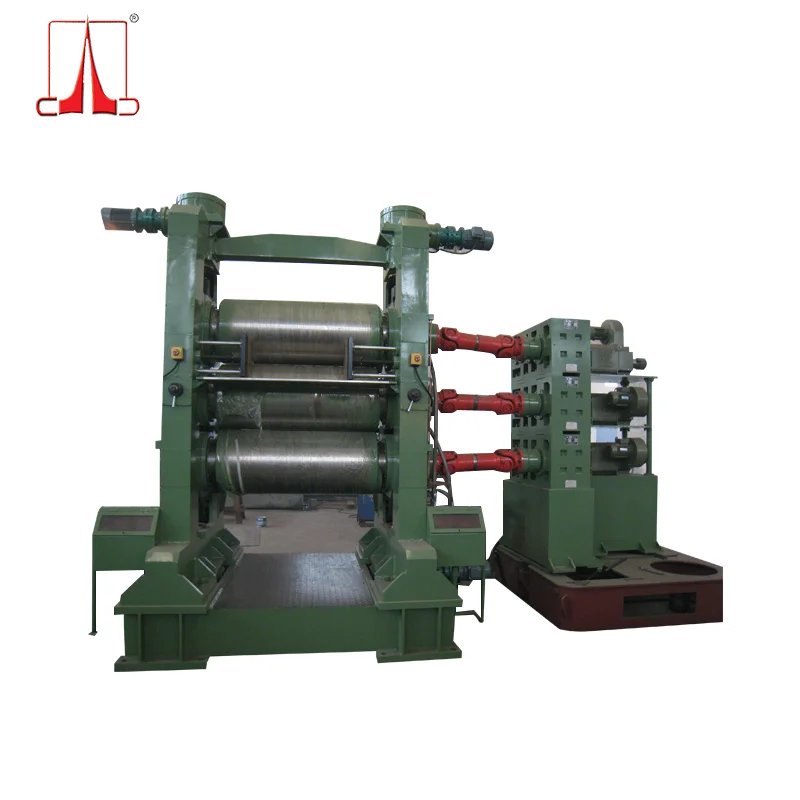

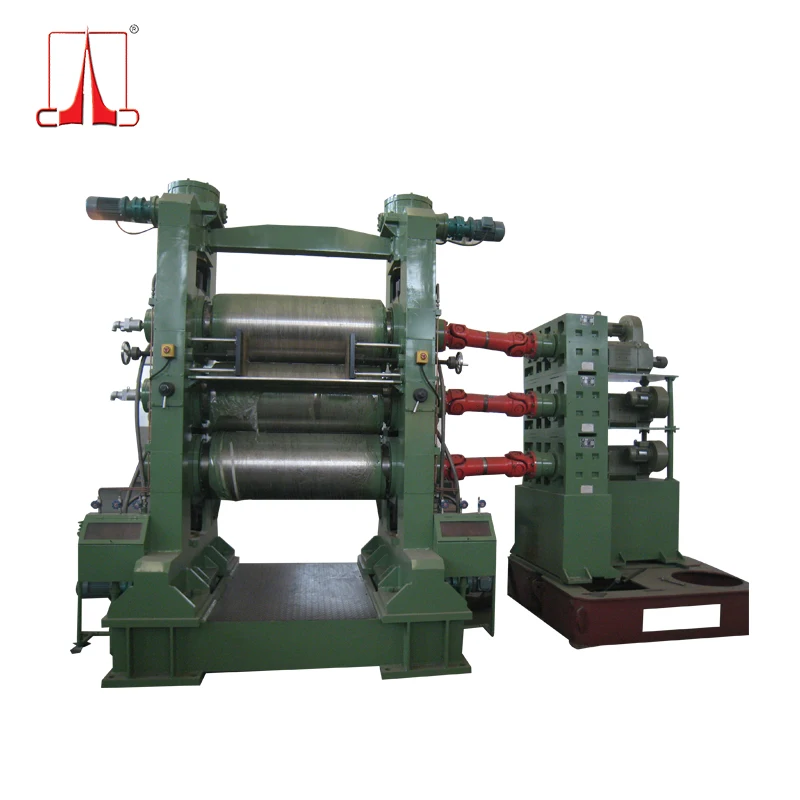

XY 610*1730mm 3 Rolls Rubber Calender/ Rubber calender Machine

Product Overview

Description

Machine Overview:



Used for sheeting, gauging, frictioning of fabric along with rubber or plastic compound.





Main features:





Roller: is made of Chilled Cast Iron alloys, whose work surface has high hardness,wear-resistance and durable life.



Rollers' gap adjustment: manual or electric mode



Roller bearings' lubrication:  dry oil or thin oil by manual or electric mode



Bearing bush: nylon sleeve,copper sleeve or double row spherical roller bearing



Motor: ordinary or frequency motor



Reducer: hard tooth surface reducer



Technical Parameters:

Model/Item	XY-3I 230x630	XY-3I 360x1120	XY-3I 400x1400	XY-3I 450x1500	XY-3I 610x1730	XY-3I 710x2130
Roll Diameter (mm)	230	360	400	450	610	710
Roll Working Length(Mm)	630	1120	1400	1500	1730	2130
Middle-Roll Linear Speed (m/min)	0.8-8	3-20	3-26.39	2.62-26.2	5.4-54	8-50
Adjusting Nip Range(mm)	0-7	0-10	0-10	0-10	0-20	0-20
Product Thickness (mm)	0.2	0.2	0.2	0.2	0.15	0.15
Product Width(mm)	100-500	500-920	1200	1400	1500	1900
Motor Power(Kw)	7.5	55	55	75	132	185
Overall Dimensions LXHXW(mm)	3168	6500	6500	7420	7010	7650
	890	1500	1500	2200	3950	4560
	1830	2440	2440	2900	3730	4080

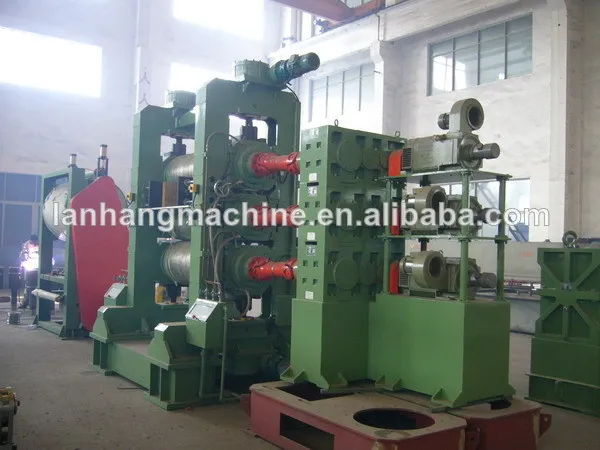

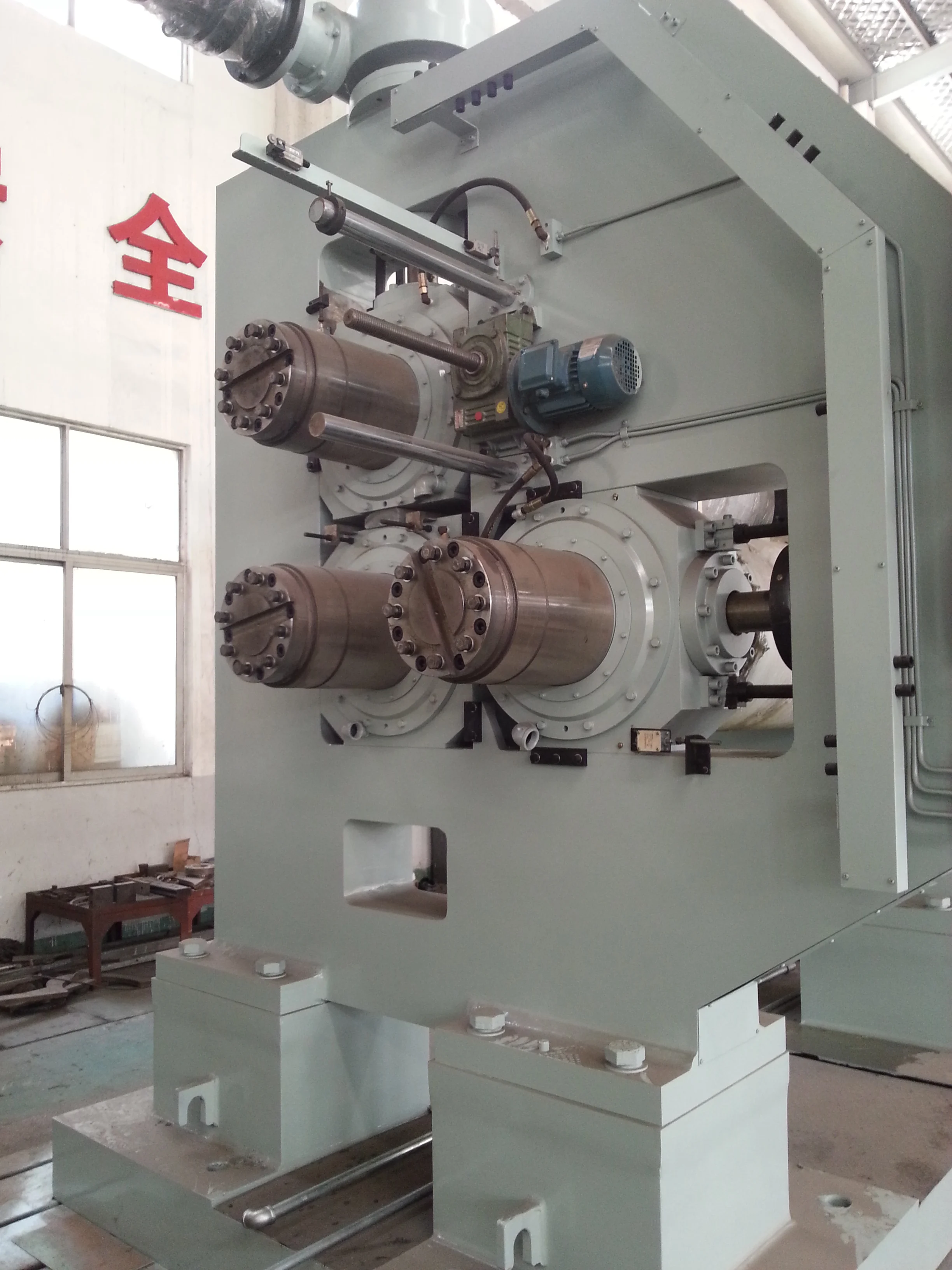

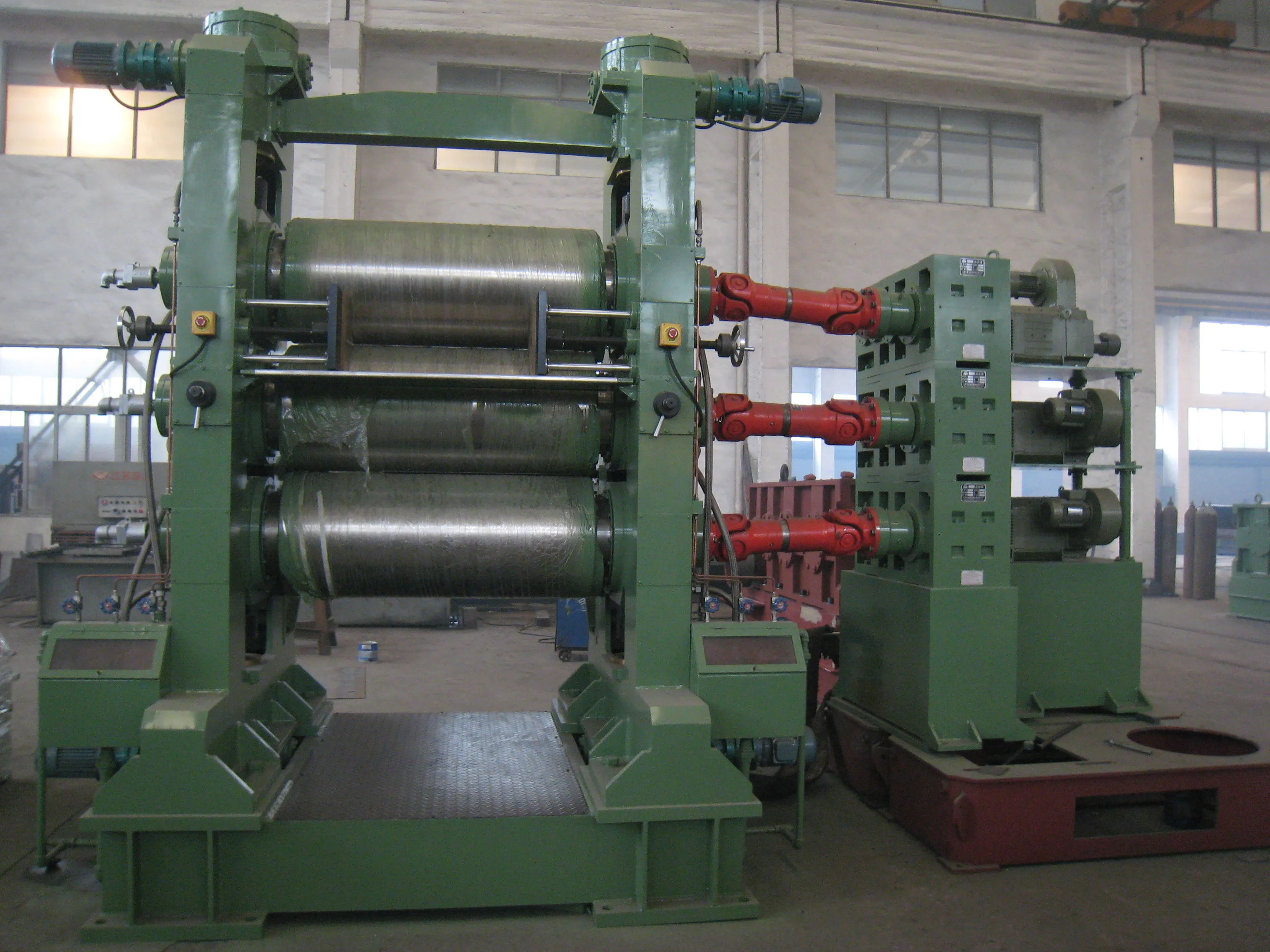

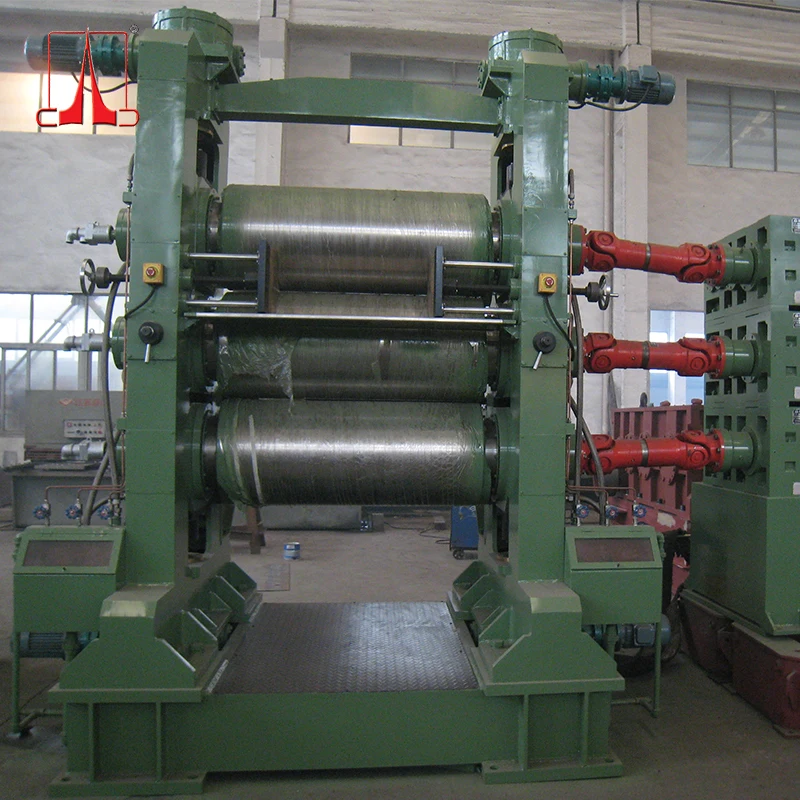

Machine Shows:



Company Introduction:





Zhangjiagang Lanhang Machinery Co,Ltd.,was founded in 1992 .which is a professional manufacturer and one of the leading Chinese suppliers of plastic and rubber equipment for a wide range of applications.



With its rich expertise and familiarity in plastic and rubber industry technology, we provide our customers with mechanical engineering and production at the highest quality level.



Our machinery enjoys the good reputation among our customers due to the high quality and reasonable price. With the excellent after-sale service, we always give our customer the best satisfaction.
