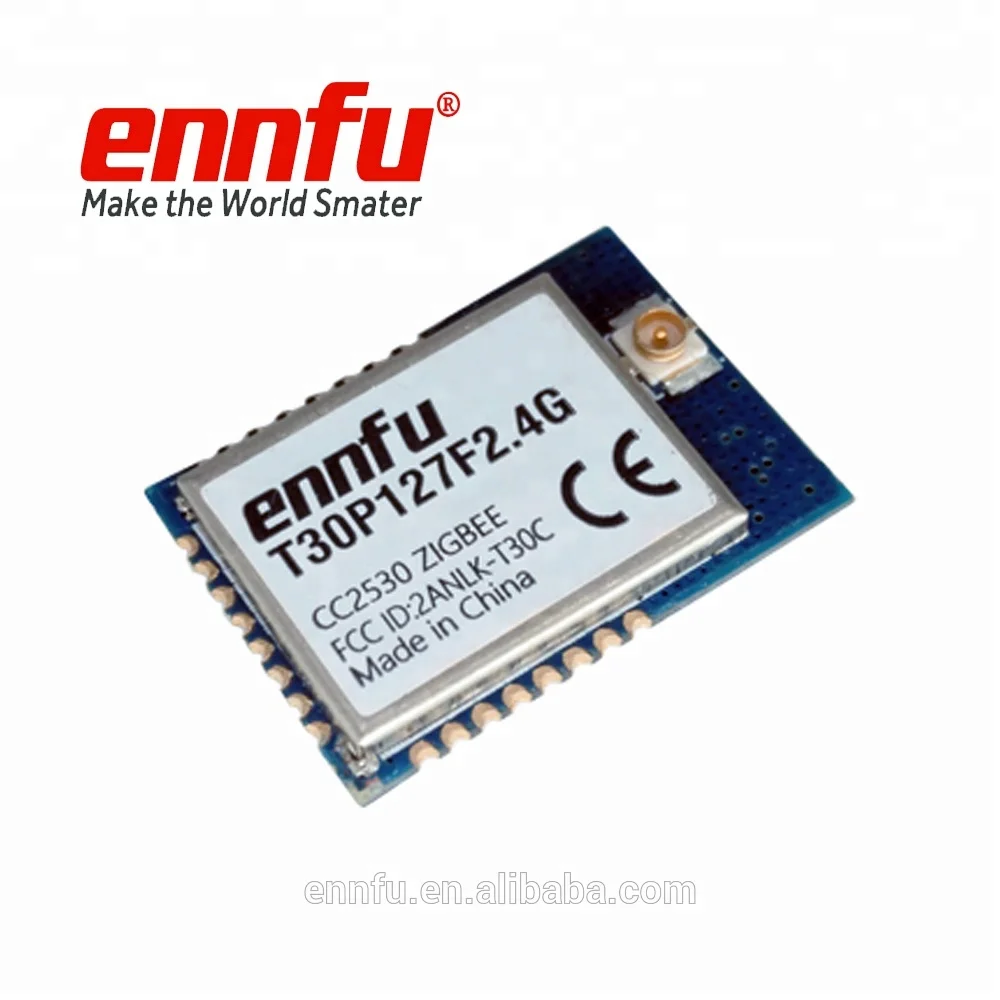

T30P127F2.4G Zigbee Module, feactures with a pre-programmed zigbee router protocol,suit for every rf data transparent applications, based on original cc2530 zigbee rf chip,adopt IEEE 802.15.4 standard protocol. up to more than 390meters distance(visual distance)@5dbi antenna.eaisly and quitckly establish a hoc mesh network.
Caution:Causing permanent damage to the module when the voltage is higher than 3.6V.
8
Communication Level
+0.7V~+5V
9
Actual Test Communication Distance
≈390m
Test Condition:
10
Air Ratio
250Kbps
Weather:Sunny, 35℃;Relative Humidity:65%;
11
Send Power
4dBm
Test location:Visual space;
12
Shut Current
1.2uA
Antenna Gain:3DB; Height:2m;Speed Rate:250K.
13
Send Current
28mA@4dBm
14
Receive Current
27mA
About 2.5mW
15
Communication Interface
I/O
MCU sleep,wireless shut,Voltage:3.3V
16
Send Length
1~103Bytes
Power supply must exceed 100mA
17
Receive Length
1~103Bytes
Average current
18
RSSI Support
Support
All I/O pins of MCU, please see IC manual for detail.
19
Antenna Interface
IPEX
Single data packet
20
Working Temperature
-40℃~+85℃
Single data packet
21
Relative Humidity
10%~90%
Please see IC manual.
22
Storage Temperature
-40~+125℃
Antenna external
23
Receive Sensitivities
97dBm@250Kbps
Industrial grade
ZIGBEE PCB MODULE LAYOUT:
MIN
MAX
Units
A
14.6
14.6
mm
B
20.45
20.45
mm
C
2.7
2.7
mm
D
0.8
0.8
mm
E
1.27
1.27
mm
F
3.1
3.1
mm
G
2.3.
2.3
mm
PIN DEFINITION:
PIN Number
PIN Name
PIN Direction
PIN Applications
1
GND
1~103Bytes
Grounding,joint with the reference point of power.
2
VCC
Support
Supply power:2.0~3.6V.
3
P2.2
I/O
Single -Chip IO
4
P2.1
I/O
Single -Chip IO
5
P2.0
I/O
Single -Chip IO
6
P1.7
I/O
Single -Chip IO
7
P1.6
I/O
Single -Chip IO
8
NC
Dangling
9
NC
Dangling
10
P1.5
I/O
Single -Chip IO
11
P1.4
I/O
Single -Chip IO
12
P1.3
I/O
Single -Chip IO
13
P1.2
I/O
Single -Chip IO
14
P1.1
I/O
Single -Chip IO
15
P1.0
I/O
Single -Chip IO
16
P0.7
I/O
Single -Chip IO
17
P0.6
I/O
Single -Chip IO
18
P0.5
I/O
Single -Chip IO
19
P0.4
I/O
Single -Chip IO
20
P0.3
I/O
Single -Chip IO
21
P0.2
I/O
Single -Chip IO
22
P0.1
I/O
Single -Chip IO
23
P0.0
I/O
Single -Chip IO
24
RSET
Input
Reset interface
