Product Overview
Description

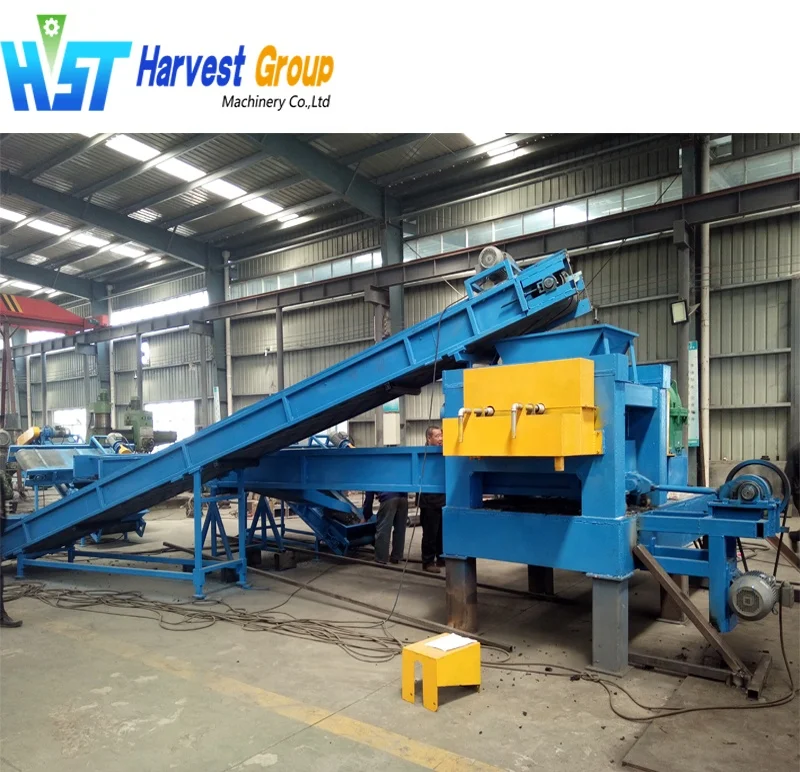

Fully automatic tire recycling machine

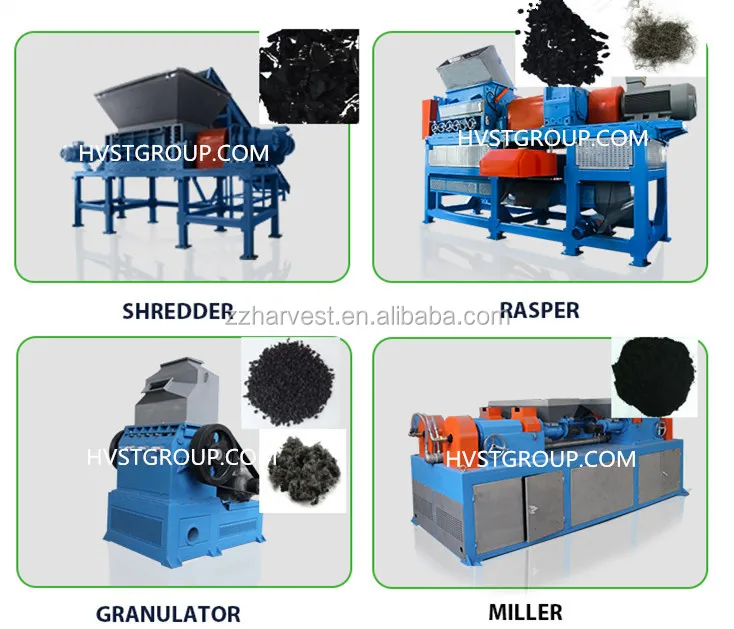

Tire debeader--(Tire cutter)--Tire shredder--Rubber crusher machine group--Rubber powder
Machine introduction of fully-automatic tire recycling line
First step: Tire debeader: to draw out the wire steel from tire bead
Second step: Tire cutter: if the tire is larger, can use this machine to cut waste tire into several piecec
Tire debeader
Tire cutter

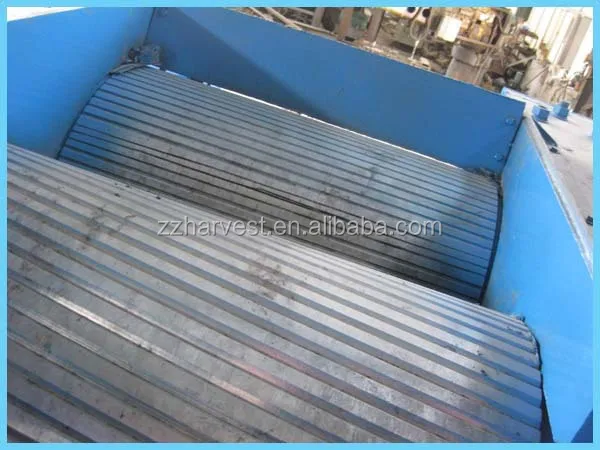

Double shaft tire shredder
to shred the whole tire into rubber chips about 50mm. There are different models with different capacity.
Mode | TS-800 | TS-1200 |
Input size | 800mm | 1200mm |
Output size | 50*50mm | 60*60mm |
Capacity | 1-2t/h | 3-5t/d |
Motor | 2*22kw | 2*45kw |
Weight | 8t | 14t |
Rubber crusher: (host equipment)
to make rubber blocks into rubber powder as desired size in 5-40mesh
Model | Drum dia | Drum length | Front roll linear | Roll speed radio | Motor |
xkp350 | 300mm | 500mm | 26.2m/min | 1:2.5 | 30kw |
xkp400 | 400mm | 600mm | 34.5m/min | 1:2.5 | 45kw |
xkp450 | 450mm | 760mm | 38.0m/min | 1:2.5 | 55kw |
xkp560 | 560mm | 800mm | 38.6m/min | 1:2.5 | 75kw |
xkp560D | 560mm | 1000mm | 42.5m/min | 1:2.5 | 132kw |
Auxiliary equipment of rubber crusher
Main vibrating screen machine,
Vice vibrating screen machine
Magnetic separator
Nylon fiber separator
Semi automatic tire recycling production line
Tire dismantle machine: Tire circle cutter, tire strip cutter, tire slice cutter, rim separator
Rubber blocks--Rubber crusher group--Rubber powder
Tire circle cutter: to cut tire side wall out
TIre strip cutter: to cut the whole tire into strips
Tire slice cutter: to cut the strip into rubber blocks
Rim separator: to to remove the wire rings from sidewall
Rim separator
to remove the wire rings from sidewall
