custom 3.5 inch 40-pin transflective tft lcd display 640X480 / 480x640
custom 3.5 inch 40-pin transflective tft lcd display 640X480 / 480x640 key mechanical data:
| Main Parameters: | |
| Item | kingtech 3.5 inch IPS transflective TFT display |
| Model No | PV03501LZR40C |
| Resolution | 480x640 / 640 /640x480 |
| Outline Dimension | 63(W)×85(H)×2.9(T) |
| Active Area(mm) | 53.57W)×71.42(H) |
| Interface | 3-wire SPI + RGB interface |
| Viewing Angle | ALL ips |
| LED Numbers | 8 |
| Warranty | 12 months |
| Driving IC | HX8363A |
| Display Mode | Normally Black |
| Pixel Pitch (mm) | 0.116(W)×0.116(H) |
| FPC type | ZIF |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Response time | 25 |
| Brightness | 160 |
3.5 inch transflective 480*640 or 640*480 sunlight readable display module

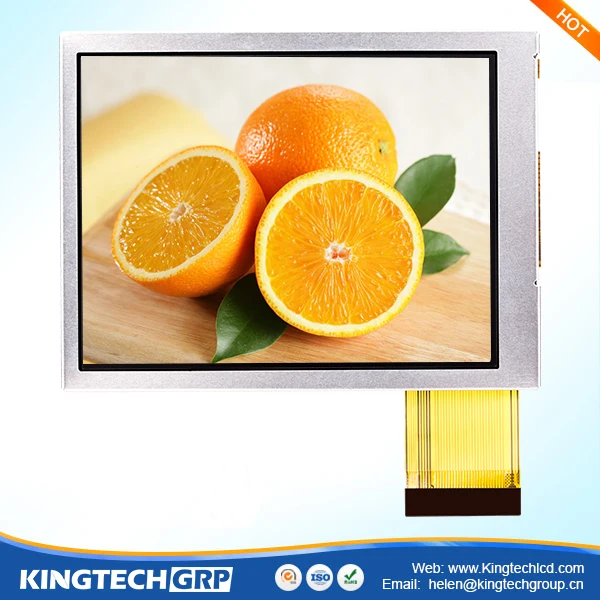

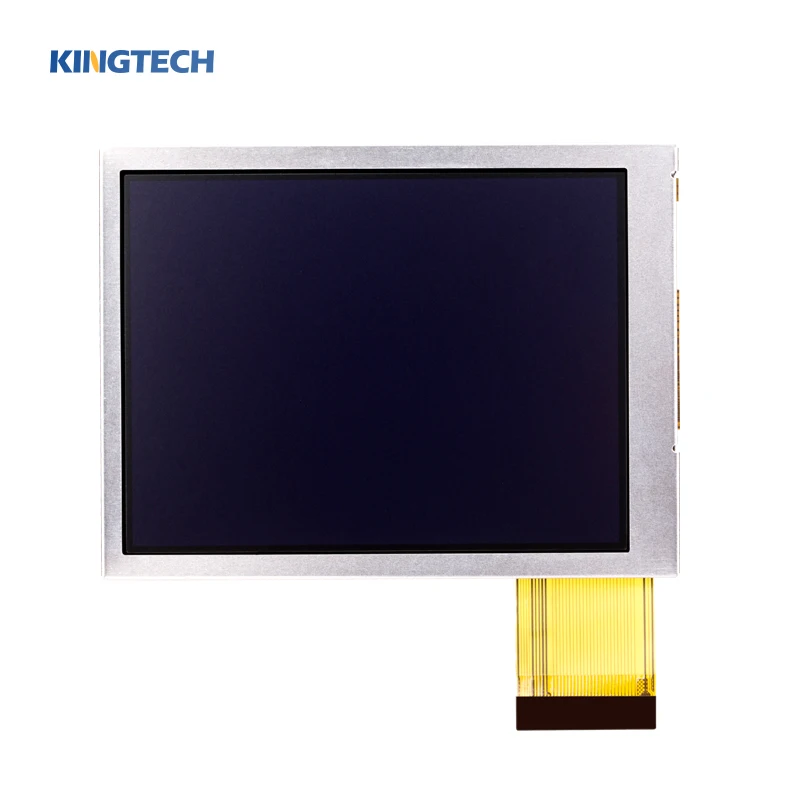

It is 480*640 LCD panel. Most customers use it as landscape like 640*480 as below picture shows front picture:

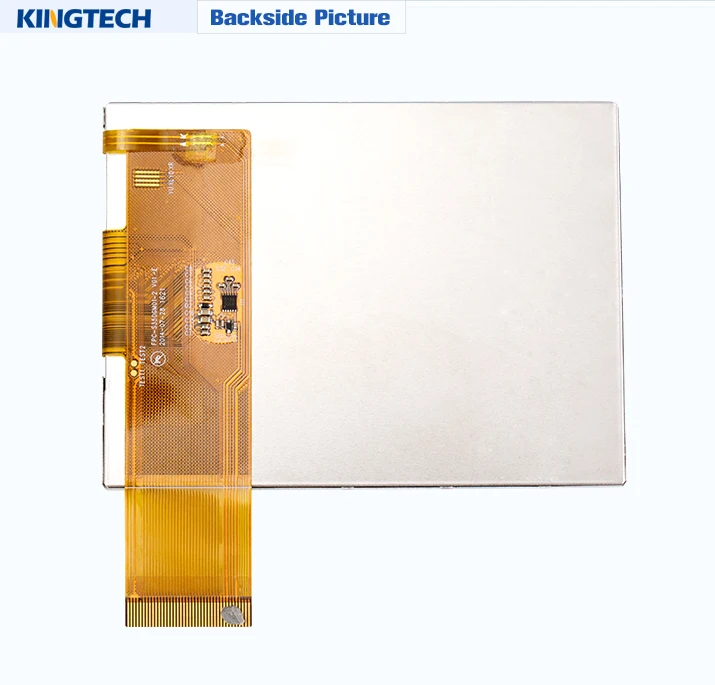

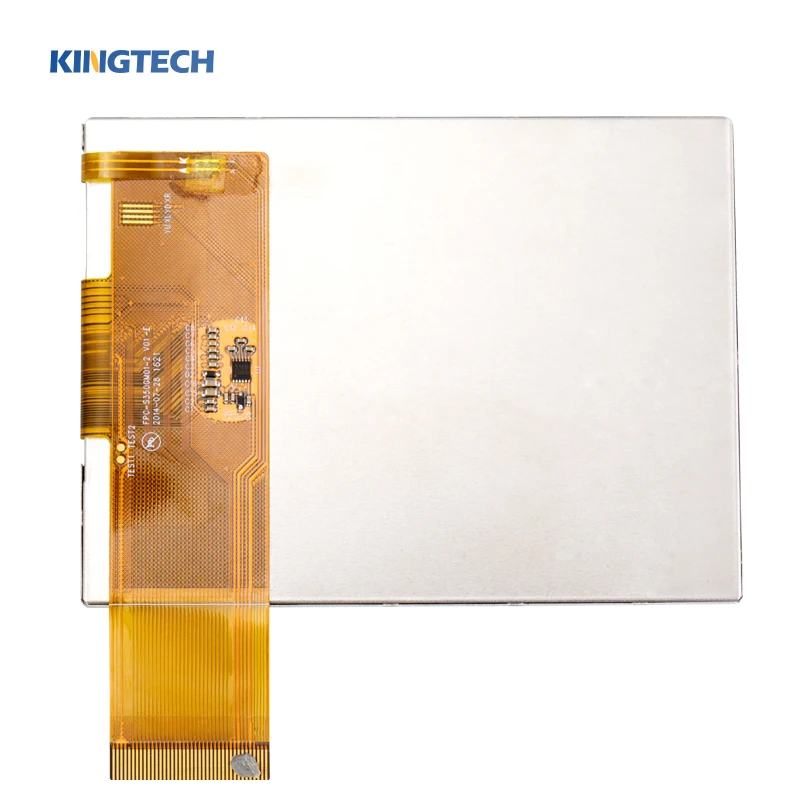

3.5 inch online new model design lcd screen company for electric bike backside picture:

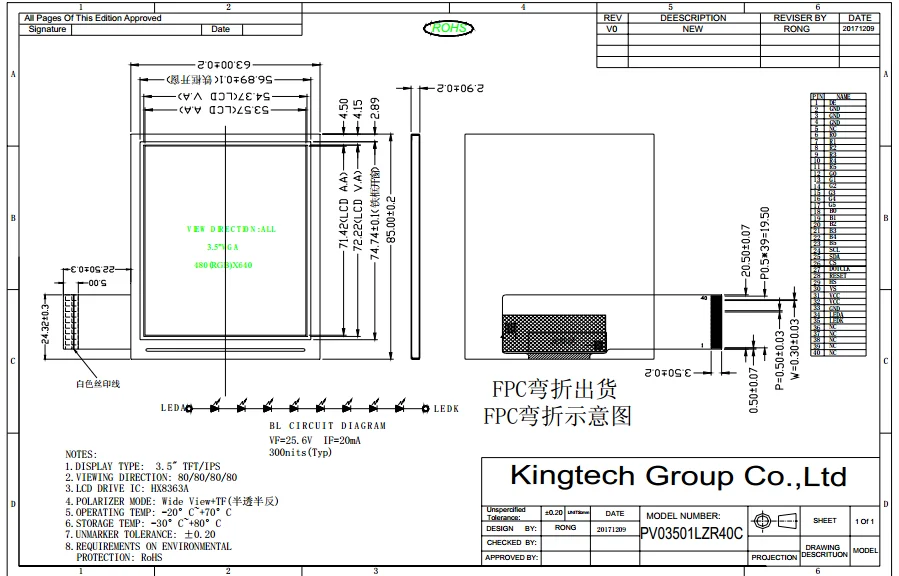

3.5 inch transflective 480*640 or 640*480 sunlight readable display module mechanical drawing:
3.5 inch transflective 480*640 or 640*480 sunlight readable display module
Please click below Model No to review product details
| Size and Feature | Model No | Pixel | Outline Dimension | TP |
| 3.5" display | DW0350A3CZ | 320x240 | 63.9(W)*76.9(H)*3.3(T) | RTP/CTP |
| 3.5" display 550cd/m2 | T320240T35N03 | 320x240 | 76.9(W)* 63.9(H)*3.3(T) | RTP/CTP |
| 3.5"TN | PV03500YX45C | 320480 | 54.66(W)*82.94(H)*3.4(T) | RTP/CTP |
| 3.5" IPS/Free viewing angle | PV0350B2Z10 | 320*480 | 53.76(W)*84.18(H)*3.30(T) | RTP/CTP |
| Remark | ODM and OEM are welcome | |
Workshop
Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production. Semi-automatic line for sample making and small order assembly.
We can handle sample and small orders flexibly. We don't have strict MOQ requirement. Thousand class cleaning room to assemble backlight and FOG
3.5 inch transflective 480*640 or 640*480 sunlight readable display module
For every new model, before mass production, we do reliability test to ensure our material choice and our workmanship are designed properly.
This can help to avoid reliability issues happening at our customer side
Other Products
Other product products, please click below Model No to review product details
| Size and Feature | Model No | Pixel | Outline Dimension |
| 1.3'' Round AMOLED | PV013002T45B | 360*360 | 35.34(W)*36.84(H)*0.678(T) |
| 1.39"Round AMOLED | PV013901PY20B | 400*400 | 38.6 (W)×40.5(H)×0.7(T) |
| 2.4" IPS TFT LCD | PV0241F2CZ0_V00 | 240*320 | 42.72(W)*60.7(H)*2.21(T) |
| 3.34'' Round TFT LCD | PV033400AR17A | 320*320 | 66.20(W)×69.30(H)×2.66(T) |
| 4.0" IPS/Free viewing angle | PV0401FT25B | 480*800 | 57.14(W)* 96.85(H) *1.93(T) |
| 4.3" high brightness | PV043WQ-CTNC4001 | 480*272 | 105.5(W)*67.1(H)*2.95 (T) |
| 4.3" IPS/Free viewing angle | PV04300FT40C | 480*800 | 61.46(W)*104.75(H)*2.20 |
| 5.5'' IPS/Free viewing angle | PV05502FT39D | 720*1280 | 76.8(W) * 137.4(H) * 2.7(T) |
| 10.1" 1000nits IPS/free viewing | PV10101LZR40B-C | 1280*800 | 229.80(W)*149.00(H)*5.95(T) |
With Customers
3.5 inch transflective 480*640 or 640*480 sunlight readable display module
Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production. Semi-automatic line for sample making and small order assembly.
We can handle sample and small orders flexibly. We don't have strict MOQ requirement. Thousand class cleaning room to assemble backlight and FOG
